What Are the Main Components of a Steel Plate Pretreatment Line?
release time:
2026-07-31
Qingdao KEEJOO Group is a trusted industrial manufacturer specializing in advanc
Qingdao KEEJOO Group is a trusted industrial manufacturer specializing in advanced surface preparation equipment such as the high-performance Shot Blasting Machine. Our factory designs and builds comprehensive steel plate pretreatment lines to improve surface quality, corrosion resistance, and coating adhesion. Below we introduce the main components of the entire system and their coordinated roles in production.
Main Components of a Steel Plate Pretreatment Line
A modern steel plate pretreatment line is composed of several interconnected sections, each contributing to the efficient preparation of plates for subsequent painting, welding, or coating processes. In our factory at Qingdao KEEJOO Group, we design these systems with precision to ensure long service life, minimal maintenance, and high energy efficiency.
1. Plate Conveying and Loading System
The conveying and loading section forms the foundation of the entire pretreatment line. Our system uses heavy-duty roller or chain conveyors to transport plates smoothly between modules. Hydraulic lifters and automatic feeders align the plates accurately and reduce manual handling, ensuring a continuous production flow that perfectly matches the capacity of the Shot Blasting Machine.

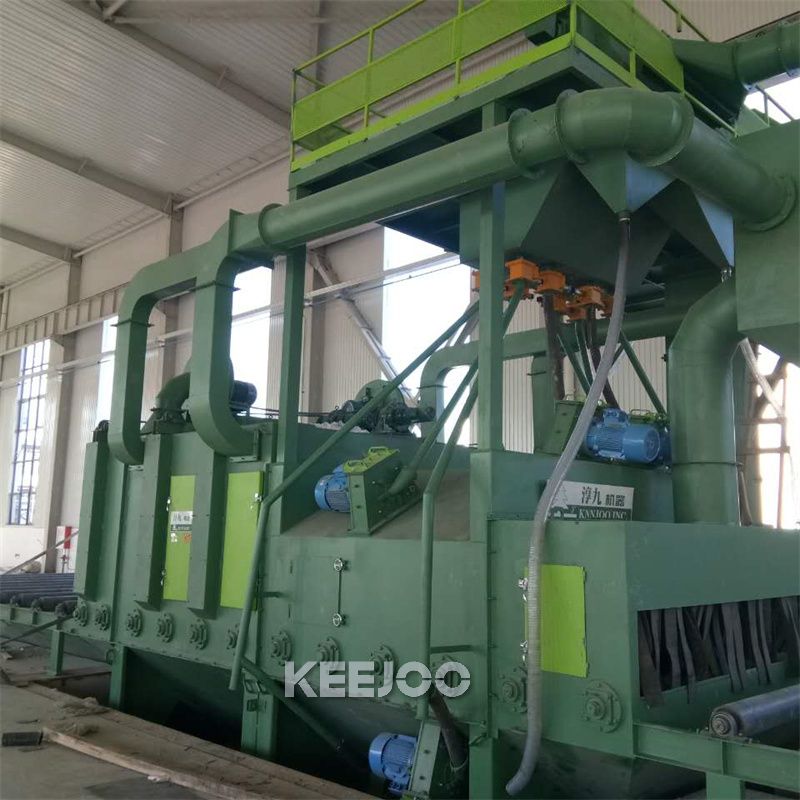

2. Shot Blasting Machine Module
The Shot Blasting Machine is the core cleaning component. It propels abrasive media at high velocity to remove rust, oxide scale, and contaminants from steel surfaces. Our factory equips each Shot Blasting Machine with multiple turbines, efficient abrasive circulation, and dust-collection units. Qingdao KEEJOO Group engineers customize turbine power, chamber dimensions, and abrasive recovery systems to meet specific client requirements while ensuring clean, uniform surfaces ideal for coating adhesion.
3. Cleaning and Rinsing Section
After blasting, fine particles or shot residues may remain on the plate surface. The cleaning and rinsing unit removes these residuals using air blowers, high-pressure water, or mechanical brushes. In our factory, we configure this section to operate at the same throughput speed as the Shot Blasting Machine, ensuring complete removal of debris and consistent surface preparation quality.
4. Drying and Pre-Coating Section
Once cleaned, the plates must be dried to eliminate all moisture before coating. Qingdao KEEJOO Group integrates high-efficiency hot-air dryers or infrared heating systems into the line to achieve uniform drying. Our temperature-controlled modules ensure the steel surface reaches the correct pre-coating temperature, improving adhesion and reducing coating defects.
5. Central Control and Monitoring System
To achieve stability and reliability, all mechanical components are coordinated through a PLC-based control system. Our factory provides intelligent dashboards that track turbine speed, conveyor velocity, and temperature in real time. This monitoring platform enhances production safety, enables predictive maintenance, and ensures that each Shot Blasting Machine and its auxiliary modules work seamlessly together.
Technical Specifications of the Steel Plate Pretreatment Line
To help users better understand the configuration and performance of our equipment, the following table summarizes the key technical parameters of each major component in the steel plate pretreatment line. All values can be customized according to specific production capacity and plate dimensions.
| Module | Description | Typical Specification |
| Conveyor System | Roller or chain conveyor for plate feeding | Width 2000–4500 mm, Speed 1–6 m/min |
| Shot Blasting Machine | Main surface treatment chamber with turbines | Width up to 5500 mm, Turbine power 4×11 kW–20×22 kW |
| Cleaning & Rinse Unit | Air blow-off or water wash cleaning module | Air 0.6–0.8 MPa or water 2–5 MPa |
| Drying Section | Infrared or hot-air drying oven for moisture removal | Temperature range -20 °C to 150 °C |
| Control System | PLC/SCADA with data monitoring | Integrated cabinet with remote interface |
FAQs: What Are the Main Components of a Steel Plate Pretreatment Line?
Q1. What Are the Main Components of a Steel Plate Pretreatment Line?
A1. The main components include a loading and conveying system, a Shot Blasting Machine, a cleaning and rinsing section, a drying or pre-coating module, and a central control system. Each plays a vital role in ensuring that the steel plates are perfectly prepared for painting or coating.
Q2. What role does the Shot Blasting Machine play in the process?
A2. The Shot Blasting Machine removes rust, oxide scale, and impurities from the surface using high-speed abrasive impact. Our factory optimizes this machine for throughput, surface finish, and abrasive recovery efficiency, ensuring superior cleaning performance.
Q3. How does Qingdao KEEJOO Group ensure quality across all components?
A3. Each module is designed and assembled in our factory under strict quality management systems. We perform full load testing on every Shot Blasting Machine and integrate sensors for continuous monitoring, ensuring durability, precision, and reliability across the entire pretreatment line.
Conclusion
At Qingdao KEEJOO Group, we take pride in delivering complete surface treatment solutions that combine precision engineering, durable Shot Blasting Machine systems, and intelligent automation. Our factory’s experience ensures every component works in harmony, providing customers with high productivity, consistent quality, and long-term operational stability.
