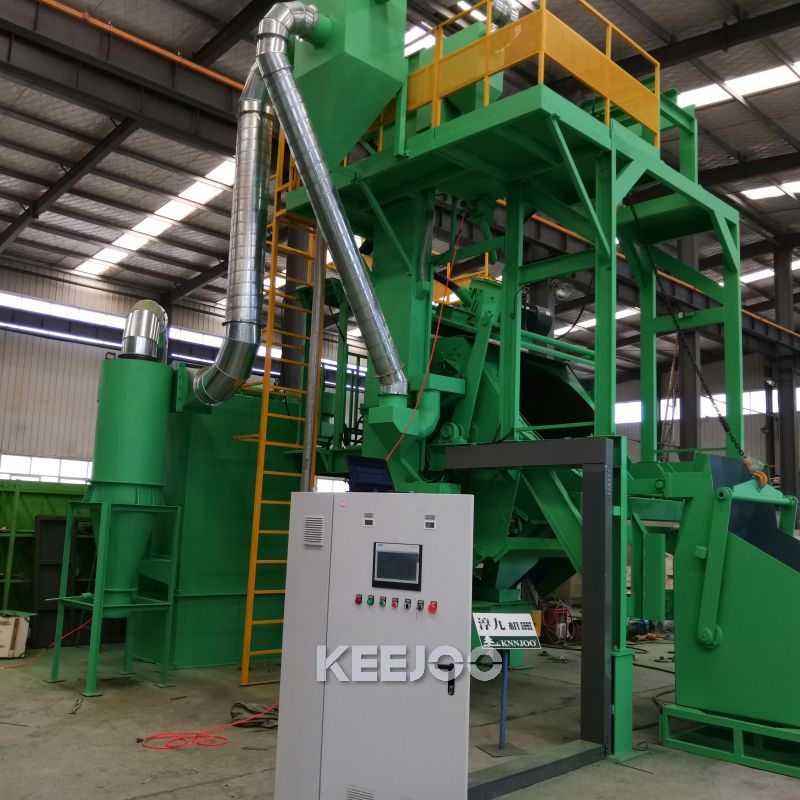

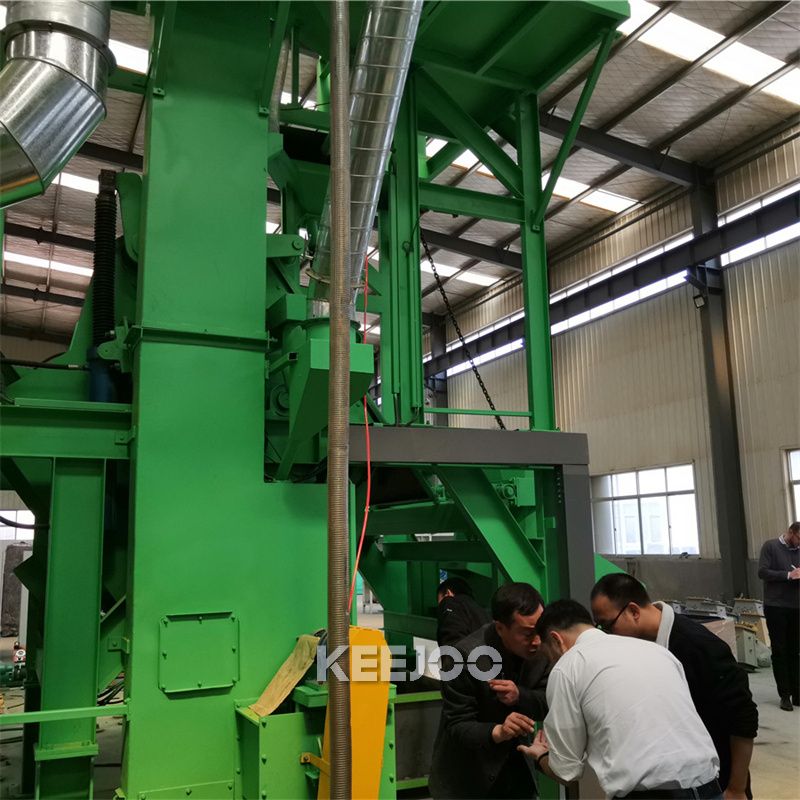

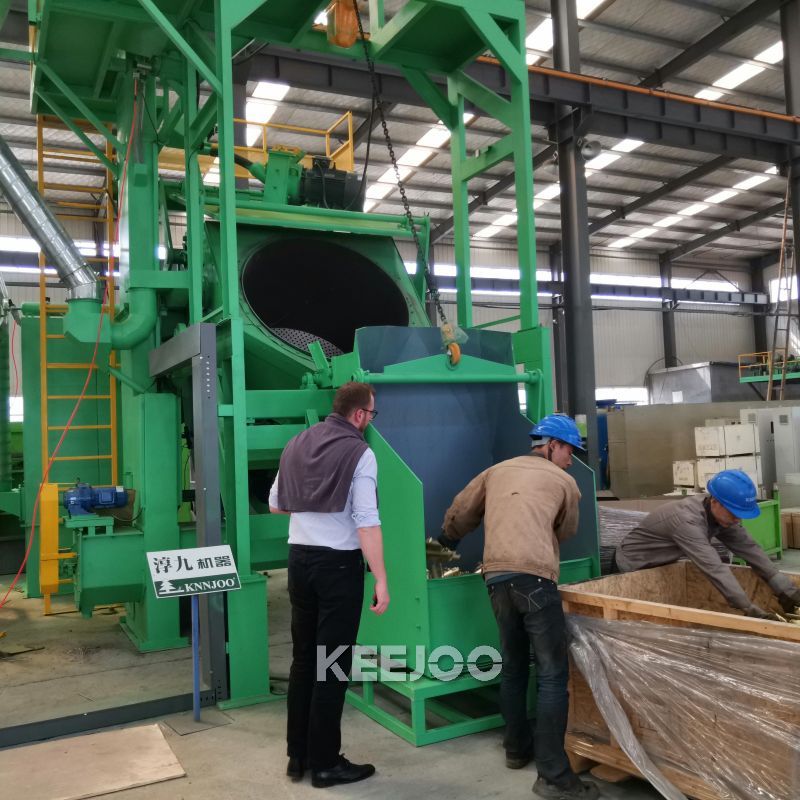

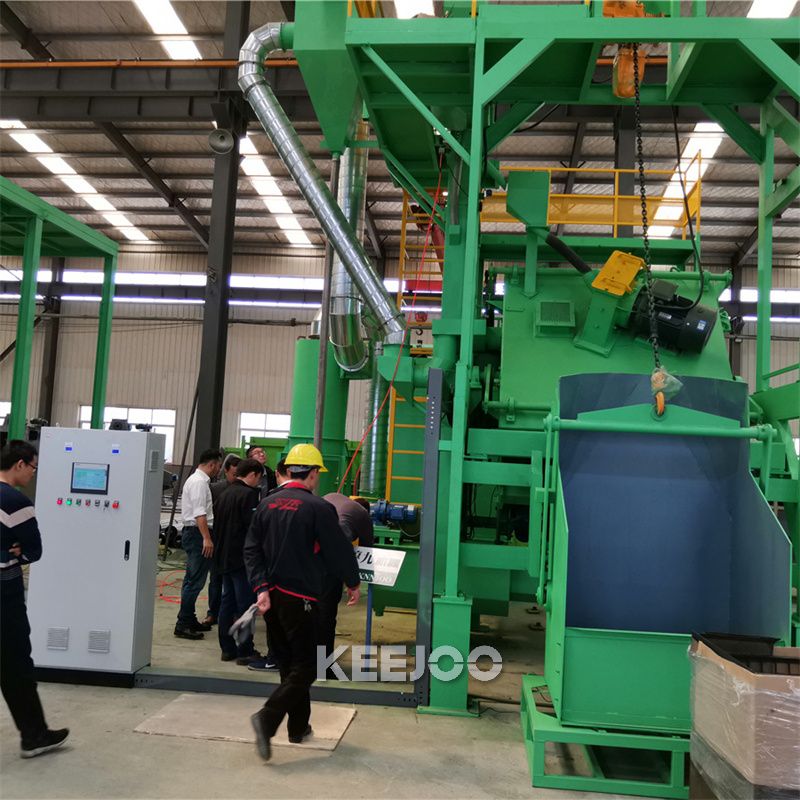

Bearing Rings Shot Blasting Machine
- 产品详情
The high quality Bearing Rings Shot Blasting Machine with KEEJOO brand is a kind of shot blasting cleaning/strengthening equipment specially designed for batch processing of bearing rings, which realizes automatic loading and unloading of materials through inclined drums.
Features
The bearing ring tilt drum shot blasting machine adopts a double-layer drum design. The outer layer is a conical cylinder body, and the inner layer is embedded with high manganese steel castings and cast with threaded lines to ensure that the workpieces can flip inside the drum. The rotating part of the drum is densely covered with shot leakage holes, and a friction ring is set in the middle to guide the flow of the shot.
Technical data
Model Capacity/Drum Diameter Length (Drum) CND-10 50-200 KG 700mm 800mm CND-I 100-600KG 1200mm 1300mm CND-II 200-1200KG 1500mm 1600mm Cleaning effect
When shot blasting, the drum swings up and down synchronously, allowing the workpiece to fully contact the shot and achieving a uniform cleaning effect. It is particularly suitable for thin-walled, small or special-shaped workpieces, avoiding malfunctions caused by jamming in traditional equipment.
Maintain advantages
The body structure has been simplified, and the number of vulnerable parts is only half of that of the old model, significantly reducing maintenance costs and time. It adopts PLC control, supports single machine or online operation, and has a high degree of automation.
Application
The Bearing Rings Shot Blasting Machine is mainly used in the bearing manufacturing industry and is suitable for:
Remove the oxide scale after heat treatment.
Remove surface rust and burrs from forgings or castings.
Improve the cleanliness of the workpiece surface to prepare for subsequent processes.
Stress strengthening treatment is carried out on the surface of the workpiece to enhance fatigue strength.
