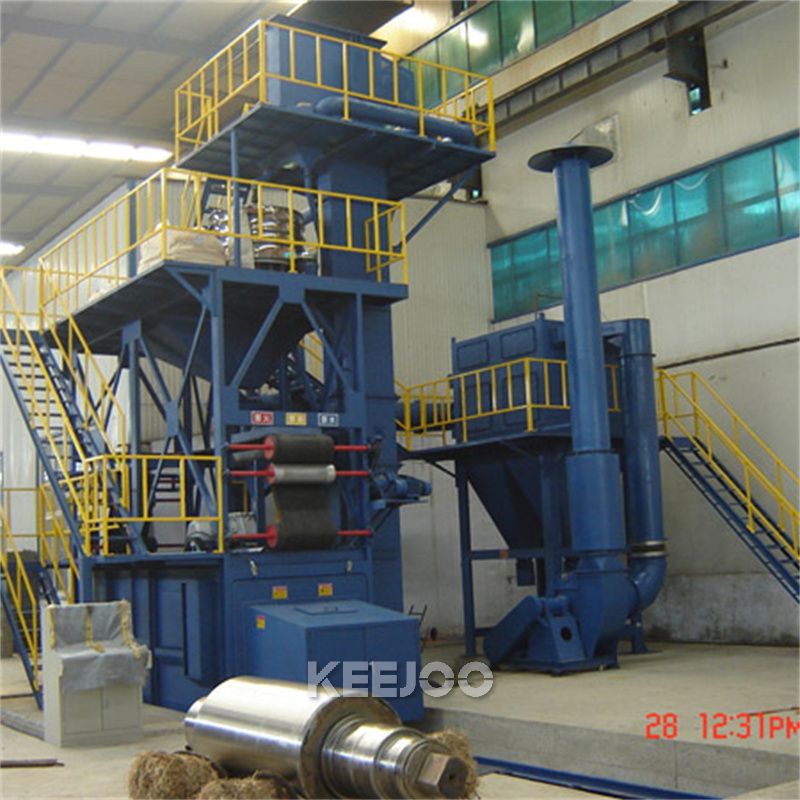

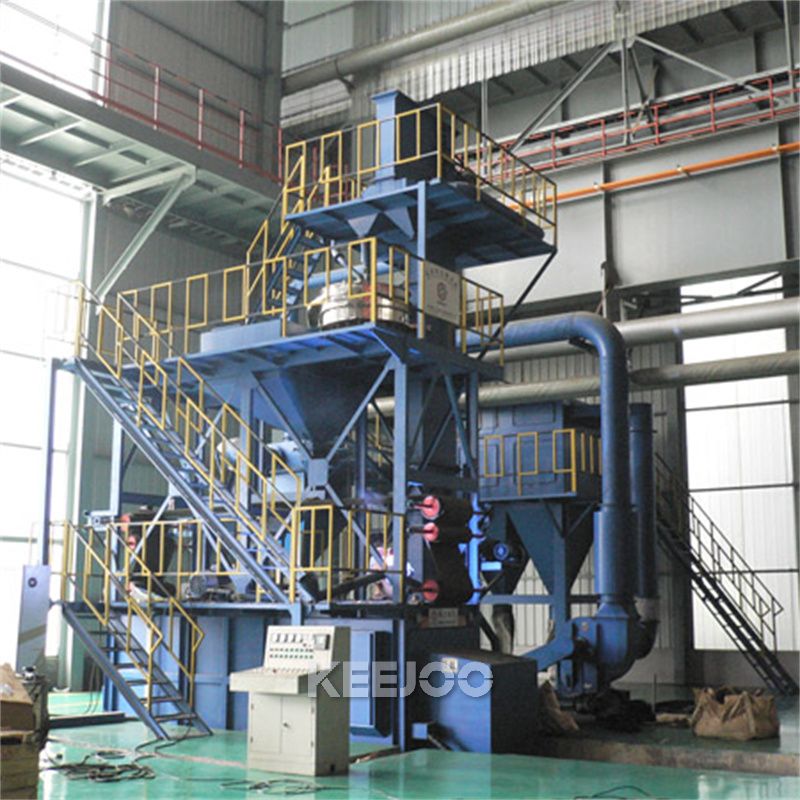

Roll Surface Texturing Shot Blasting Machine
- 产品详情
High quality Roll Surface texturing shot blasting machine with KEEJOO Group is an industrial equipment used for treating the surface of rolls. It forms a uniform rough texture by rapidly spraying metal pellets onto the roller surface. This roughening treatment can effectively prevent the steel plate from slipping during rolling and improve the coating and forming performance of the steel plate surface. Its core features are high efficiency, uniformity and the ability to strengthen the surface of the rolls.
Technical Parameters
NO. Name Technical data 1 hardness for Roughing HSD93~98 2 Roller diameter Φ260mm≤Φ600mm 3 Roller length 500~2000 mm 4 Total length of rollers 1100~4000 mm 5 texturing surface roughness after Blasting Ra0.5~5um±15% 6 The maximum weight of roll ≤4000kg 7 capacity 36.4KW Features
1. The Roll Surface texturing shot blasting machine adopts foreign advanced technology, turbine / blast wheel which the key heart of shot blasting machine adopts German technology.
2. The equipment has the advantages of simple operation, reliable work.
3. Roughing efficiency is high, the operation time is about 10 ~ 15 minutes.

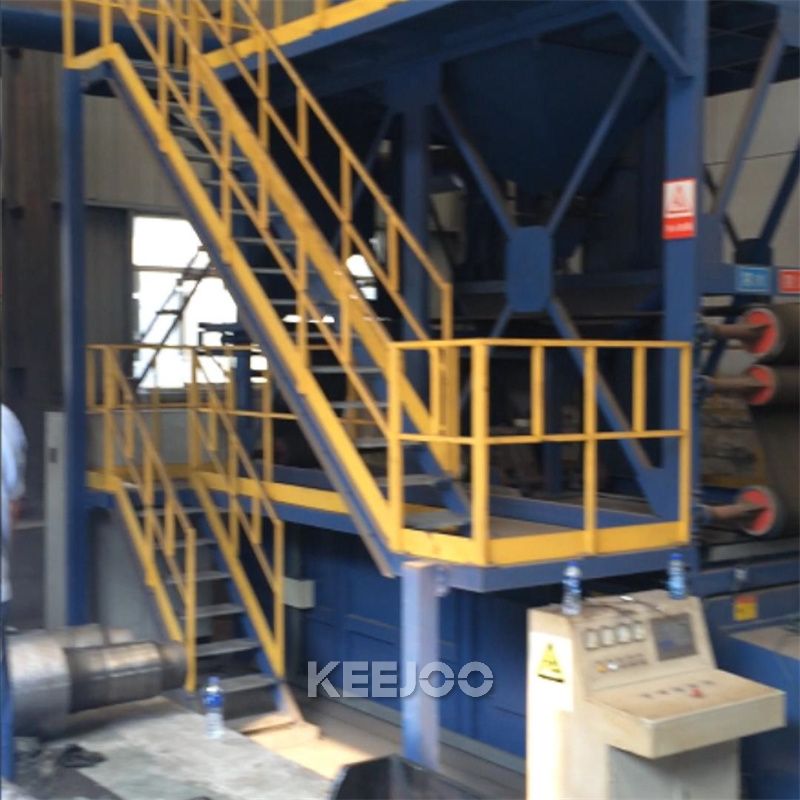

4. PLC control, electrical cabinet is equipped with operation panel, all functions were shown through man-machine annual.
5. The automatic and manual control function. Electric control cabinet is provided with an electrical control instrument.
6. It's equipped with three alarm indication lamp.Function

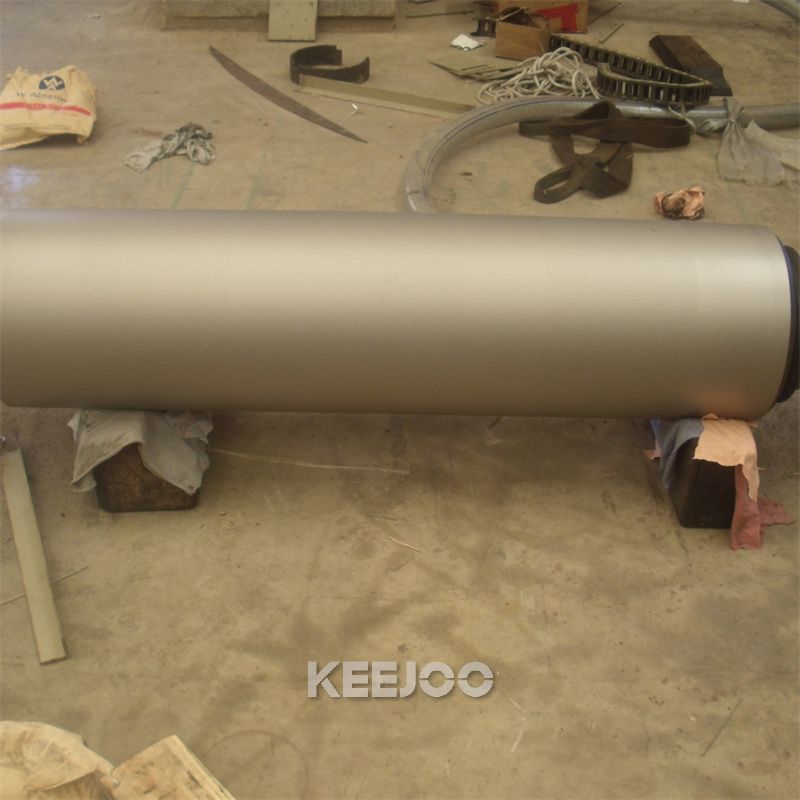

Surface roughening: By shot blasting impact, a controllable roughness (with adjustable Ra value) is formed on the surface of the rolls, improving the adhesion of the sheet, coating performance and anti-reflection property.
Surface roughening: By shot blasting impact, a controllable roughness (with adjustable Ra value) is formed on the surface of the rolls, improving the adhesion of the sheet, coating performance and anti-reflection property.
Strengthening treatment: High-speed shot impact causes cold work hardening on the surface of the rolls, enhancing fatigue strength and wear resistance, and extending service life.
Cleaning and pretreatment: Remove the oxide layer, oil stains and other impurities on the surface of the rolls to provide a clean base surface for subsequent processes (such as coating and spraying).Equipment composition
Shot blasting system: The roll surface texturing shot blasting machine includes blast wheel and shot circulation system (recovery screw, separator, elevator, etc.), achieving automatic recovery and recycling of shot.
Roll clamping device: It adopts a variable frequency motor to drive the rolls to rotate at a constant speed, ensuring uniform shot blasting coverage.
Dust removal system: Equipped with high-efficiency filter cartridge or bag filter to handle the dust generated by shot blasting, meeting environmental protection requirements.
Control system: It adopts PLC or numerical control system, which can adjust parameters such as shot blasting speed and roller speed to achieve automated operation.
