تطبيقات آلات السفع بالخردق في صناعة بناء السفن


release time:

2026-07-31

الآلة التفجير بالرصاصبمثابة المعدات الأساسية لمعالجة الأسطح طوال دورة حياة بناء

الآلة التفجير بالرصاصبمثابة المعدات الأساسية لمعالجة الأسطح طوال دورة حياة بناء السفن وصيانتها. وتشمل وظائفها الأساسية إزالة الصدأ وقشور الطحن، وإنشاء مرساة سطحية موحدة

التشكيل الجانبي وتقوية الأسطح وضمان الامتثال لمعايير الحماية من التآكل مثل PSPC. إنه يلعب دورًا محوريًا عبر أربعة سيناريوهات تشغيلية رئيسية: المعالجة المسبقة للألواح الفولاذية، وتصنيع الكتل، وتعزيز المكونات،

وإصلاح السفن وصيانتها.


I.سيناريوهات التطبيق الأساسية

1. المعالجة المسبقة للصفائح الفولاذية (أول عملية حاسمة في بناء السفن)

قطع العمل: ألواح الصلب البحرية، المقاطع، القضبان المسطحة، المقاطع T، وغيرها من المواد الخام.

هدف العملية: إزالة الترسبات الكلسية والصدأ السطحي وبقع الزيت بشكل كامل؛ تحقيق مستوى نظافة Sa2.5–Sa3؛ وإنشاء ملف تعريف 40-80 ميكرومتر.

المعدات الرئيسية: ناقل الأسطوانةآلة التفجير بالرصاص(خط المعالجة المسبقة للصفائح الفولاذية). يتميز بالنقل المستمر والتفجير المتزامن من رؤوس الطلقات المتعددة المتوضعة أعلى وأسفل قطعة العمل. تتراوح سرعات المعالجة من 5 إلى 30 مترًا في الدقيقة، مع إنتاجية يومية تصل إلى عدة مئات من الأطنان، وتتضمن نظامًا تلقائيًا لاستعادة اللقطات وإعادة التدوير.

القيمة: يمنع عيوب اللحام والطلاء اللاحقة، ويطيل عمر خدمة مقاومة التآكل للهيكل بشكل كبير.


2. معالجة سطح بلوك/سوبر بلوك

كائنات المعالجة: أقسام الهيكل الملحومة، وكتل المقصورة، والهياكل الفوقية (المكونات الهيكلية الفولاذية واسعة النطاق).

هدف العملية: إزالة خبث اللحام، والرش، وضغوط اللحام، والتآكل الموضعي؛ لتوحيد حالة السطح. والتحضير للطلاء المقطعي.

المعدات الرئيسية: أنظمة من النوع الخطاف والعربة، مناسبة لقطع العمل كبيرة الحجم وغير منتظمة الشكل؛ قادرة على دوران قطعة العمل والتفجير متعدد الزوايا لضمان التنظيف الخالي من الزوايا الميتة.

الوظائف الرئيسية: يزيل إجهاد اللحام المتبقي، ويقلل من خطر التشقق الناتج عن الإجهاد الهيكلي، ويعزز جودة طلاء الكتل.


3. تقوية وتنظيف المكونات الرئيسية للسفن

المروحة / العمود: يتم تطبيق الطحن بالخردق لإنشاء طبقة ضغط ضاغطة متبقية على السطح، مما يعزز مقاومة التعب والتجويف والتآكل بمياه البحر، ويطيل عمر الخدمة.

السطح / الممشى: يتم إجراء عملية التخشين بالسفع بالخردق لإنشاء نسيج مضاد للانزلاق، يلبي معايير السلامة المضادة للانزلاق الخاصة بالمنظمة البحرية الدولية (IMO)، مع إزالة الصدأ والطلاء القديم أيضًا.

سلاسل المرساة، وأغطية الفتحات، وتجهيزات الأنابيب، ومكونات التجهيز: السفع بالخردق على دفعات، وإزالة الصدأ، وإزالة الأزيز، والتقوية، ومناسبة للمكونات الصغيرة الحجم على دفعات



4. إصلاح السفن / صيانة السفن وعملياتها

الأسطح المستهدفة: طلاء الهيكل، وخزانات الصابورة، وعنابر الشحن، والأسطح، والمناطق المتضررة من الطلاءات الموجودة، والمناطق التي بها قاذورات بحرية.

المعدات الرئيسية: متنقلة / ذاتية الدفعآلة التفجير بالرصاص. قادرة على دخول المقصورة والمساحات الضيقة بمرونة، خالية من الغبار، صديقة للبيئة، مع تشغيل محلي عالي الكفاءة، ولا حاجة لإعداد سقالات واسعة النطاق.

التطبيق الأساسي: إزالة الطلاءات القديمة، وإزالة الصدأ، والتجديد المحلي، والإصلاح المضاد للتآكل لخزانات الصابورة، وتلبية متطلبات عمليات التفتيش السنوية لجمعية التصنيف / عمليات التفتيش الخاصة



ثانيا. الأنواع الشائعة لآلات السفع بالخردق (للتطبيقات البحرية)



نوع الآلة

السيناريوهات القابلة للتطبيق

الميزات الرئيسية

آلة السفع بالخردق من نوع ناقل الأسطوانة

خط المعالجة المسبقة للصفائح الفولاذية/القسم

أتمتة مستمرة، وكفاءة عالية، ونطاق معالجة واسع، وإعادة تدوير سريعة للحلقة المغلقة

آلة السفع بالخردق من نوع الخطاف/العربة

أقسام الهيكل، والمكونات واسعة النطاق

عرض قابل للقلب ومتعدد الزوايا ويستوعب الأجسام الكبيرة وغير المنتظمة

من خلال آلة السفع بالخردق من النوع

تجميع قسم الهيكل وعمليات الانزلاق

امتداد كبير، نتوءات لأعلى ولأسفل، مناسبة للمعالجة المجزأة والشاملة

نوع الزاحف/القرص الدوار

مكونات تجهيز صغيرة، سلاسل المرساة

معالجة الدفعات من العناصر الصغيرة، والتنظيف الفعال، والتحسين



ثالثا. المزايا الأساسية (مقارنة بالتخليل الحمضي، والصنفرة اليدوية، والسفع الرملي)


1.    كفاءة عالية، تكلفة منخفضة: تبلغ الكفاءة 10 إلى 20 ضعف كفاءة التلميع اليدوي؛ تتجاوز نسبة استرداد وسائط الانفجار 95% لإعادة التدوير المستمر، مما يؤدي إلى انخفاض بنسبة 40% في التكاليف الإجمالية.

2.    جودة مستقرة ويمكن التحكم فيها: نظافة وخشونة موحدة، لتحقيق Sa2.5/Sa3 بدقة.

3.    تعزيز السطح وتعزيزه: يؤدي التأثير إلى إجهاد الضغط، وبالتالي تعزيز قوة كلال الفولاذ، ومقاومة التآكل، ومقاومة التجويف، مع تقليل التشقق وإطالة عمر الخدمة الهيكلية في نفس الوقت.

4.    صديقة للبيئة: لا تنتج أي نفايات سائلة من حمض النفايات، وتتميز بتجميع مركزي للغبار، وتعمل بمستويات ضوضاء منخفضة، وبالتالي تتوافق مع متطلبات حماية البيئة والصحة المهنية.


رابعا. المعايير الرئيسية وأساسيات العملية


النظافة: يجب أن تصل إلى الدرجة Sa2.5 أو Sa3.

الخشونة: يتم التحكم بها في نطاق 40-80 ميكرومتر لضمان التصاق الطلاءات المضادة للتآكل، مثل الإيبوكسي والبولي يوريثين.

اختيار اللقطة: طلقة فولاذية من سبائك S330 – S390 شائعة الاستخدام؛ تتوافق الصلابة وحجم الحبيبات مع مواد اللوحة الفولاذية ومتطلبات المعالجة.

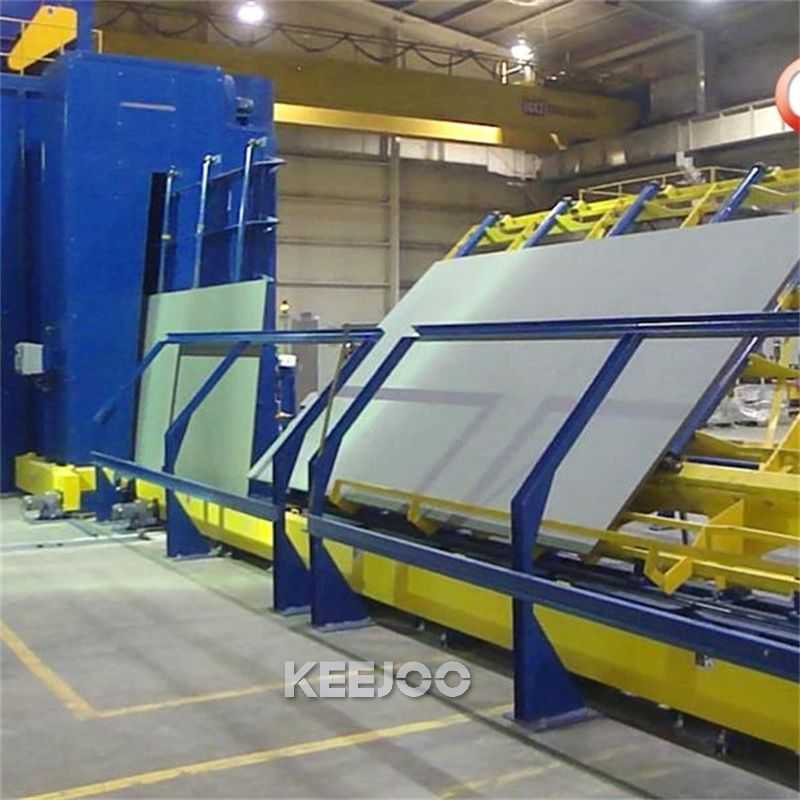

steel plate shot blasting machine
