How can shot blasting machines achieve noise reduction and dust control
发布时间:
2026-07-31
Shot blasting machines achieve noise and dust reduction mainly through the syner
Shot blasting machines achieve noise and dust reduction mainly through the synergistic effects of technological innovation, sound insulation design, intelligent control, and dust removal system optimization, thereby reducing the generation of noise and dust at the source and effectively blocking their transmission path.
Noise control strategy
Noise reduction at the source: By adopting an optimized impeller structure and high-strength alloy materials, the dynamic balance performance is enhanced, and vibration during high-speed rotation is reduced. Improve the blade shape to reduce air turbulence and vortex noise; Low-vibration motors and high-efficiency transmission systems (such as belt drives) are selected to reduce mechanical operation noise.
Sound barrier construction: The shot blasting chamber adopts multi-layer composite wall panels, with the inner layer being wear-resistant material, the outer layer being sound-insulating material, and the middle being filled with sound-absorbing cotton; this improves the equipment's sealing performance and reduces noise leakage; a shock-absorbing base is installed at the bottom of the equipment to isolate structural vibration noise.
Operation and control optimization: The intelligent system monitors the operating status in real time and automatically adjusts the shot blasting machine speed and shot flow rate to avoid impact noise caused by overload or frequent start-stop; the operation time is reasonably arranged to avoid peak periods of personnel.
Routine maintenance: Regularly inspect and replace worn blades, bearings and other parts, clean dust from the equipment, keep the equipment in good condition, and prevent noise from increasing due to loose parts or friction.
Dust control strategy:

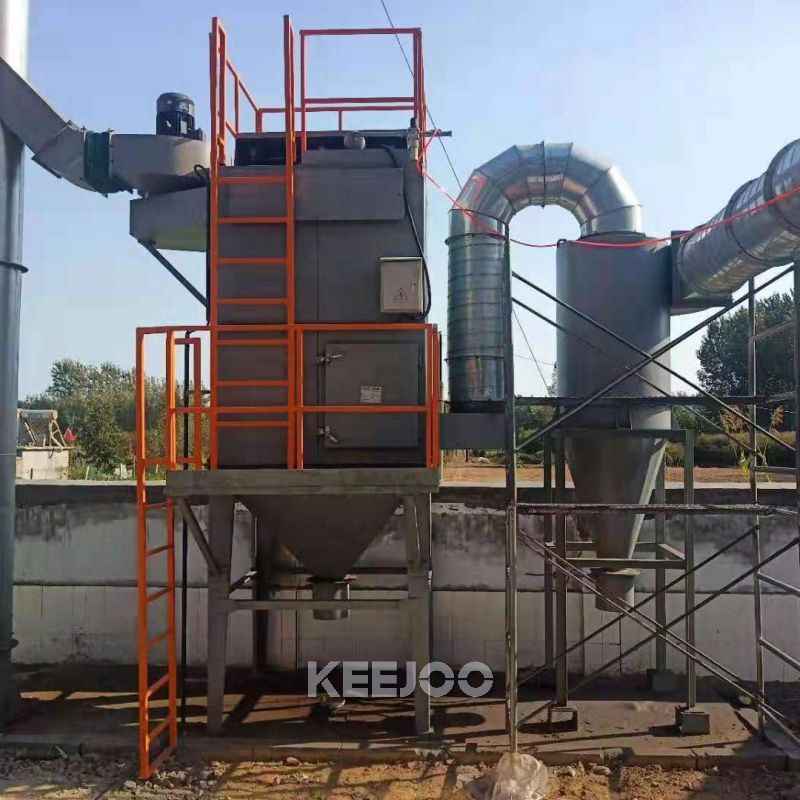

Pulse jet dust collection system: As the core treatment solution, it uses high-efficiency filter bags to filter dust-laden gas, and the dust is intercepted on the outer surface of the filter bags; when the resistance reaches the set value, the pulse valve instantly sprays compressed air, causing the filter bags to expand and vibrate, and the attached dust falls off and falls into the ash hopper for discharge. The dust removal efficiency can reach more than 99%.
System adaptability and stability: The dust collector can adapt to dust of different properties and concentrations (such as metal dust and high-temperature dust), and can be flexibly controlled by adjusting the pulse frequency and pressure; it is equipped with monitoring systems such as pressure and temperature sensors to ensure safe and reliable operation.
Convenience of maintenance: The filter bags adopt a modular design, making replacement easy; the automated dust removal system reduces manual intervention, lowering maintenance costs and labor intensity.
In summary, modern shot blasting machines, through integrated design, deeply integrate noise reduction and dust control technologies, which not only improves the working environment but also enhances equipment operating efficiency and environmental protection levels.
