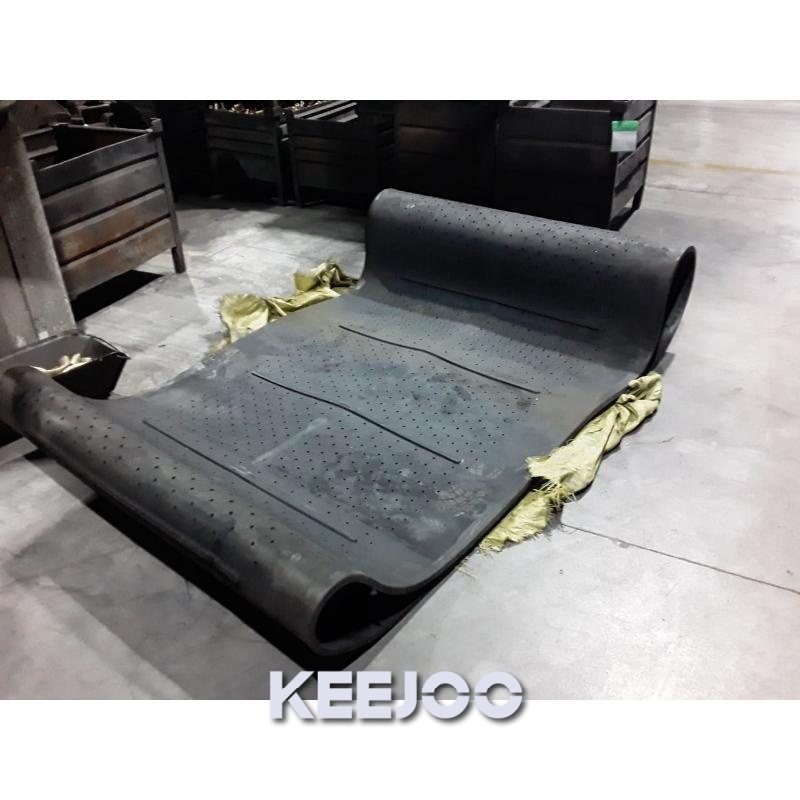

The track of a tracked shot blasting machine is one of its core components. After prolonged use, it may experience wear, cracks, or loss of elasticity, requiring regular replacement to ensure the equipment's normal operation. Below are the detailed steps and precautions for track replacement:
I. Preparation
1. Safety Precautions
Disconnect the power supply and hang a "Do Not Operate" warning sign to ensure the equipment is completely shut down.
Wear safety helmets, protective gloves, goggles, and other protective equipment.
Clear the work area, remove debris, and ensure sufficient operating space.
2. Tool Preparation
Specialized Tools: Wrenches, screwdrivers, hydraulic jacks (or dedicated lifting devices), pry bars, torque wrenches.
Auxiliary Materials: Lubricating grease, cleaning cloths, new tracks (must be compatible with the original model).
Lifting equipment (if heavy-duty tracks need to be lifted).
3. Equipment Inspection
Check the shot blasting chamber for any residual shot and clean it thoroughly to avoid interfering with operation.
Confirm that the track drive wheels, driven wheels, support rollers, and other components are in good condition, without severe wear or deformation.
II. Removing the Old Tracks
1. Releasing Track Tension
Locate the track tensioner (usually located near the drive sprocket), loosen the tension bolts or hydraulic cylinder, and reduce the track tension to a relaxed state.
If using hydraulic tensioning, first shut down the hydraulic system and release the pressure.
2. Remove Fasteners
Remove the side guards or covers (if any) of the tracks to expose the track connection points.
Use a wrench or screwdriver to remove the fixing bolts or pins of the track joints, separating the track links.
If the track is a one-piece design, use a pry bar or special tools to gradually pry open the track from the drive sprocket.
3. Remove the Old Track
Use a jack or lifting device to slowly lift the middle of the track, disengaging it from the drive and driven sprockets.
If the track is heavy, use lifting equipment to assist in hoisting, avoiding personnel injury.
Completely remove the old track from the equipment and place it in a designated area.
III. Installing New Tracks
1. Cleaning and Inspection
Clean the surfaces of the drive wheels, driven wheels, and support rollers, removing dirt and rust to ensure a smooth surface.
Check that the new track model matches the equipment and confirm there are no defects (such as cracks or deformation).
2. Positioning the New Tracks
Slowly hoist the new tracks above the equipment, aligning them with the drive wheels and driven wheels.
Gradually lower the tracks, allowing them to initially engage with the teeth of the drive and driven wheels.
3. Connecting Track Links
According to the track design, align the links and insert the retaining pins or bolts, tightening them to the specified torque with a wrench.
For open-type tracks, ensure the joints are aligned and without misalignment.
4. Adjusting Track Tension
Slowly increase the track tension using the tensioning device until the tension value required by the equipment manual is reached.
Check the tightening torque of the tensioning bolts with a torque wrench to ensure it meets the standard.
IV. Commissioning and Acceptance
1. No-load Test Run
Reconnect the power supply and start the track shot blasting machine for no-load operation (5-10 minutes).
Observe whether the tracks run smoothly and whether there is any abnormal noise or vibration.
Check if the tracks are misaligned; if so, adjust the position of the drive wheel or driven wheel.
2. Load Test
Add a small amount of shot for a short-term load test to confirm that the tracks can withstand normal working loads.
Check the friction between the tracks and the shot to ensure there is no excessive wear or shot jamming.
3. Final Inspection
Tighten all bolts and connectors, and apply anti-rust grease.
Clean up tools and debris around the equipment and restore safety protection devices.
Fill out the replacement record, including replacement date, track model, operator, etc.
V. Precautions
1. Never operate while the power is on: Power must be disconnected during the replacement process to avoid the risk of electric shock.
2. Even stress distribution: When using jacks or lifting equipment, ensure even stress on the tracks to prevent deformation.
3. Tension control: Excessive track tension can lead to breakage, while insufficient tension can cause derailment. Adjustments must be made strictly according to the instruction manual.
4. Regular maintenance: It is recommended to check track wear every 3-6 months and plan the replacement cycle in advance.
5. Professional operation: If you lack experience, it is recommended to contact the equipment manufacturer or professional maintenance personnel for assistance with the replacement.
By following the above steps, you can ensure that track replacement is completed safely and efficiently, extending the equipment's service life and ensuring production safety.
