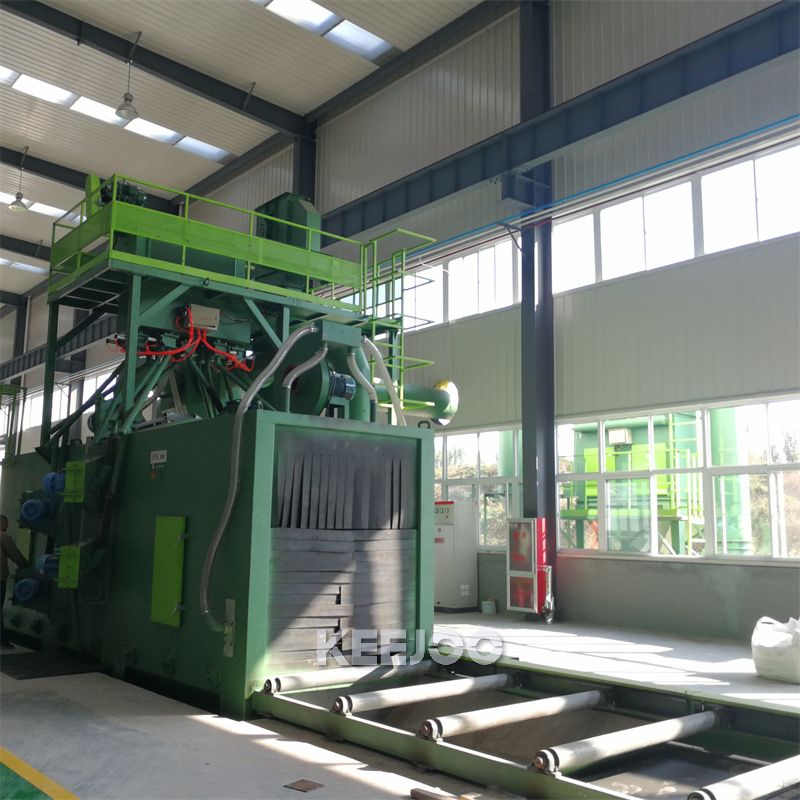

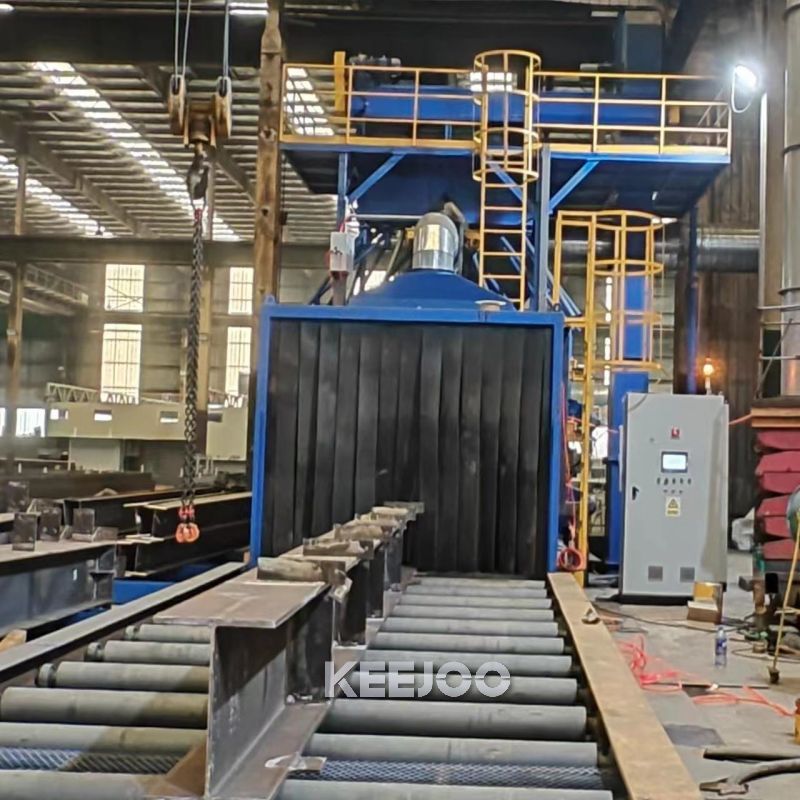

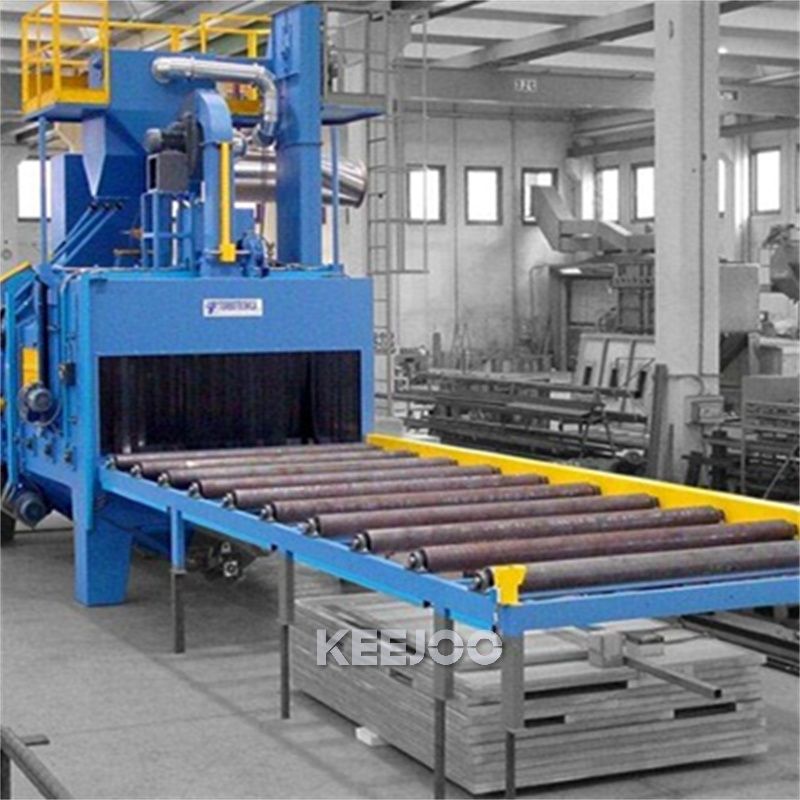

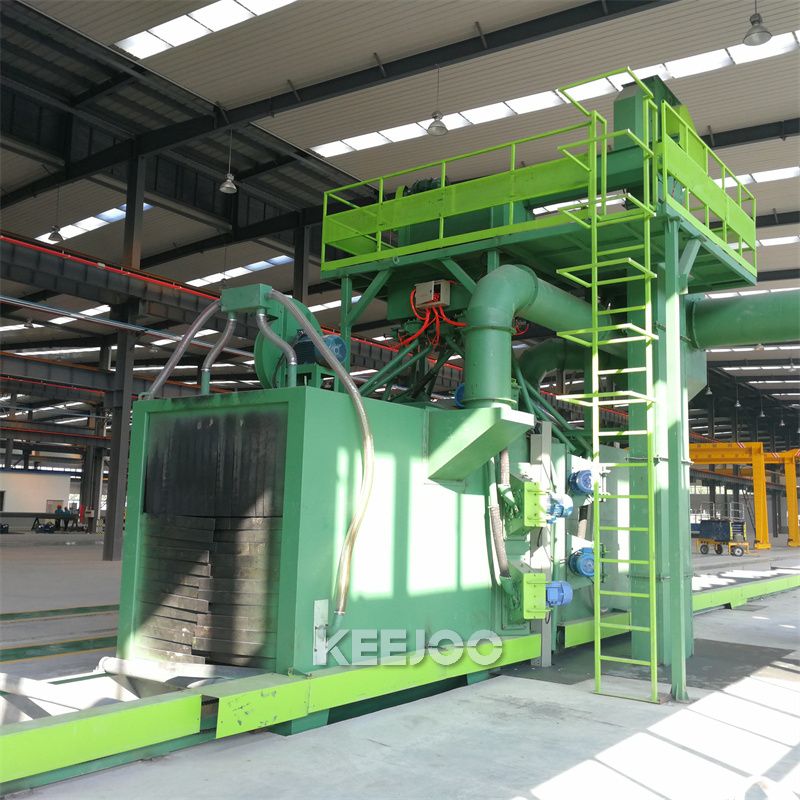

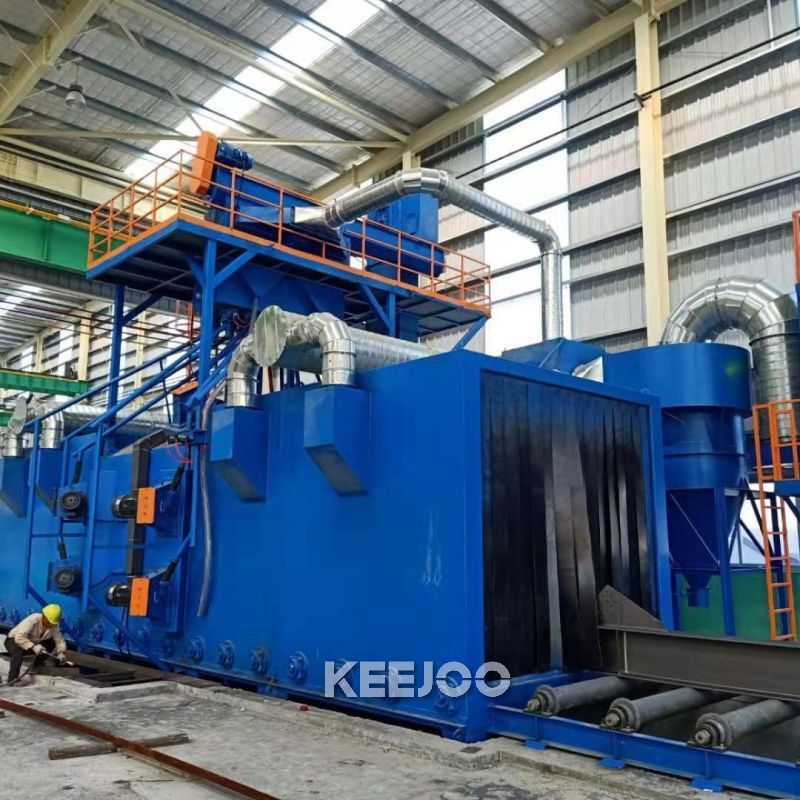

H-beam Shot Blasting Machine
- 产品详情
KEEJOO brand H-beam Shot Blasting Machine with CE certificate is specially designed for cleaning H-beams, I-beams and other steel beams. It is a roller conveyor through-type automatic shot blasting cleaning machine, which enables the cleaned workpieces to achieve a certain degree of clean surface roughness, increases the adhesion of the paint film, and improves the surface quality and anti-corrosion effect. The entire machine includes a shot blasting chamber, sub-chambers, abrasive control unit, shot blasting system, abrasive recovery, sorting and storage system, ventilation and dust removal system, roller conveyor, electrical control system, maintenance platform and safety system.
Features
1. Always maintain reliable and stable shot blasting cleaning effects
2. Easy to maintain
3. It can be integrated into existing production lines
4. Mature technology and rich experience
5. The dimensions of the inlet, outlet and shot blasting chamber can be customized to meet different workpiece configurationsfunction

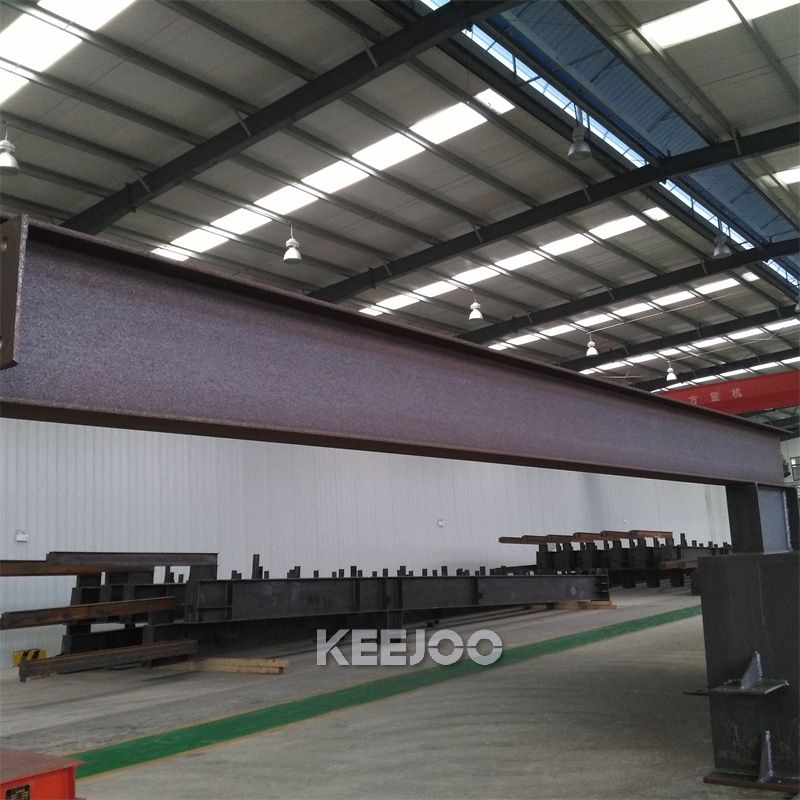

Surface treatment: H-beam Shot Blasting Machine removes the oxide scale, rust layer and dirt on the surface of the H-shaped steel through the impact of high-speed shot, making the steel surface smooth and clean, and providing a foundation for subsequent coating or anti-corrosion treatment.
Automated operation: H-beam Shot Blasting Machine Equipped with adjustable speed conveyor roller tracks, dust removal systems and shot circulation devices, it supports continuous operation and can be integrated with subsequent spraying and other processes.Technical parameter
Model KJ1500HD KJ 2000D KJ 2500HD KJ 3000HD KJ 4000HD Inlet width (mm) 1600 2100 2800 3300 4300 Inlet height (mm) 550 550 550 550 550 Processing speed(m/min) 1.5-4.5 1.8-5.0 1.0-3.0 0.8-2.5 0.8-2.0 No. Of shot blaster 4 6 6 6 8 Power of single shot blaster (kW) 15/18.5 15 11/15/18.5 15/18.5 11/15 Roller spacing (mm) 800 800 750 750 750 Optional roller conveyor spacing (mm) 400 400 500 500 500
