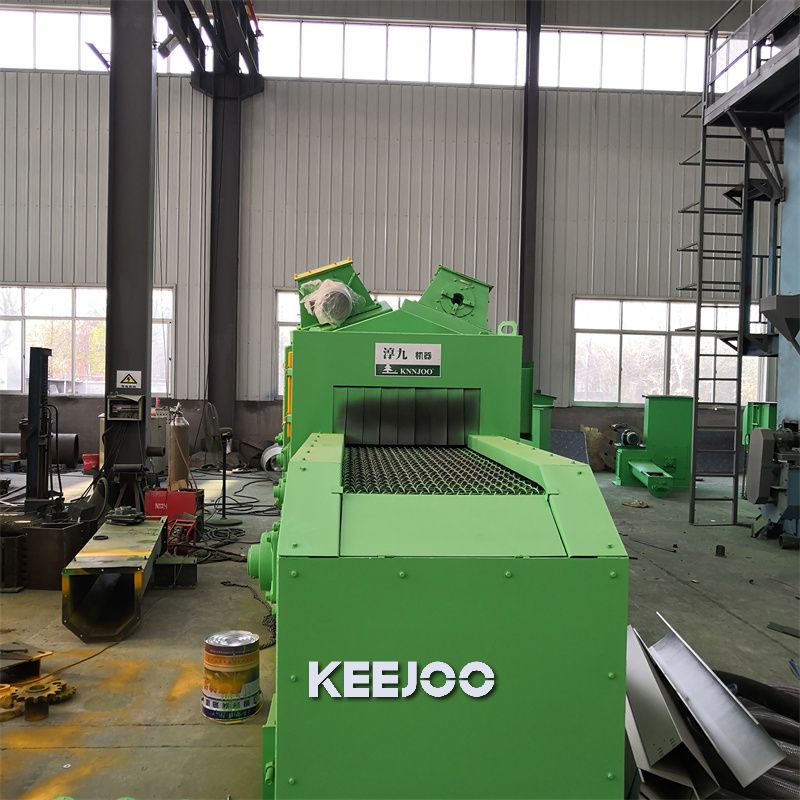

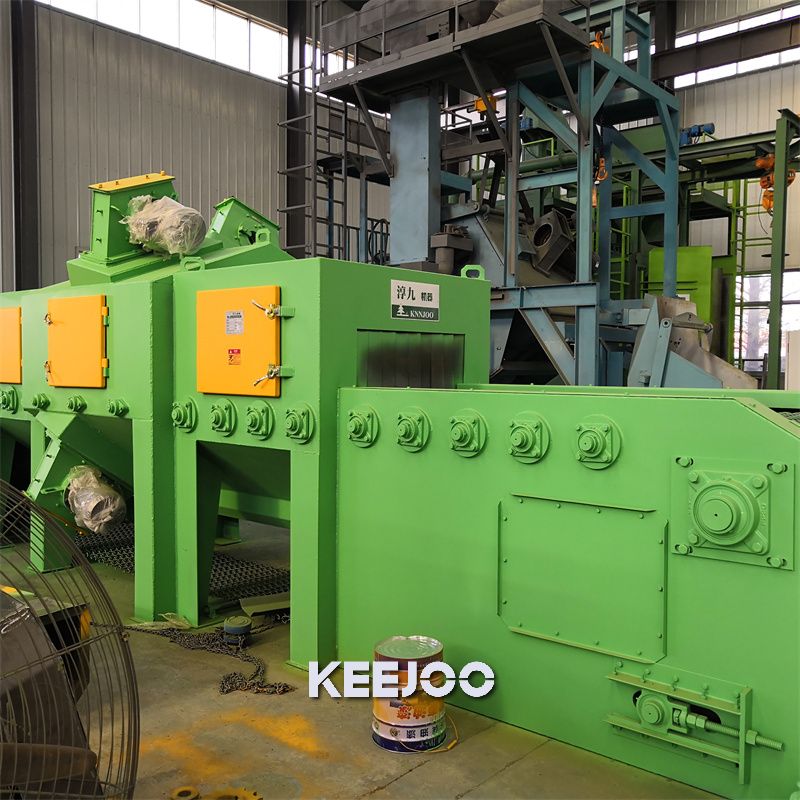

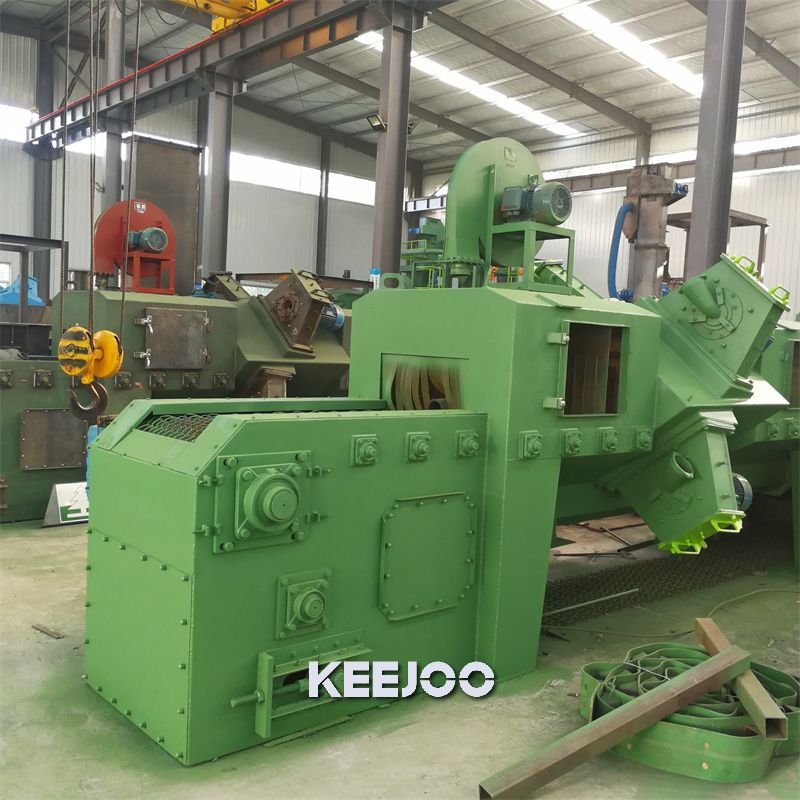

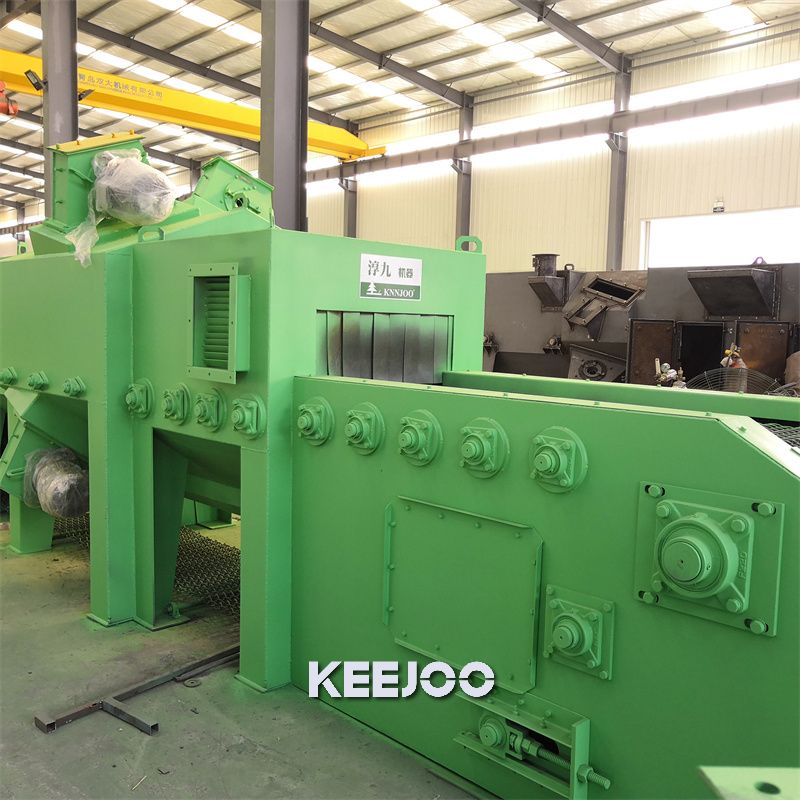

Rust Removal Shot Blasting Machine
- 产品详情
Easy-maintainable Rust Removal Shot Blasting Machine with KEEJOO brand is a type of industrial surface treatment equipment, mainly used for rust removal, strengthening and surface treatment of metal surfaces. The core principle is to achieve cleaning and strengthening effects by rapidly ejecting steel shot to impact the surface of the workpiece.
Structure and working principle
The Rust Removal Shot Blasting Machine is mainly composed of a shot blasting chamber, a mesh belt conveying system, a shot acceleration device (such as an impeller), and a dust removal system. During operation, the workpiece is conveyed to the shot blasting chamber through the mesh belt. The high-speed rotating impeller accelerates the shot and throws it onto the surface of the workpiece. The impact force of the shot can remove impurities such as rust layers and oxide scales, and at the same time, the surface of the workpiece is leveled through friction.
Technical data
Model KWD 800 KWD 1000 KWD 1800 KWD 1500 KWD 1250 Max workpiece width (mm) 800 1000 1800 1500 1250 Max workpiece height (mm) 400 500 500 500 500 No. Of shot blaster 4 4 10 10 8 Power of single shot blaster (kW) 7.5 (11) 7.5 (11) 11 (15) 7.5 (11) 18.5 (22) Characteristic
Equipped with high-power blast wheel: Rust removal requires a stronger impact force, so the blast wheel of rust removal mesh belt shot blasting machine usually have greater power and a higher ejection speed.
Multi-angle projection layout: Ensures that complex workpieces and all surfaces can be cleaned.
High wear resistance: The interior of the shot blasting chamber, mesh belt, screw conveyor, material guide guard plate, etc. are all made of high-chromium wear-resistant cast iron or manganese steel and other materials to resist the extreme wear caused during the rust removal process.
Efficient shot and sand separation system: Rust removal generates a large amount of dust and waste. A high-performance separator is the key to ensuring the continuous and stable rust removal effect and the normal operation of the equipment.
High-efficiency dust removal system: Rust removal can cause a large amount of dust, so a high-volume and high-efficiency dust removal system needs to be equipped.
