Engine Blocks Shot Blasting Machine
- Product details

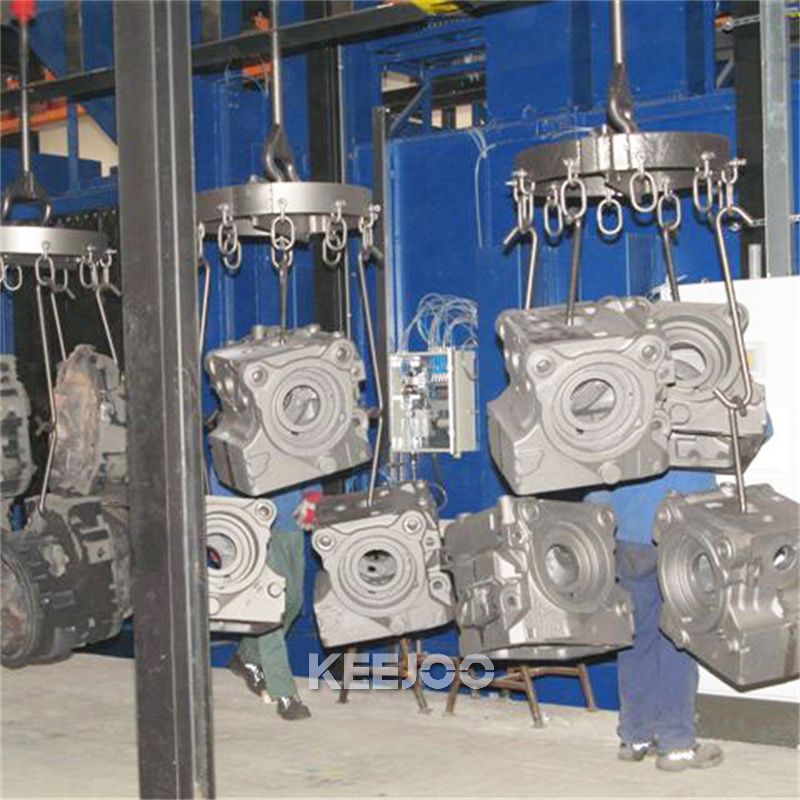

The newest Engine Blocks Shot Blasting Machine with KEEJOO brand is a mechanical equipment that uses a high-speed shot (steel shot or iron shot) flow to clean the surface of the engine block (cylinder head, crankcase, etc. can also be processed) suspended on a special hook, remove oxide scale, remove residual molding sand, and strengthen the surface (generate compressive stress to increase fatigue strength).
Technical data
Specifaction Size of cleaning piece Max, lifting height Total blasting capacity Total power HSK-7Y/7S φ800*1100
φ700*11000.5T 180Kg*2
7.5Kw*222-33Kw HSK-9/9Y φ1200*1500
φ900*16001.0T 240Kg*2
11-7.5Kw*236-45Kw HSK-10/10Y φ1200*1500
φ900*18501.0T 240Kg*2
11Kw-7.5*239-55Kw Features
Pitless design: The Engine Blocks Shot Blasting Machine is easy to install, saving space , and reduces installation costs.
Double hooks: the double hooks work independently without interfering with each other, enhancing production efficiency.
High wear-resistant material: The cleaning chamber is made of high-chromium steel plate, which has good wear resistance and high strength.
360-degree full coverage: No need to flip the cylinder , achieving all-round shot blasting cleaning, thorough cleaning.
High-efficiency deburring: Effectively remove impurities in complex positions such as flash, burrs and lubricating oil holes on the surface of the cylinder block.
Safety protection: The hook is made of high-quality alloy steel and is equipped with a protective cover and safety limiters to prevent injury from wire rope wear or broken wires.
Dust removal system: Two-stage dust removal (cyclone dust removal + bag filtration) to ensure that air emissions meet environmental protection standards.When exporting and shipping the engine block hanger type shot blasting machine, the following matters should be noted:
Packaging: Choose high-strength wooden boxes, iron boxes or steel frames, etc. The interior of the box should be reinforced to prevent vibration and collision
Rust and moisture prevention: The surface of the Engine Blocks Shot Blasting Machine is wrapped with stretch film to prevent moisture or rust during transportation.
Marking and labeling: Each piece is clearly marked with information such as the engine block hanger type shot blasting machine name and model, facilitating loading, unloading and customs clearance.
