Large Forgings Sand Blasting Room
- Product details

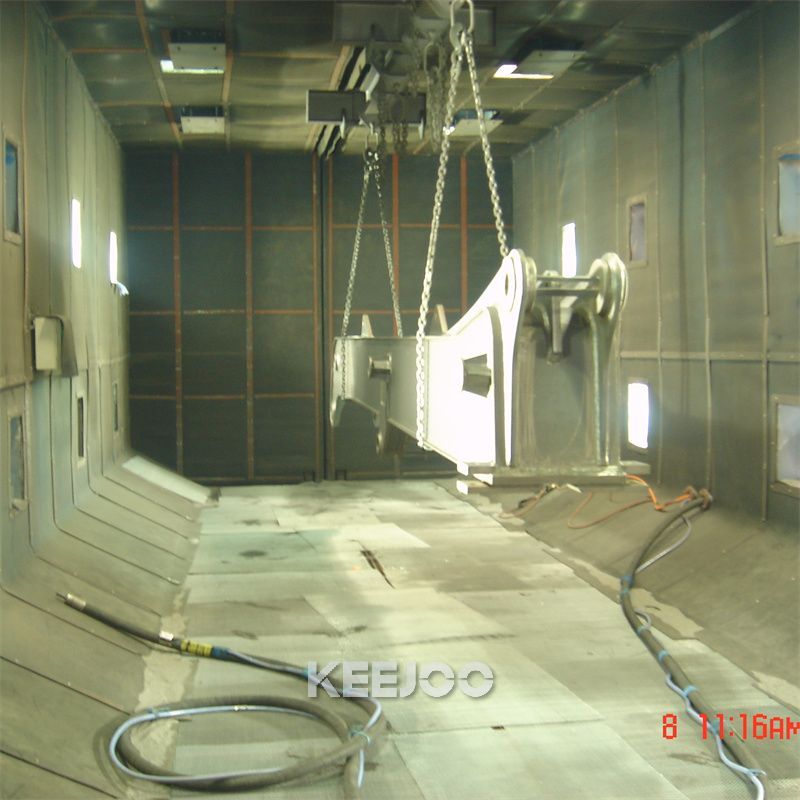

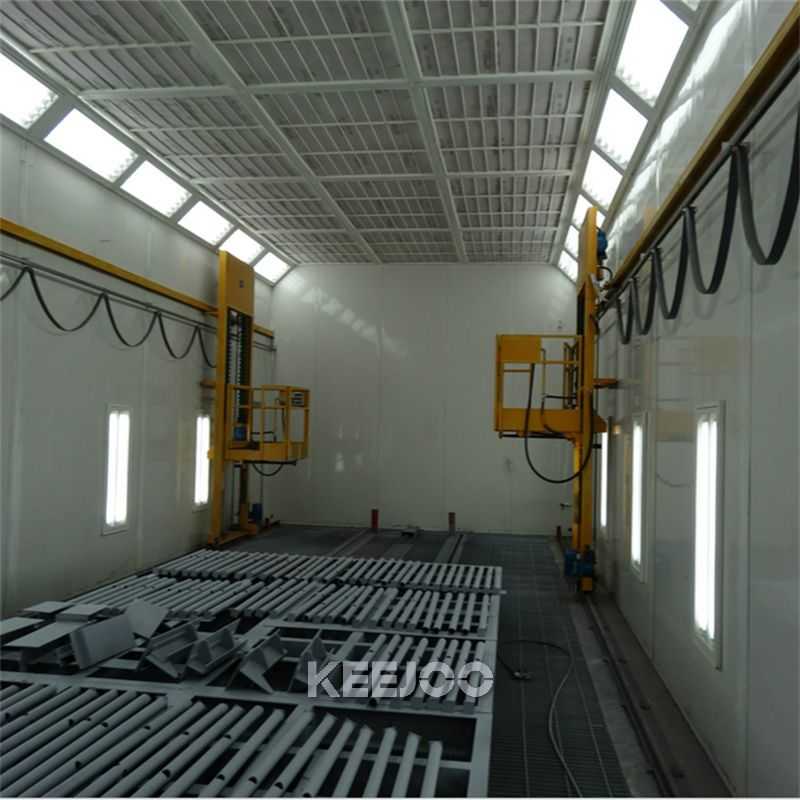

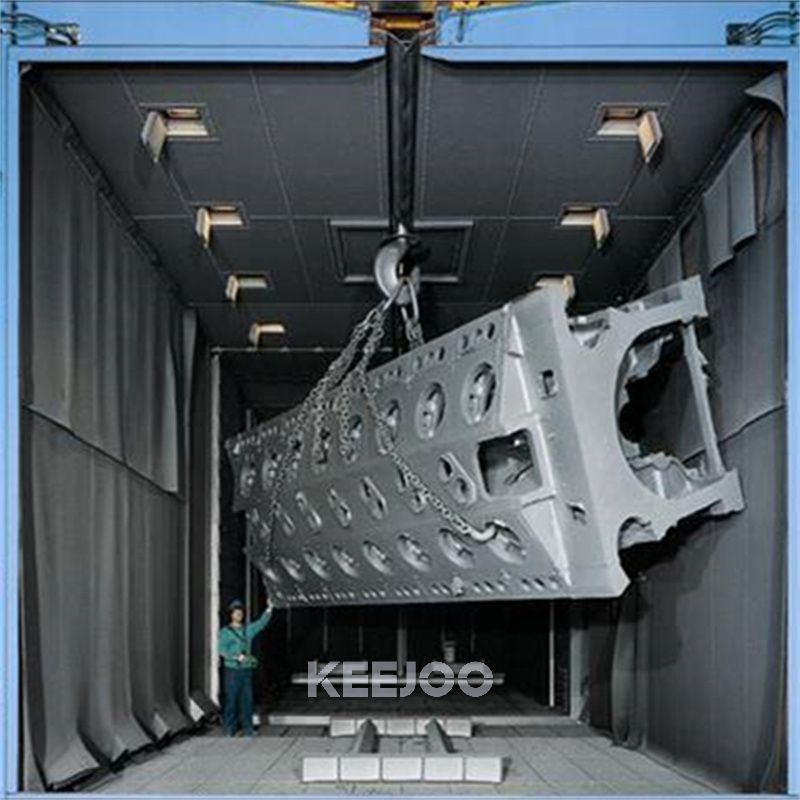

The high quality Large Forgings Sand Blasting Room with KEEJOO brand is a specialized surface treatment facility specially designed for handling large forged parts in fields such as heavy machinery, wind power, and shipping. Its core function is to thoroughly remove the oxide scale, welding slag, burrs and heat treatment residues on the surface of the forging through high-speed abrasive spraying, while forming a uniform and rough anchor pattern structure, providing an ideal base surface for subsequent non-destructive testing (such as UT, MT) and high-quality anti-corrosion coating.
Technical data
Parameter Aerospace Component Large Storage Tanks Railway Wagons Large Forgings Requirements High precision, pollution-free and traceable Super large space, high efficiency and high durability Long strip shape, continuous operation Overweight workpieces, enhanced cleaning Dimension (L×W×H) 10m x 8m x 5m 30m x 20m x 15m+ 40m x 6m x 6m 15m x 10m x 8m Dust removal air volume (m³/h) 30, 000 - 50, 000 150, 000 - 300, 000+ 60, 000 - 100, 000 40, 000 - 80, 000 Recycling system Mechanical recycling + high sorting accuracy Recycling of super-large machinery Long-distance mechanical recycling Mechanical recycling Functions
Efficient Cleaning
The large forgings sand blasting room can thoroughly remove the oxide scale, rust, welding slag and heat treatment residues on the surface of the forgings, providing a clean base material for subsequent processes.
Surface Activation
By sandblasting, a uniform and controllable surface roughness (anchor pattern) is formed, which greatly enhances the adhesion of subsequent coatings (such as paint) and improves the anti-corrosion effect.
Defect Revelation
During the cleaning process, the fine cracks, slag inclusions and other defects on the surface of the forging are fully exposed, creating necessary conditions for non-destructive testing (such as magnetic particle and ultrasonic flaw detection) and ensuring product safety.
Performance Enhancement
Through shot peening, a compressive stress layer is formed on the surface of the forging, significantly enhancing its fatigue strength and stress corrosion cracking resistance, and extending its service life.
Feature

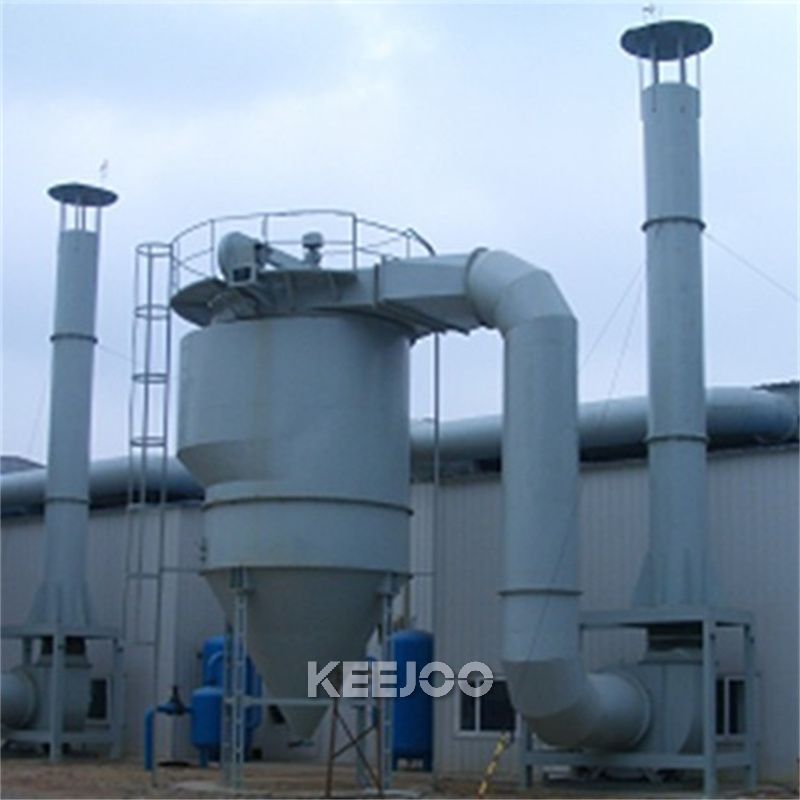

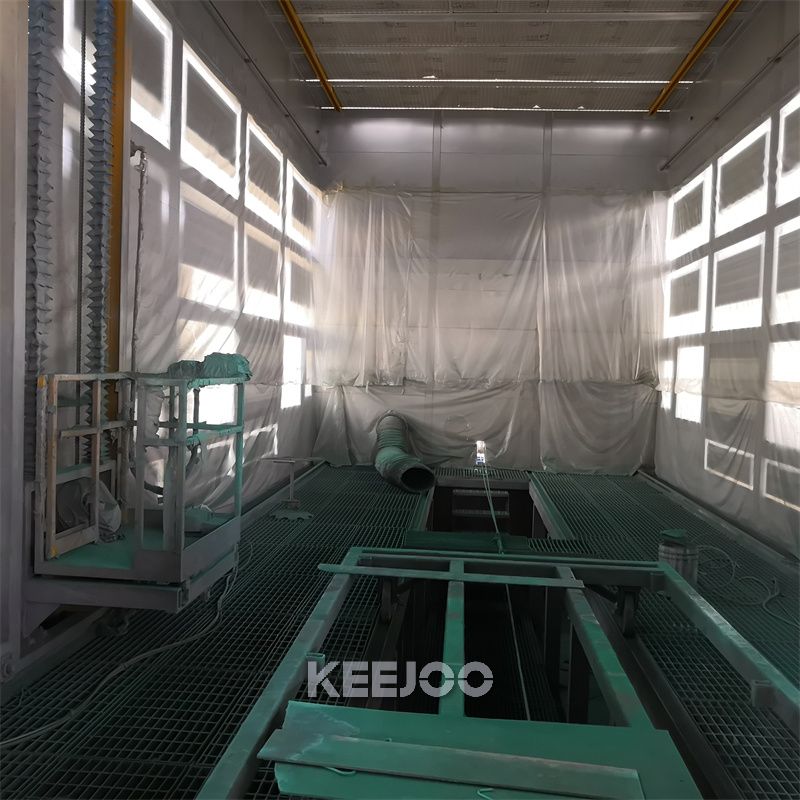

The large forgings sand blasting room adopts a heavy steel structure frame, with manganese steel wear-resistant plates laid inside to resist the erosion of abrasives. The ground is designed with grating plates and deep pits, and an internal screw conveyor enables the automatic recovery of abrasives. The integrated crane and turnover machine solve the problem of handling large-tonnage workpieces, and are equipped with a high-volume dust removal system to ensure environmentally friendly operations in a sealed space. The overall structure is specially designed for heavy-duty and high-wear working conditions, balancing durability and functionality.
