Large Storage Tanks Sand Blasting Room
- Product details

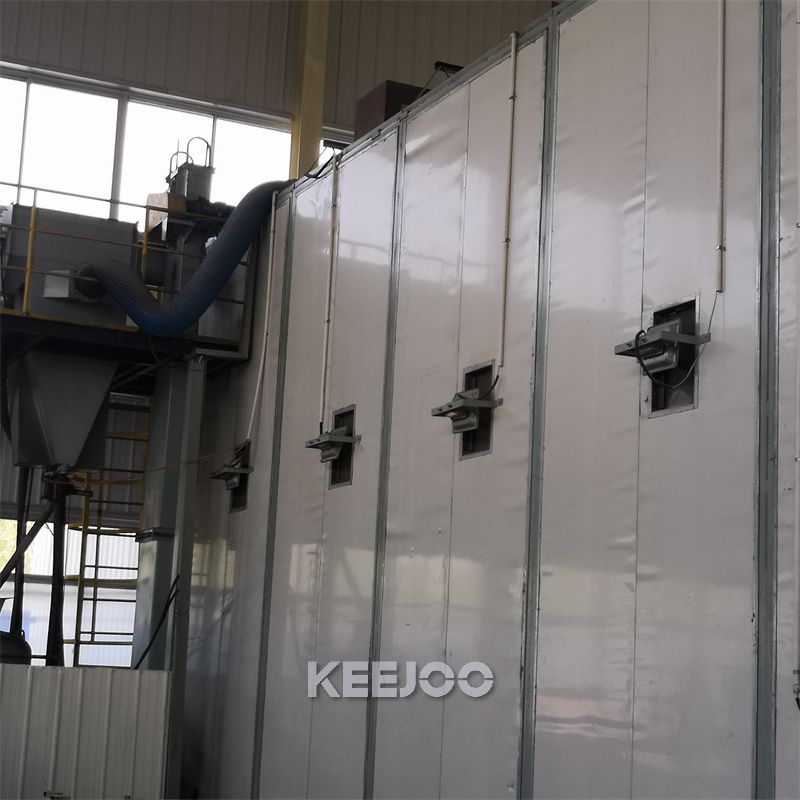

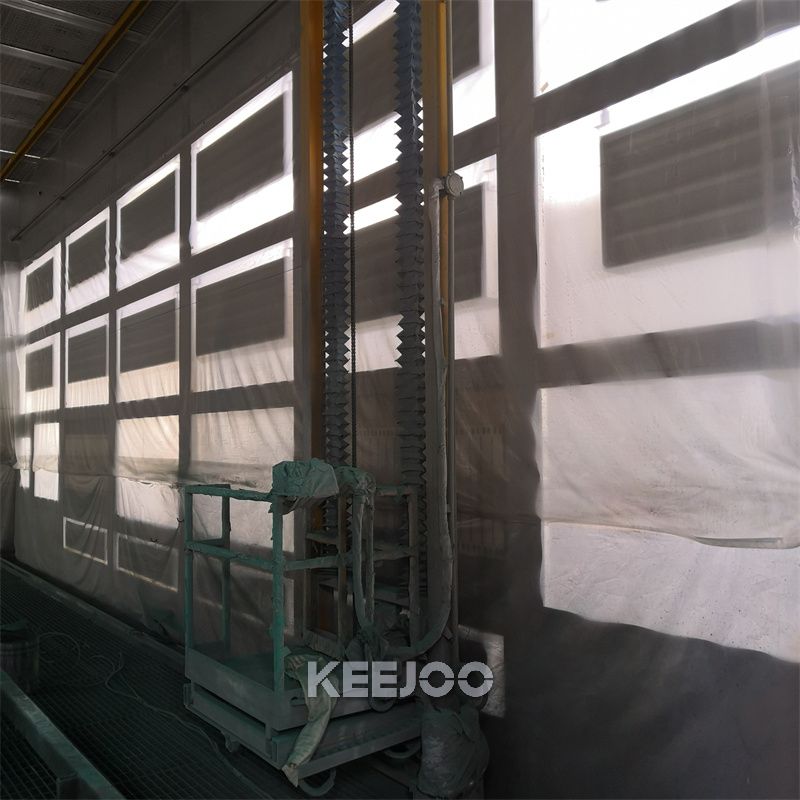

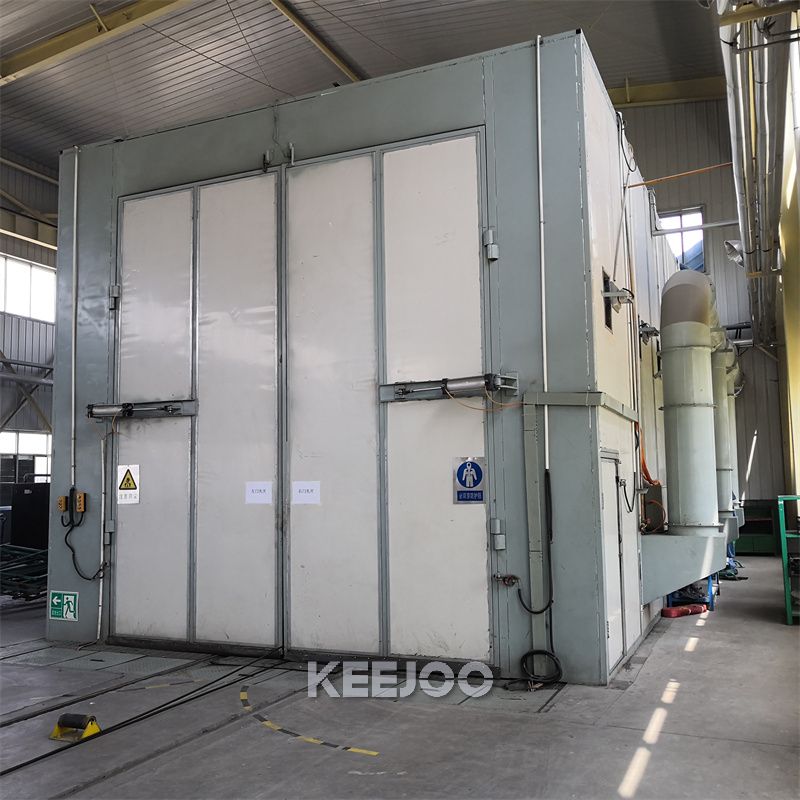

The large storage tanks sand blasting room with KEEJOO Brand is an industrial facility specially designed for handling super-large storage tank components in fields such as chemical engineering and petroleum. Its core feature is that it has an extremely large spatial scale, is equipped with an efficient multi-gun sandblasting system and a heavy-duty abrasive recovery device, which can quickly complete large-scale surface cleaning and roughening work, aiming to provide a solid foundation for spraying heavy-duty anti-corrosion coatings on storage tanks
Technical data
Parameter Aerospace Component Large Storage Tanks Railway Wagons Large Forgings Requirements High precision, pollution-free and traceable Super large space, high efficiency and high durability Long strip shape, continuous operation Overweight workpieces, enhanced cleaning Dimension (L×W×H) 10m x 8m x 5m 30m x 20m x 15m+ 40m x 6m x 6m 15m x 10m x 8m Dust removal air volume (m³/h) 30, 000 - 50, 000 150, 000 - 300, 000+ 60, 000 - 100, 000 40, 000 - 80, 000 Recycling system Mechanical recycling + high sorting accuracy Recycling of super-large machinery Long-distance mechanical recycling Mechanical recycling Function
The large storage tanks sand blasting room is mainly used for surface cleaning and pretreatment of large storage tanks, which can remove oxide scale, old coatings and burrs. At the same time, it enhances the surface roughness through abrasive impact, improving the adhesion of subsequent painting or welding. It is applicable to the refurbishment treatment of stainless steel products and aluminum equipment, as well as the batch processing of complex-structured workpieces.
Feature
Closed design: Equipped with explosion-proof lighting and sound insulation devices to ensure operational safety;
Automation system: It includes workpiece conveying tracks, mechanical arms or gantry crane robots to achieve automatic sandblasting or manual adjustment.
Environmental protection configuration: Three-stage dust removal system (cyclone separation + filter cartridge dust removal + activated carbon adsorption), dust emission concentration is less than 10mg/m³;

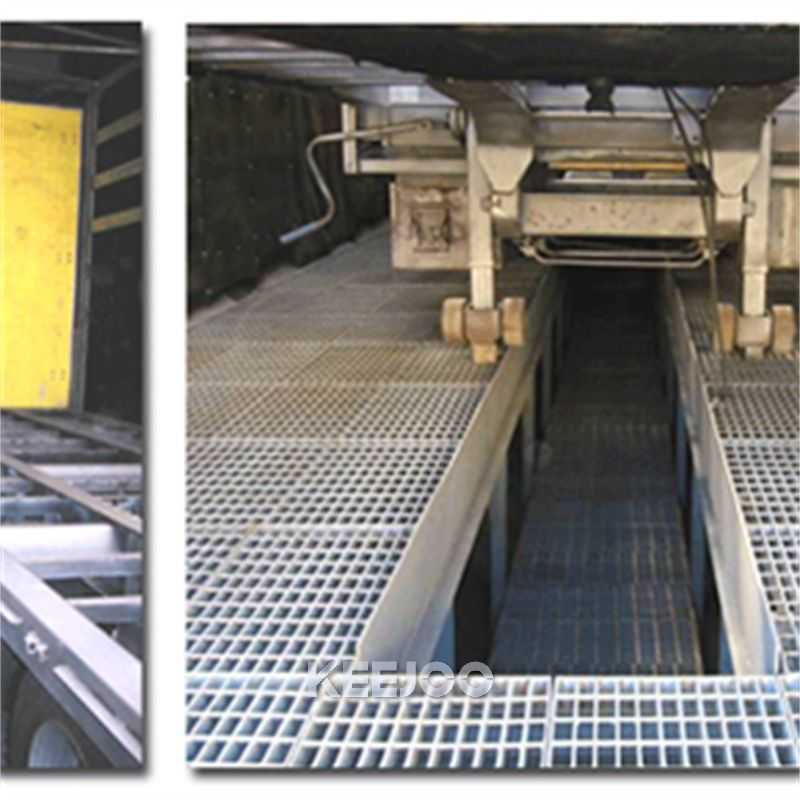

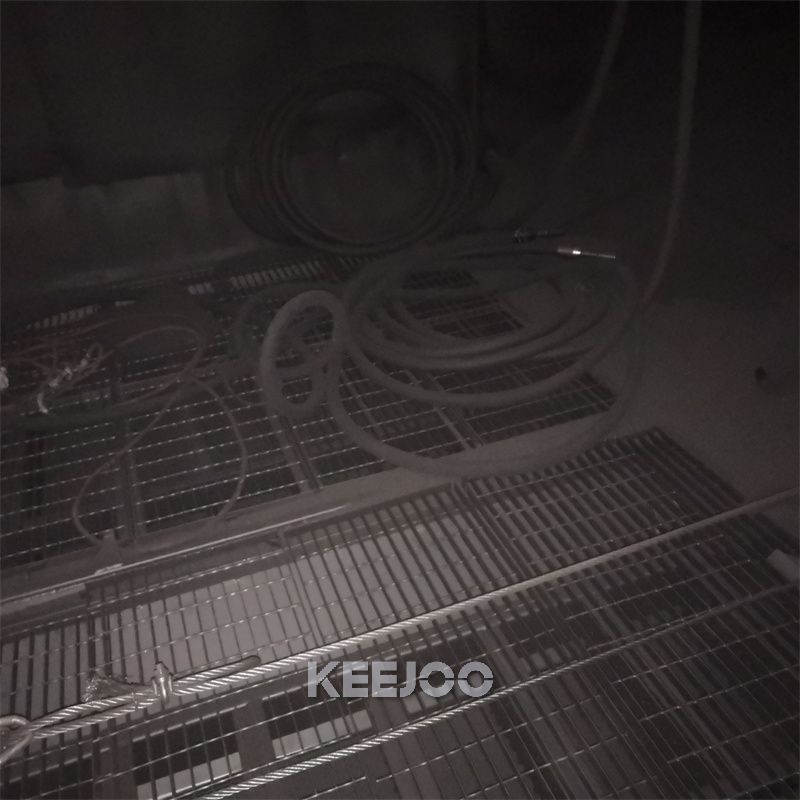

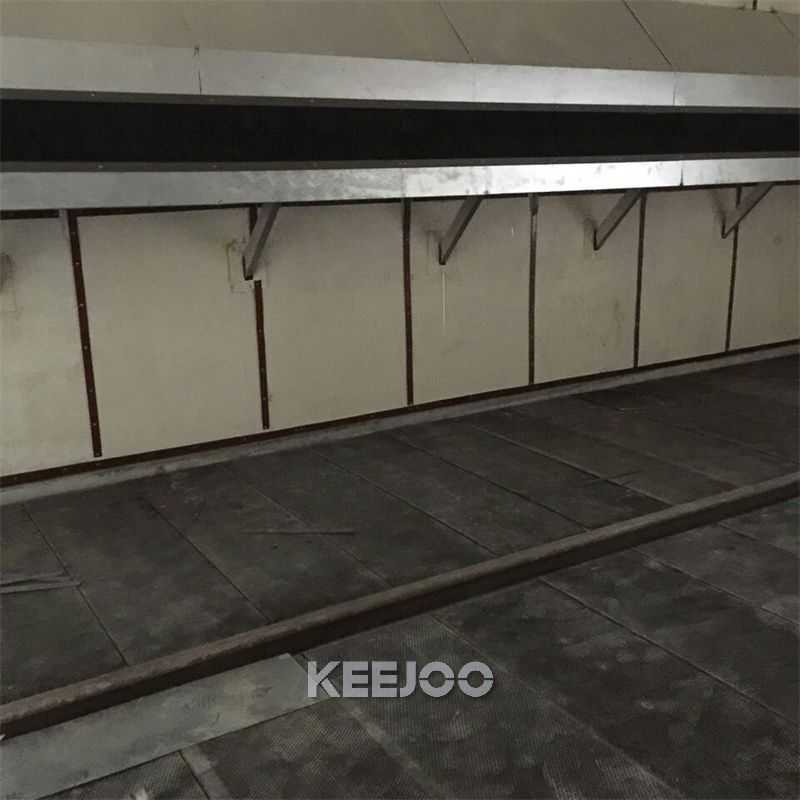

Abrasive recovery: Utilizing honeycomb suction sand flooring or pneumatic conveying systems to recycle abrasives and reduce operation and maintenance costs.Advantage
Super-large enclosed Spaces can handle large-sized workpieces such as storage tanks as a whole or in sections, avoiding multiple transfer processes and significantly improving operational efficiency. The multi-gun linkage system and the automated sandblasting device enable large-scale synchronous operation, shortening the construction period.
The high-intensity sandblasting process can thoroughly remove rust, oxide scale and old coatings, achieving a high cleanliness standard of Sa2.5-Sa3.
The closed working space, in combination with an efficient centralized dust removal system, effectively controls the overflow of dust and meets the requirements of environmental protection emissions.
The automated abrasive recovery and sorting system enables the recycling of abrasive materials such as steel grit and steel shot, reducing material consumption costs.
Sandblasting operations are carried out in a confined space to isolate the influence of noise and dust on the external environment. Integrate safety interlock devices and standardize operation procedures to ensure the safety of personnel and equipment.The large storage tank sandblasting room is compatible with various abrasive media (such as steel grit, steel shot, etc.) and can meet the surface treatment requirements of different grades. Modular design allows for customization of size and configuration according to project requirements, adapting to diverse large-scale workpiece processing scenarios.
