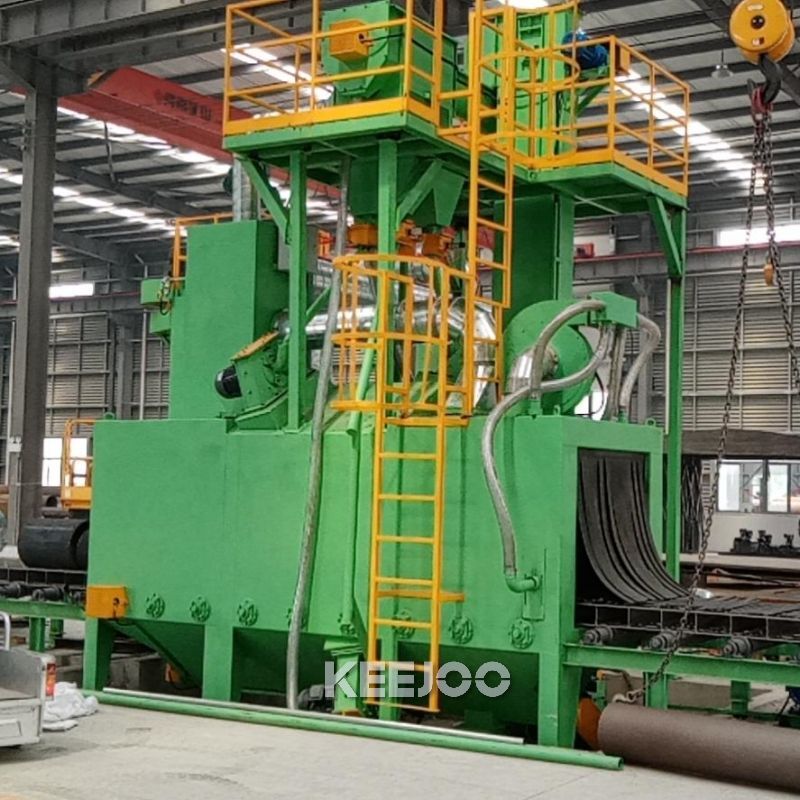

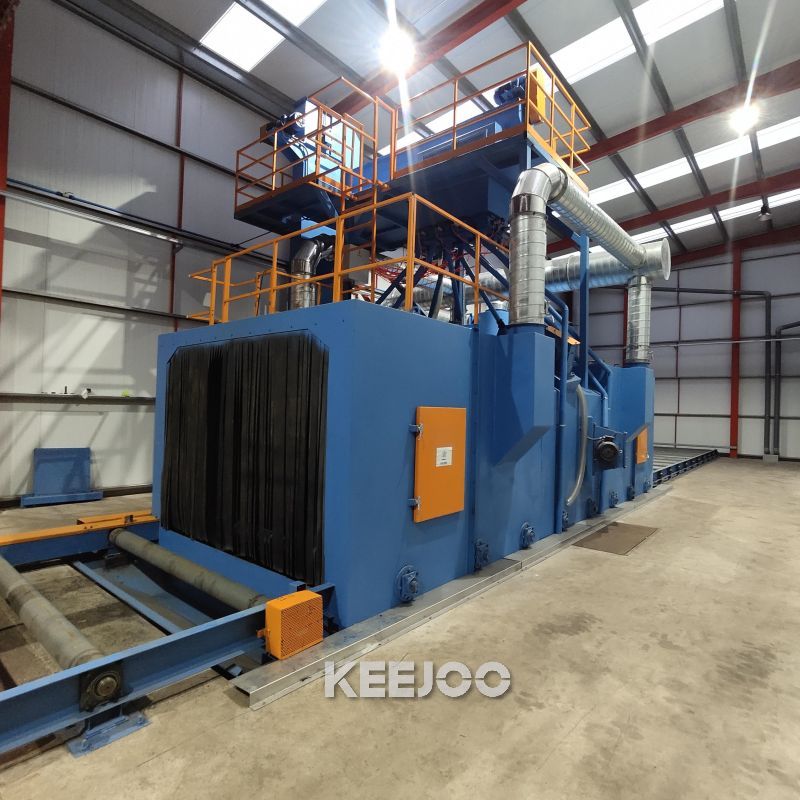

Frame Girder Shot Blasting Machine
- Product details
The KEEJOO brand Frame Girder Shot Blasting Machine with competitive price adopts a continuous conveying method. The workpieces pass through the shot blasting area at a constant speed under the drive of the conveying roller track. The high-speed rotating impeller accelerates and throws the shot onto the surface of the workpiece. Through dense impact, it removes the oxide scale, rust and impurities, enhancing the hardness and fatigue life resistance.
Function
The Frame Girder Shot Blasting Machine removes oxide scale, rust layer and stains by high-speed shot blasting to impact the surface of the workpiece, while improving the surface roughness. Its core functions include:
Surface cleaning: Remove the oxide scale, rust layer and impurities on the surface of steel to restore the smoothness of the metal surface.
Strengthening treatment: By concentrating shot impact on the surface of the workpiece, the hardness and fatigue life resistance of the workpiece are enhanced.Technical parameter
Model KJ1500HD KJ 2000D KJ 2500HD KJ 3000HD KJ 4000HD Inlet width (mm) 1600 2100 2800 3300 4300 Inlet height (mm) 550 550 550 550 550 Processing speed(m/min) 1.5-4.5 1.8-5.0 1.0-3.0 0.8-2.5 0.8-2.0 No. Of shot blaster 4 6 6 6 8 Power of single shot blaster (kW) 15/18.5 15 11/15/18.5 15/18.5 11/15 Roller spacing (mm) 800 800 750 750 750 Optional roller conveyor spacing (mm) 400 400 500 500 500 Shipping:
The Frame Girder Shot Blasting Machine will be shipped via sea or air, depending on the customer's preference.
The shipping cost will be calculated based on the destination and weight of the machine.
Once the machine is shipped, the customer will be provided with a tracking number to track the status of their shipment.
The estimated delivery time will depend on the shipping method and the destination.If the above model not suit for your workpiece, please tell me your need and the following information then we will send you the best technical drawing to you.
1. The max. Length of the workpiece.
2. The max. Width of the workpiece.
3. The max. Height of the workpiece.
4. The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
5. The power supply you need ( such as 380V, 3P, 50HZ)
6. Better to send us the workpiece photo or drawing.
