Aluminum Castings Shot Blasting Machine
- Product details
With CE certificate ,Qingdao KEEJOO Group provide the Aluminum Castings Shot Blasting Machine uses a high-speed rotating cantilever centrifugal shot blasting machine to project shot onto the surface of the workpiece, achieving surface cleaning, rust removal, oxide scale removal and strengthening treatment.
Technical feature
Structural optimization: Aluminum Castings Shot Blasting Machine adoption of rolled Mn13 chamber body guard plates reduces maintenance costs by approximately 60%, and wear-resistant rubber tracks minimize workpiece collision damage and noise.

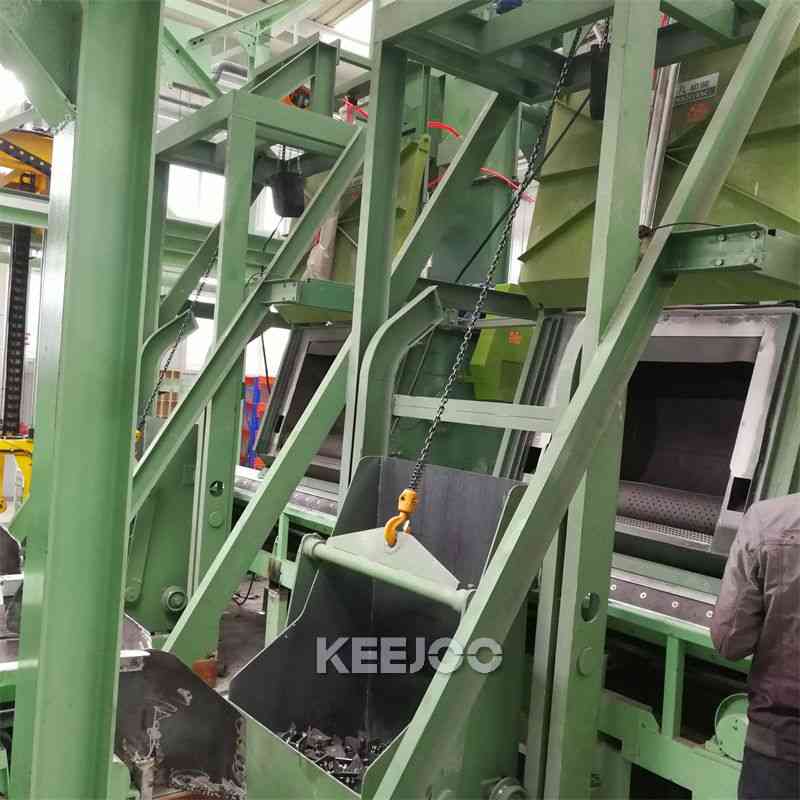

Automated design: Supports automatic lifting, self-rotation and material feeding and discharging operations of workpieces. It can be used as a single machine or linked with a conveyor line.

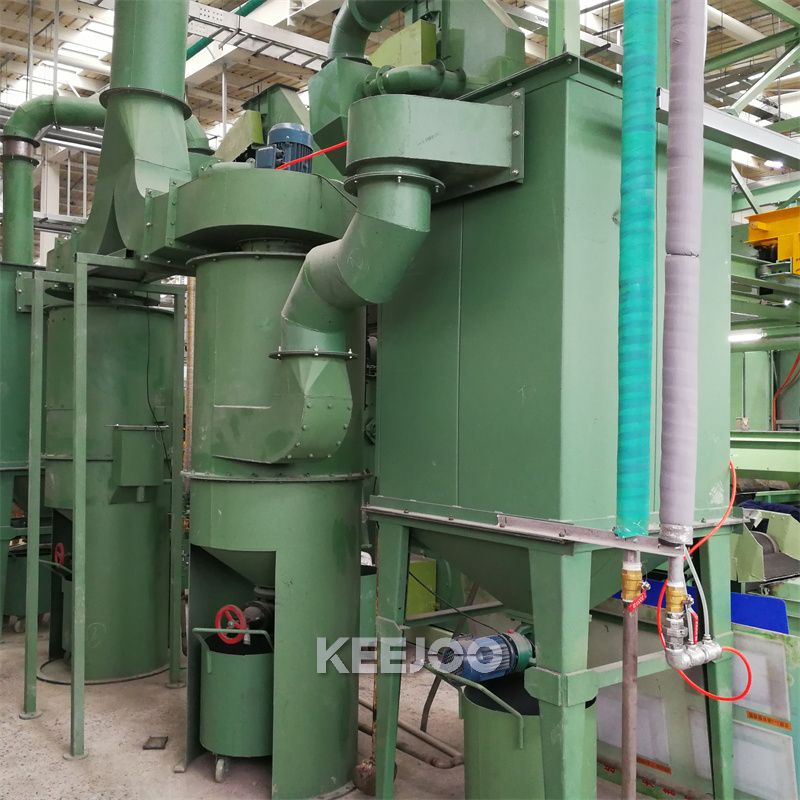

Environmental protection configuration: Equipped with a BE type separator to enhance shot recovery rate, and a DMC type pulse reverse-blowing bag filter to ensure that dust emissions meet standards.Technical data
Parameter Unit 3GN 8GN 8GN-5R 15GN Productivity t/h 0.6-1.2 2-4 2-3 3-5 Feeding Amount kg 220 650 650 1000 Max Weight of SingleWorkpiece kg 12 32 32 55 Diameter of end disk mm 650 1000 1000 1150 Effective volume m3 0.15 0.3 0.3 0.5 Abrasive flowrate Kg/min 180 270 270 300 Ventilation capacity m3 2300 3500 3500 5000 Total power kw 13.1 23.2 27.4 39.4 Aluminum Castings Tumblast Shot Blasting Machine advantages:
Efficient processing capacity

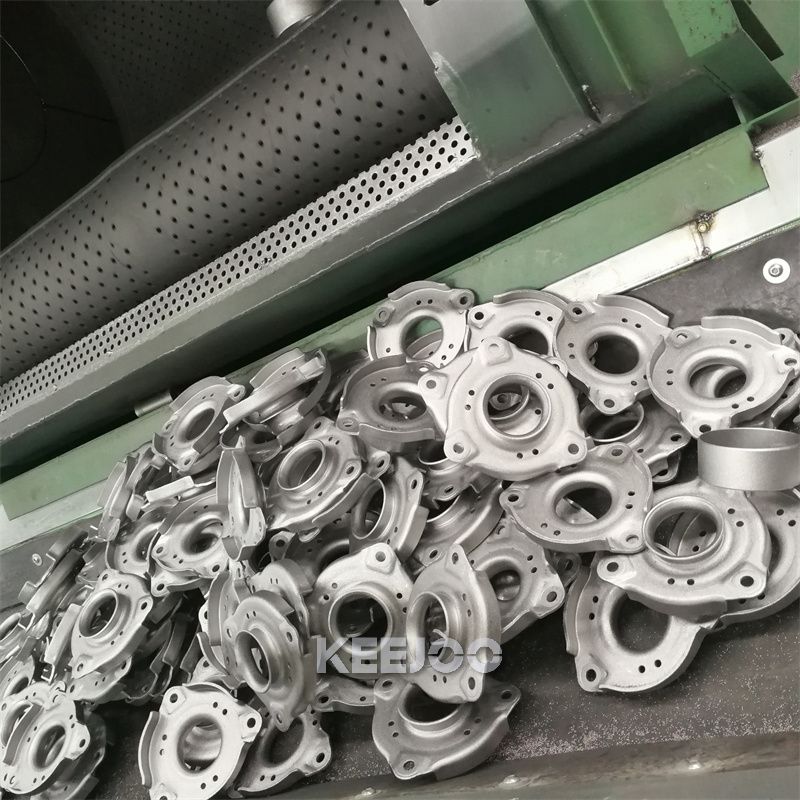

The Aluminum Castings Shot Blasting Machine moves the workpiece by flipping the tumblast, which can achieve batch continuous processing of medium and small-sized aluminum castings, especially suitable for aluminum castings with complex shapes. Its rolling and rotating design enables the shot to fully impact the surface of the workpiece, resulting in a high cleaning efficiency and a shorter processing time for a single workpiece.
Well-adapted
The aluminum castings tumblast shot blasting machine has a good tolerance for the size and shape of workpieces and can handle castings that are not afraid of collision, such as aluminum alloy parts and special-shaped castings.
It has a relatively high degree of automation and is usually equipped with automatic feeding, shot blasting treatment and discharging functions, reducing manual intervention. The periodic maintenance costs for components such as replacing tracks and blast wheels are relatively low.
