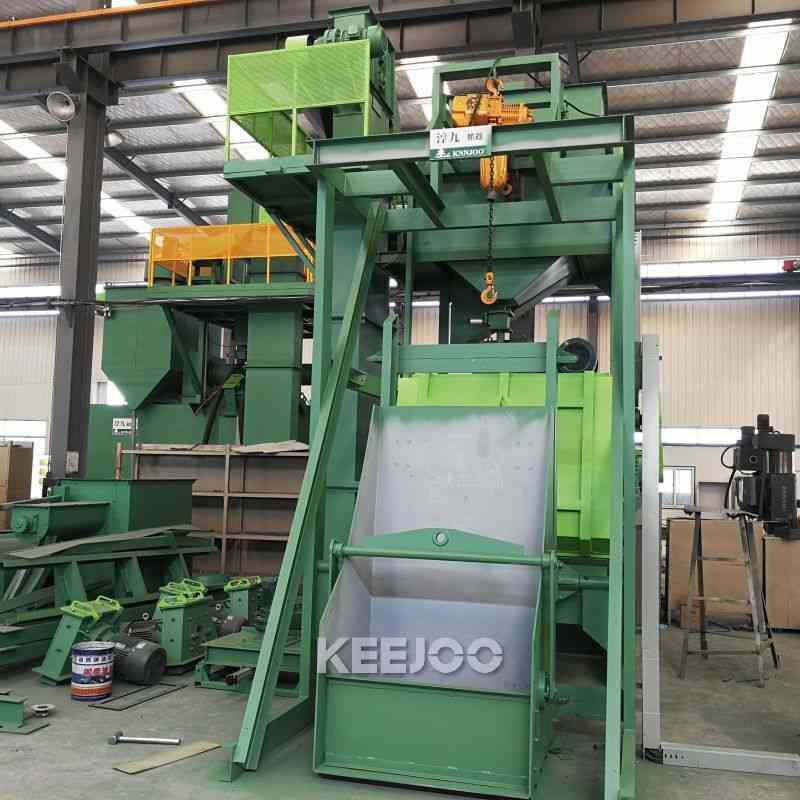

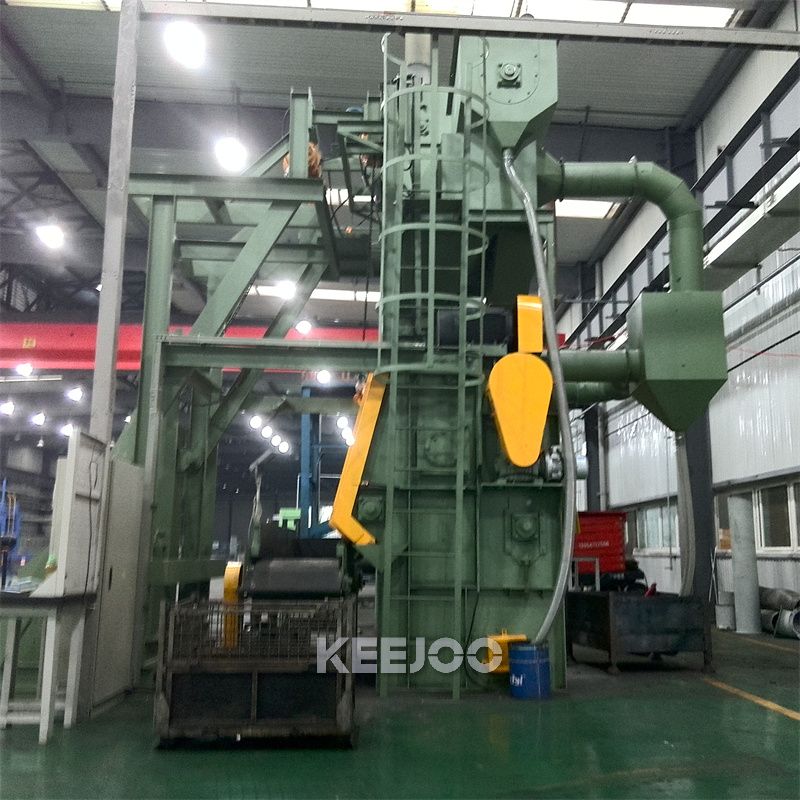

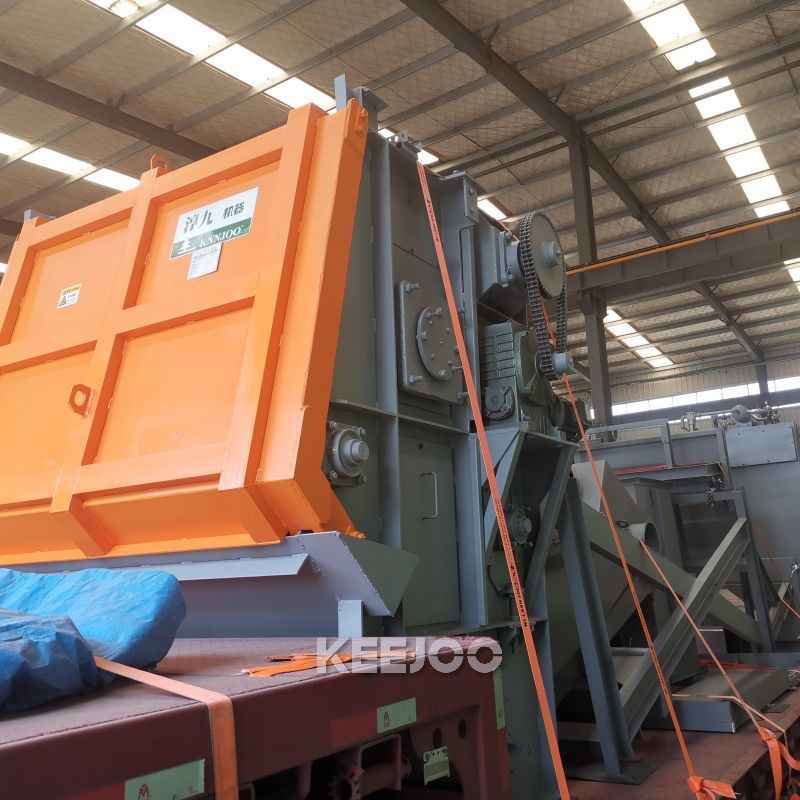

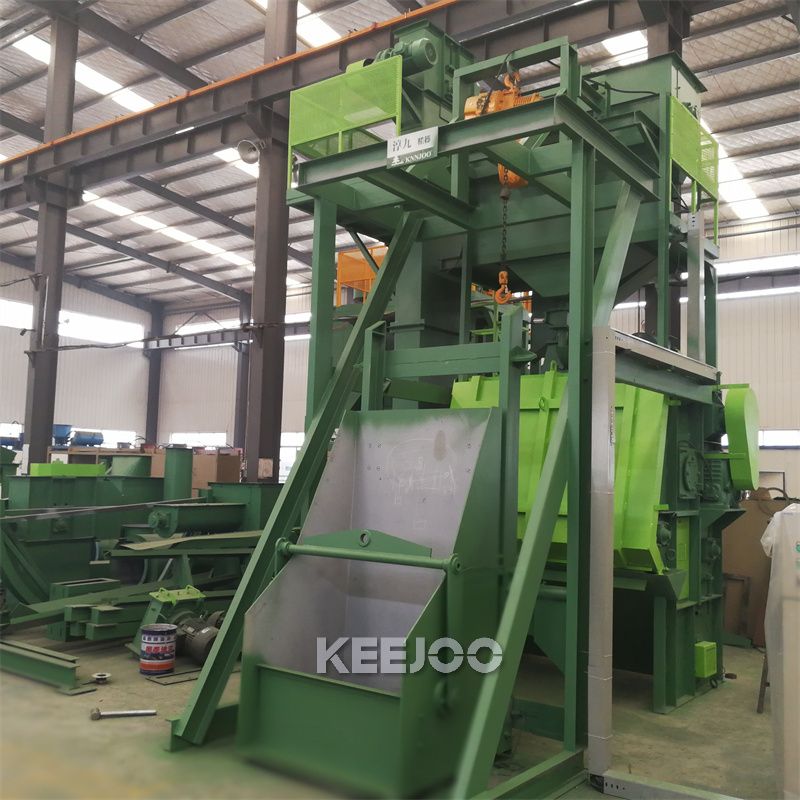

Springs Tumblast Shot Blasting Machine
- Product details

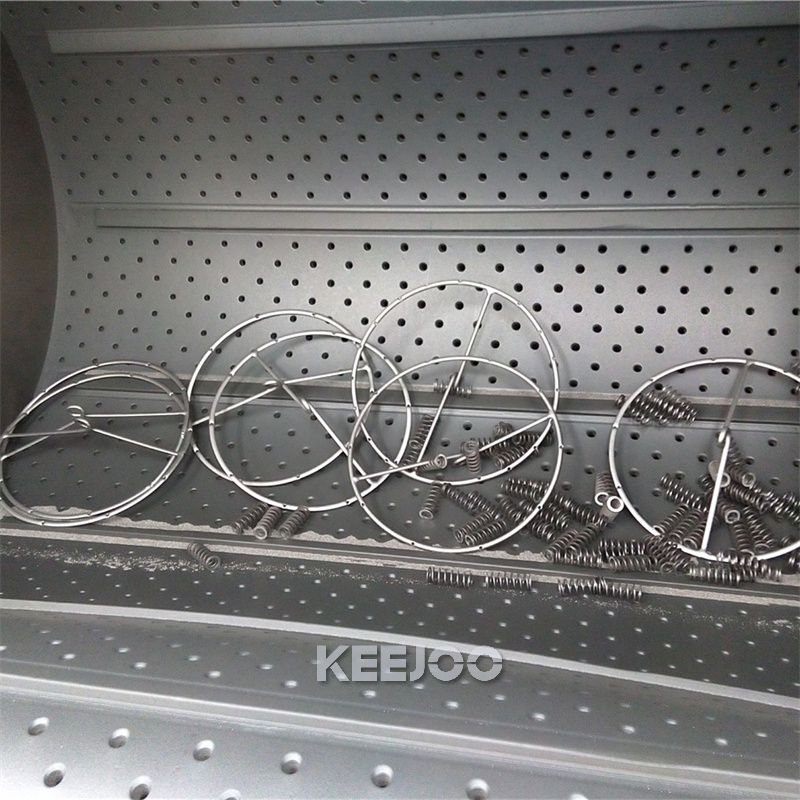

The high quality Springs Tumblast Shot Blasting Machine is a specialized shot blasting cleaning equipment manufactured by Qingdao KEEJOO Goup , that uses a high-speed shot beam (such as steel shot, wire cut shot, etc.) to clean, strengthen and deburr the surface of various spring parts like helical springs, compression springs and disc springs.
Technical data
Parameter Unit 3GN 8GN 8GN-5R 15GN Productivity t/h 0.6-1.2 2-4 2-3 3-5 Feeding Amount kg 220 650 650 1000 Max Weight of SingleWorkpiece kg 12 32 32 55 Diameter of end disk mm 650 1000 1000 1150 Effective volume m3 0.15 0.3 0.3 0.5 Abrasive flowrate Kg/min 180 270 270 300 Ventilation capacity m3 2300 3500 3500 5000 Total power kw 13.1 23.2 27.4 39.4 Precautions for selecting a springs tumblast shot blasting machine
When choosing a springs tumblast shot blasting machine, the following points need to be considered:
Spring size: The width of the equipment's tracks and the volume of the cleaning chamber must match the maximum size of the springs to be processed and the single processing capacity.
Processing requirements: The Springs Tumblast Shot Blasting Machine only surface cleaning is required, or is it necessary to achieve a certain degree of strengthening strength? This determines the power and quantity of the blast wheels.
Production efficiency: Select an appropriate working rhythm based on production capacity requirements
Material of wear-resistant parts: The blades, guard plates and other vulnerable parts should be made of high-quality materials such as high-chromium wear-resistant cast iron to ensure the service life of the equipment.
Dust removal configuration: Select the appropriate dust collector specification according to environmental protection requirements.Characteristic
Treatment effect is uniform and thorough
Efficient automated cycle
Springs Tumblast Shot Blasting Machine has the dual functions of cleaning and strengthening
The core components are wear-resistant and durable
The shot circulation system is economically and efficient
Environmentally friendly and with good sealing performance
springs tumblast shot blasting machine is easy to operate and maintain
