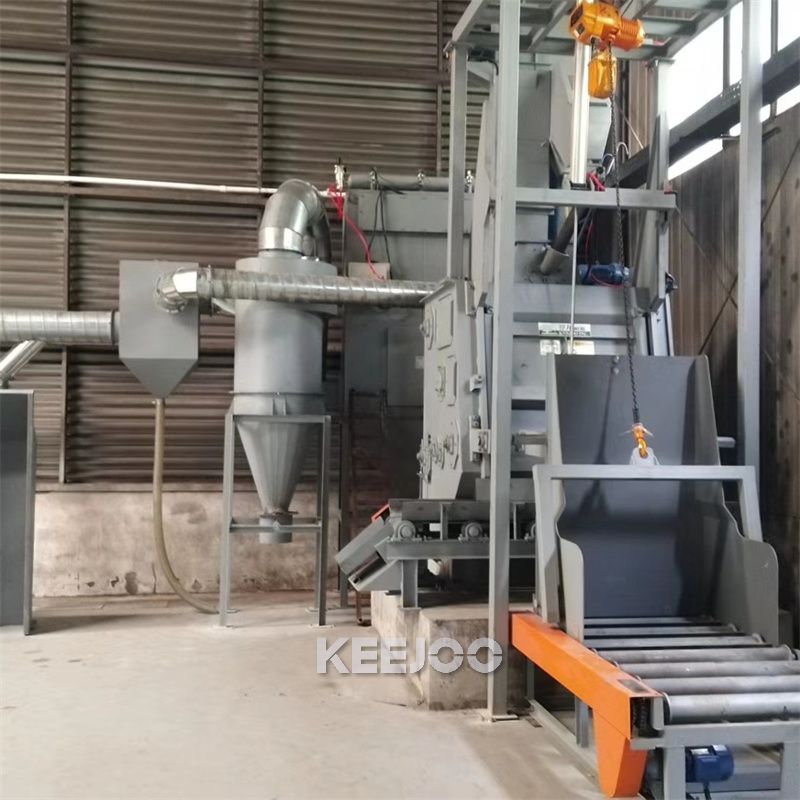

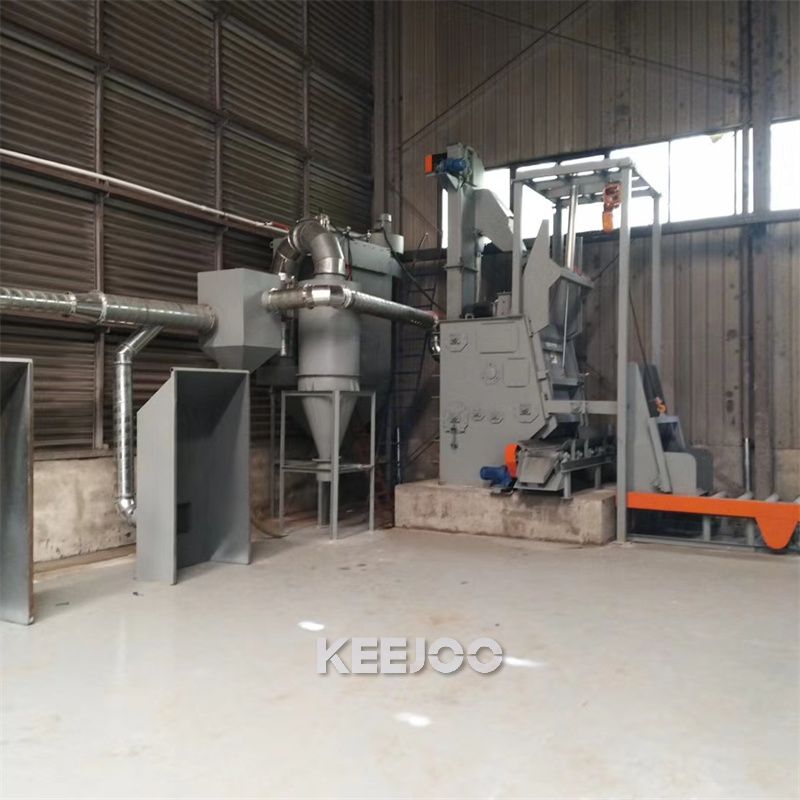

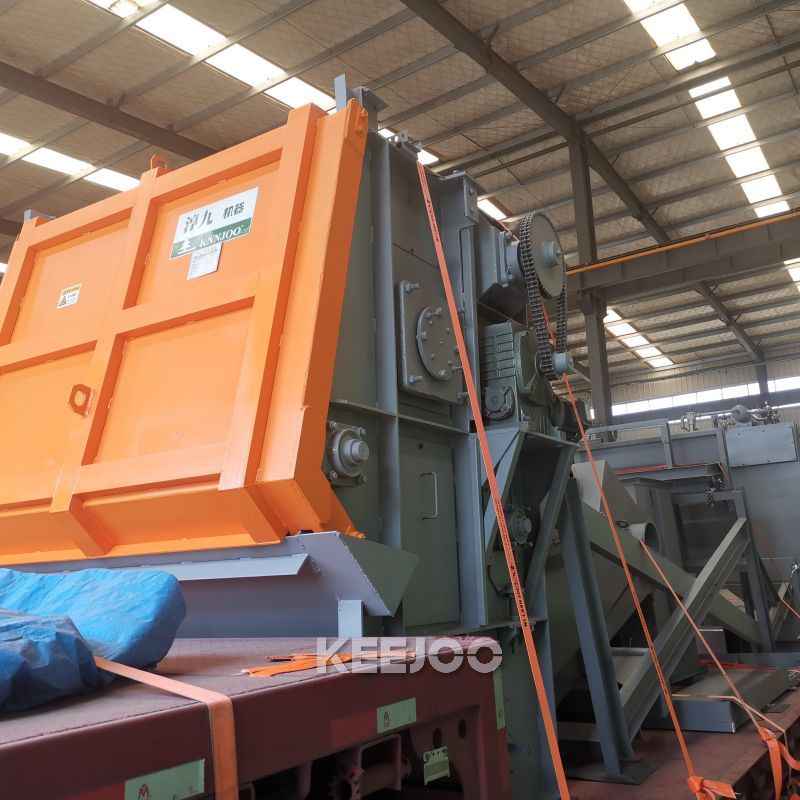

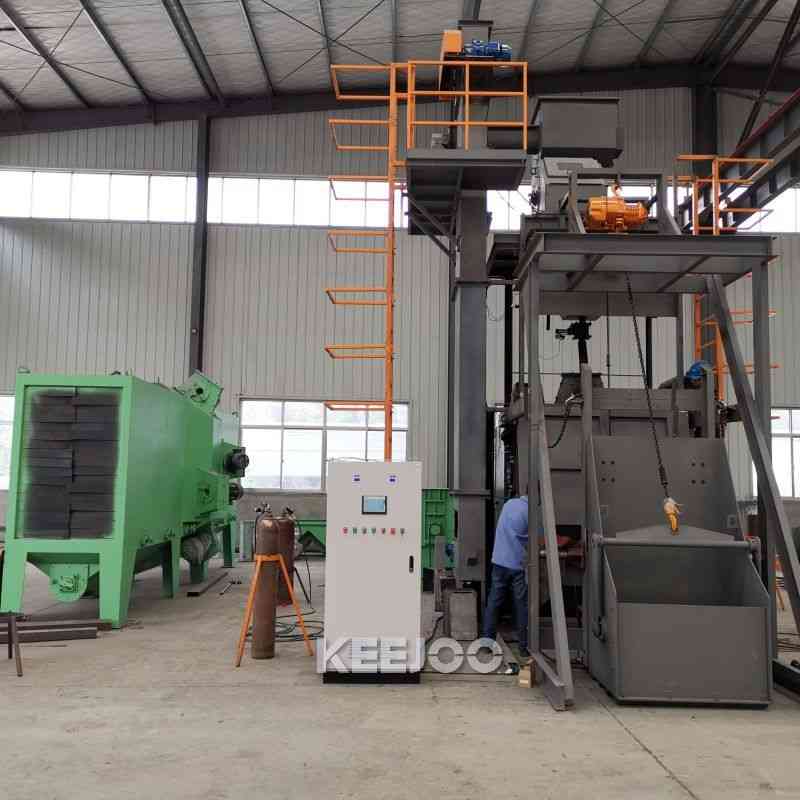

Fastener Tumblast Shot Blasting Machine
- Product details
The high quality Fastener Tumblast Shot Blasting Machine with KEEJOO brand is a specially designed track-type shot blasting cleaning equipment for batch cleaning, oxide scale removal, rust removal, surface strengthening and polishing of fasteners. It achieves the purpose of cleaning and strengthening by rapidly ejecting projectiles to impact the surface of the workpiece. Due to its high efficiency and continuous operation characteristics, it is one of the indispensable key equipment in the fastener manufacturing industry.
Technical data
Parameter Unit 3GN 8GN 8GN-5R 15GN Productivity t/h 0.6-1.2 2-4 2-3 3-5 Feeding Amount kg 220 650 650 1000 Max Weight of SingleWorkpiece kg 12 32 32 55 Diameter of end disk mm 650 1000 1000 1150 Effective volume m3 0.15 0.3 0.3 0.5 Abrasive flowrate Kg/min 180 270 270 300 Ventilation capacity m3 2300 3500 3500 5000 Total power kw 13.1 23.2 27.4 39.4 Feature
Compact structure: the Fastener Tumblast Shot Blasting Machine adopts a cantilever centrifugal shot blasting machine, featuring a large throwing Angle and high efficiency, with low maintenance costs.
Environmental protection performance: Equipped with bag-type dust collectors, the dust emission concentration is lower than the national standard, improving the operating environment.
Low-noise design: Wear-resistant rubber tracks reduce workpiece collisions, and the overall noise control of the machine is betterWorking principle

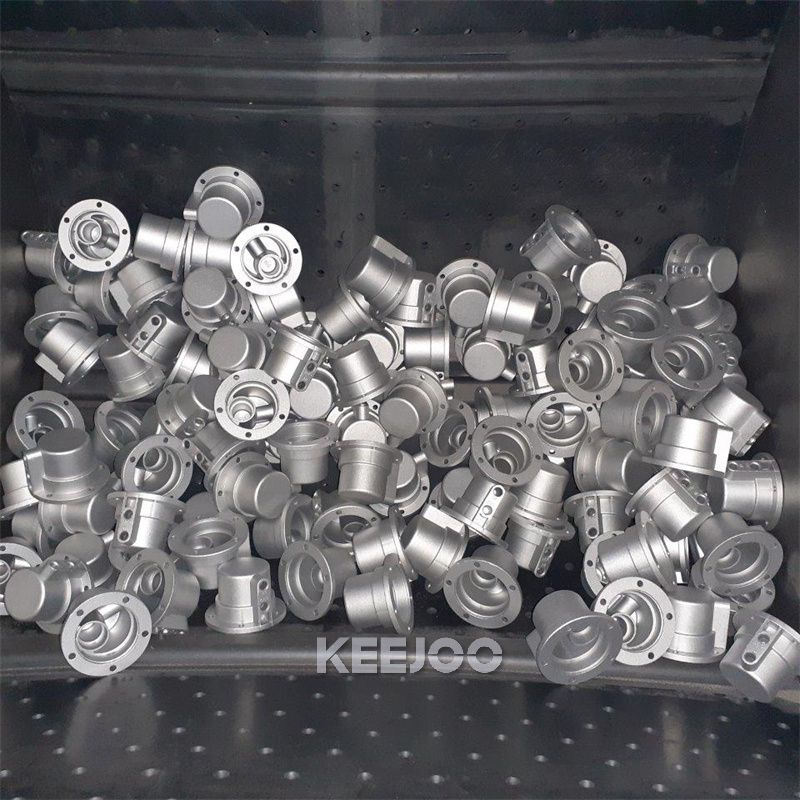

After the workpiece is placed in the cleaning chamber, the blast wheel throws out the shot at high speed, evenly striking the surface of the workpiece. At the same time, the track drives the workpiece to roll, ensuring all-round cleaning. The shot is recycled by the separator and reused, while the waste sand is discharged through the pipeline.
If you need to consider purchasing the Fastener Tumblast Shot Blasting Machine, you should pay attention to the following points
Workpiece specification: The specific type, size and quantity of fasteners to be processed.
Cleaning requirements ：Is it merely to remove the oxide scale, or is it necessary to achieve a certain surface roughness (Sa2.5) or the purpose of strengthening?
Equipment specifications: Track load-bearing capacity, number and power of blast wheels, dust removal air volume.
Key component quality: blast wheels (brand or quality), dust collector (filter cartridge or bag), electrical control system (PLC brand), brand and quality of motor.
After-sales service: Whether the supplier provides installation, commissioning, training and timely spare parts support.
