Heat-Treated Gears Shot Blasting Machine
- Product details

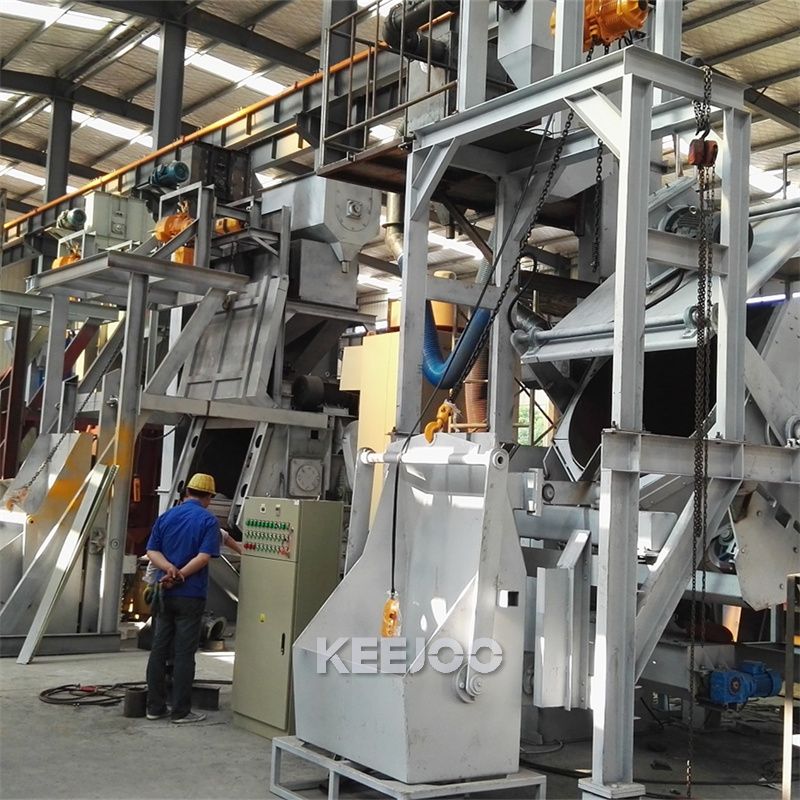

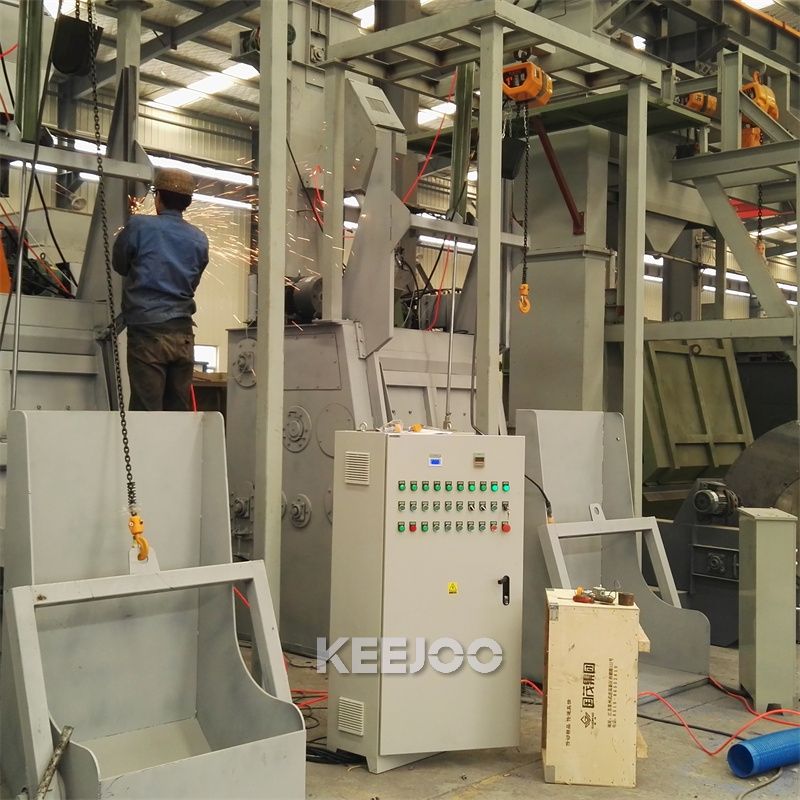

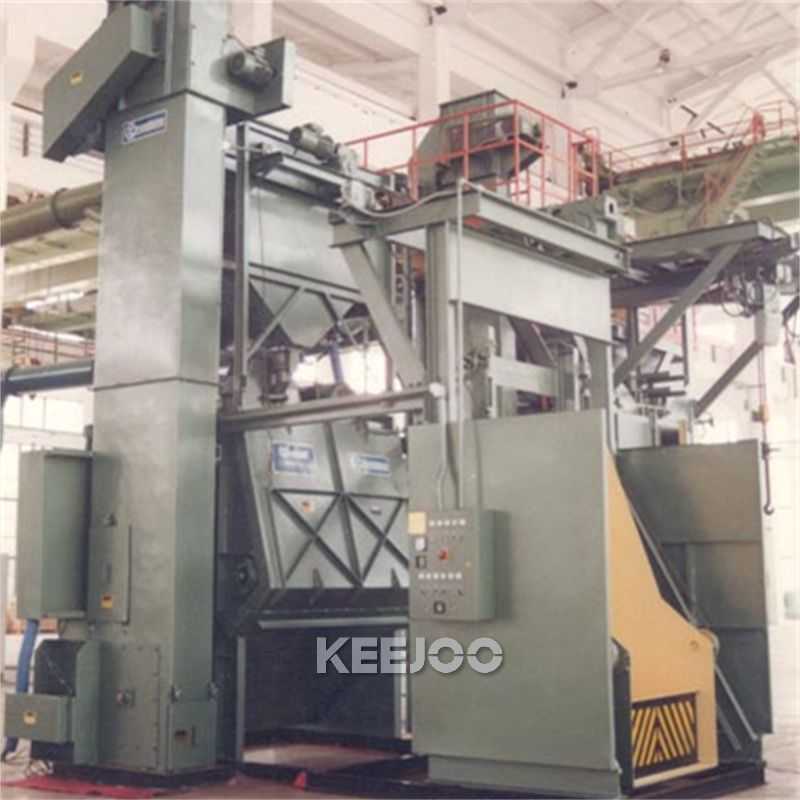

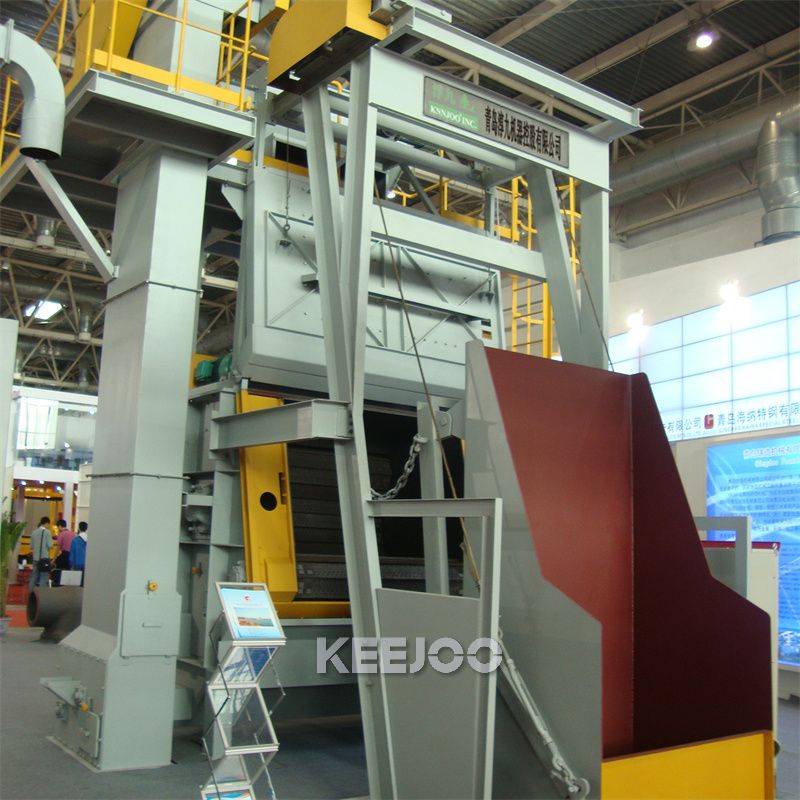

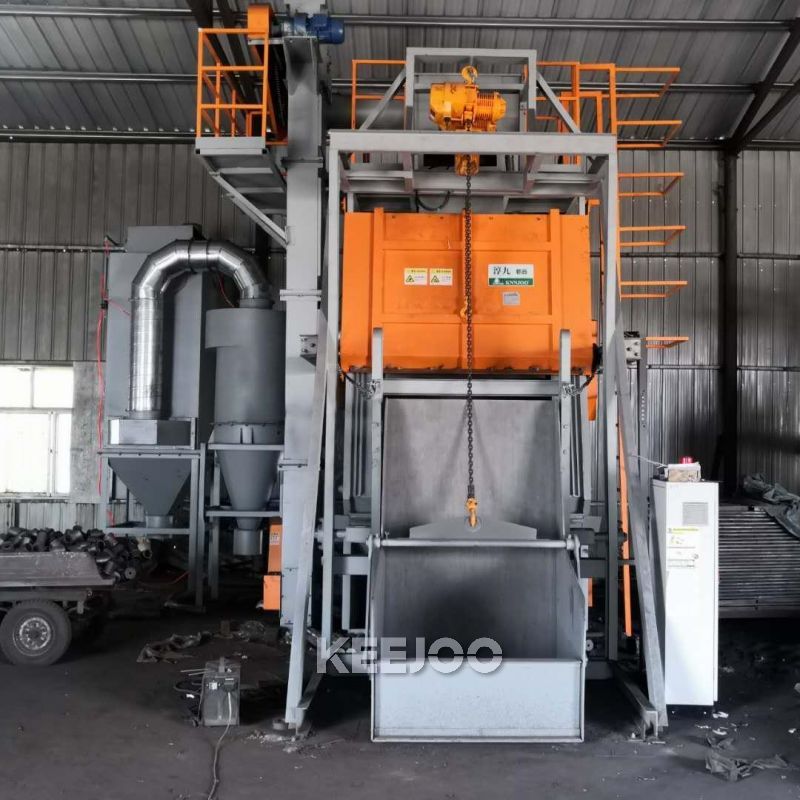

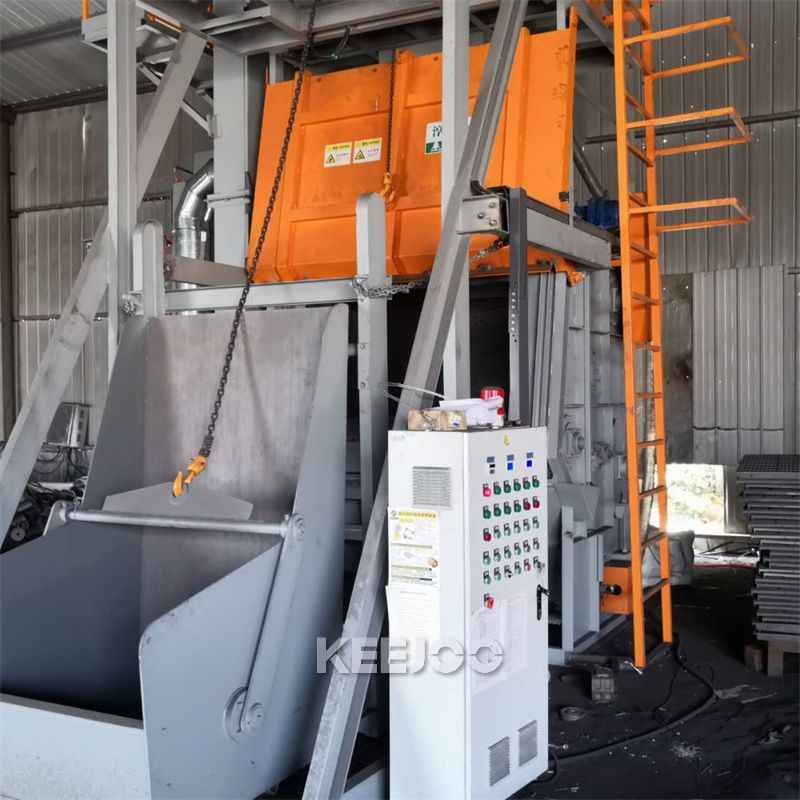

The easy-maintainable Heat-Treated Gears Shot Blasting Machine provided by Qingdao KEEJOO Group is an automated surface treatment equipment that uses high-speed shot and internally rolling tracks to efficiently and thoroughly clean and strengthen small and medium-sized batch workpieces without any blind spots. It drives the tracks through gears, causing the workpiece to roll in all directions and undergo shot blasting impact. It can efficiently remove rust, oxide scale and strengthen the surface of the workpiece at one time.
Technical data
Parameter Unit 3GN 8GN 8GN-5R 15GN Productivity t/h 0.6-1.2 2-4 2-3 3-5 Feeding Amount kg 220 650 650 1000 Max Weight of SingleWorkpiece kg 12 32 32 55 Diameter of end disk mm 650 1000 1000 1150 Effective volume m3 0.15 0.3 0.3 0.5 Abrasive flowrate Kg/min 180 270 270 300 Ventilation capacity m3 2300 3500 3500 5000 Total power kw 13.1 23.2 27.4 39.4 working principle
The Heat-Treated Gears Shot Blasting Machine conveys workpieces into the cleaning chamber through tracks. The tumblast drive the workpieces to roll, while the blast wheel throws out shot at high speed, forming a dense flow beam to evenly strike the surface of the workpieces, removing oxide scale, rust and adhered sand. The pellets flow into the screw conveyor through the belt holes and are sent to the separator for recycling. The dust is filtered and discharged by the dust removal system.
Features
Heat-Treated Gears Shot Blasting Machine Compact design, simple operating principle
Forced but gentle turning and tumbling of the parts for all-round shot impingement
Targeted high performance shot blasting for specific applications
Continuous and thorough shot removalAdvantage
The cleaning efficiency and degree of automation are extremely high
The cleaning effect is uniform with no blind spots
Versatility: Surface cleaning, surface strengthening, burr removal, surface pretreatment, etc
The operating cost is economical and the maintenance is relatively simple
