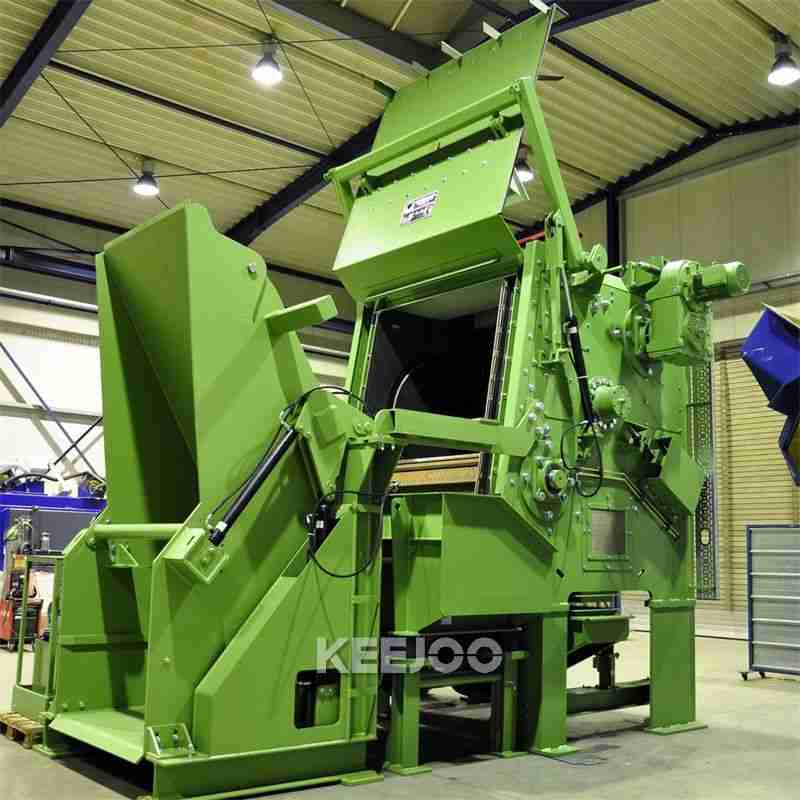

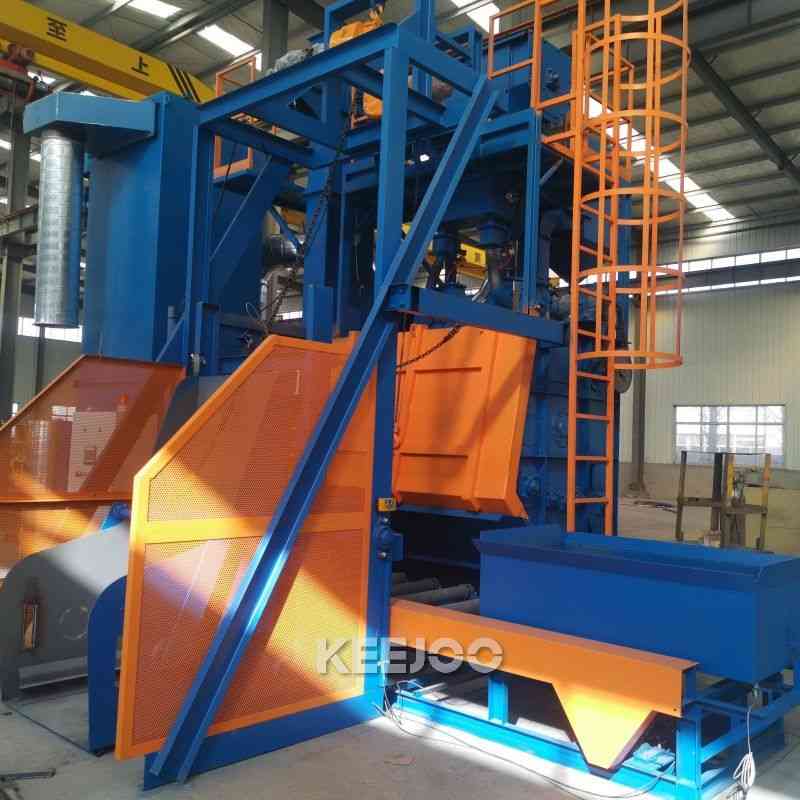

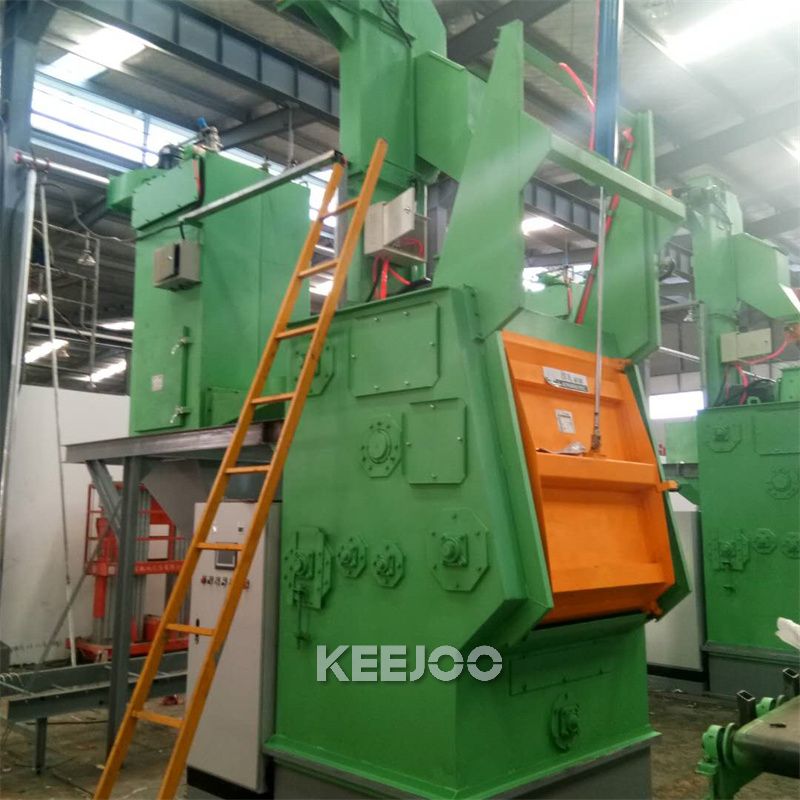

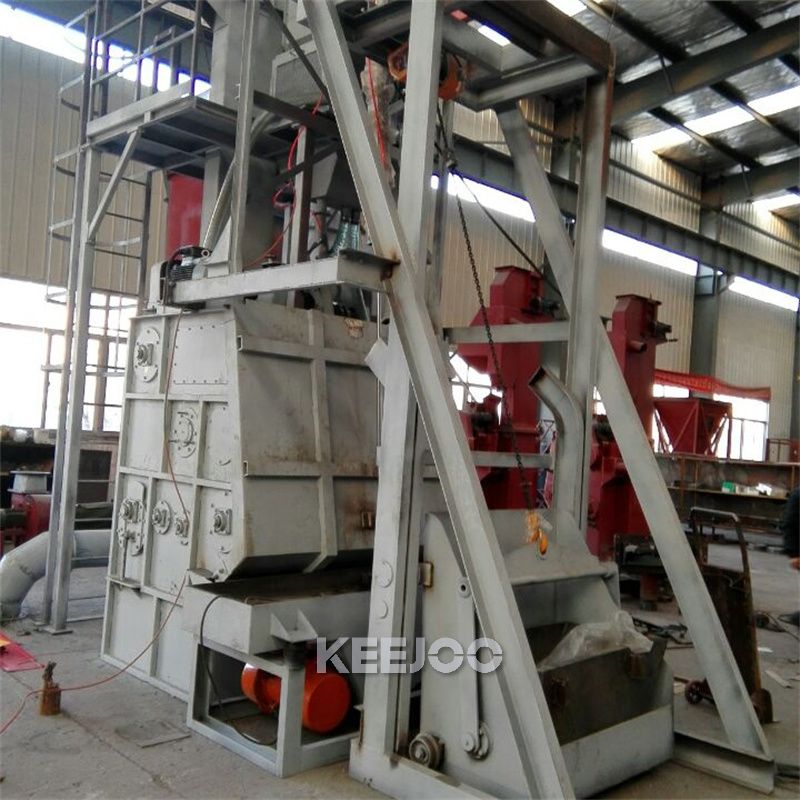

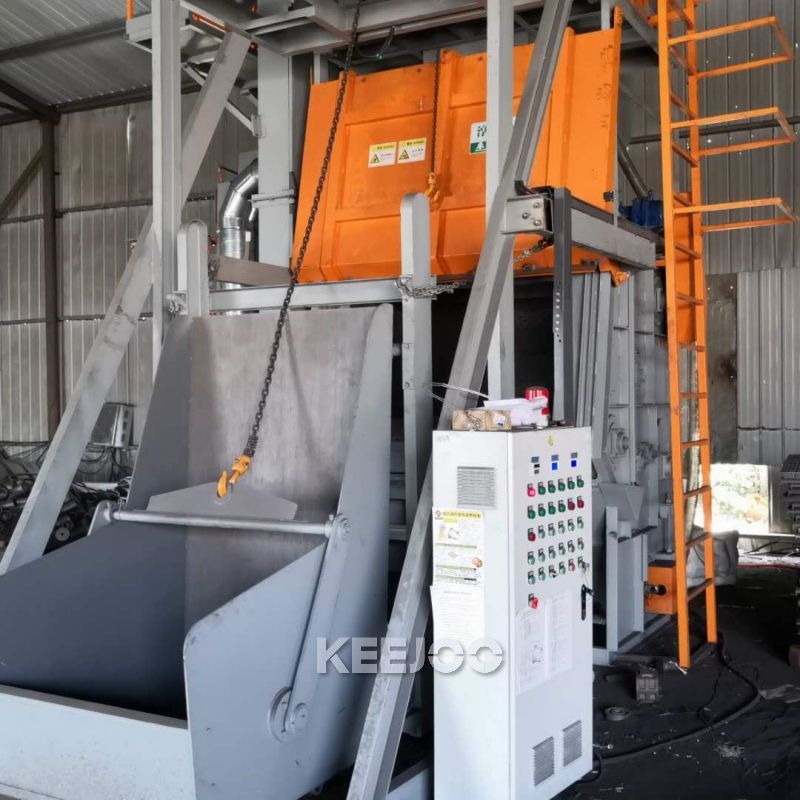

Valves Tumblast Shot Blasting Machine
- Product details
The valves tumblast shot blasting machine is a surface treatment equipment specially designed for cleaning valves. It uses high-speed projectiles to impact the valves rolling on the tracks. It can efficiently remove the oxide scale, rust and impurities on its surface, and at the same time strengthen the workpiece and provide a good foundation for its subsequent spraying. This equipment integrates cleaning, strengthening and environmental protection, and is a key device in the valve manufacturing industry.
Technical data
Parameter Unit 3GN 8GN 8GN-5R 15GN Productivity t/h 0.6-1.2 2-4 2-3 3-5 Feeding Amount kg 220 650 650 1000 Max Weight of SingleWorkpiece kg 12 32 32 55 Diameter of end disk mm 650 1000 1000 1150 Effective volume m3 0.15 0.3 0.3 0.5 Abrasive flowrate Kg/min 180 270 270 300 Ventilation capacity m3 2300 3500 3500 5000 Total power kw 13.1 23.2 27.4 39.4 Structure and Principle
The workpieces roll in the cleaning chamber through the track and are combined with the cantilever centrifugal shot blasting machine (with a throwing speed of up to 75-85m/s). Surface cleaning is achieved through high-speed shot impact. The pellets flow into the screw conveyor through the belt holes and are then recycled and reused by the separator.
Advantages
Valves Tumblast Shot Blasting Machine has below advantages:
1.It has an outstanding cleaning effect and also features enhancement functions
2.High production efficiency and low operating cost
3.Safe, environmentally friendly and highly automatedWhy choose valves tumblast shot blasting machine
The valve tumblast shot blasting machine is chosen because it can solve the core surface treatment problems in the valve manufacturing and repair process in an efficient, economical and reliable way. The main reasons for its selection can be summarized into the following four points:
1. The internal structure of the valve is complex. The valve tumblast shot blasting machine ensures that the shot can impact every surface and corner without dead corners by continuously rolling the workpiece, guaranteeing thorough and consistent cleaning.
2. It can simultaneously achieve "cleaning" and "strengthening"
Efficient cleaning: Quickly and thoroughly remove the casting sand, oxide scale, rust and old paint film on the surface to expose the original color of the metal.
Performance enhancement: The shot blasting process forms a compressive stress layer on the metal surface, significantly enhancing the fatigue life, corrosion resistance and stress crack resistance of the valve.3. It has greatly enhanced production efficiency: It can continuously handle large quantities of workpieces, with production efficiency far exceeding that of manual operations, thus shortening the delivery cycle. At the same time, highly efficient magnetic or air separation separators can ensure that over 95% of the shot is recycled, significantly reducing the cost of abrasive consumption.
4. Comply with national environmental protection and safety requirements The valve tumblast shot blasting machine is of a fully enclosed structure and integrates an efficient dust removal system, which can control the dust and noise generated during the production process within a closed space. The working environment is clean and environmentally friendly, ensuring the health of employees, and at the same time meeting increasingly strict national environmental protection emission standards.
