Auto Parts Shot Blasting Machine
- Product details

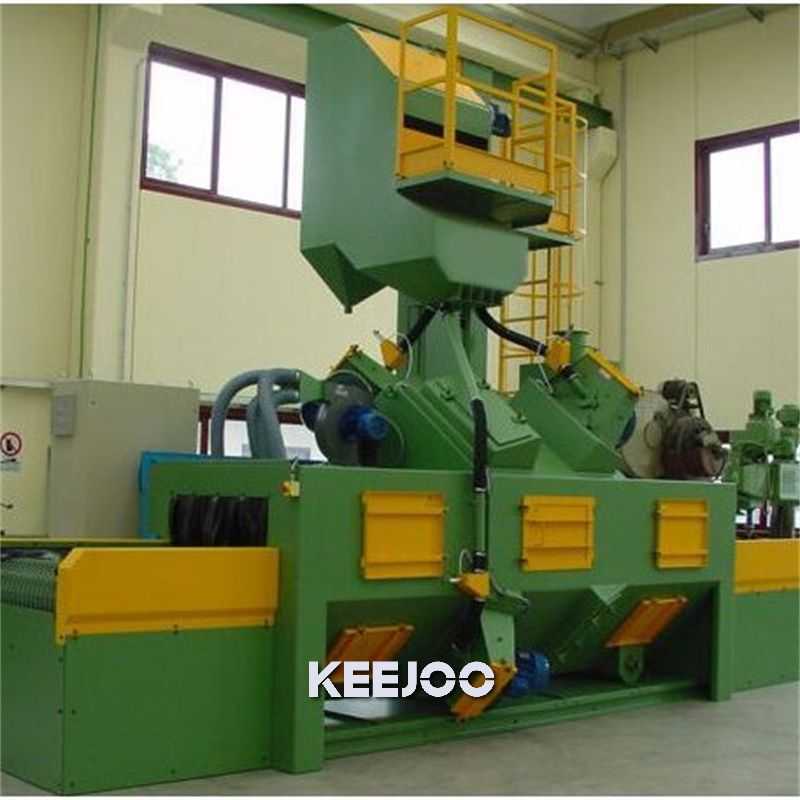

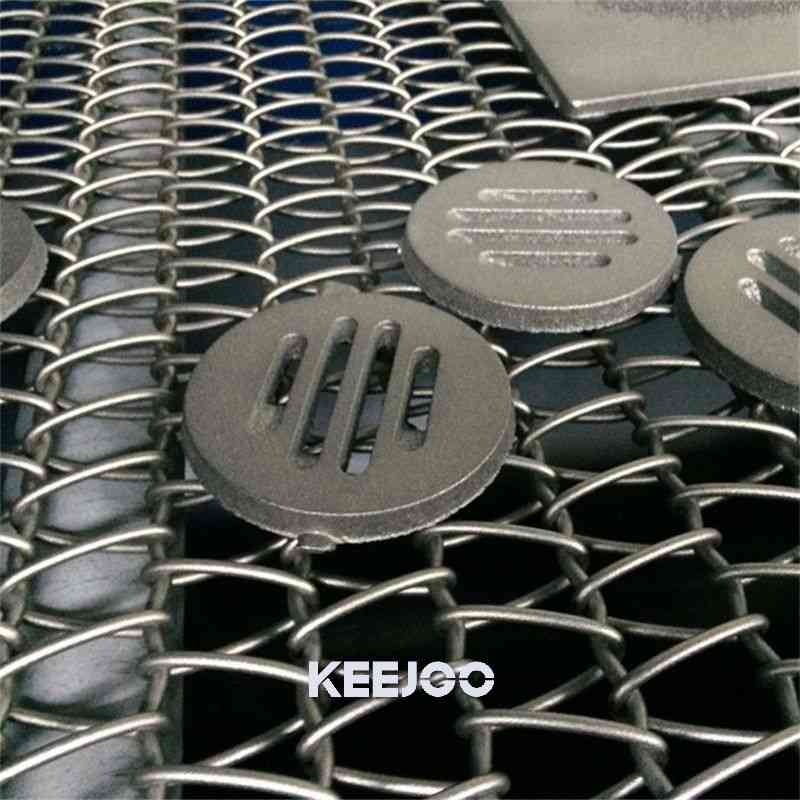

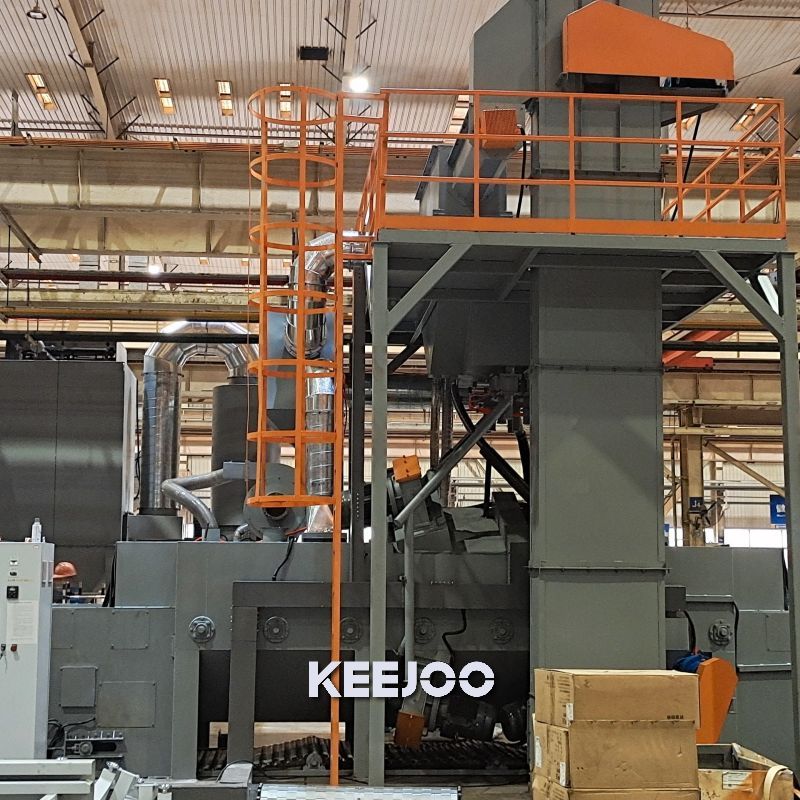

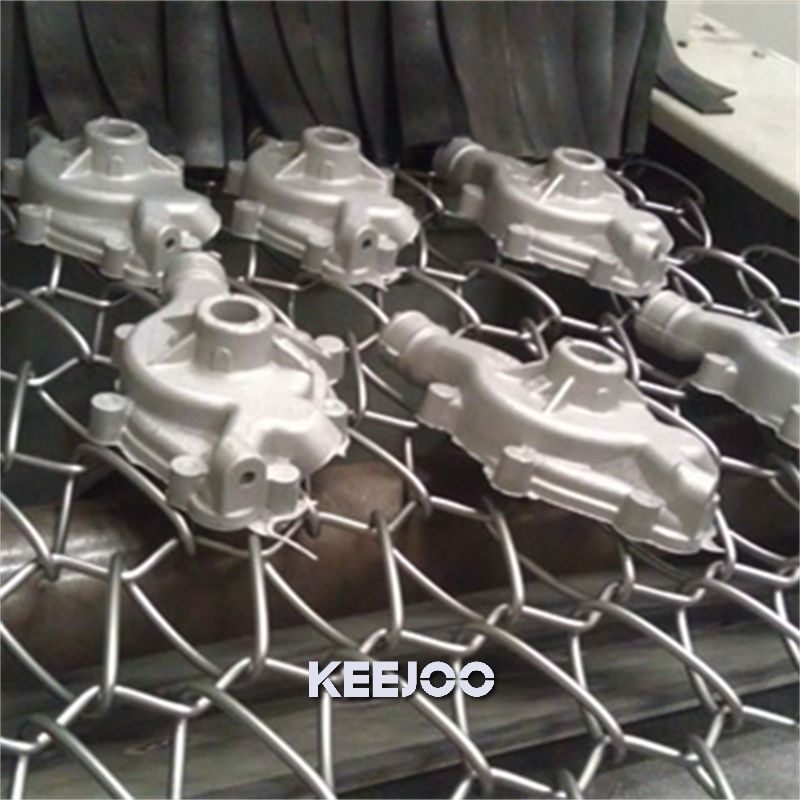

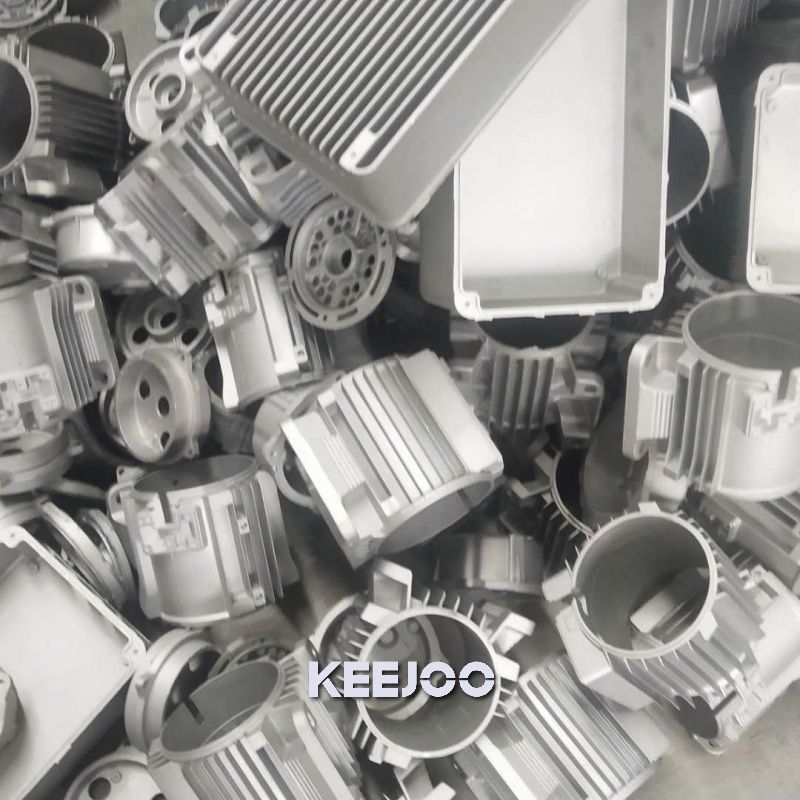

The high quality Auto Parts Parts Shot Blasting Machine with KEEJOO brand is a highly efficient continuous surface treatment equipment specially designed for the automotive industry. It utilizes high-speed shot flow to impact the surface of components. The core adopts a metal mesh belt to smoothly convey various shaped workpieces such as engine blocks, connecting rods, and wheel hubs, allowing them to pass through the shot blasting chamber for all-round cleaning. It can efficiently remove oxide scale, welding slag, burrs, and achieve surface strengthening.
Function
The Auto Parts Parts Shot Blasting Machine can achieve the following cleaning effects :
High-efficiency cleaning: The dense shot flow can quickly remove fine rust, oil stains and impurities, and the processing efficiency is higher than manual cleaning.
Strengthened surface: Mechanical impact enhances the fatigue strength of the workpiece, suitable for subsequent electroplating, painting and other processes.
Automated control: Some models are equipped with shot recovery systems (with a recovery rate of over 95%), enabling recycling and reducing waste of consumablesThe Auto Parts Parts Shot Blasting Machine is operated in accordance with the following process:
Feeding: Evenly spread the parts on the feeding mesh belt.
Conveying into the chamber: The wire mesh belt smoothly conveys the parts into the sealed shot blasting cleaning chamber.
Shot blasting cleaning: Parts are subjected to the impact of dense shot flows from multiple directions inside the room, and their surfaces are thoroughly cleaned
Conveyor out chamber: The cleaned parts are sent out of the shot blasting chamber along the wire mesh belt.
Shot circulation: The shot, impurities and dust that fall after impact are conveyed through the holes of the mesh belt to the bottom and collected by the screw conveyor. They are then sent to the separator by the elevator, and the pure shot is recycled.

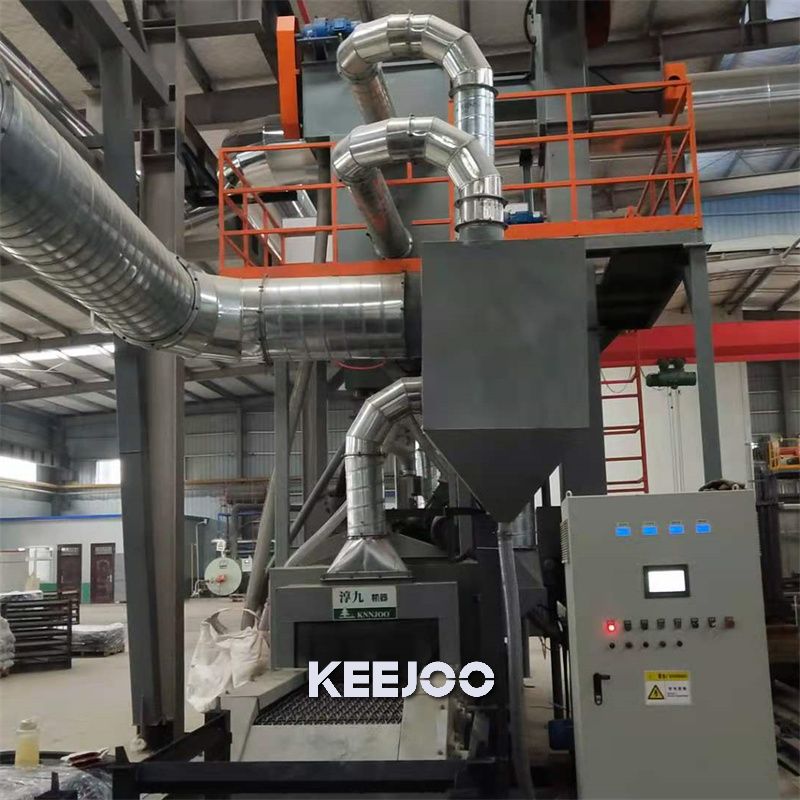

Dust removal: The dust generated throughout the process is extracted and collected by the dust removal system.
Discharge: The processed parts are discharged from the discharge port and can directly proceed to the next process (such as spraying, electroplating, etc.) or packaging.Technical data
Model KWD 800 KWD 1000 KWD 1800 KWD 1500 KWD 1250 Max workpiece width (mm) 800 1000 1800 1500 1250 Max workpiece height (mm) 400 500 500 500 500 No. Of shot blaster 4 4 10 10 8 Power of single shot blaster (kW) 7.5 (11) 7.5 (11) 11 (15) 7.5 (11) 18.5 (22) Quality and after-sales service
The supplier guarantees that the name, model, specification and quantity of the automotive parts wire mesh belt shot blasting machine are consistent with the technical agreement. The entire machine is newly manufactured, using high-quality raw materials and mature processes. It has no design, material or process defects, fully meeting the buyer's working conditions and complying with current national and industry standards. Its performance is stable and reliable.
During the warranty period of the entire machine, the supplier will dispatch engineers to the overseas site for installation, commissioning and provide training services.
The automotive parts wire mesh belt shot blasting machine is assembled as a whole, undergoes operation testing and quality inspection before leaving the factory. After passing the inspection, professional disassembly, re-painting and packaging for shipment will be carried out.
