Welded parts Shot Blasting Machine
- Product details

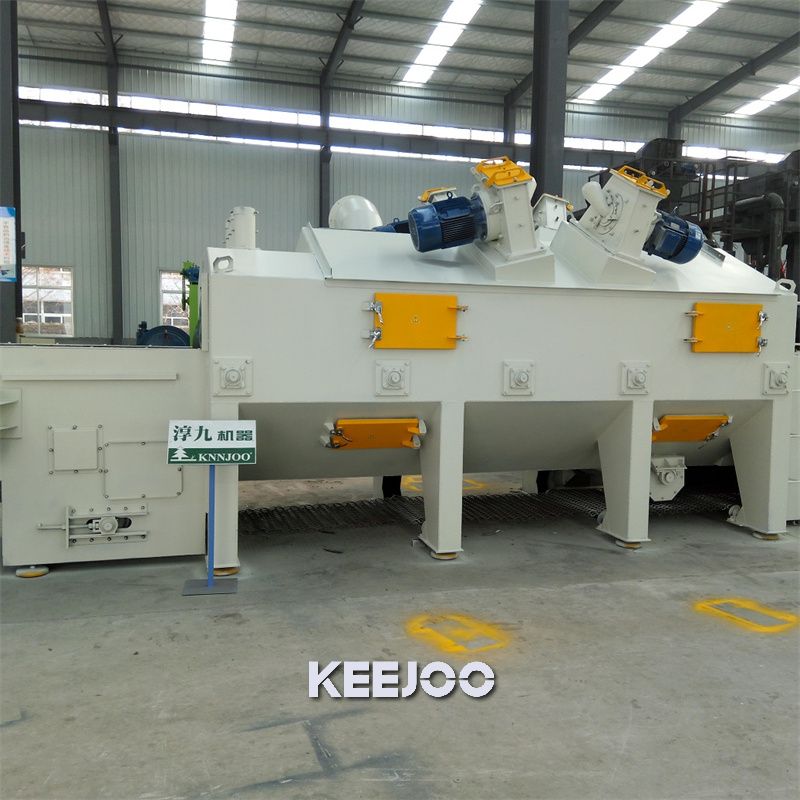

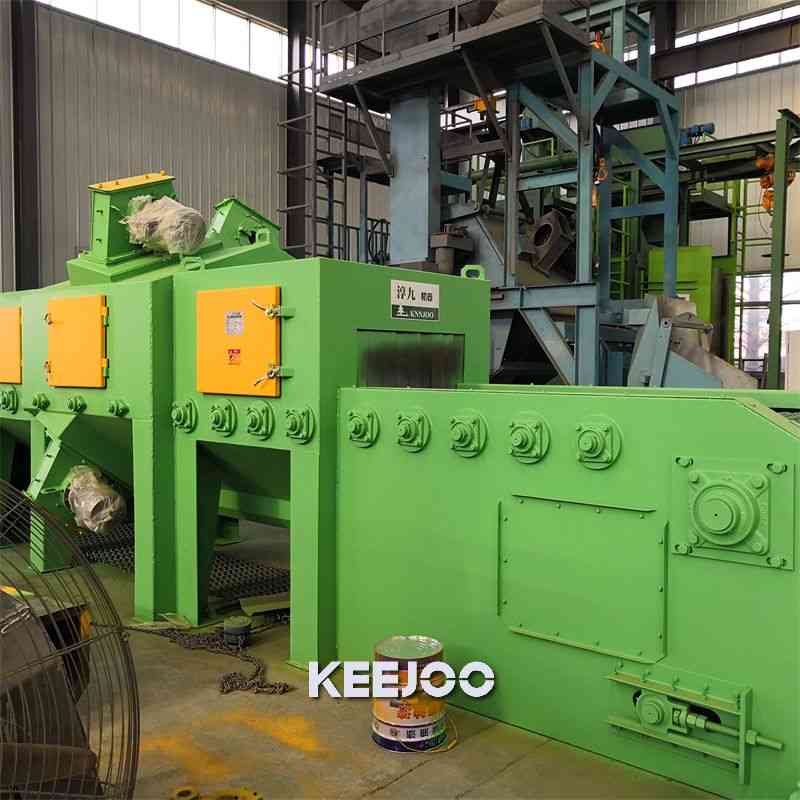

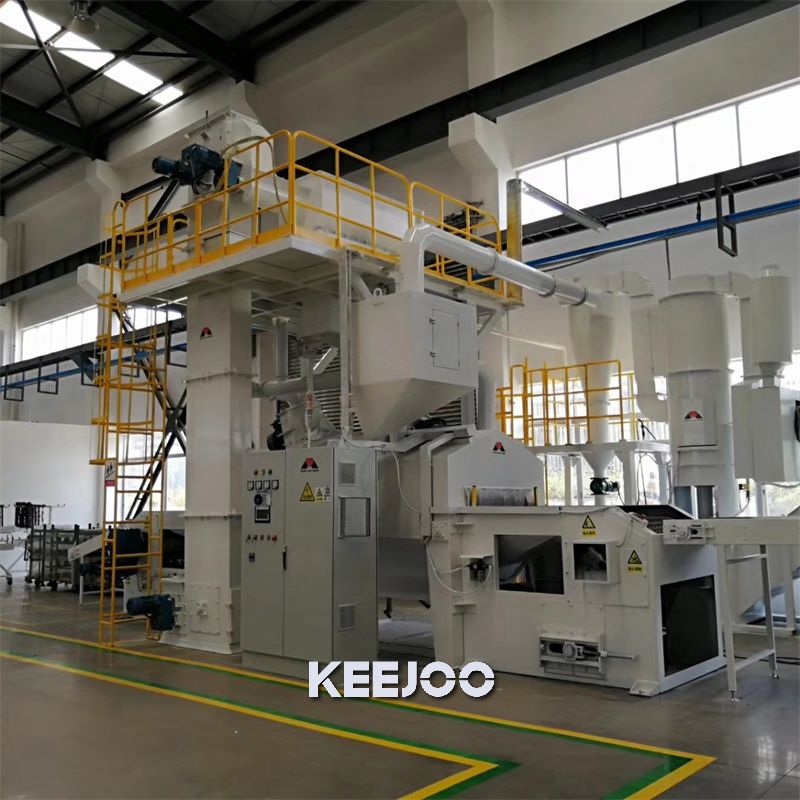

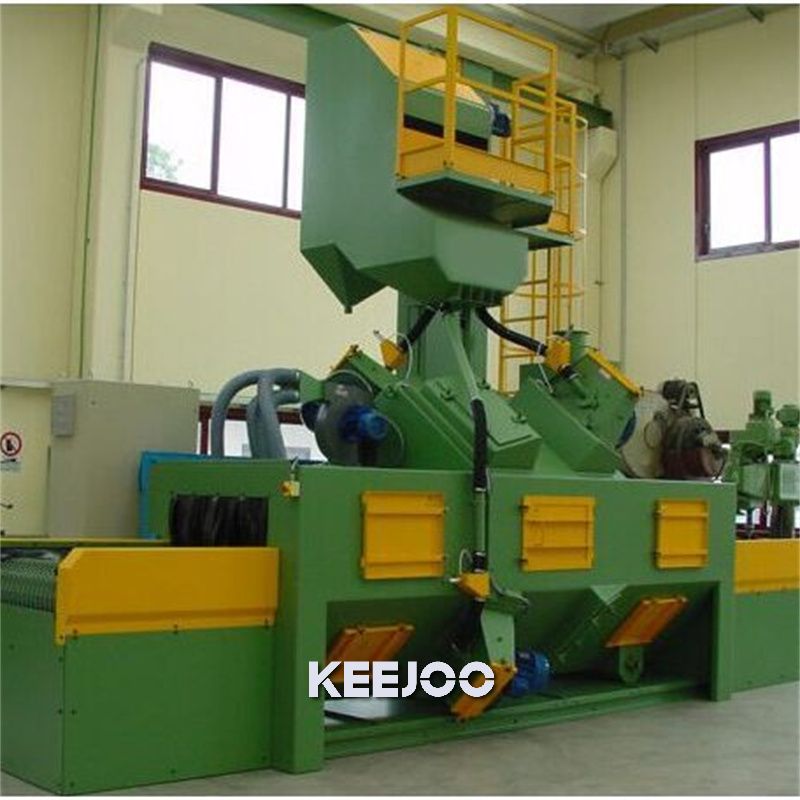

The high quality Welded parts Shot Blasting Machine manufactured by Qingdao KEEJOO Group is an automated surface treatment equipment specifically designed for continuous through-type cleaning of welded components. The workpieces are placed on the wire mesh conveyor belt and pass through the shot blasting chamber at a constant speed, receiving high-intensity shots from multiple shot blasting machines at different angles, thus efficiently and evenly completing the cleaning work.
Technical data
Model KWD 800 KWD 1000 KWD 1800 KWD 1500 KWD 1250 Max workpiece width (mm) 800 1000 1800 1500 1250 Max workpiece height (mm) 400 500 500 500 500 No. Of shot blaster 4 4 10 10 8 Power of single shot blaster (kW) 7.5 (11) 7.5 (11) 11 (15) 7.5 (11) 18.5 (22) Features
Continuous operation: Welded parts Shot Blasting Machine is highly suitable for the continuous production of large quantities of medium-sized welded parts, with extremely high efficiency.
Uniform treatment effect: As the workpiece moves at a constant speed along with the mesh belt and is constantly subjected to multi-angle projection, the surface treatment effect is extremely uniform and consistent.
High degree of automation: From feeding to discharging, it is basically automated, saving labor and reducing labor intensity.
No blind spots in cleaning: The shot can pass through the holes of the mesh belt, effectively cleaning the lower surface and interior of the workpiece. This is a significant advantage of it over the roller conveyor through-type shot blasting machine.Structure

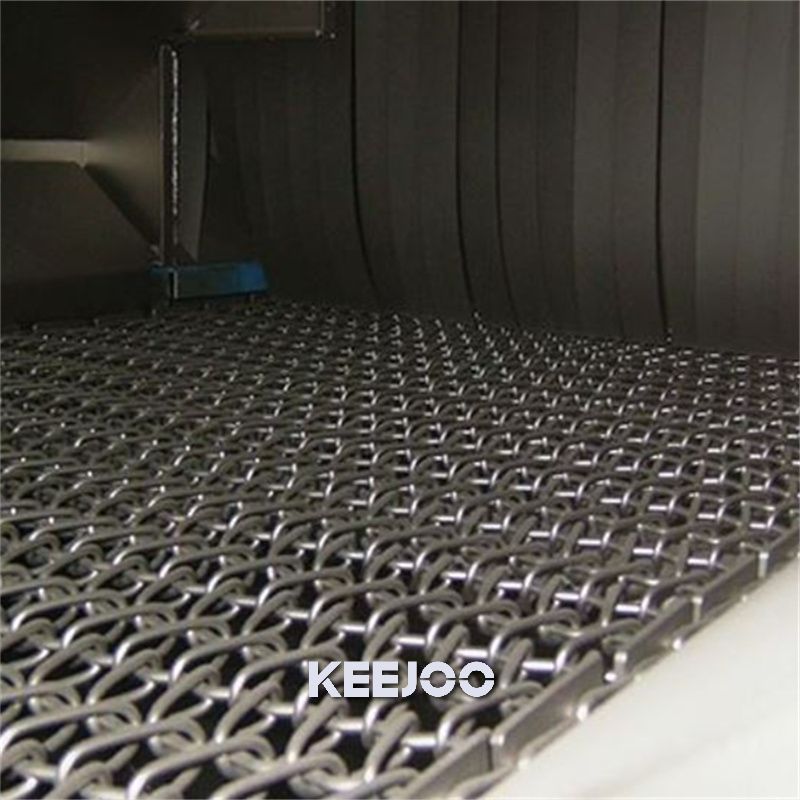

Conveying system: For Welded parts Shot Blasting Machine, adopt high-strength metal mesh belts carry and convey welded parts at a uniform speed through the cleaning chamber.
Shot blasting system: Composed of blast wheel, elevators and separators, it is responsible for high-speed projectile ejection, recycling and sorting of qualified projectiles
Cleaning chamber and sealing: The sturdy chamber body is equipped with sealing devices to prevent projectiles and dust from escaping.
Dust removal system: Connect the dust collection port of the cleaning chamber to the dust collector, which is used to suck and filter the generated dust to keep the working environment clean.
