Forging Parts Shot Blasting Machine
- Product details

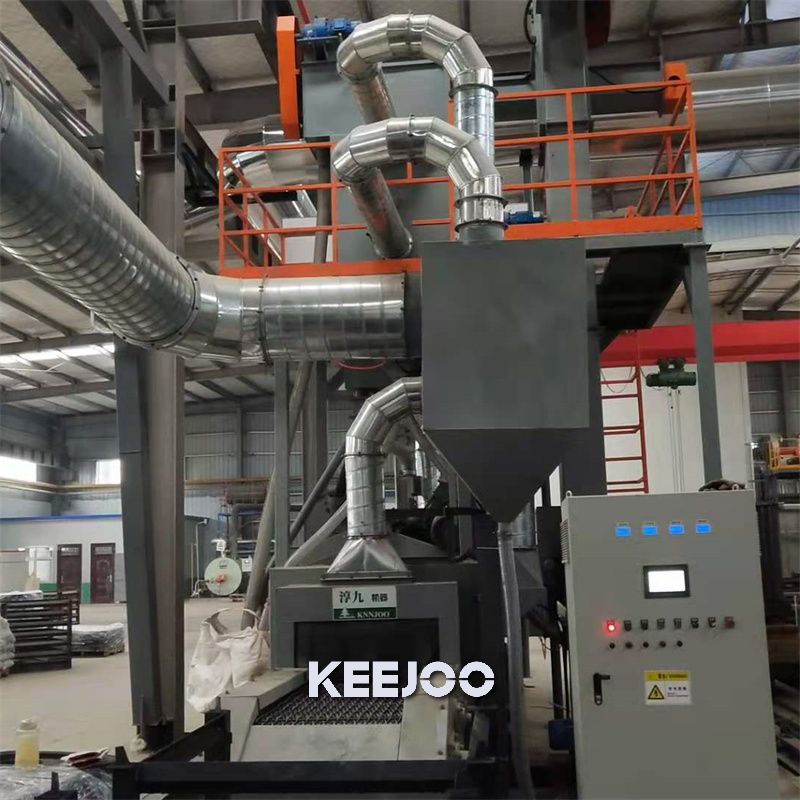

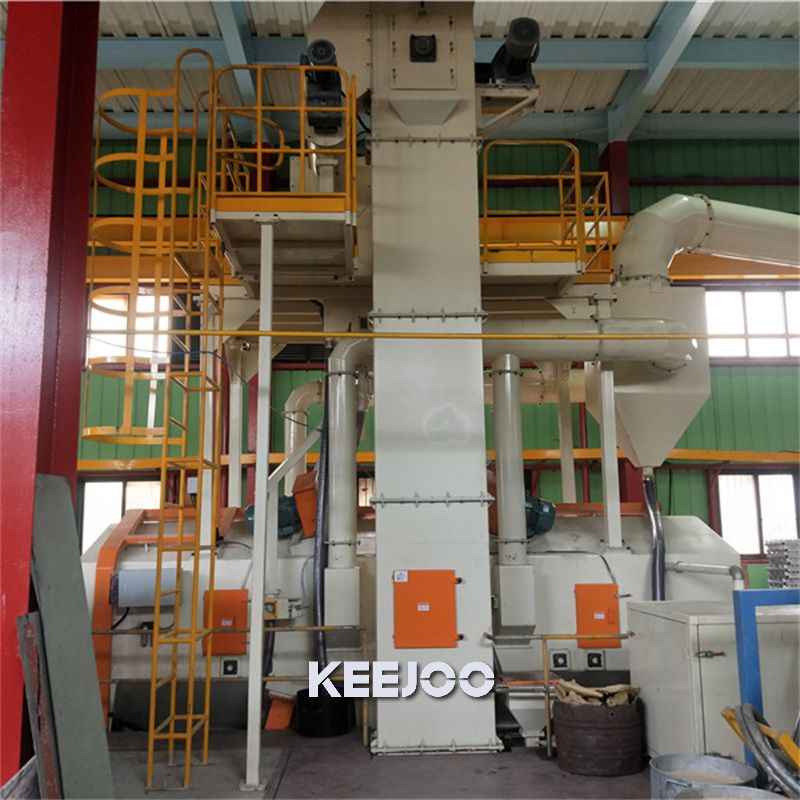

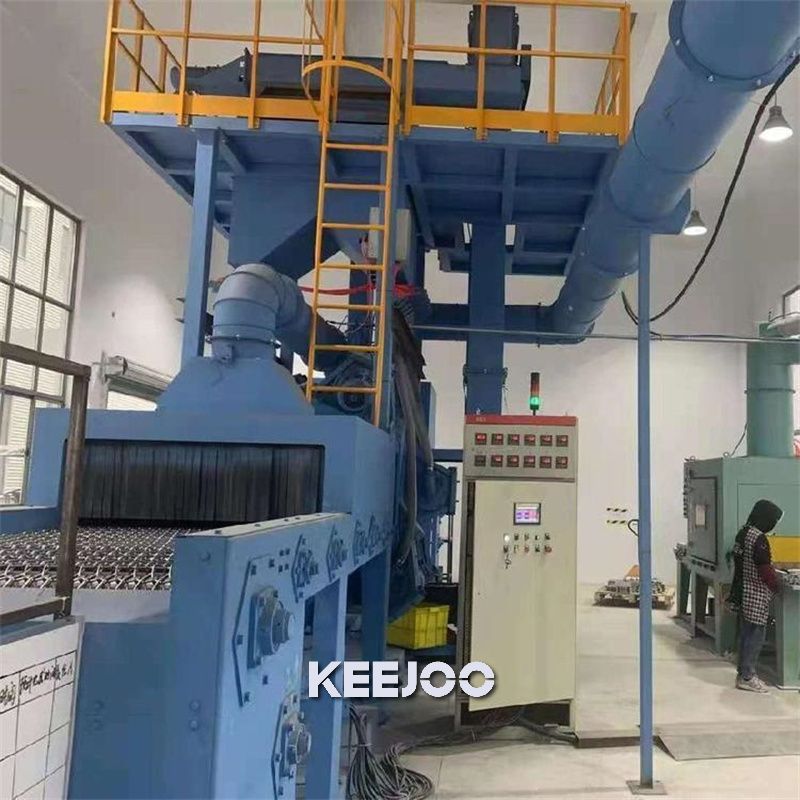

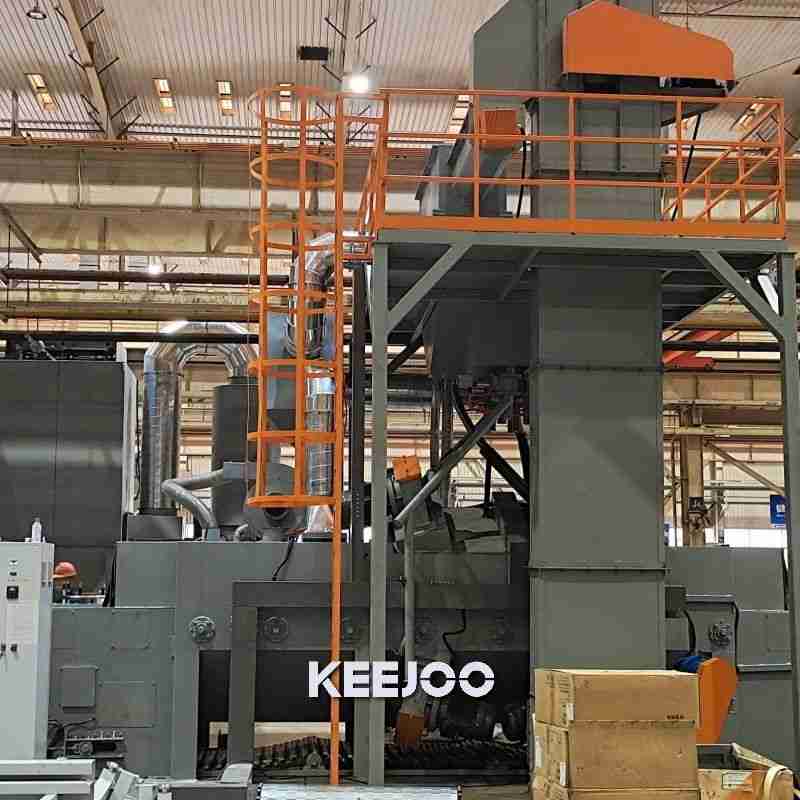

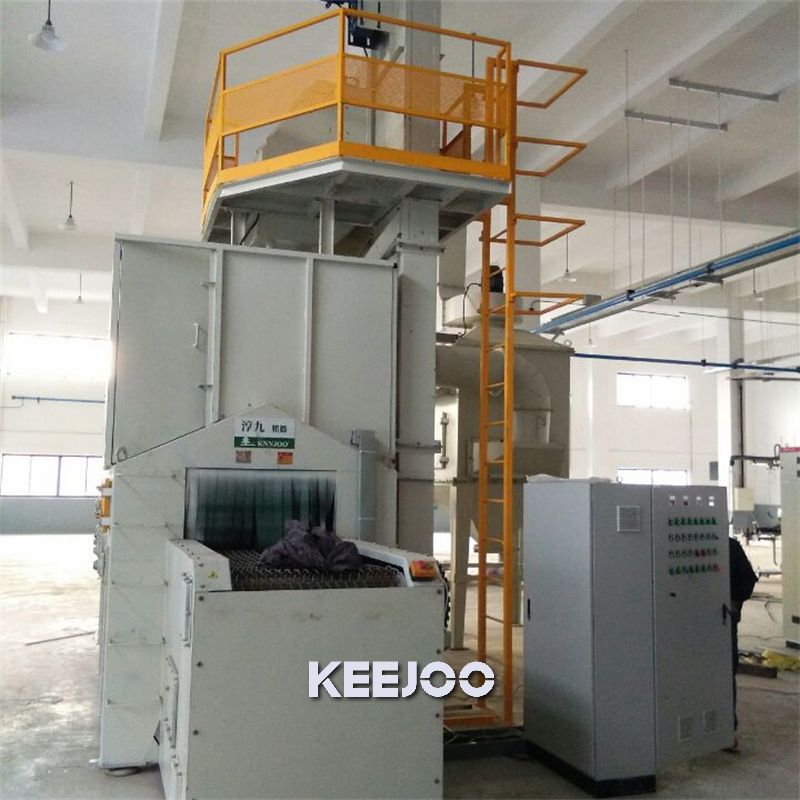

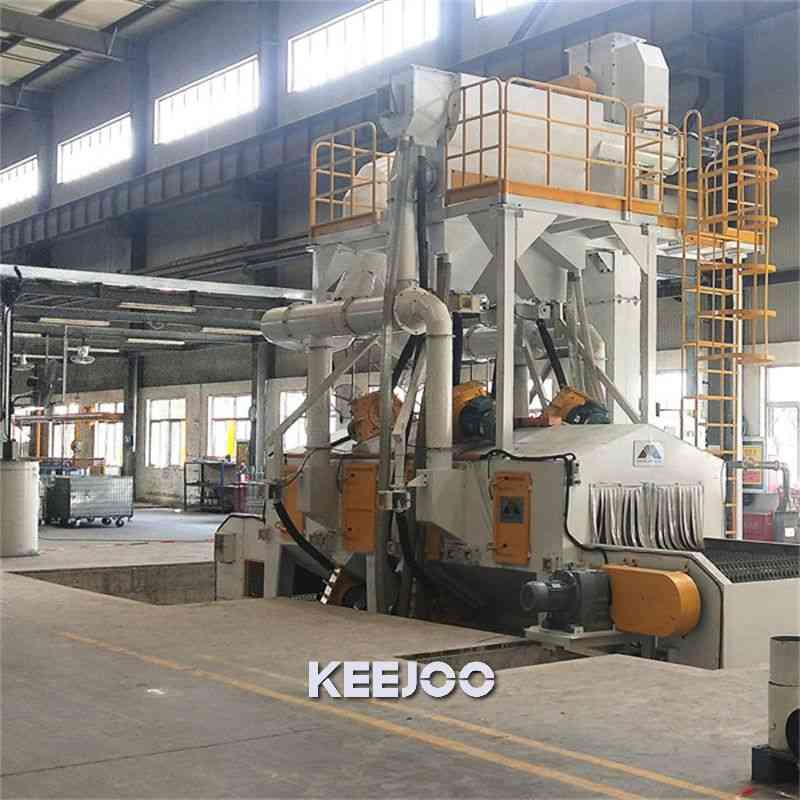

The KEEJOO brand easy-maintainable Forging Parts Shot Blasting Machine is a continuous through-type cleaning equipment specially designed for forging formed workpieces. Its core working principle is to use high-speed shot flow to impact the surface of the forging to achieve the purposes of cleaning, strengthening and preparation. At the same time, a metal mesh belt is used as the conveying carrier to realize automated continuous operation.
Key component
The Forging Parts Shot Blasting Machine includes shot blasting chamber, auxiliary chamber, abrasive control unit, shot blasting system, abrasive recovery, sorting and storage system, ventilation and dust removal system, mesh belt conveying system, electrical control system, maintenance platform, safety system, etc. The mechanical and electrical systems are equipped with reliable safety protection devices.
Characteristics and Advantages

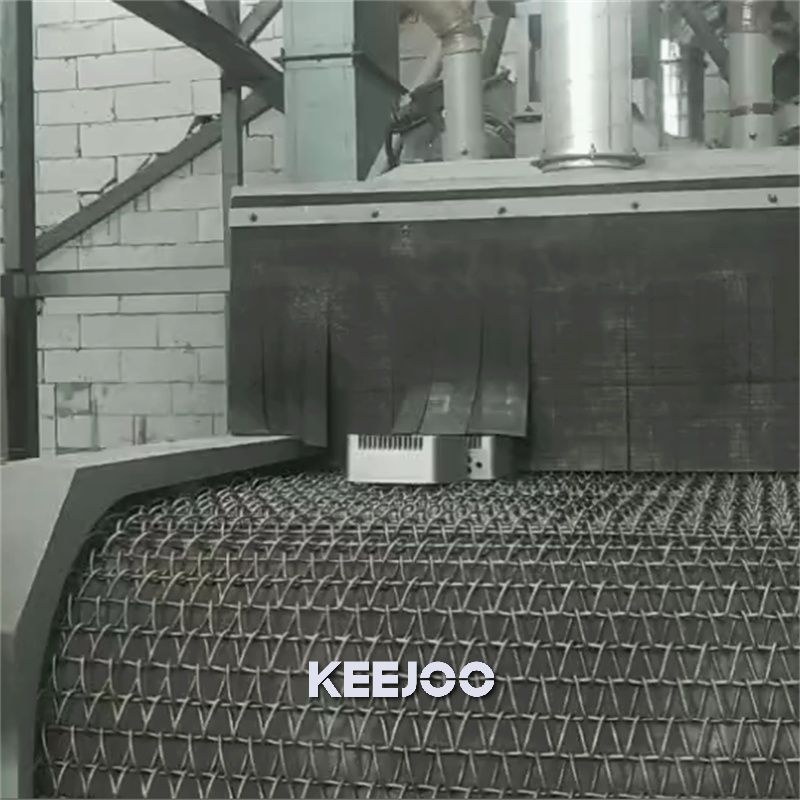

High continuity: The continuous movement of the wire mesh belt enables large-scale and high-efficiency production, making it suitable for assembly line operations
Good protection for workpieces: The forging parts wire mesh belt conveys smoothly, avoiding violent collisions between workpieces, especially those that are sensitive to collisions and fragile.
Uniform cleaning effect: The workpiece is laid in a single layer on the wire mesh belt, and the surface of the workpiece can be fully exposed in the shot flow, with no cleaning dead corners.
High degree of automation: The entire process from feeding to discharging is fully automated, with low labor intensity.
Environmentally friendly and efficient: Closed operation, equipped with an efficient dust removal system, and dust emissions meet environmental protection standards.Technical data
Model KWD 800 KWD 1000 KWD 1800 KWD 1500 KWD 1250 Max workpiece width (mm) 800 1000 1800 1500 1250 Max workpiece height (mm) 400 500 500 500 500 No. Of shot blaster 4 4 10 10 8 Power of single shot blaster (kW) 7.5 (11) 7.5 (11) 11 (15) 7.5 (11) 18.5 (22) Trade Term
Payment term:30% as deposit, 70% balance against the copy of B/L
Delivery of the goods is executed within 45 days after receipt of advance payment.
Manufacturer must provide the certificate of origin to buyer.
