Cast Iron Parts Shot Blasting Machine
- Product details

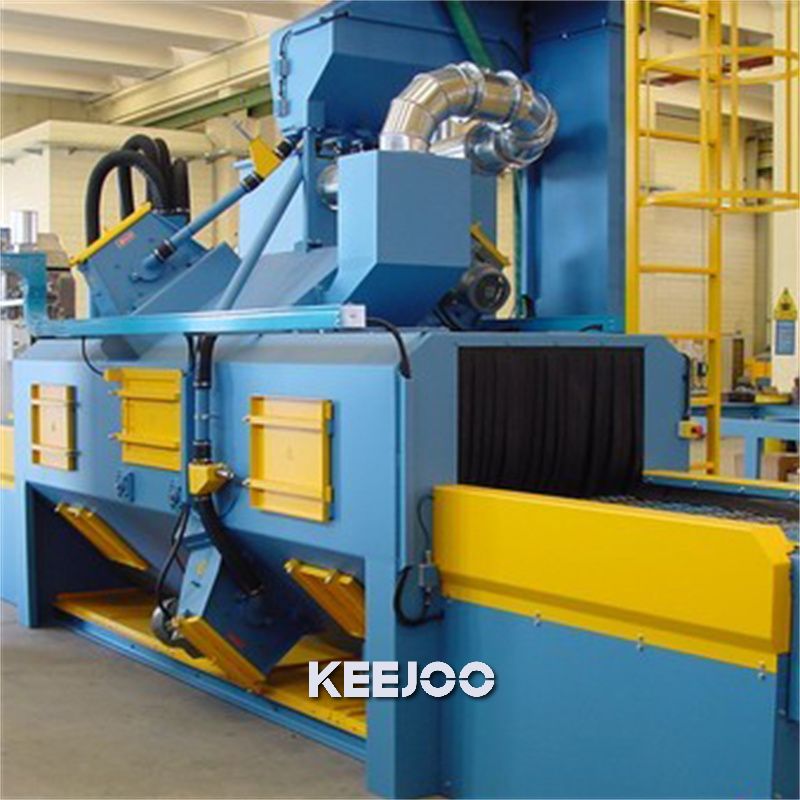

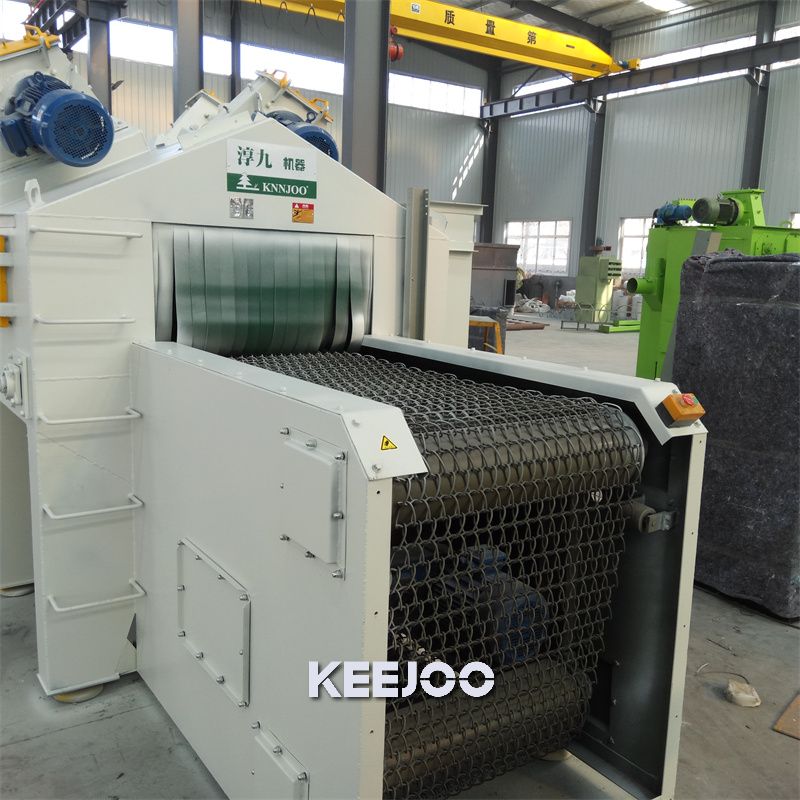

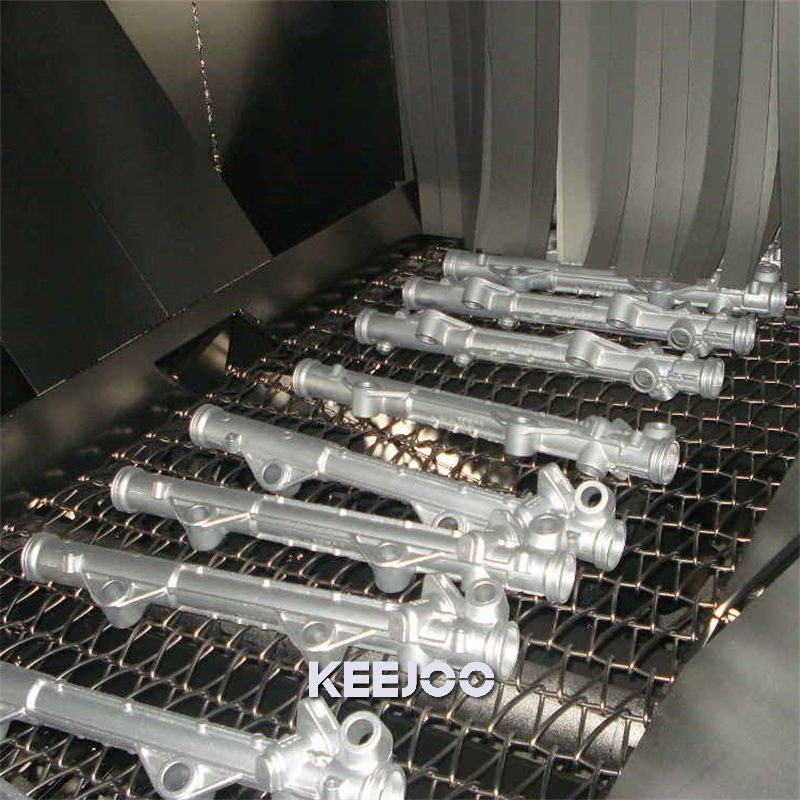

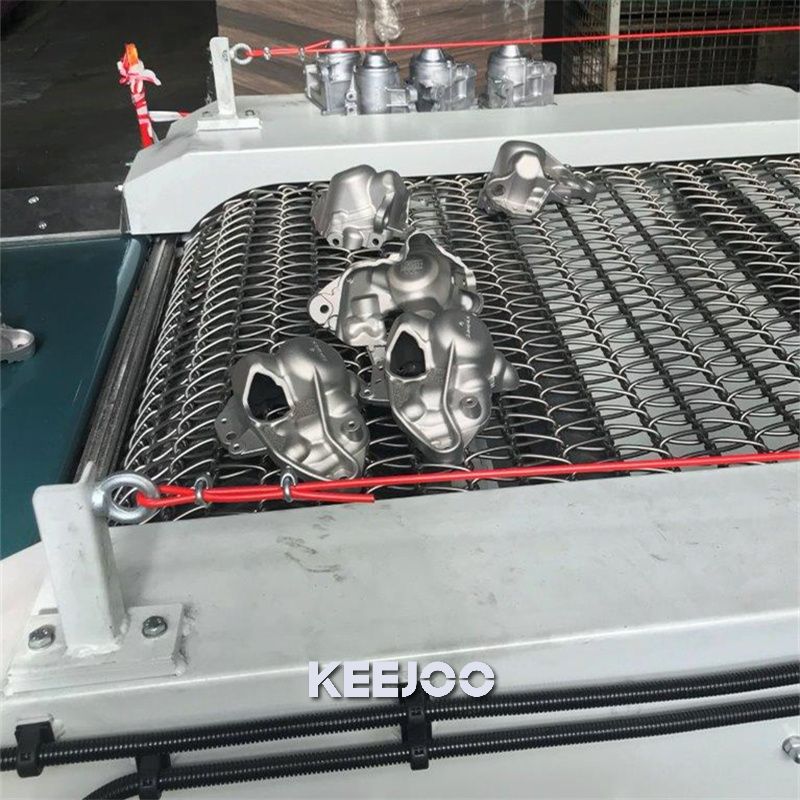

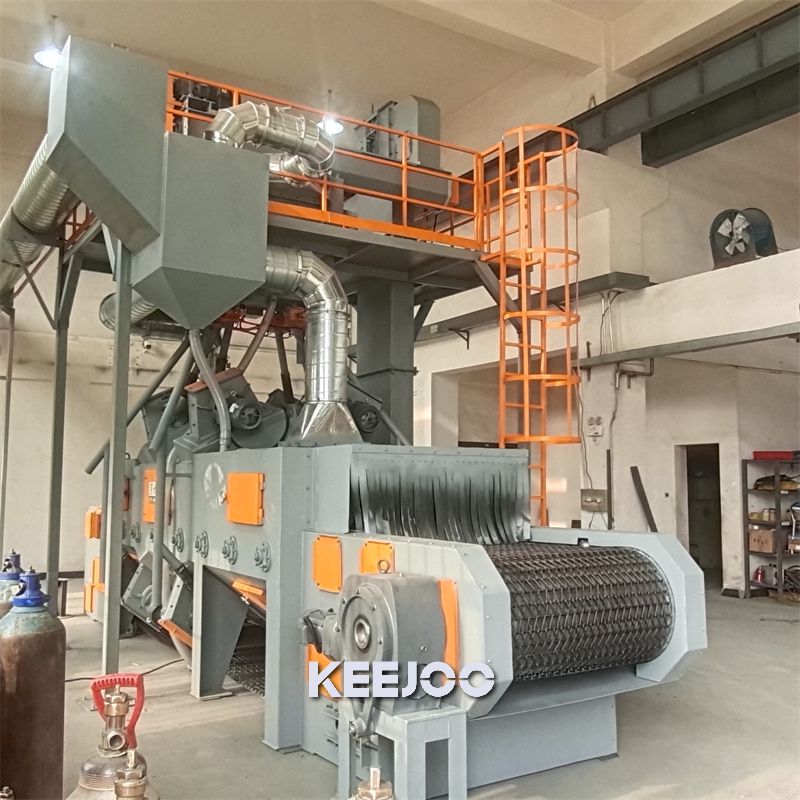

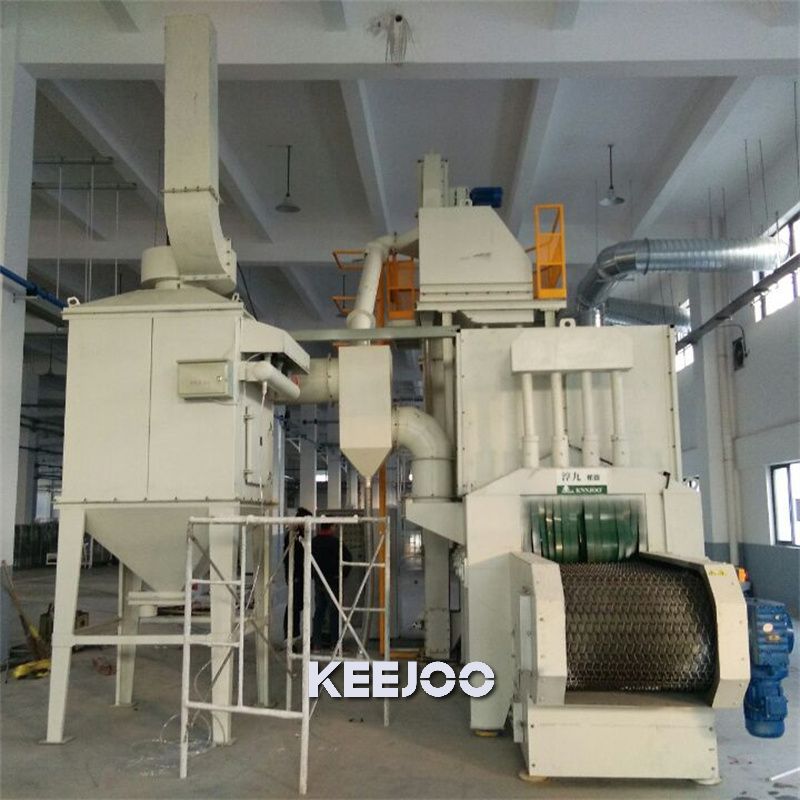

The high quality Cast Iron Parts Shot Blasting Machine with KEEJOO brand is a specialized device for surface treatment of castings. It cleans the surface of the workpiece by high-speed shot blasting and strengthens the material at the same time. The core principle is to use the impeller to throw the shot at high speed onto the surface of the workpiece, causing the shot to impact the surface of the workpiece from multiple directions, removing impurities such as oxide scale and rust layer, and enhancing the surface hardness.
Technical data
Model KWD 800 KWD 1000 KWD 1800 KWD 1500 KWD 1250 Max workpiece width (mm) 800 1000 1800 1500 1250 Max workpiece height (mm) 400 500 500 500 500 No. Of shot blaster 4 4 10 10 8 Power of single shot blaster (kW) 7.5 (11) 7.5 (11) 11 (15) 7.5 (11) 18.5 (22) Features and Advantages
High efficiency and continuous operation: Workpieces enter and exit automatically without interrupting production, making it highly suitable for cleaning large quantities of castings.
Comprehensive cleaning effect: The arrangement of multiple blast wheel can clean the workpiece without blind spots, and can thoroughly remove the adhering sand, oxide scale and rust on the surface of cast iron.
High durability: The Cast Iron Parts Shot Blasting Machine is designed for the heavy and wear-resistant characteristics of cast iron parts. The key parts of the equipment (such as the mesh belt, guard plate, and spiral blade) are all made of highly wear-resistant materials, ensuring a long service life.
High degree of automation: From loading workpiece, cleaning to unloading, the entire process is fully automated, reducing manual intervention and lowering labor intensity.
Environmental protection and energy conservation: Closed shot blasting operation, combined with an efficient dust removal system, results in low dust emissions. The shot is recycled and has a low consumption.Operation precautions
The sealing performance of the Cast Iron Parts Shot Blasting Machine and the wear condition of the conveyor belt need to be inspected regularly.
Before operation, it is necessary to clean the loose sand and debris inside the equipment to avoid affecting the treatment effect.
The projectile circulation system needs regular maintenance to ensure separation efficiency.
