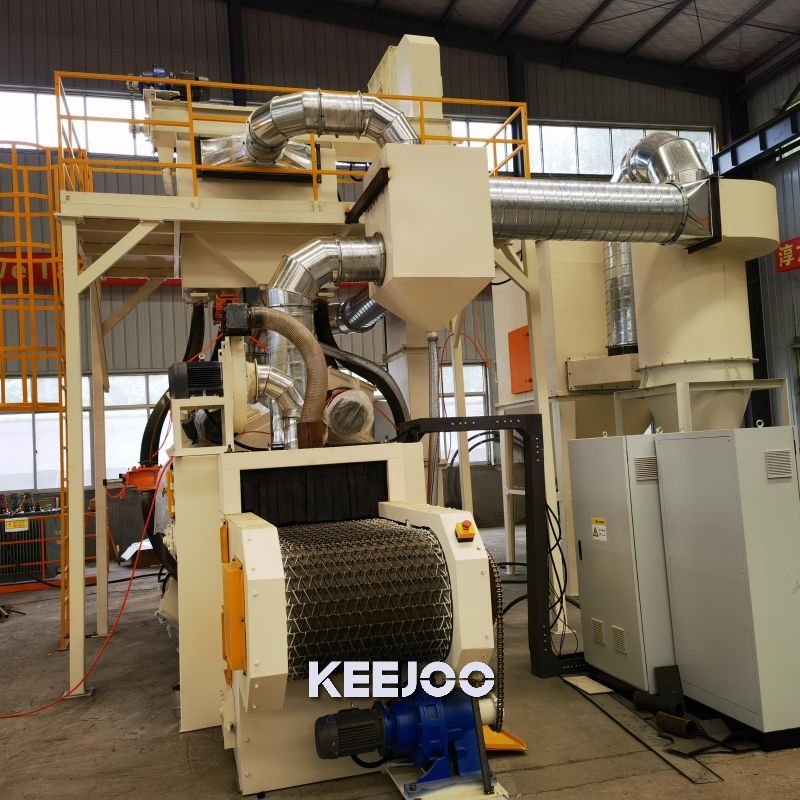

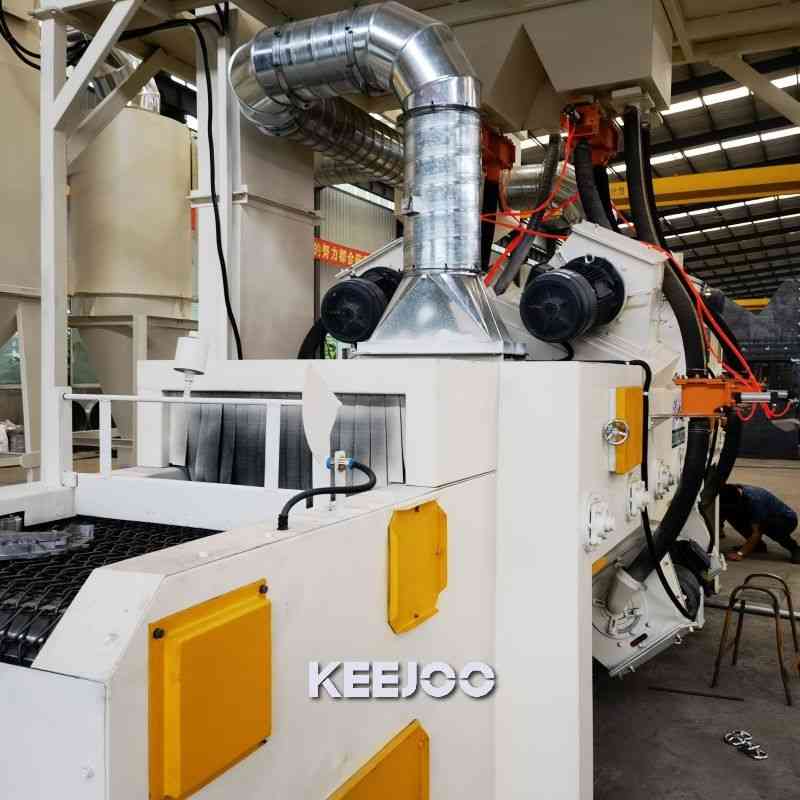

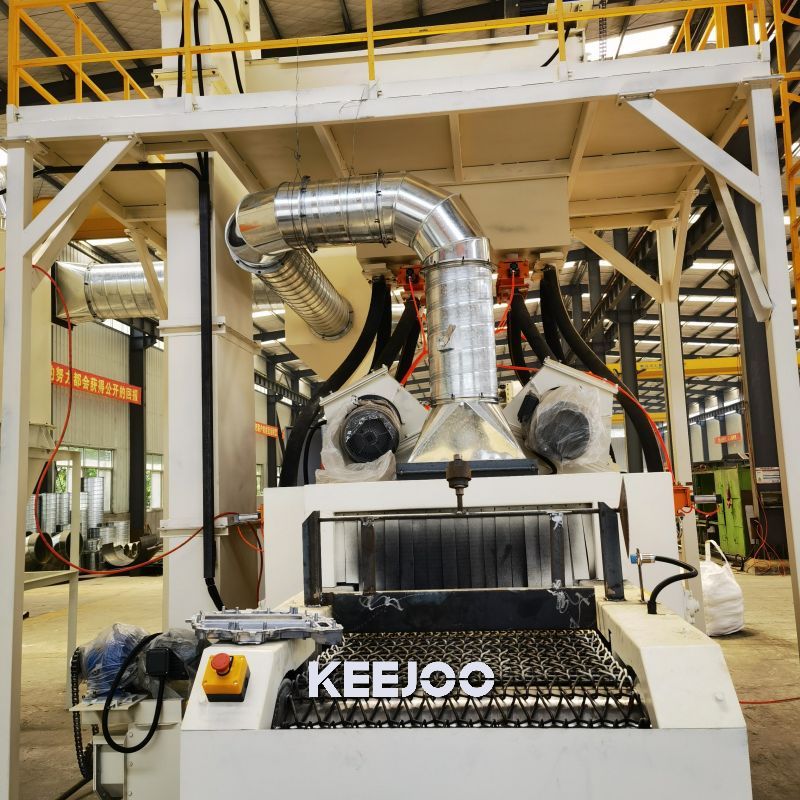

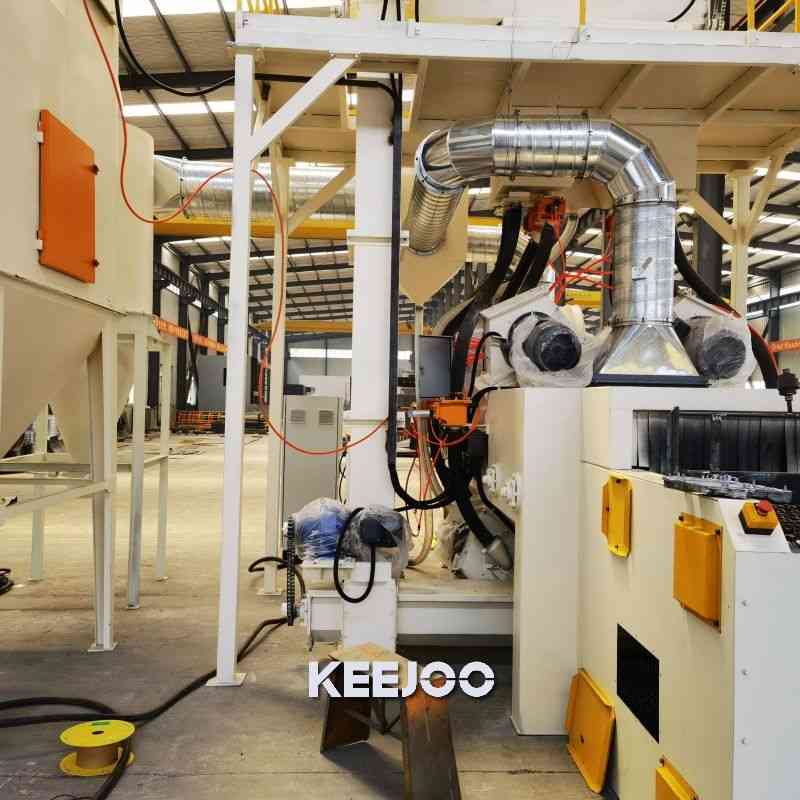

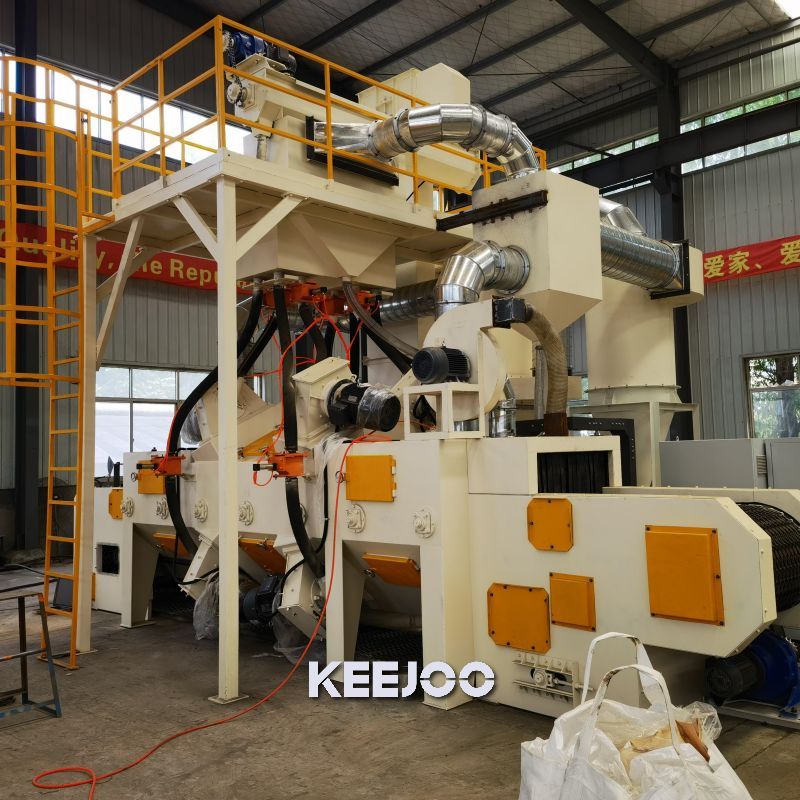

Cast Aluminum Parts Shot Blasting Machine
- Product details
The high quality Cast Aluminum Parts Shot Blasting Machine with KEEJOO brand is an automated equipment specifically designed for cleaning, deburring, surface strengthening and finishing of aluminum alloy castings. Due to its working characteristics and protection of workpieces, it is particularly suitable for processing small and medium-sized, thin-walled, and collision-sensitive aluminum alloy castings.
Technical data
Model KWD 800 KWD 1000 KWD 1800 KWD 1500 KWD 1250 Max workpiece width (mm) 800 1000 1800 1500 1250 Max workpiece height (mm) 400 500 500 500 500 No. Of shot blaster 4 4 10 10 8 Power of single shot blaster (kW) 7.5 (11) 7.5 (11) 11 (15) 7.5 (11) 18.5 (22) working principle

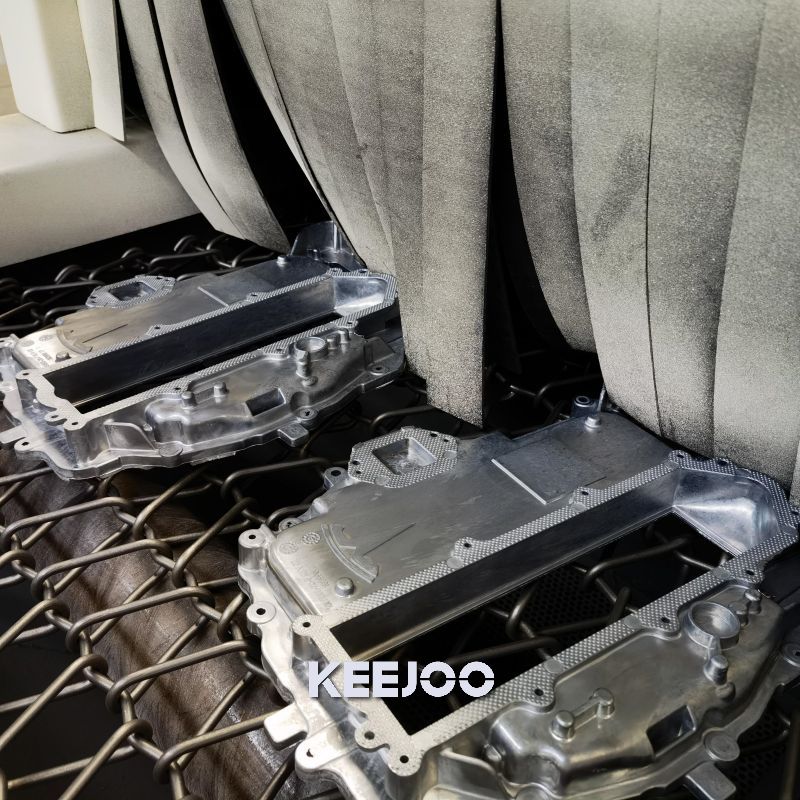

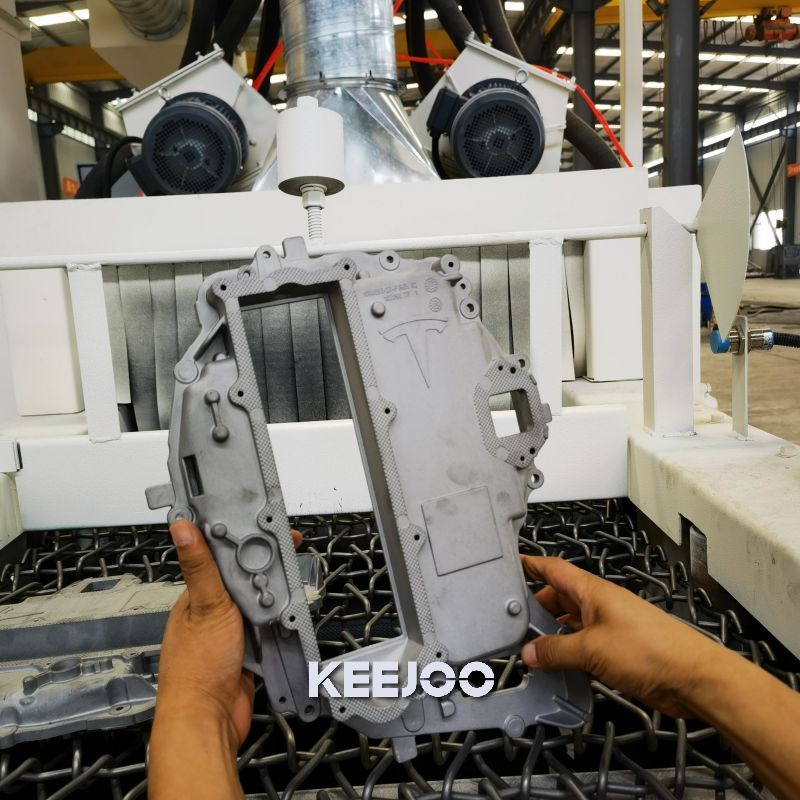

In the Cast Aluminum Parts Shot Blasting Machine, Steel shot is projected onto the surface of cast aluminum parts by a high-speed rotating blast wheel to remove impurities such as oxide scale, adhering sand, and oil stains. At the same time, the micro-protrusions on the surface (such as burrs) are smoothed out through the impact and friction of the shot, forming a uniform roughness and enhancing the adhesion of subsequent coatings.
Function

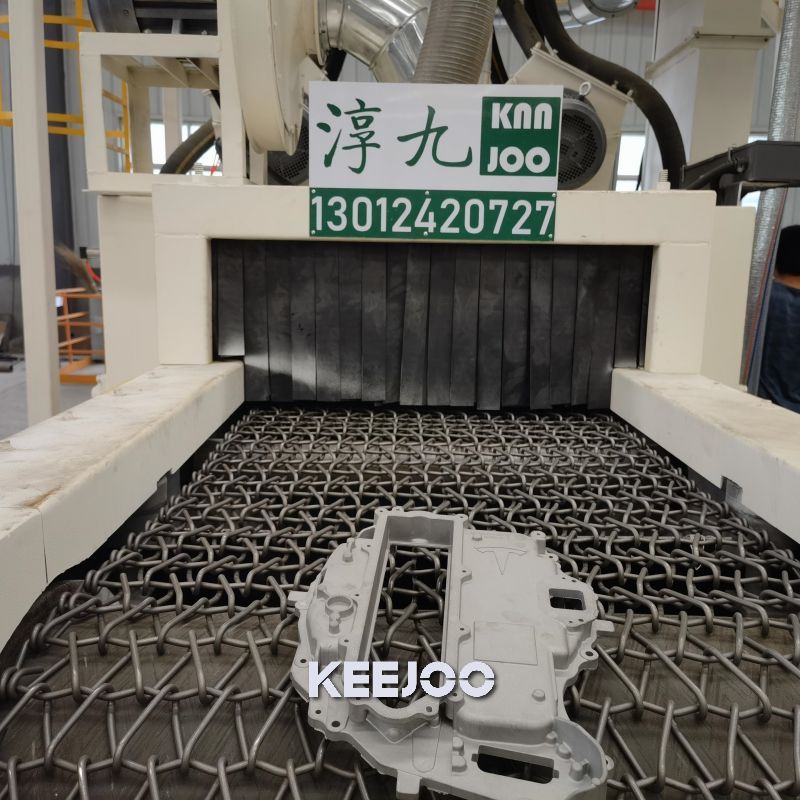

Efficient cleaning: The continuous operation of the mesh belt conveyor significantly enhances the processing efficiency.
Stable quality: Multi-directional spraying ensures surface cleanliness, especially suitable for removing adhered sand, oil stains, etc. from aluminum die-castings.
Adjustable parameters: Adjust the shot blasting speed, Angle and shot type according to the size and material of the casting (such as stainless steel shot to reduce surface damage).
Environmental protection and energy conservation: Equipped with a dust removal system (dust collection rate up to 99%), and optimized structural design to reduce energy consumption.Matters needing attention when purchasing Cast aluminum parts Wire Mesh Belt Shot Blasting Machine：
Shot selection: In the Cast Aluminum Parts Shot Blasting Machine, for soft aluminum metals, to avoid excessive impact and shot embedding, stainless steel shot or cast steel shot is usually chosen, and the particle size should not be too large.
The strength of the mesh belt: A mesh belt with sufficient strength and wear resistance should be selected based on the weight and load of the workpiece.
Dust removal configuration: Aluminum shavings and dust are flammable and explosive dust. The dust removal system must be equipped with explosion-proof devices (such as explosion-proof motors and explosion relief discs) and comply with strict safety production standards.
Process debugging: It is necessary to find the best cleaning process suitable for a specific workpiece by adjusting the power of the shot blasting machine, the speed of the mesh belt and the flow rate of the shot.
