Auto Parts Shot Blasting Machine
- Product details

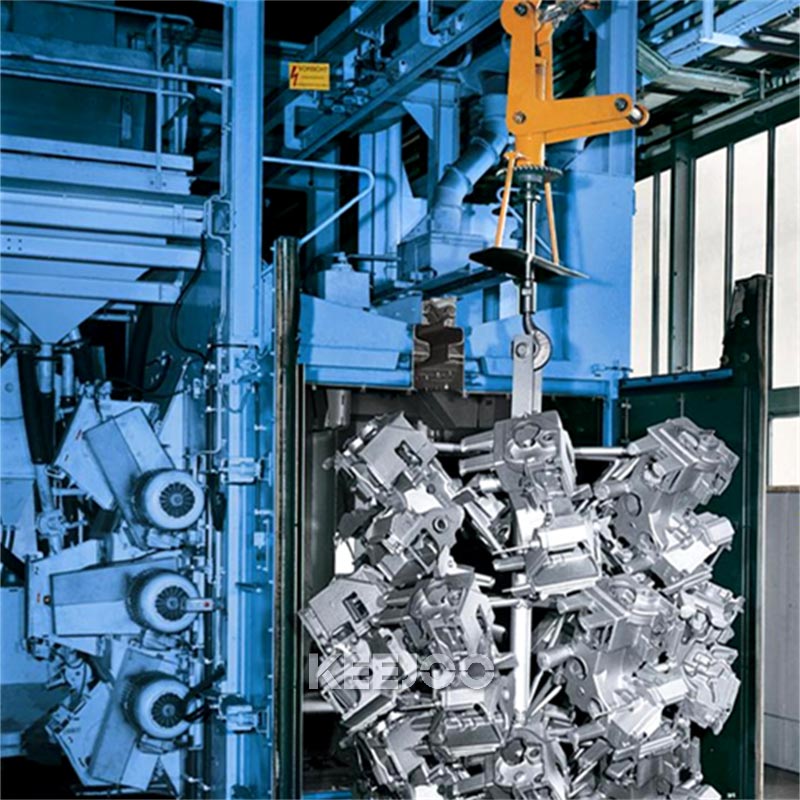

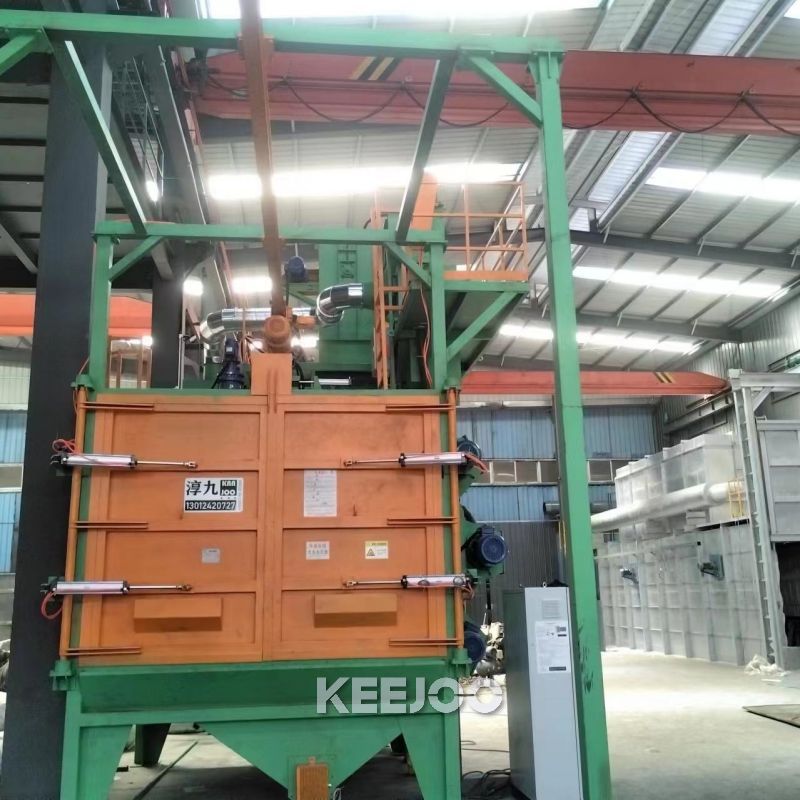

The KEEJOO high quality Auto Parts Shot Blasting Machine uses an electric hoist to drive the hook to complete the lifting and walking operations of the workpiece. The chamber is equipped with a fully enclosed wear-resistant protective structure and supports a pitless installation mode. Data shows that this equipment has formed a standardized application solution in the field of automotive parts, ensuring operational stability through buffer components and anti-collision design. We support the service of 1 year warranty.
Technical data
Specifaction Size of cleaning piece Max, lifting height Total blasting capacity Total power HSK-7Y/7S φ800*1100
φ700*11000.5T 180Kg*2
7.5Kw*222-33Kw HSK-9/9Y φ1200*1500
φ900*16001.0T 240Kg*2
11-7.5Kw*236-45Kw HSK-10/10Y φ1200*1500
φ900*18501.0T 240Kg*2
11Kw-7.5*239-55Kw Why Auto Parts Shot Blasting Machine can be used to processing of automotive parts?
Automotive parts have extremely high requirements for safety, reliability and durability. The Auto Parts Hanger Type Shot Blasting Machine can perfectly meet these requirements:
Surface cleaning

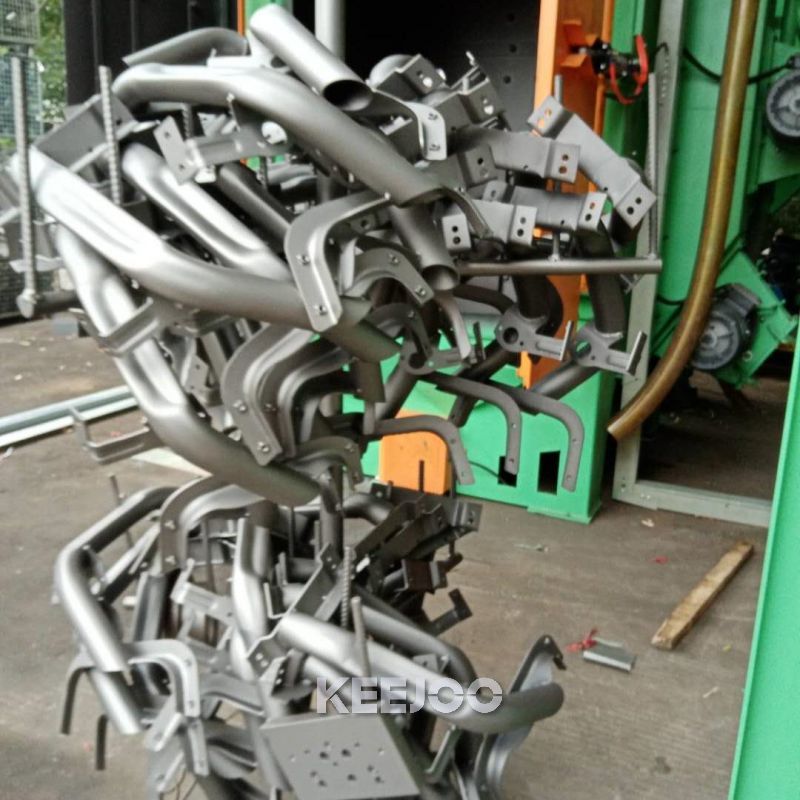

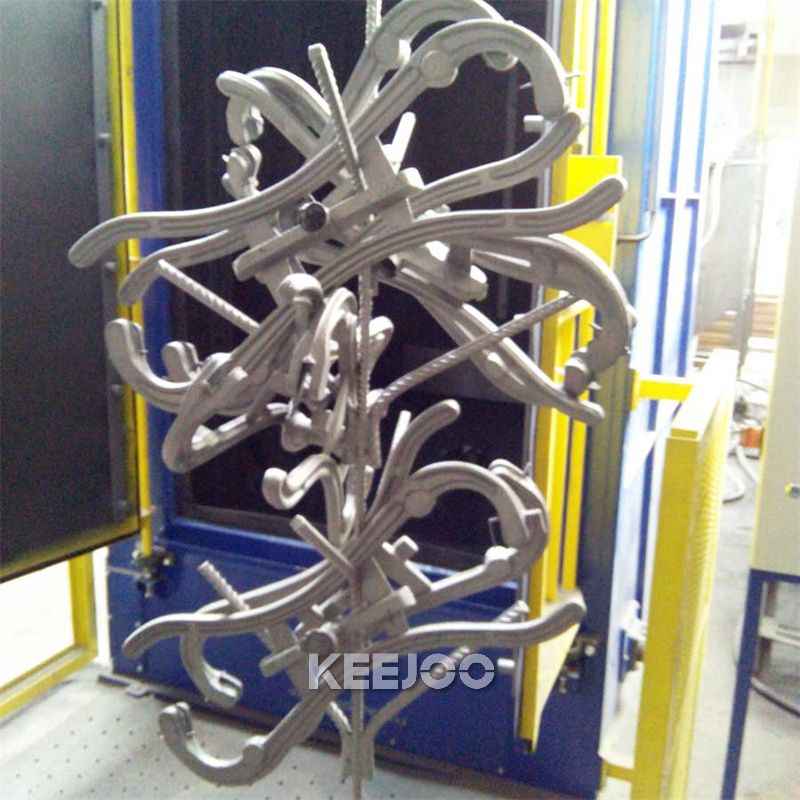

Castings and forgings: Remove sand grains, oxide scale and adhered sand from the surface of castings.
Heat-treated parts: Remove the oxide scale produced after heat treatment.
Welded parts: Clean up welding slag and welding spatter.surface strengthening
By having the shot strike the surface of the workpiece at high speed, fine compressive stress pits are created, thereby forming a compressive stress layer on the surface. It can greatly enhance the fatigue strength of components, prevent cracks caused by metal fatigue, and extend their service life
Stress relief
Shot blasting treatment can partially eliminate the residual stress inside the workpiece, improving its stability and mechanical properties.
Surface pretreatment
Shot blasting treatment can provide a clean surface with a certain degree of roughness, greatly enhancing the adhesion between the coating and the substrate, making the coating more durable and less prone to peeling.
Deburring and polishing
The burrs and flash produced after mechanical processing can be removed, and at the same time, the surface of the workpiece can be polished.
Auto Parts Shot Blasting Machine features and advantages
High flexibility: Auto Parts Shot Blasting Machine hook can rotate 360°, ensuring that all surfaces of the workpiece can be fully and evenly projected.
Strong load-bearing capacity: Single or double hook designs can carry very heavy workpieces (ranging from several kilograms to several tons)
High degree of automation: Auto Parts Hanger Type Shot Blasting Machine can be combined with loading and unloading robots, conveyor chains, etc. to form an automated production line, achieving continuous operation and high production efficiency.
Uniform and consistent treatment effect: Due to the rotation of the workpiece, the uniformity of the entire surface treatment is ensured, and the quality is stable and reliable.
