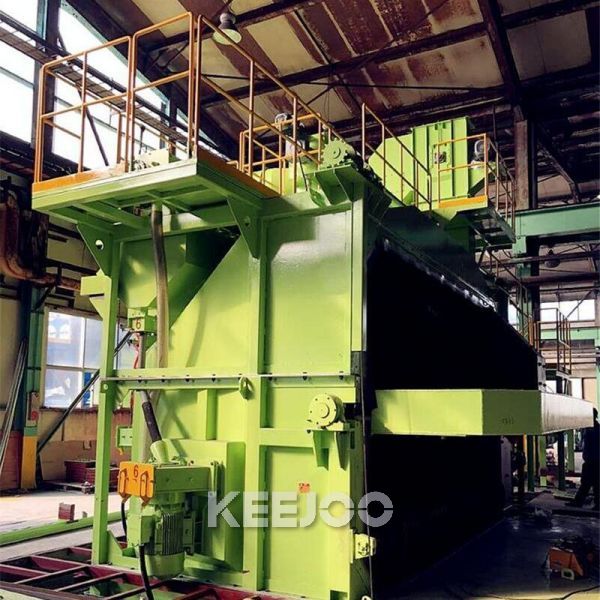

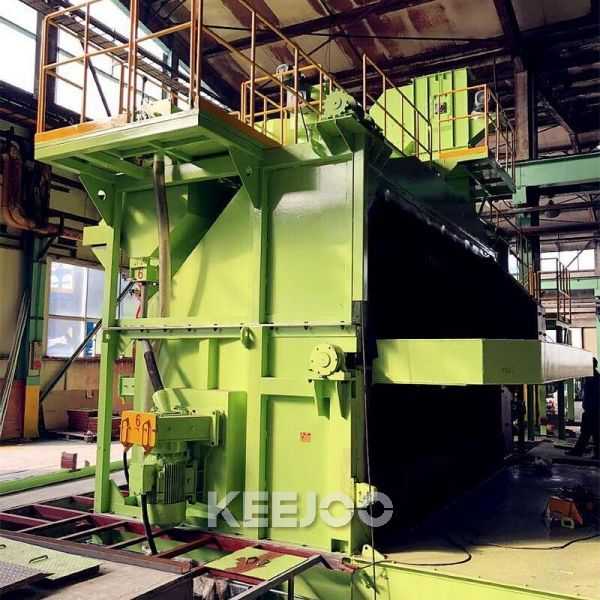

Double Station Wire Coils Shot Blasting Machine
- Product details
The high quality double station wire coils shot blasting machine with KEEJOO brand adopts the unique "rotating gate + double cantilever shaft" carrying plate round wire material, realizes the double-station working mode, and greatly improves the production capacity of the equipment. The cantilever shaft is made of special alloy steel, so that the wire can perform a compound action of "up and down + left and right swing + positive and negative rotation" during the shot blasting process to achieve a thorough cleaning effect. The reasonable arrangement of the shot blasting device enables the inner and outer surfaces of the coiled wire to be effectively hit by the projectile bundle. The whole machine is controlled by PLC intelligently, and the operation is convenient and reliable.
Technical data
Diameter of the wire mm Φ 4~Φ 40mm Inner diameter of the wire rod mm Φ 800-1100mm Outer diameter of the wire rod mm Φ1200-1400mm Height of wire rod mm 2500mm Maximum load kg 2500kg Feature
1. The double station wire coils shot blasting machine has high efficiency, and the cleaned wire surface is clean and metallic.
2. The double station wire coils shot blasting machine adopts special shaped blades to focus on the shot, with high density of shots, which improves productivity.
3. The spacing between the wires by the guide can control the swing of the cleaned wires to achieve the purpose of cleaning.

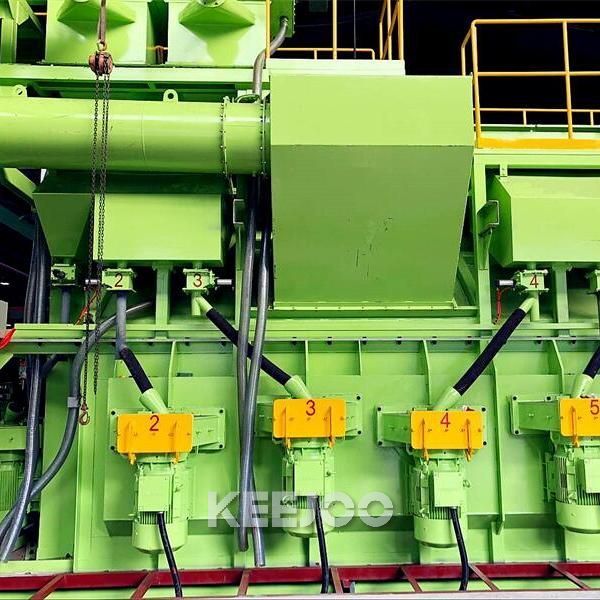

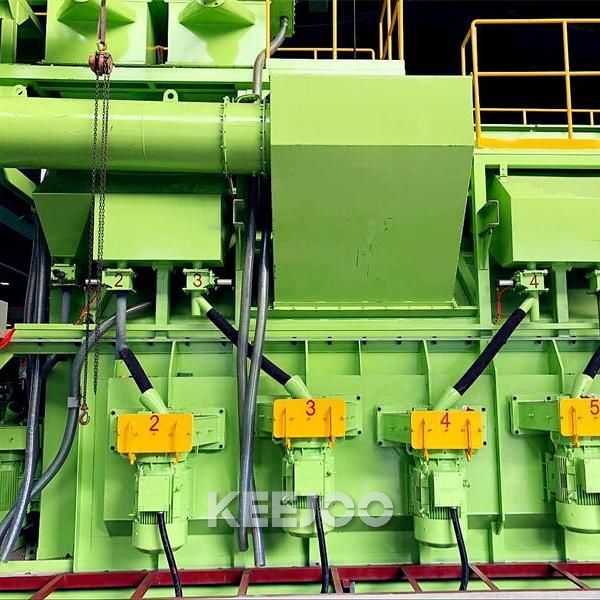

4. A number of domestic and foreign advanced technologies are used to improve the technical content of functional components, so that the machine has a low failure rate and a high start-up rate. The sealing effect is good, and it reaches the environmental purification index required by environmental protection.Advantage

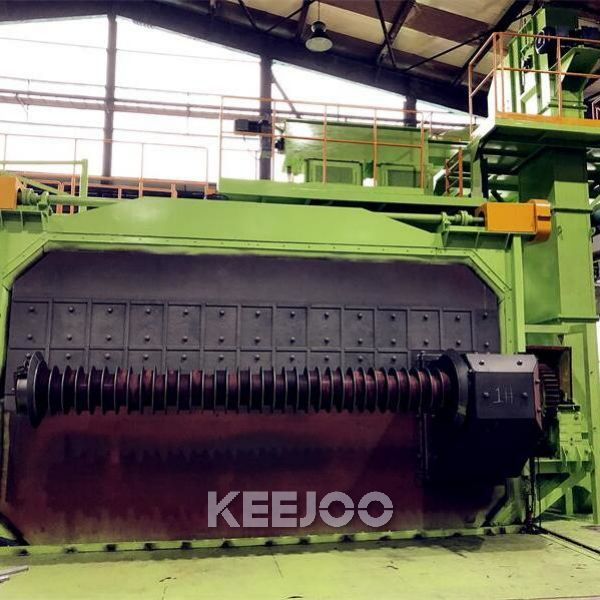

The adoption of a "rotating gate + double cantilever shaft" load-bearing structure enables a dual-station working mode, significantly enhancing production capacity. The cantilever shaft is made of special alloy steel and, in combination with variable frequency speed regulation technology, can adjust the compound movement of the wire (up and down undulation, left and right swing, forward and reverse rotation), ensuring the uniformity of shot blasting coverage.
After shot blasting, the surface cleanliness of the steel reaches the Sa2.5 standard, and the surface roughness is controlled within the range of Ra6.3 to 12.5μm. Ensure that both the inner and outer surfaces of the wire can be effectively cleaned.
The double station wire coils shot blasting machine equipped with a PLC intelligent control system and an HMI visual monitoring interface, operators can adjust the shot blasting intensity and motion parameters through the electrical operation console. The equipment has high operational stability, with a failure rate that is over 40% lower than that of traditional models, and maintenance costs are significantly reduced.
