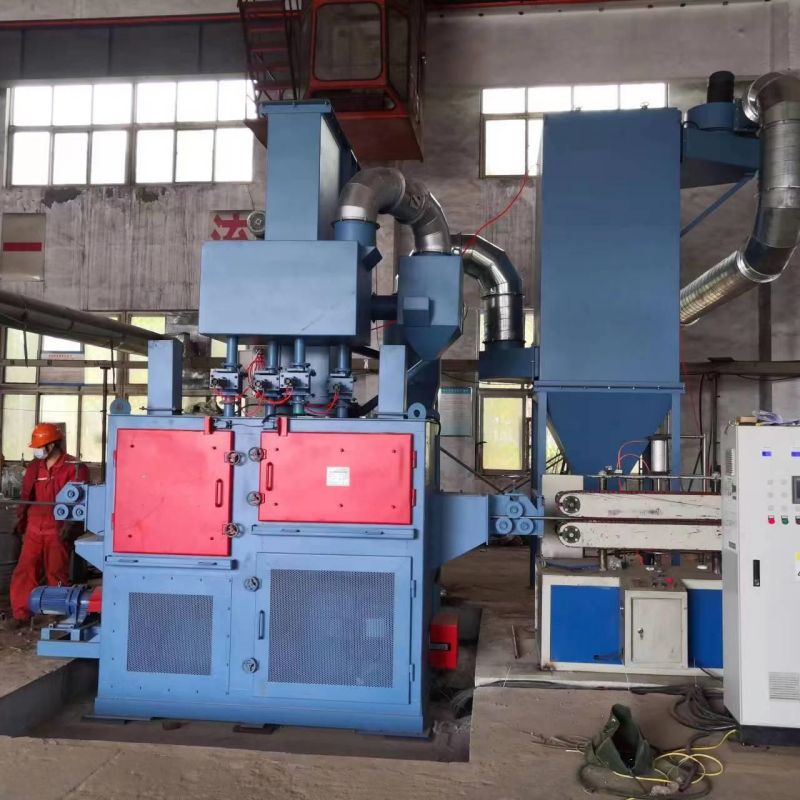

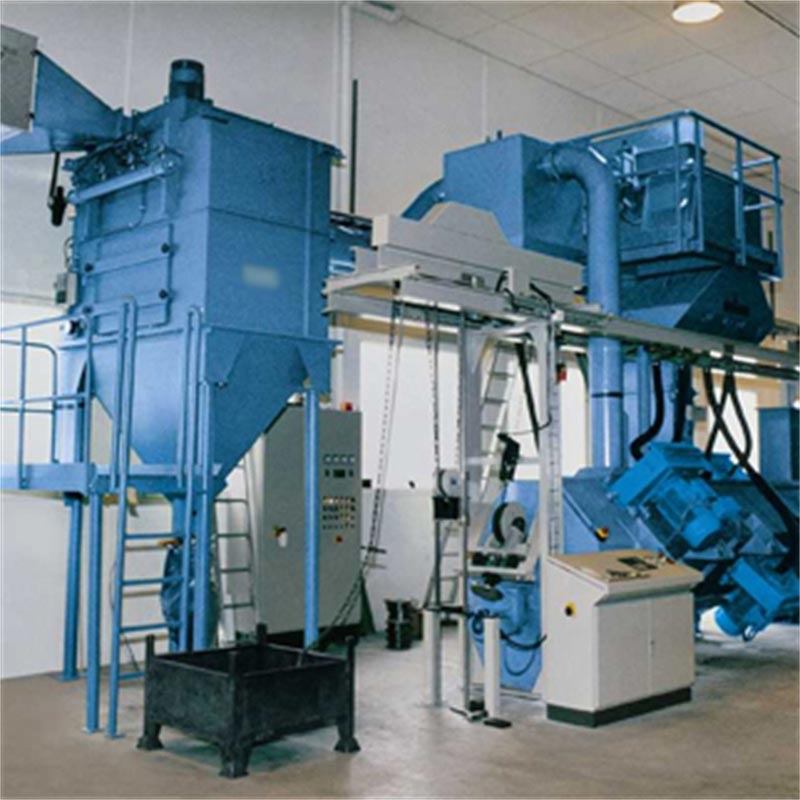

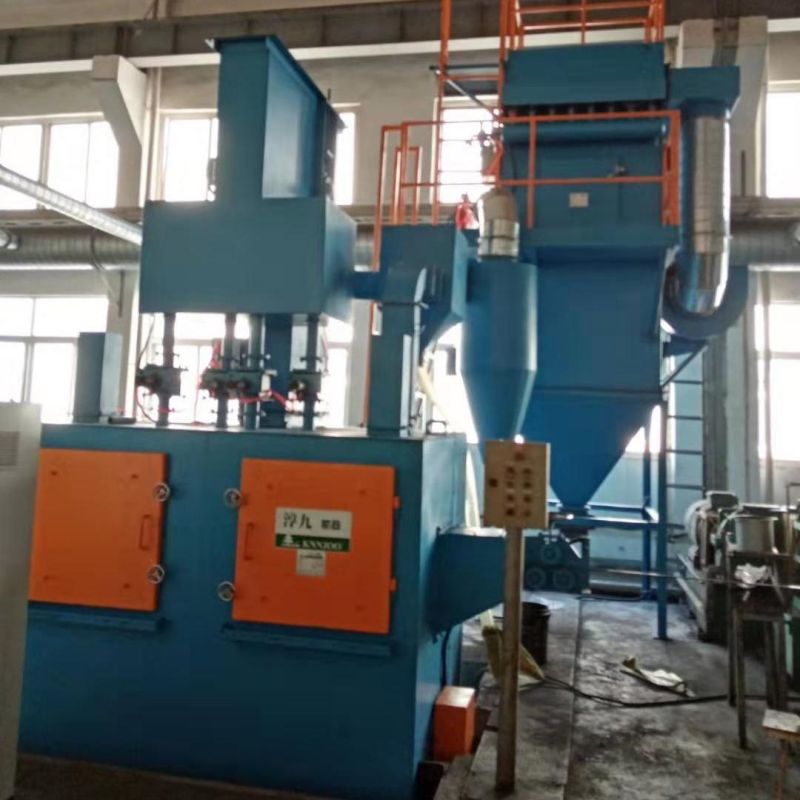

Single Wire Shot Blasting Machine
- Product details
High quality Single wire shot blasting machine with KEEJOO brand is a continuous through-type shot blasting cleaning equipment. The core working principle is as follows: Metal wire is made to pass through the shot blasting chamber at a constant speed in a straight line. Meanwhile, the blast wheel sprays shot (steel shot or wire cut shot) at high speed onto the surface of the wire from multiple angles. The impact force of the shot is used to remove impurities such as oxide scale, rust layer, welding slag, and oil stains on its surface, and to achieve a certain roughness, preparing for subsequent coating, drawing and other processes.
Technical data
Diameter of the wire mm Φ 4~Φ 40mm Inner diameter of the wire rod mm Φ 800-1100mm Outer diameter of the wire rod mm Φ1200-1400mm Height of wire rod mm 2500mm Maximum load kg 2500kg working principle

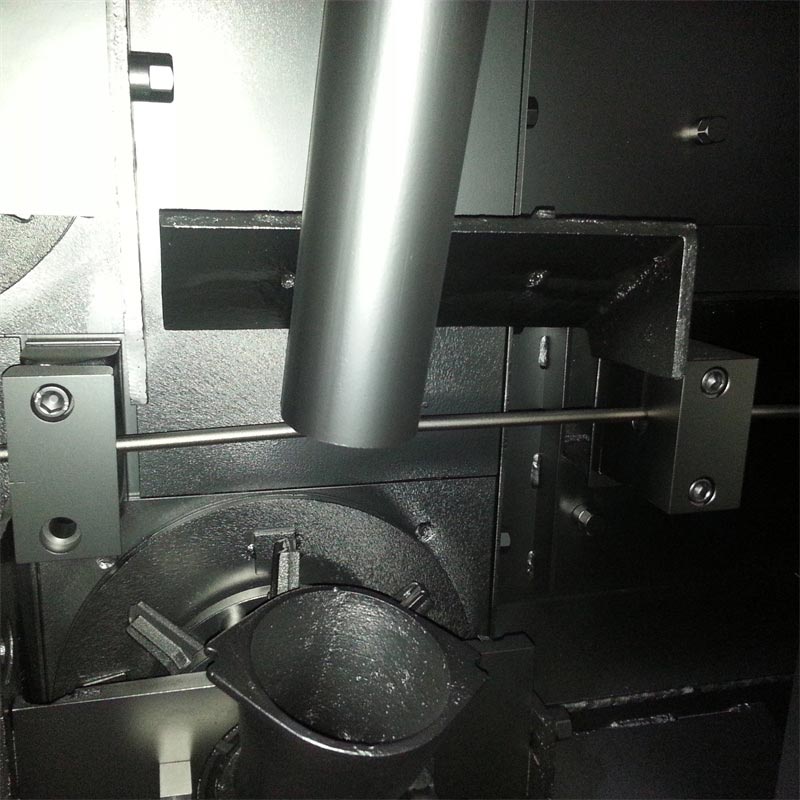

After the equipment is started, the shot enters the blast wheel through the storage hopper. Under the high-speed rotation of the impeller, it accelerates to tens of meters per second, forming a dense projectile flow that impacts the surface of the wire. The impact force generated by the collision peels off surface impurities and causes slight plastic deformation on the surface of the wire through friction, thereby enhancing hardness and fatigue strength.
Working process
Loading: Place the coiled wire on the wire laying rack.
Threading the wire: Pass the ends of the wire in sequence through the straightening device, the sealed inlet, the shot blasting chamber, and the sealed outlet.
Startup: Start the single wire shot blasting machine, and the drive roller begins to pull the wire forward at a constant speed.
Shot blasting: The wire enters the shot blasting chamber, and multiple shot blasting machines start simultaneously, spraying shot from all directions to strike the surface of the wire.
Circulation and separation: The fallen shot and impurities are collected by the screw conveyor and sent to the separator by the elevator for purification. The clean shot returns to the shot blasting machine.
Dust removal: The dust generated throughout the process is extracted and filtered by the dust removal system.
Winding: The processed and smoothed wire is led out from the other end and wound on the winding frame.Selection considerations
When choosing a single-wire shot blasting machine, the following parameters need to be considered.
Wire diameter range: The minimum and maximum diameters that the equipment can handle.
Cleaning speed: The speed at which the wire passes through the shot blasting chamber (meters per minute) directly affects production efficiency.
The number and power of blast wheels: Determine the intensity and efficiency of cleaning.
The material of wear-resistant parts for equipment: It directly affects the service life and maintenance cost of the equipment.
Dust removal effect: The model and air volume of the dust collector must be matched.
