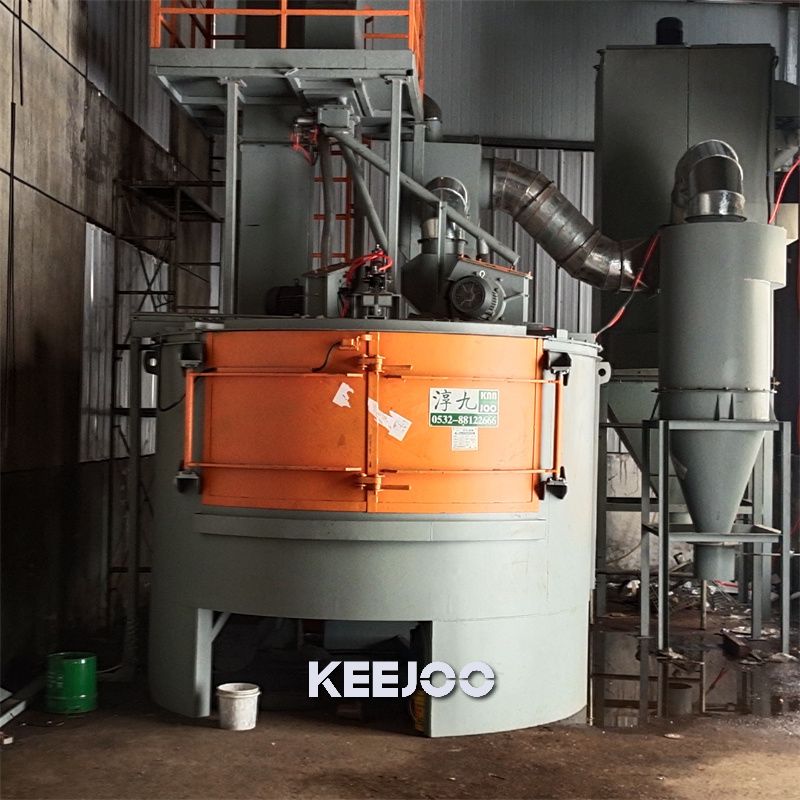

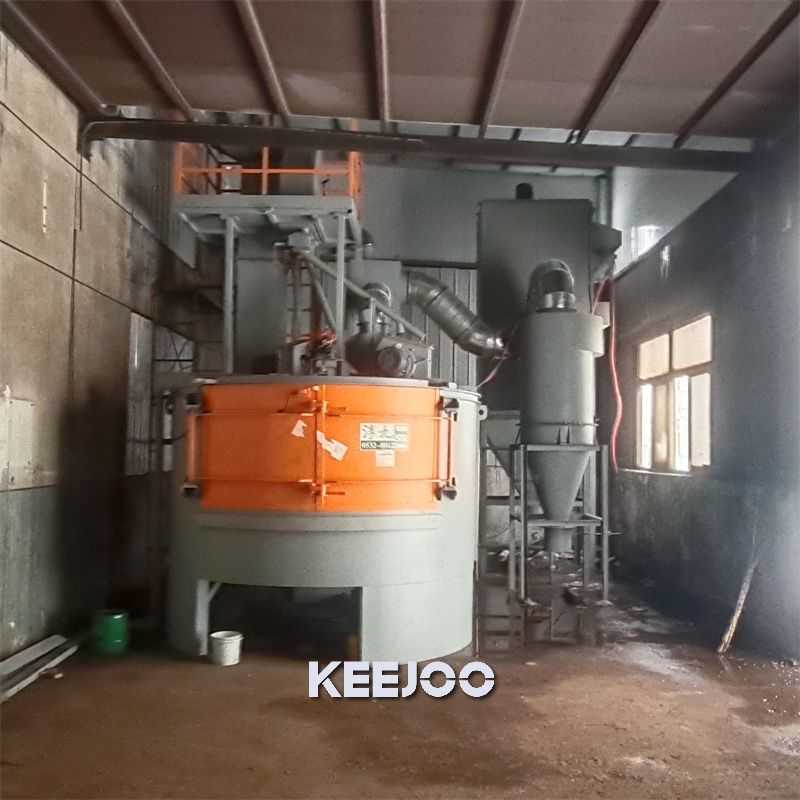

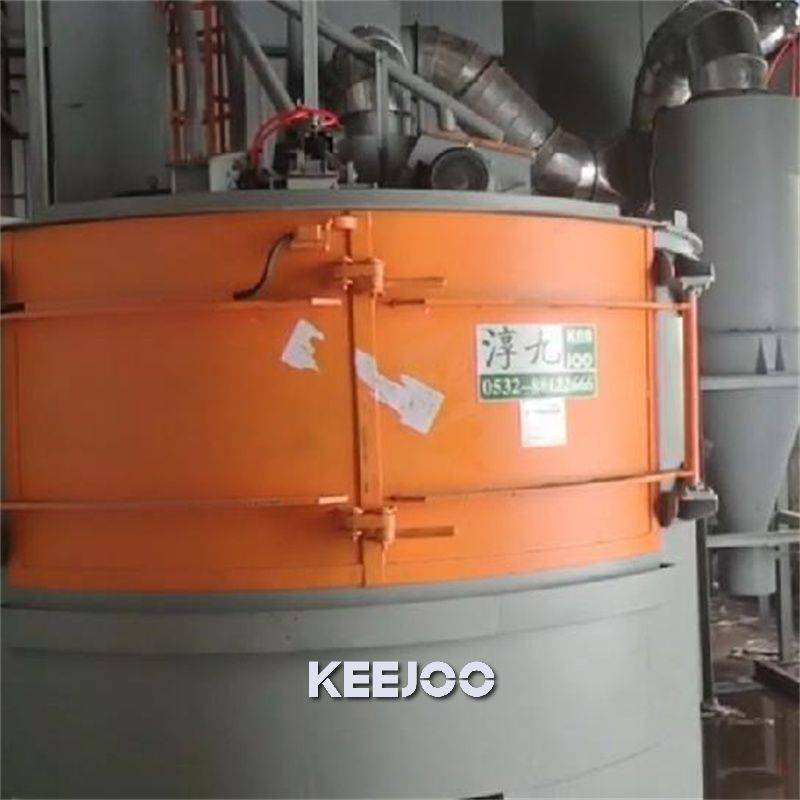

Engine Components Shot Blasting Machine
- Product details
The Engine Components Shot Blasting Machine with KEEJOO brand is a high quality shot blasting equipment specifically designed for surface cleaning and strengthening of various core engine components, such as cylinder blocks, cylinder heads, crankshafts, connecting rods, flywheel housings, transmission cases, etc. It inherits the high efficiency and automation features of the rotary table shot blasting machine and is specially designed for the complex inner cavities, high cleanliness and high strength requirements of engine components.
Technical data
type item ZT012 ZT012F ZT012G Size of cleaning chamber mm Ø1350*560 Ø1350*860 Ø2654*560 size of cleaning piece mm 600*250*250 600*250*250 1000*500*250 Turn table loading capacity kg 400 400 1000 diameter mm Ø1200 Ø1200 Ø2500 Blasting
apparatusabrasive flow rate kg/min 200 2*150 2*250 power kw 11 7.5*2 15*2 Lifiting amount of elevating conveyor t/h 15 15 30 Separating amount of separator t/h 15 15 30 Abrasive initial filling kg 400 350 1500 Ventilation capacity m3/h 2800 2800 5200 Outline dimensions mm 1500*3450*3780 1900*1900*4165 4260*3647*5366 Powe(excluding dedusting) kw 17.3 18.7 35.2 Function

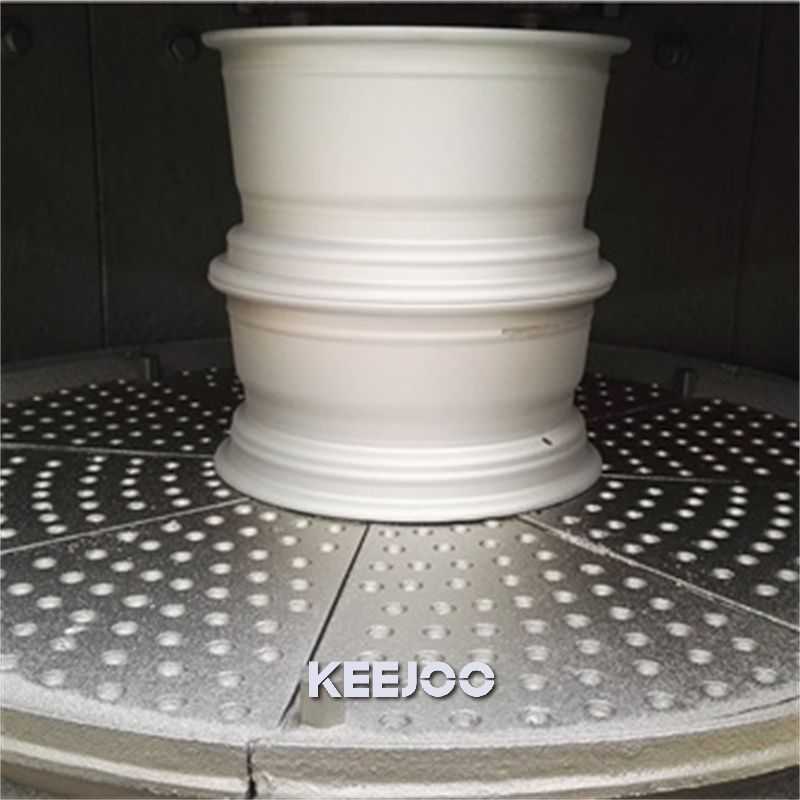

The engine component turntable shot blasting machine is suitable for surface cleaning of engine connecting rods, gears, diaphragm springs and other workpieces. Engine Components Shot Blasting Machine removes surface dirt through high-speed shot impact and is applicable to fields such as casting and automotive manufacturing.
Composition
The engine component turntable shot blasting machine is composed of a turntable, shot blasting machine, separator, elevator and dust removal system, etc. The turntable carries the workpiece and rotates. The shot blasting machine accelerates the shot and throws it onto the surface of the workpiece. The separator recycles the shot for reuse.
Features
Fully enclosed structure: Prevents environmental pollution and is equipped with an efficient dust removal system.
Variable frequency speed regulation system: Adjustable shot blasting intensity to meet the requirements of precision workpieces.
Computer simulation design: Optimize the layout of the shot blasting machine to ensure that the shot covers the surface of the workpiece.
