Stamping Parts Shot Blasting Machine
- Product details

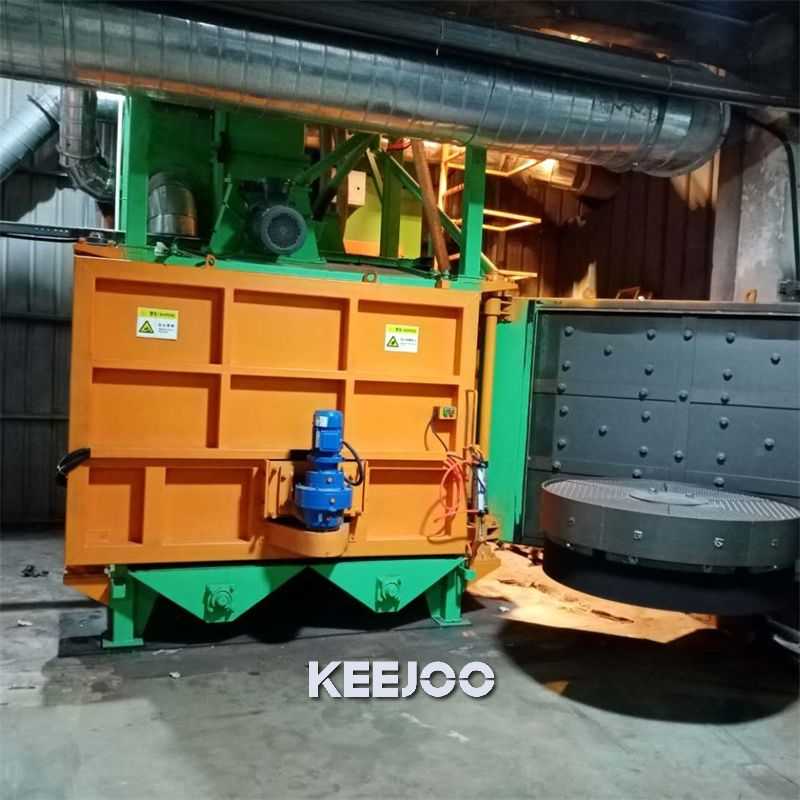

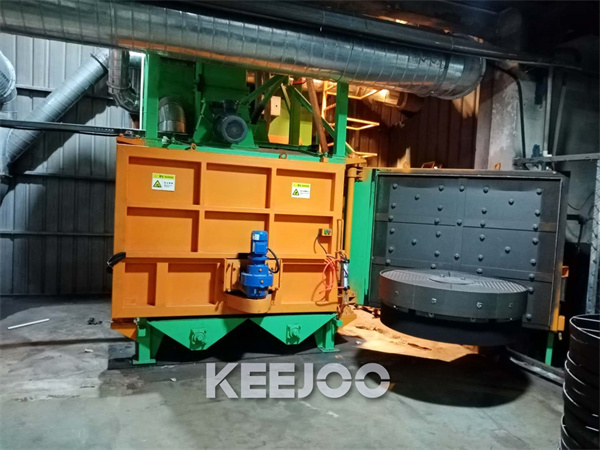

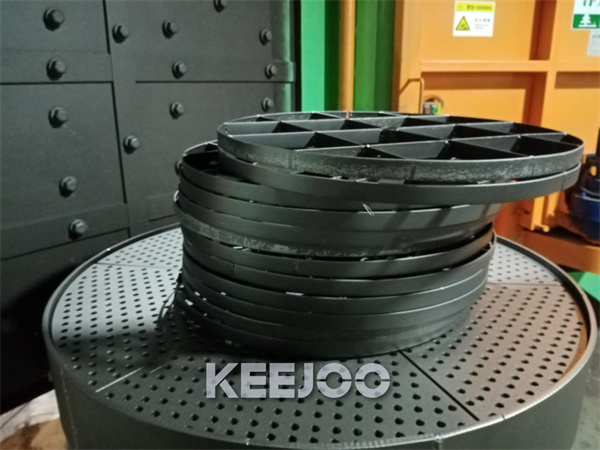

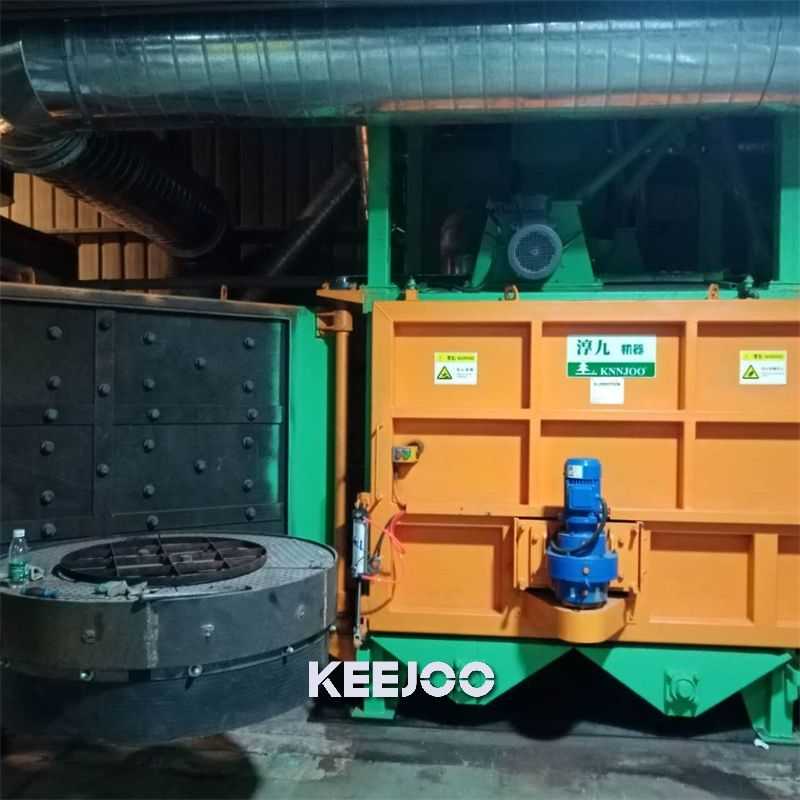

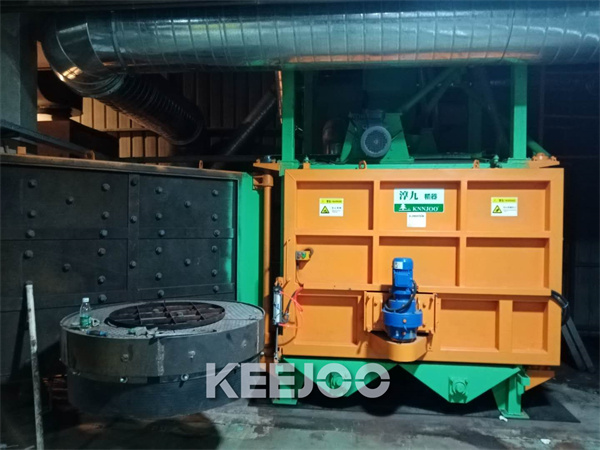

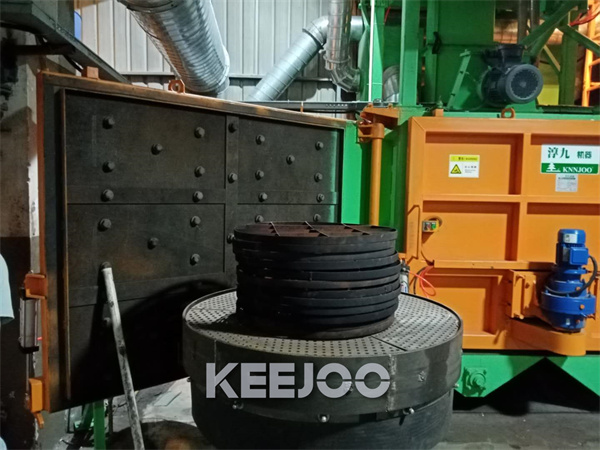

High quality Stamping Parts Shot Blasting Machine, provided by Qingdao KEEJOO Group is a specially designed rotary table shot blasting cleaning equipment for processing workpieces after metal sheet stamping. Stamping parts (such as car doors, hoods, trunk LIDS, chassis parts, and home appliance shells, etc.) have the characteristics of complex shapes, thin sheet materials, and easy deformation. Therefore, the design of this type of equipment is significantly different from that of wheel hub or engine component turntable shot blasting machines.
Technical data
type item ZT012 ZT012F ZT012G Size of cleaning chamber mm Ø1350*560 Ø1350*860 Ø2654*560 size of cleaning piece mm 600*250*250 600*250*250 1000*500*250 Turn table loading capacity kg 400 400 1000 diameter mm Ø1200 Ø1200 Ø2500 Blasting
apparatusabrasive flow rate kg/min 200 2*150 2*250 power kw 11 7.5*2 15*2 Lifiting amount of elevating conveyor t/h 15 15 30 Separating amount of separator t/h 15 15 30 Abrasive initial filling kg 400 350 1500 Ventilation capacity m3/h 2800 2800 5200 Outline dimensions mm 1500*3450*3780 1900*1900*4165 4260*3647*5366 Powe(excluding dedusting) kw 17.3 18.7 35.2 Application
The stamping parts turntable shot blasting machine is applicable to the surface treatment of automotive body stamping parts (such as door hinges, frame parts, etc.), which can remove oxide scale, oil stains and welding residues, and at the same time enhance the surface hardness and fatigue strength of the workpiece.
Function
Surface cleaning: By using high-speed shot impact, rust, dirt and old coatings on the surface of the workpiece are removed to ensure the cleanliness of subsequent processing.
Strengthening effect: The impact of the shot causes plastic deformation on the surface of the workpiece, enhancing hardness and fatigue life. The stamping parts turntable shot blasting machine is suitable for the pretreatment of high-strength metal parts.Features
Fully enclosed structure: Equipped with an efficient dust removal system to prevent dust leakage, ensuring operational safety and environmental cleanliness.
Variable frequency speed regulation system: It can adjust the shot blasting intensity and achieve precise processing for stamping parts of different materials.
Modular design: The shot blasting chamber and the blast wheel layout have been optimized through three-dimensional simulation to ensure that the shot covers every area of the workpiece surface.
