Flange Disc Parts Shot Blasting Machine
- Product details

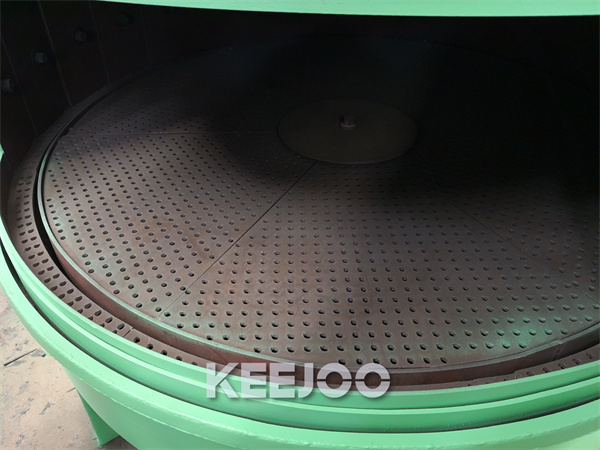

The KEEJOO high quality flange disc parts shot blasting machine is a multi-station automated equipment based on an intermittent rotary turntable. The core design concept is to enable the workpiece to rotate at high speed within the shot blasting area, thereby ensuring that the upper and lower end faces, inner and outer circumferences, and all edges and corners of the workpiece can receive thorough and uniform shot blasting treatment. This is the key advantage that distinguishes it from ordinary through-type equipment or hook-type equipment.
Technical data
type item ZT012 ZT012F ZT012G Size of cleaning chamber mm Ø1350*560 Ø1350*860 Ø2654*560 size of cleaning piece mm 600*250*250 600*250*250 1000*500*250 Turn table loading capacity kg 400 400 1000 diameter mm Ø1200 Ø1200 Ø2500 Blasting
apparatusabrasive flow rate kg/min 200 2*150 2*250 power kw 11 7.5*2 15*2 Lifiting amount of elevating conveyor t/h 15 15 30 Separating amount of separator t/h 15 15 30 Abrasive initial filling kg 400 350 1500 Ventilation capacity m3/h 2800 2800 5200 Outline dimensions mm 1500*3450*3780 1900*1900*4165 4260*3647*5366 Powe(excluding dedusting) kw 17.3 18.7 35.2 Working process:
Loading: Workers or robots place workpieces on the turntable.
Sealing: Close the cabin door to form a sealed working chamber, ensuring production safety and environmental protection.
Startup: The turntable starts to rotate at a constant speed, and the motor of the blast wheel begins.
Shot blasting cleaning: A high-speed shot flow is thrown out to cover every surface of the workpiece (including the top and bottom, inside and outside, grooves and holes).

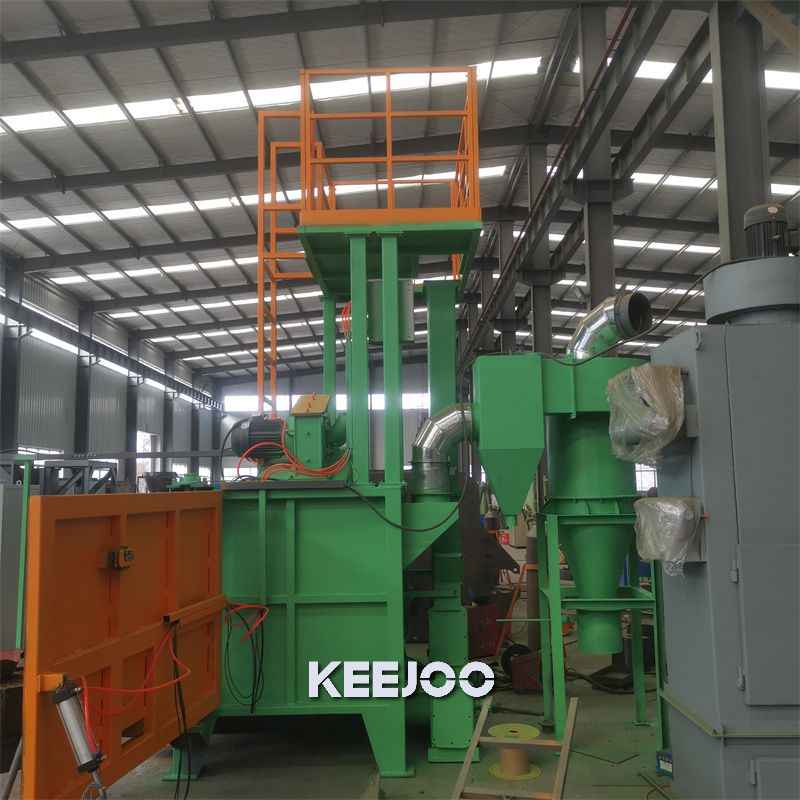

Shot circulation: The shot after hitting and the impurities removed are conveyed by a screw conveyor, elevator and separator to achieve automatic recovery, screening and recycling of the shot.

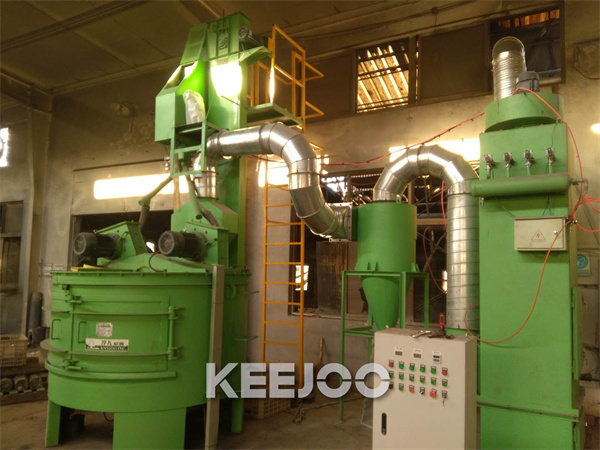

Dust removal and purification: The accompanying high-efficiency dust removal system continuously draws air, drawing dust into the dust collector for filtration, ensuring that the indoor environment is dust-free and emissions meet standards.
Blanking: After cleaning is completed, the turntable stops and a new workpiece is removed.Equipment features:

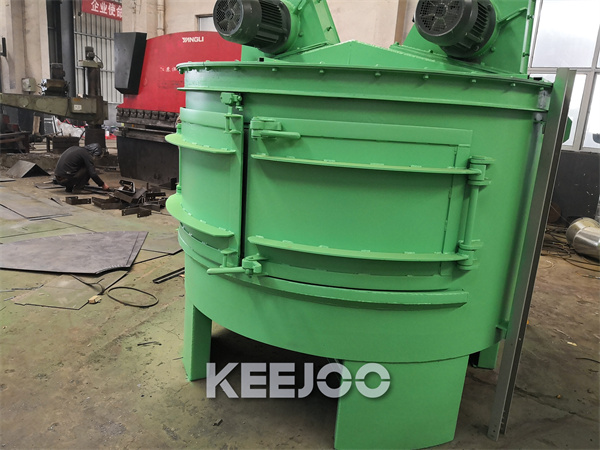

Compact structure: The flange disc parts shot blasting machine chamber body adopts a manganese steel protective structure and is lined with wear-resistant plates, occupying a small area.
Automation control: Supports variable frequency speed regulation, and the operating status can be monitored in real time through the touch screen.
Environmental protection design: The fully enclosed structure combined with an efficient dust removal system complies with industrial environmental protection standards.Key points of maintenance
The flange disc parts shot blasting machine is necessary to regularly inspect the wear condition of the shot blasting machine blades, the positioning accuracy of the turntable, and clean the shot recovery system.
