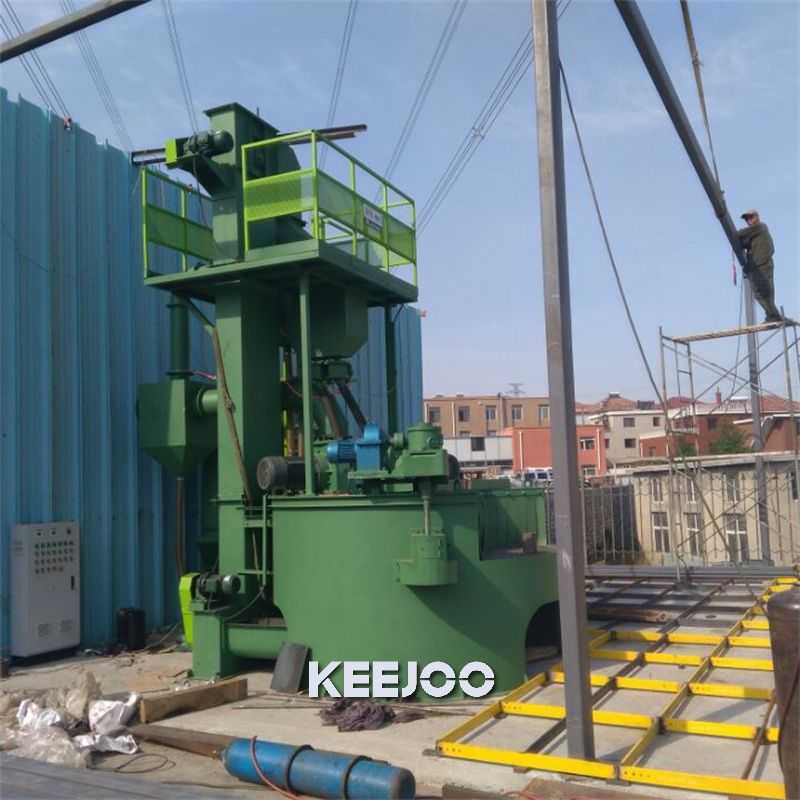

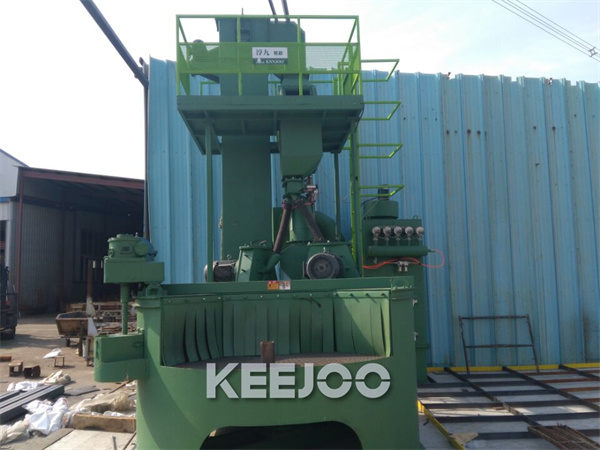

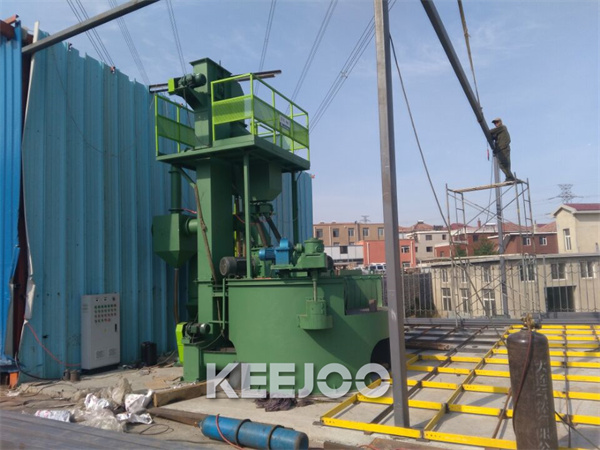

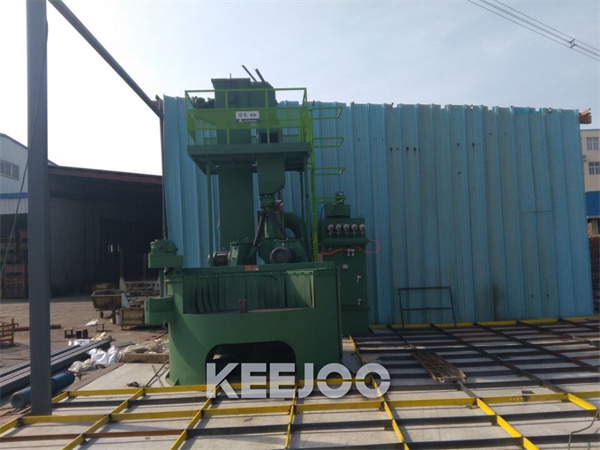

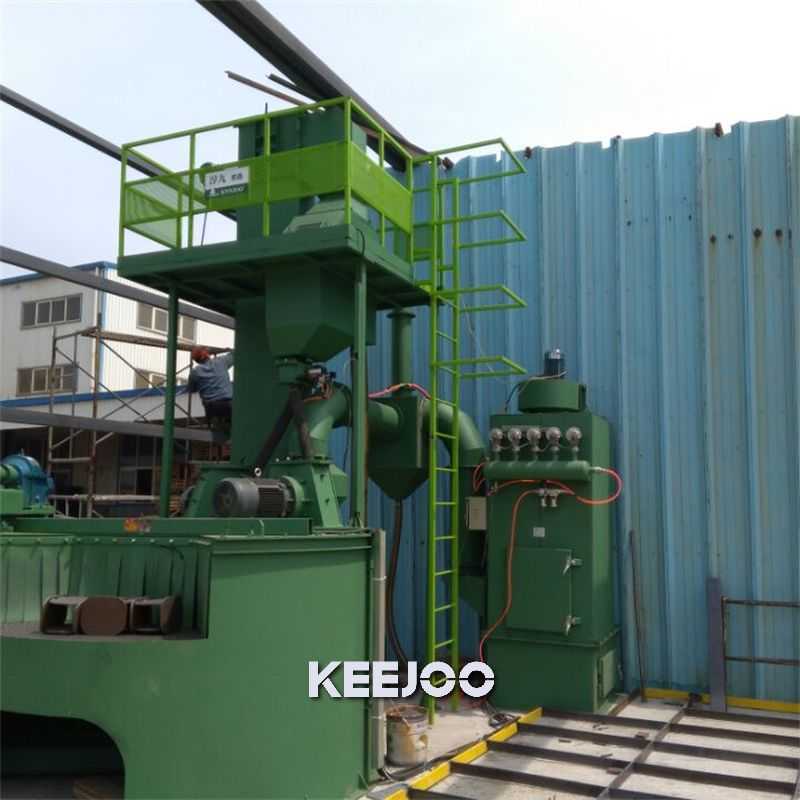

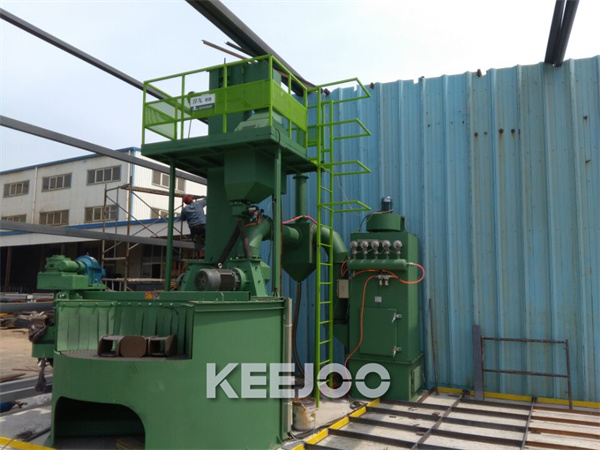

Metal Sheets Shot Blasting Machine
- Product details
The KEEJOO's high quality metal sheets shot blasting machine is a specialized equipment used for surface treatment of metal sheets. It is mainly used to remove oxide scale, rust and dirt, improve surface quality and enhance the fatigue strength of workpieces. Its core structure includes the shot blasting chamber, turntable system, shot blasting machine, dust removal device, etc., achieving all-round cleaning through high-speed shot blasting.
The core structural features of the metal sheet turntable shot blasting machine are mainly reflected in the design and combination of the following key components:
structural composition
Blast wheel : As a core component, metal sheets shot blasting machine is composed of an impeller, a directional sleeve, a shot distribution wheel, etc. Through high-speed rotation, it accelerates the shot to a speed of tens of meters per second and then directs it onto the surface of the workpiece.
Turntable system: It adopts a friction wheel transmission system and controls the start and stop of the turntable through a clutch mechanism to ensure that the workpiece can stably undergo shot blasting cleaning during the rotation of the turntable, and at the same time supports the adjustment of the workpiece position.
Shot circulation system: It includes a screw conveyor, elevator and separator, which realizes the collection, separation and recycling of shot. The crushed shot and dust are separated for the second time through independent pipelines.Function
Surface cleaning
By rapidly ejecting steel shot or abrasives, impurities such as oxide scale, rust and oil stains on the surface of metal plates are removed, providing a foundation for subsequent processing.
Surface strengthening
KEEJOO metal sheets shot blasting machine can enhance the surface hardness and wear resistance of metal plates, while strengthening the fatigue fracture resistance of workpieces and prolonging their service life.
Preprocessing optimization
It is suitable for the pre-processing treatment of metal plates, which can enhance the adhesion of materials, provide a better adhesion basis for anti-corrosion coatings, and ensure the coating effect.
Environmentally friendly design
It adopts a fully enclosed structure and an efficient dust removal system to reduce dust leakage, meeting the requirements of modern industry for environmentally friendly production
Quality and after-sales service
The supplier guarantees that the name, model, specification and quantity of the small metal parts mesh belt shot blasting machine are consistent with the technical agreement. The entire machine is newly manufactured, using high-quality raw materials and mature processes. It has no design, material or process defects, fully meeting the buyer's working conditions and complying with current national and industry standards. Its performance is stable and reliable.
During the warranty period of the entire machine, the supplier will dispatch engineers to the overseas site for installation, commissioning and provide training services.
The metal sheets shot blasting machine is assembled as a whole, undergoes operation testing and quality inspection before leaving the factory. After passing the inspection, professional disassembly, re-painting and packaging for shipment will be carried out.
