Engine Connecting Rods Shot Blasting Machine
- Product details

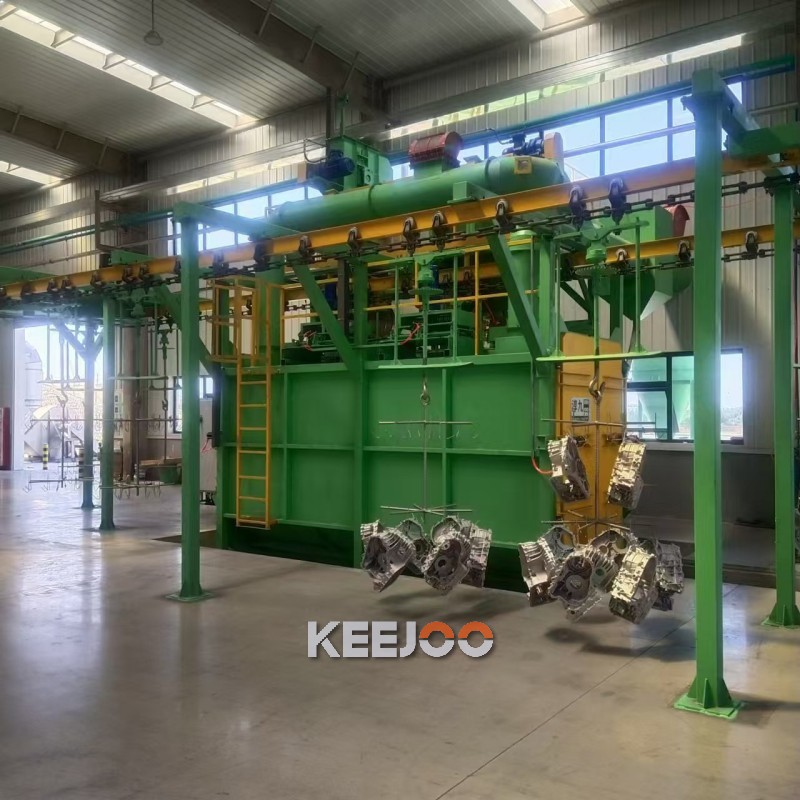

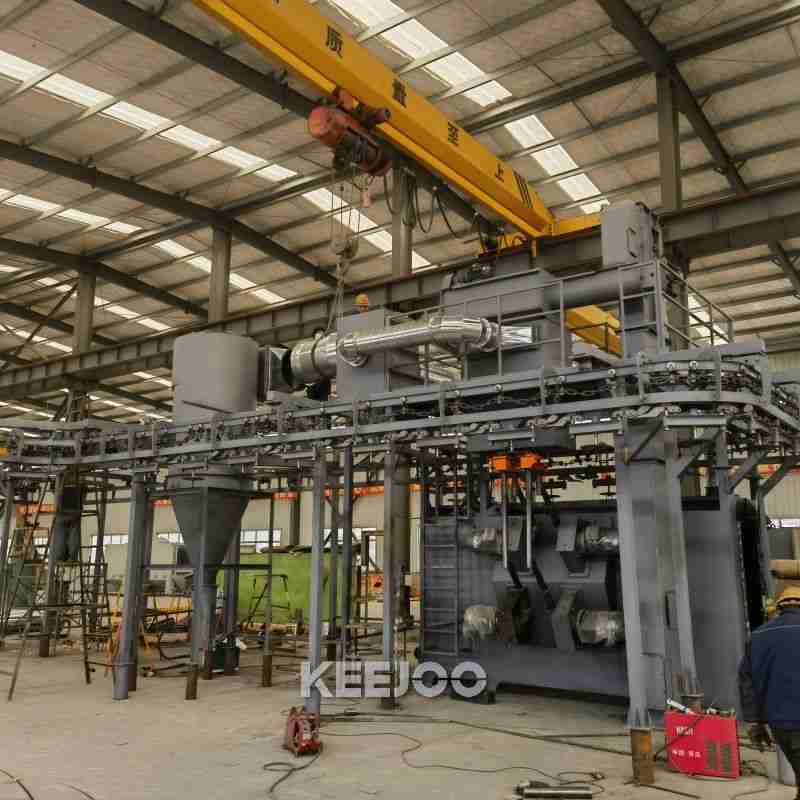

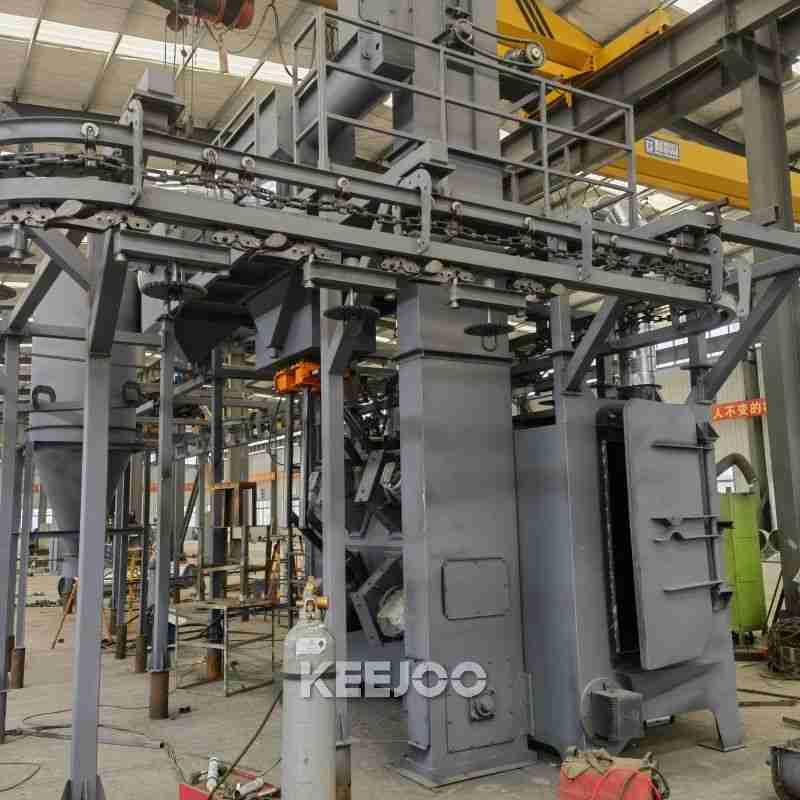

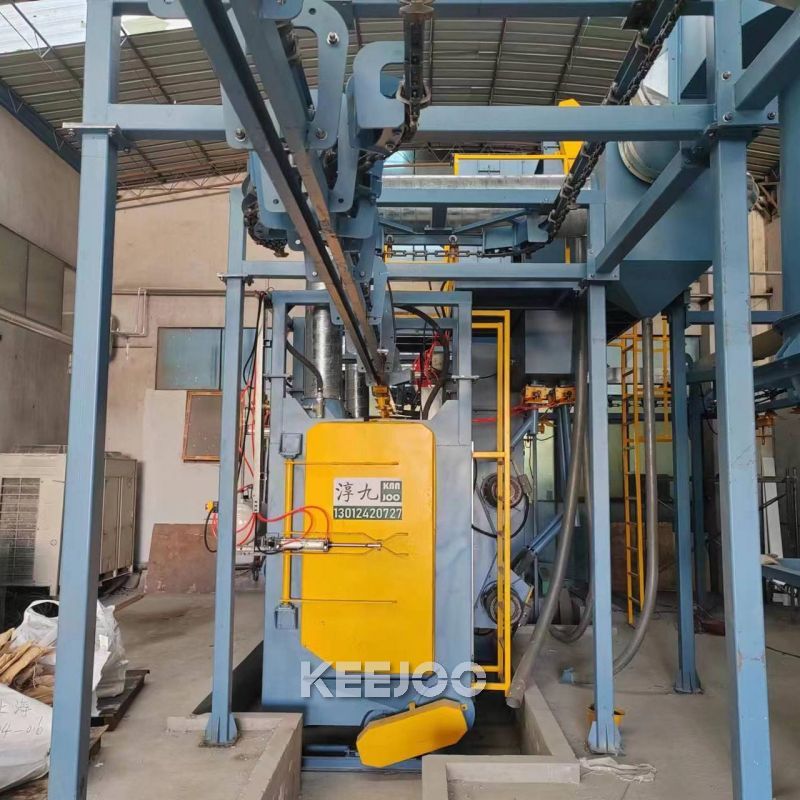

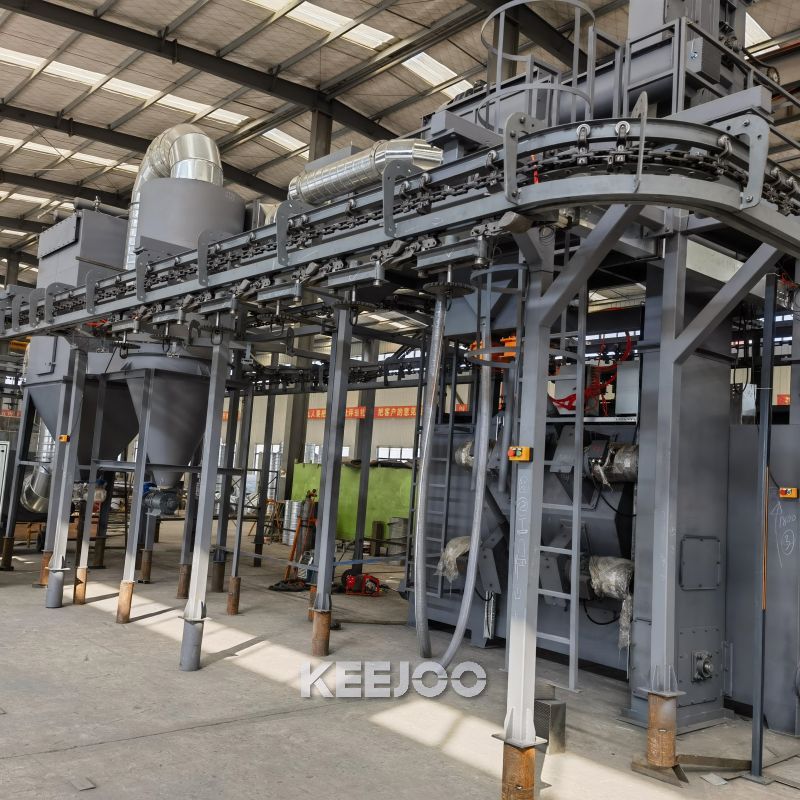

The high quality Engine Connecting Rods Shot Blasting Machine with KEEJOO brand is a specialized and highly efficient device that uses a suspended conveyor chain to automatically convey the engine connecting rod and cleans and strengthens its surface through high-speed shot flow. It is an important equipment for ensuring the quality and performance of key engine components.
Function
The high quality Engine Connecting Rods Shot Blasting Machine is mainly used to remove rust, welding slag and oxide layer on the surface of workpieces, and at the same time eliminate welding stress and enhance the fatigue strength of the workpieces. For instance, after the engine connecting rods are treated, their surface hardness can be enhanced, the adhesion of the paint can be improved, and their service life can be prolonged.
Characteristic

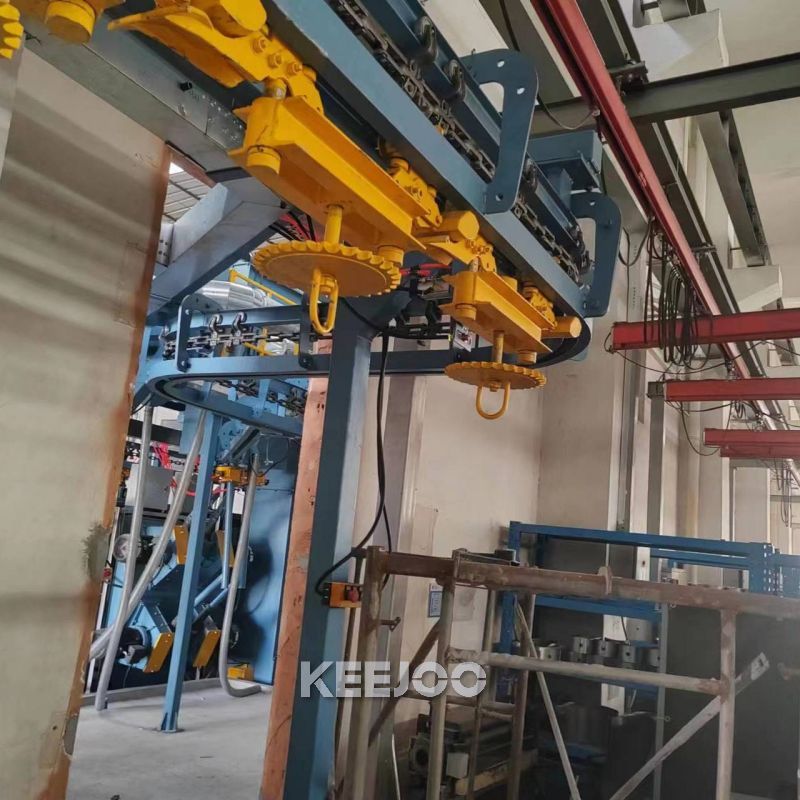

Conveying method: Supports continuous, step-by-step or accumulation suspension chain conveying, suitable for single-point lifting of workpieces with a weight of 50-2000kg.
Shot blasting system: The engine connecting rod catenary shot blasting machine adopts a cantilever centrifugal shot blasting machine, equipped with a double separation device to reduce the height of the equipment, ensuring high shot utilization and uniform coverage.
Protection design: Three-level sealed protection, in compliance with environmental protection standards.Advantage
High degree of automation: The Engine Connecting Rods Shot Blasting Machine enables continuous assembly line operation, resulting in high production efficiency.
Good processing effect: The design of multiple throwing heads ensures that all complex surfaces of the connecting rod can be evenly processed.
Labor-saving: The entire process, except for loading and unloading, is automatically completed in a closed environment.Technical data
Parameter HXL-2-15/1112-430 HXL-2-15/1315-430 HXL-3-22/1516-430 HXL-3-22/1521-430 HXL-4-22/1521-430 Turning diameterØ(mm) 1100 1300 1500 1500 1500 Hook height
(mm)1250 1500 1600 2100 2100 No. Of shot blaster 2 2 3 3 4 Power of single shot blater(KW) 15 (11) 15 (11) 22 (15) 22 (15) 22 (15)
