Transmission Gears Shot Blasting Machine
- Product details
The high quality Transmission Gears Shot Blasting Machine with KEEJOO brand is an automated shot blasting equipment specifically designed for cleaning and strengthening transmission gears. It utilizes a suspended conveyor chain system to enable gears to obtain clean and strengthened surfaces under the impact of high-speed shot flow.
Technical data
Parameter HXL-2-15/1112-430 HXL-2-15/1315-430 HXL-3-22/1516-430 HXL-3-22/1521-430 HXL-4-22/1521-430 Turning diameterØ(mm) 1100 1300 1500 1500 1500 Hook height
(mm)1250 1500 1600 2100 2100 No. Of shot blaster 2 2 3 3 4 Power of single shot blater(KW) 15 (11) 15 (11) 22 (15) 22 (15) 22 (15) Function
High-efficiency processing: Supports continuous, step-by-step or accumulation push conveying of workpieces. The workpieces are in a stopped state during loading and unloading and shot blasting areas, achieving fixed-point shot blasting. High production efficiency and reliable operation.
Wide application range: transmission gear suspension chain shot blasting machine is suitable for surface treatment of cast steel, cast iron and welded parts, especially good at removing rust and welding slag from the surface of workpieces, and improving surface roughness and adhesion.Features

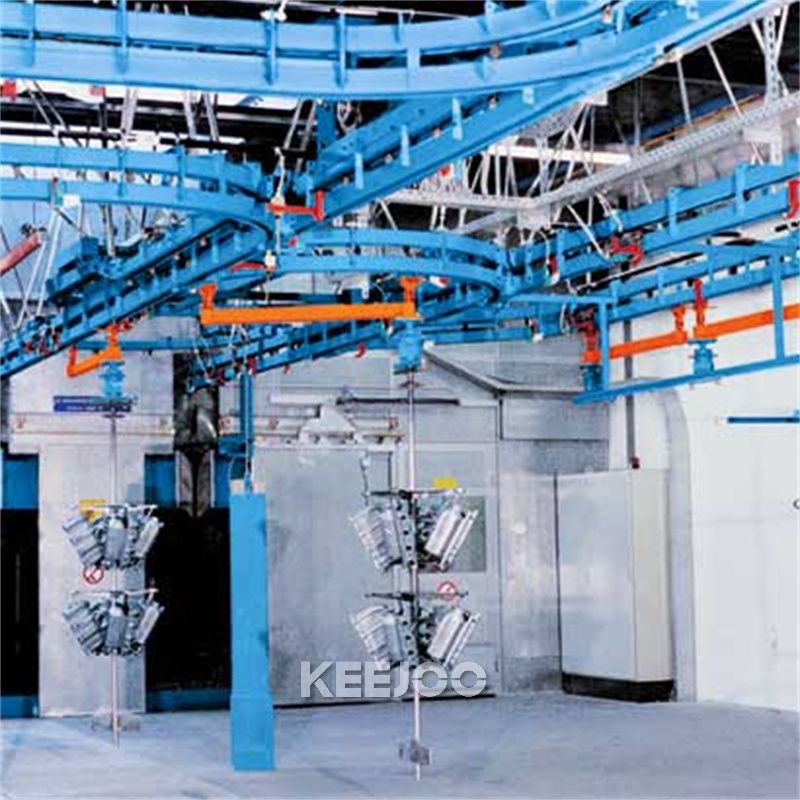

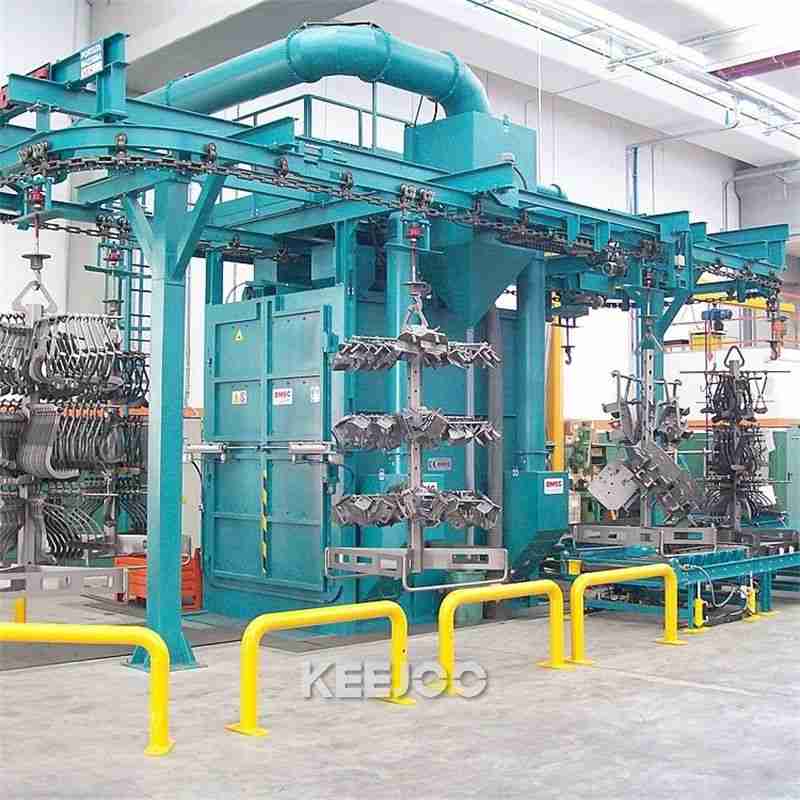

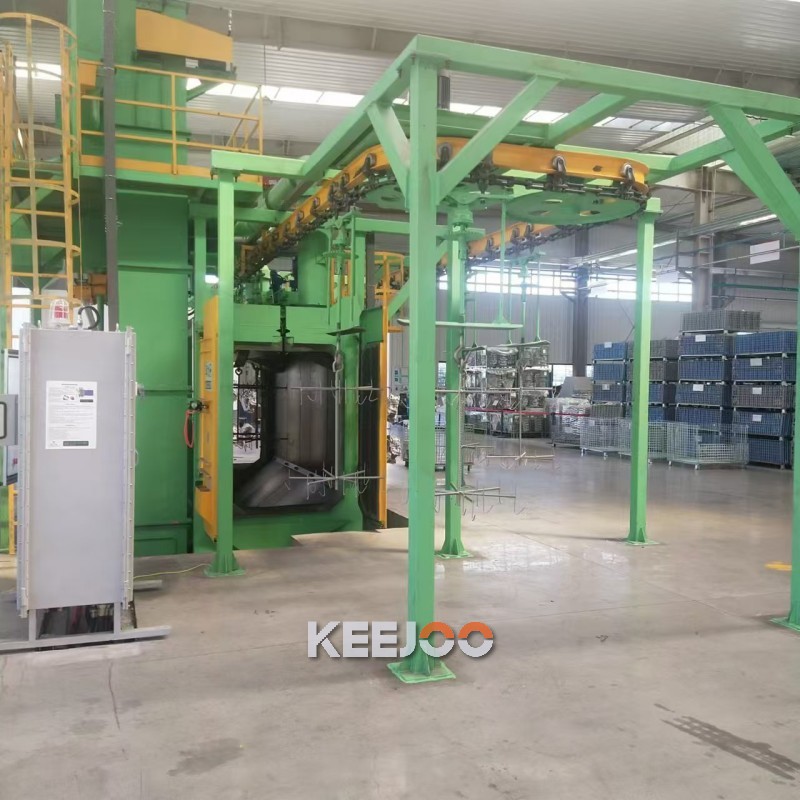

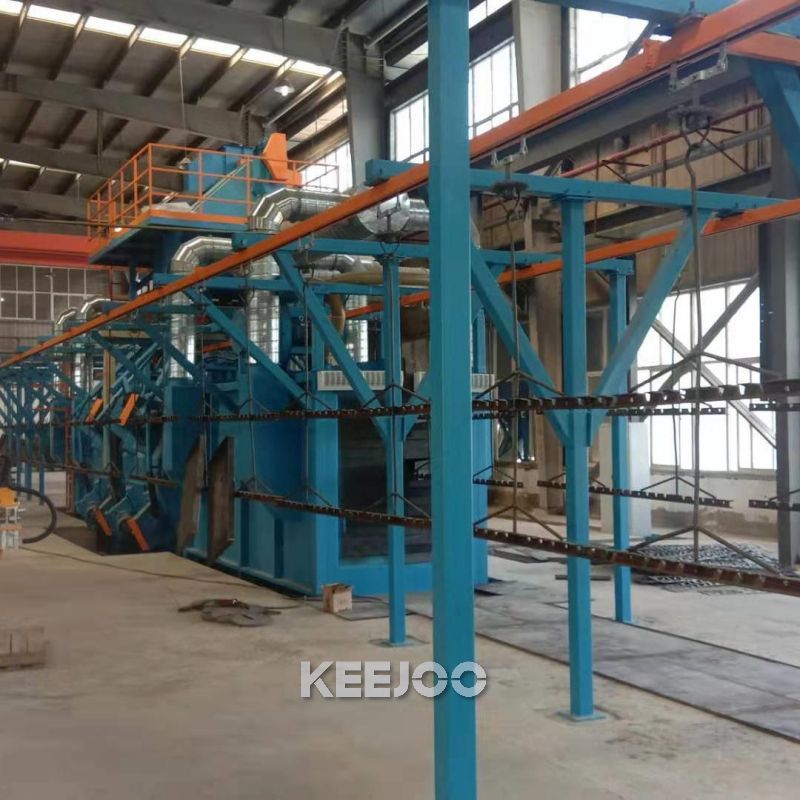

Conveying system: Transmission Gears Shot Blasting Machine adopts suspension chain to convey workpieces, supporting single-point lifting capacity of 50 to 2000kg, and is suitable for heavy workpieces such as gearbox gears.
Transmission gear suspension chain shot blasting machine Equipped with a PLC electrical control system and Mn13 high-wear-resistant guard plates, the shot and slag separation efficiency reaches 99%, with high shot utilization and uniform coverage.
Sealing and dust removal: Three-stage sealing protection system and pulse reverse blowing dust removal system, in compliance with environmental protection standards.Function and Purpose
Cleaning: Remove the oxide scale produced on gears after heat treatment, as well as the sand grains and oil stains remaining after forging or casting, to prepare for subsequent fine processing.
Reinforcement: This is the most crucial function. Through high-speed shot impact, compressive stress is generated on the gear surface, significantly enhancing the fatigue strength and service life of the gears and reducing the risk of tooth breakage during operation.
Finishing : Remove tiny burrs to achieve a uniform matte surface effect.
