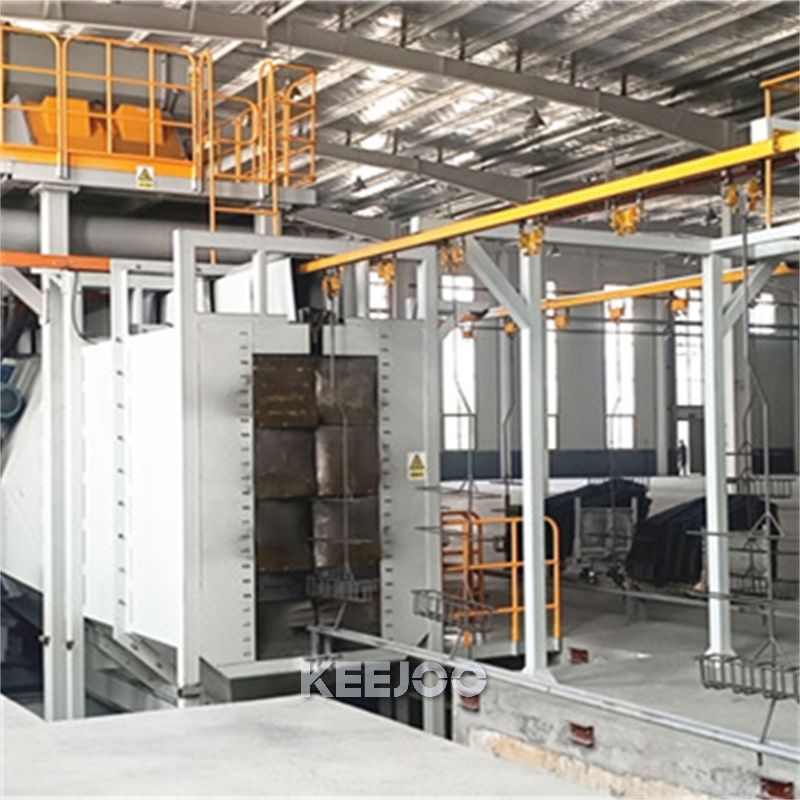

Angle Steels Shot Blasting Machine
- Product details

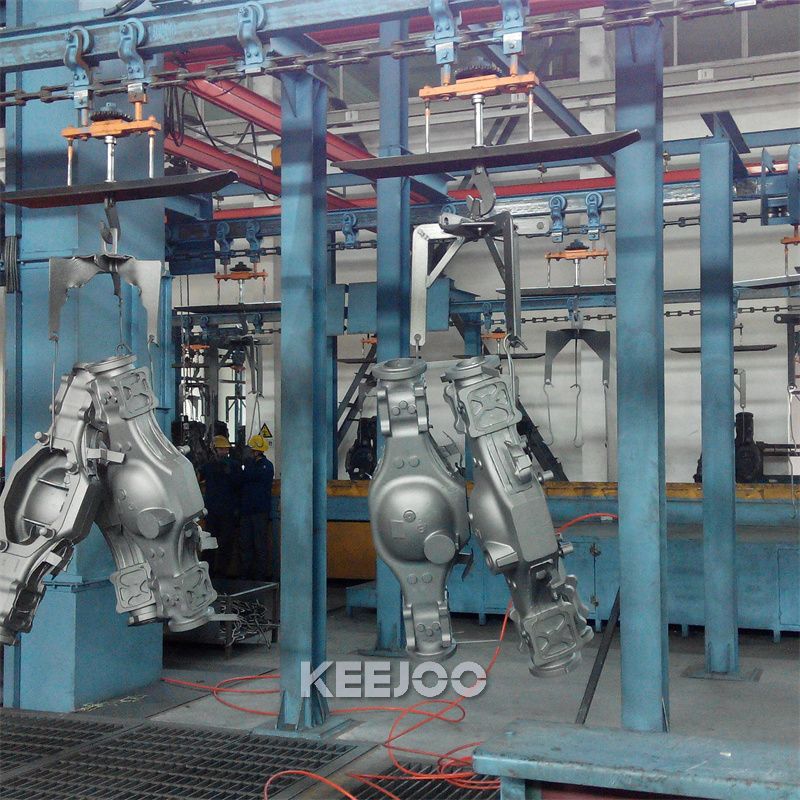

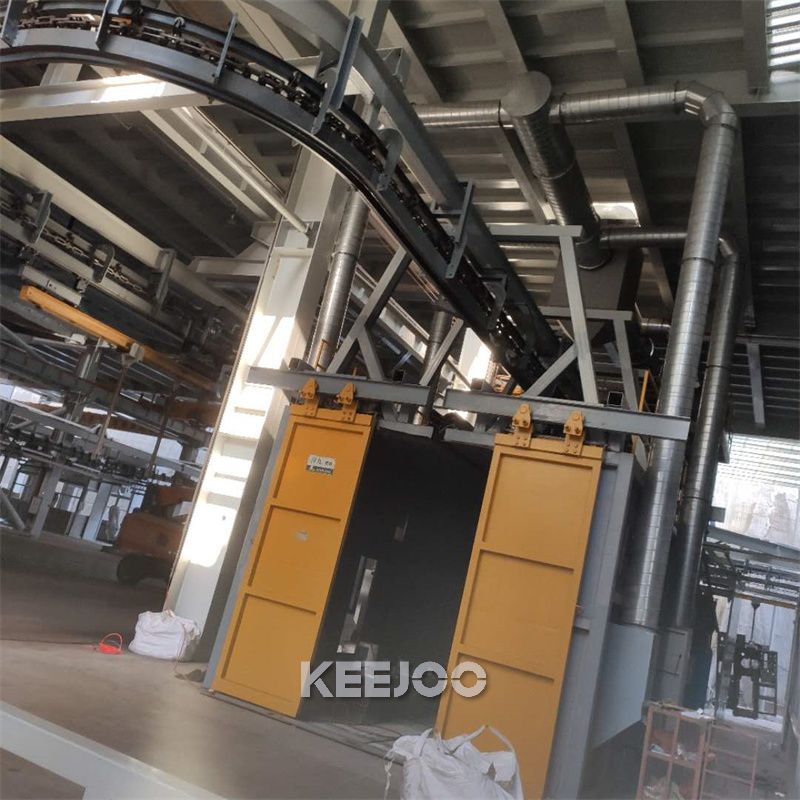

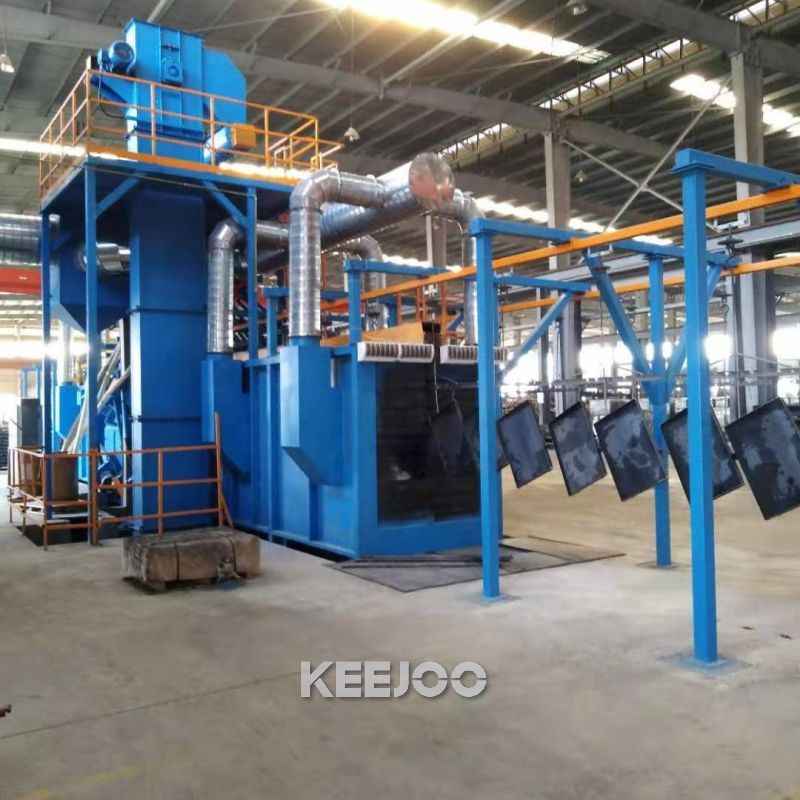

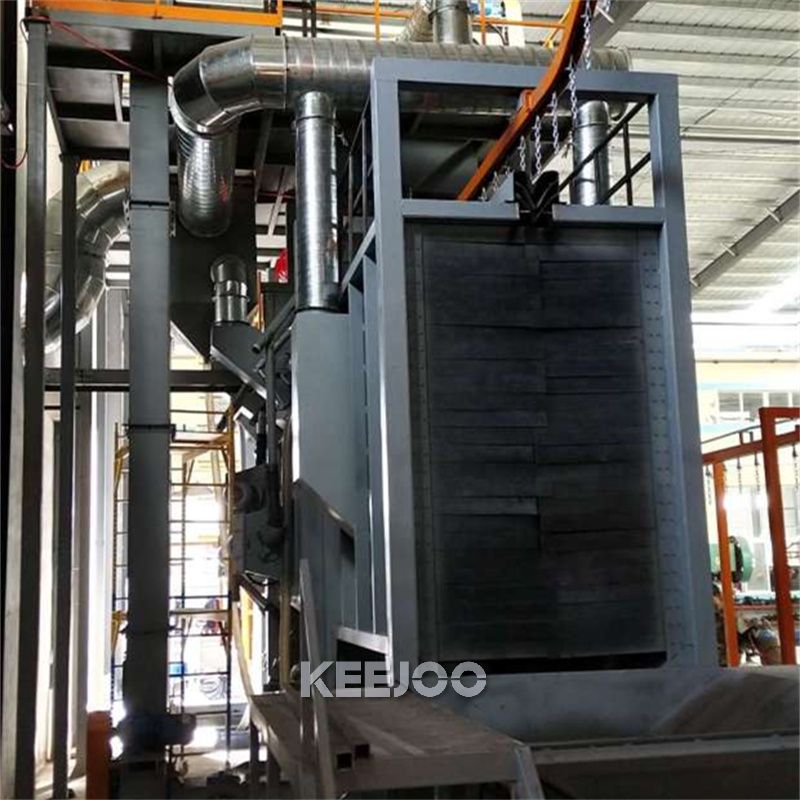

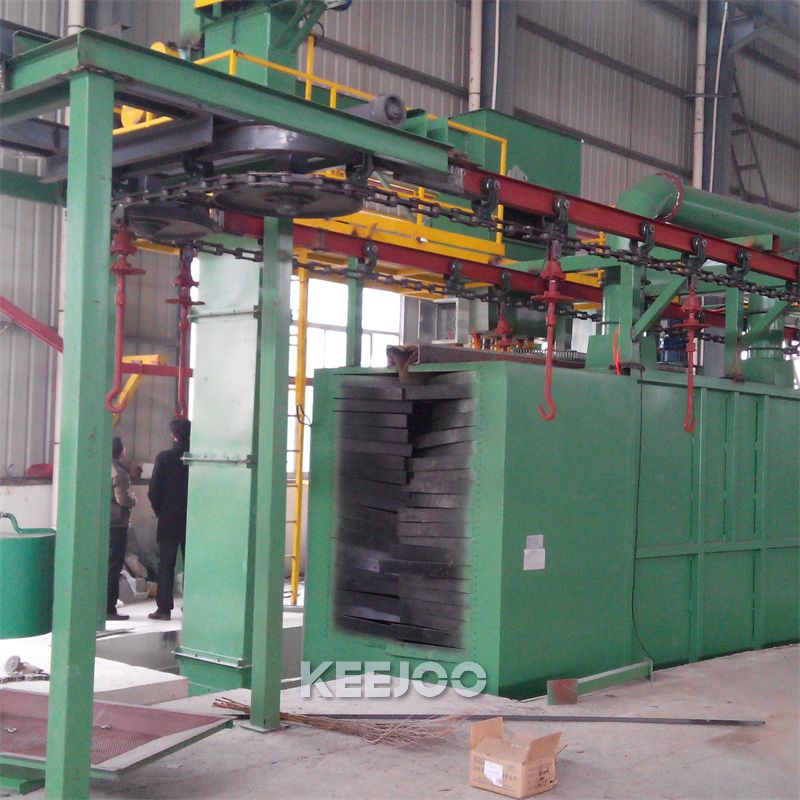

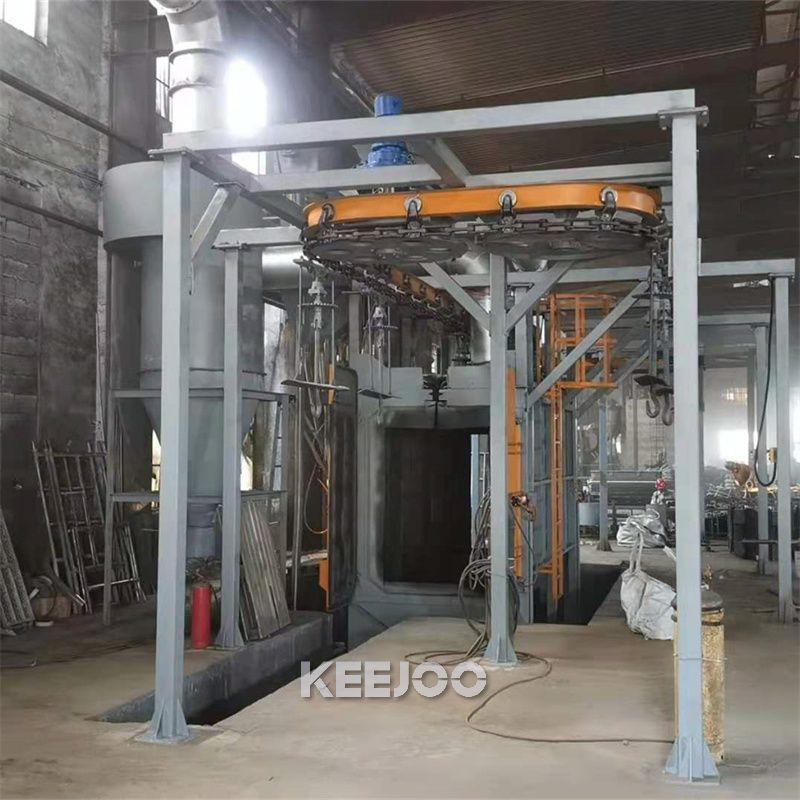

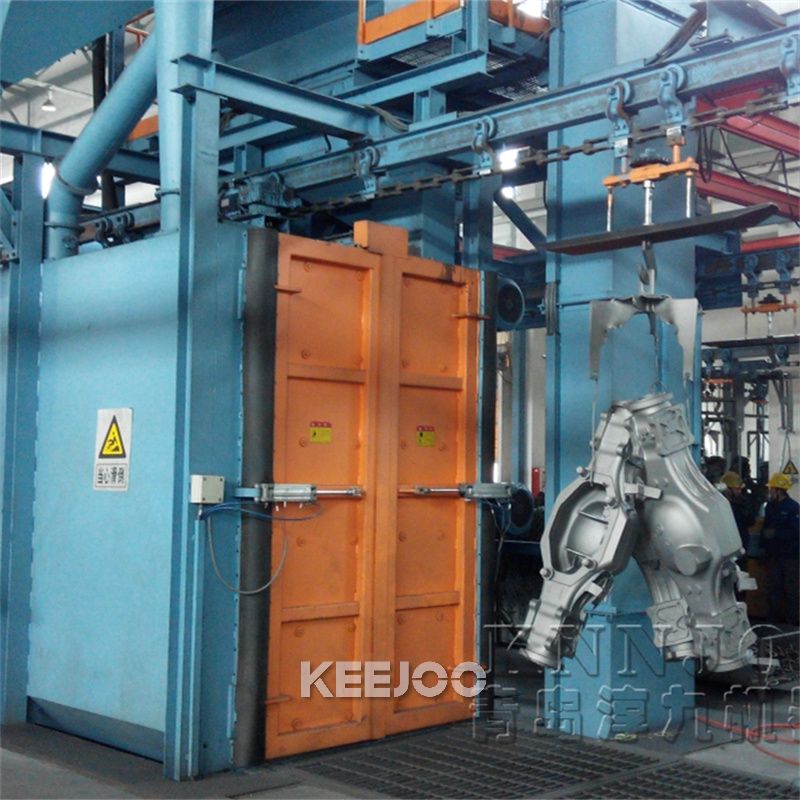

The durable Angle Steels Shot Blasting Machine with KEEJOO brand is an automated shot blasting equipment specifically designed for cleaning and pre-treating large quantities of Angle steel. It utilizes a suspended conveyor chain system to enable Angle steel to pass through the shot blasting cleaning chamber in a suspended manner, subject to the impact of high-speed shot flow, thereby efficiently completing surface treatment.
Technical data
Parameter HXL-2-15/1112-430 HXL-2-15/1315-430 HXL-3-22/1516-430 HXL-3-22/1521-430 HXL-4-22/1521-430 Turning diameterØ(mm) 1100 1300 1500 1500 1500 Hook height
(mm)1250 1500 1600 2100 2100 No. Of shot blaster 2 2 3 3 4 Power of single shot blater(KW) 15 (11) 15 (11) 22 (15) 22 (15) 22 (15) working principle
The Angle steel moves into the shot blasting area along with the lifting chain. The blast wheel then directs the high-speed shot onto the surface of the workpiece, removing the oxide scale and dirt through the impact force. The workpiece remains stationary in the loading and unloading section to ensure uniform shot blasting coverage.
Features
1. The Angle Steels Shot Blasting Machine features advanced design, reasonable structure, reliable operation and high production efficiency.
2. The A Angle steel catenary shot blasting shot blasting machine, with the help of PLC electrical control, controllable shot gate and shot conveying fault detection, realizes the automatic control of the entire machine, thus featuring high productivity, good reliability and advanced degree of automation.
3. The Angle steel catenary shot blasting chamber is made of section steel and steel plates welded together to form a box structure, which is of high strength and will not generate vibration. The hot zone guard plate of the shot blasting chamber adopts Mn13 guard plate, which has greatly improved performance in terms of wear resistance and shot impact resistance, and its service life can reach more than 17,000 hours
4. The dust removal system adopts the most advanced pulse reverse-blowing dust collector in the world at present, fully meeting the modern environmental protection dust removal requirements.
5. The separator adopts a full curtain separator, which has a good separation effect. The separation efficiency of shot, residue and dust reaches 99%.
