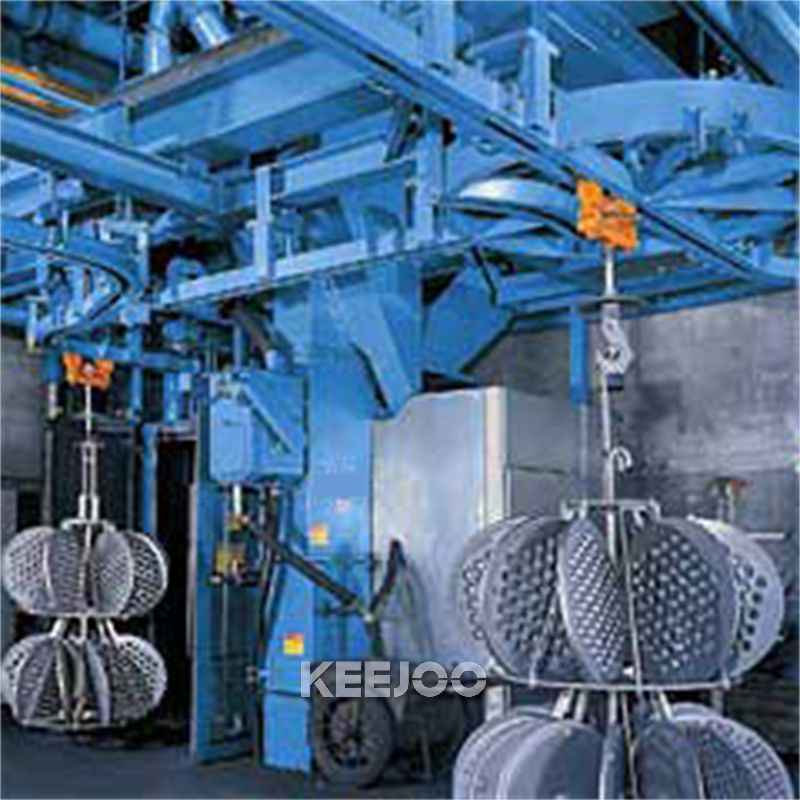

Welded Parts Catenary Shot Blasting Machine
- Product details
The high quality welded parts Catenary Shot Blasting Machine manufactured by Qingdao KEEJOO Group is a highly efficient continuous through-type cleaning equipment specially designed for processing large and heavy welded structural components. to achieve all-round and automated surface cleaning and strengthening of large and heavy welded parts.
Technical data
Parameter HXL-2-15/1112-430 HXL-2-15/1315-430 HXL-3-22/1516-430 HXL-3-22/1521-430 HXL-4-22/1521-430 Turning diameterØ(mm) 1100 1300 1500 1500 1500 Hook height
(mm)1250 1500 1600 2100 2100 No. Of shot blaster 2 2 3 3 4 Power of single shot blater(KW) 15 (11) 15 (11) 22 (15) 22 (15) 22 (15) Function

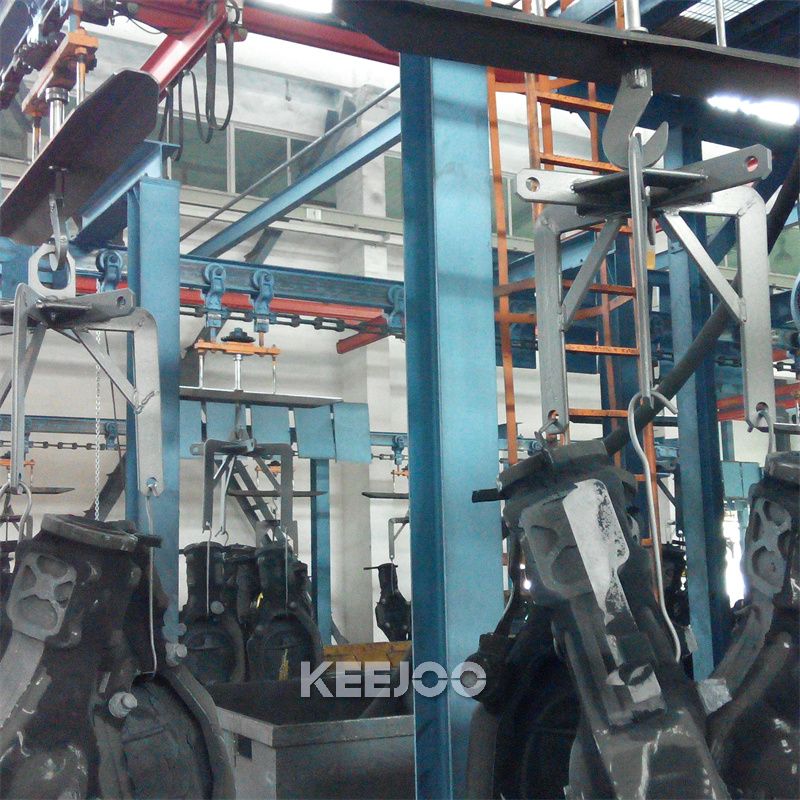

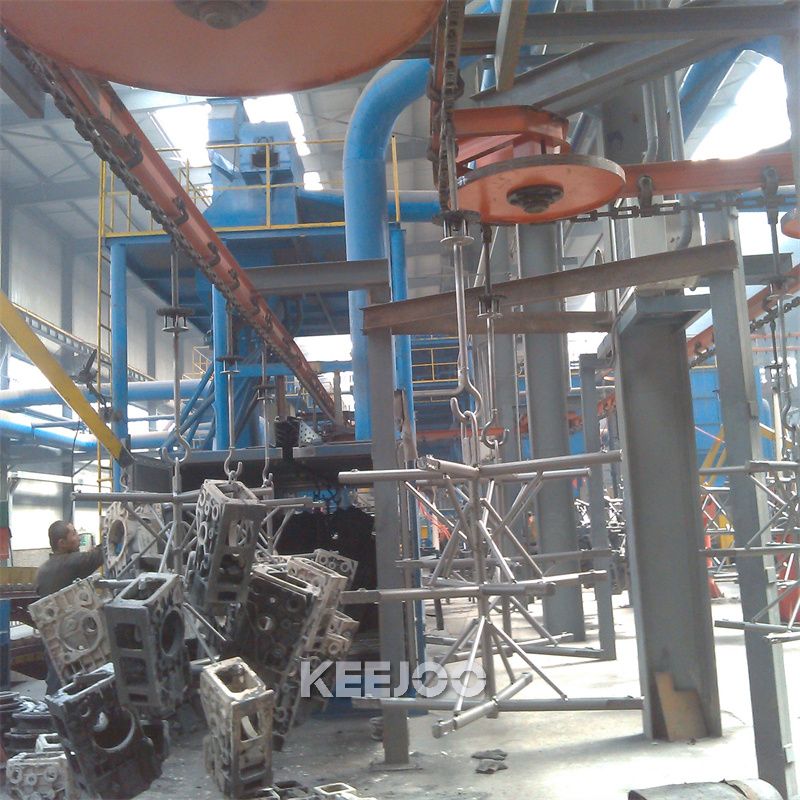

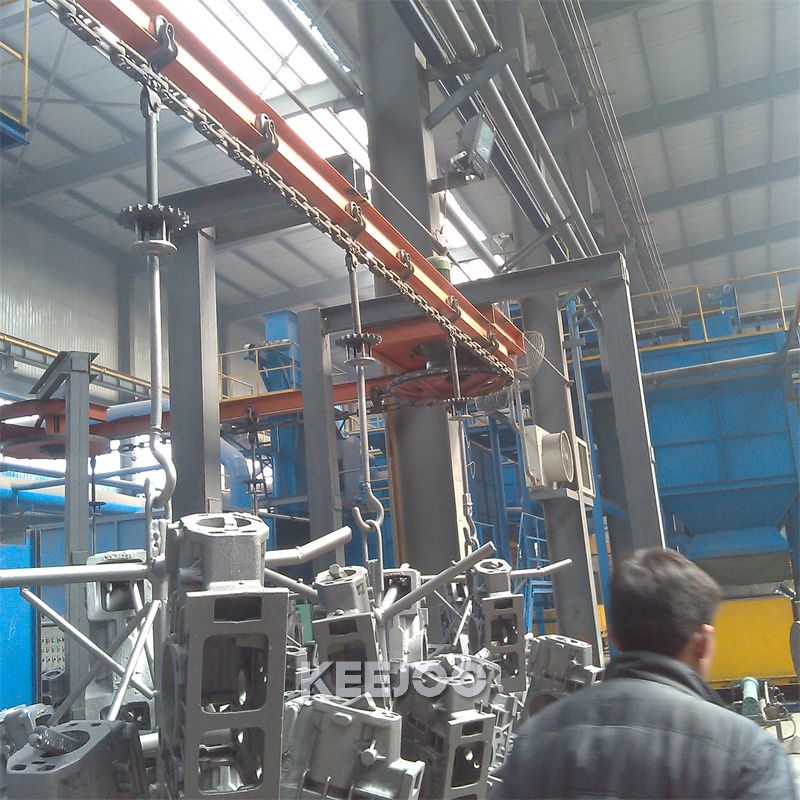

Continuous/step-by-step conveying: Workpieces are moved continuously or step by step through lifting chains, supporting multi-variety and medium and small batch production, and are suitable for batch processing of welded parts.
Shot blasting strengthening: A high-speed rotating shot blasting machine strikes the surface of the workpiece with abrasive materials (such as steel shot) at high speed, removing defects such as oxide scale and welding slag, and enhancing the surface roughness and corrosion resistance.
Automated control: The welded parts Catenary Shot Blasting Machine equipped with a PLC system, it can preset the shot blasting Angle, speed and time to ensure uniform processing of workpieces of different sizes.Features
The hanging method is flexible and can drive the workpiece to rotate automatically in the shot blasting chamber, achieving all-round and no-dead corner cleaning. It is particularly suitable for large and irregular-shaped welded parts.
Multiple high-power blast wheels are rationally arranged and can perform high-speed shot blasting on the surface of workpieces from different angles, effectively removing welding slag, oxide scale and rust layers.
The welded parts catenary shot blasting machine has a sturdy structure, strong load-bearing capacity, can handle heavy welded parts, and has strong adaptability.
It integrates automatic feeding, shot blasting cleaning, rotary unloading and shot dust separation, achieving a production line process with high operational efficiency and low labor costs.
Equipped with an efficient dust removal system, the dust emissions meet environmental protection requirements. The design of shot recycling reduces operating costs.Machine Compositon

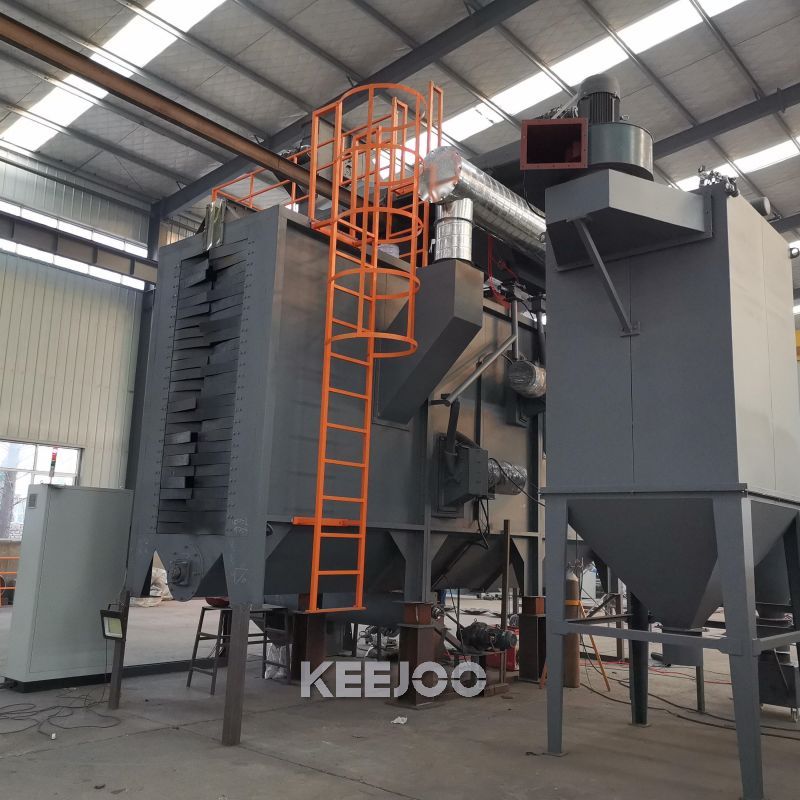

The complete set of welded parts catenary shot blasting machine is composed of a suspension chain conveying system, shot blasting cleaning system, shot circulation system, dust removal system, electrical control system, sealed chamber body and etc.
