Foundry Forging Shot Blasting Machine
- Product details

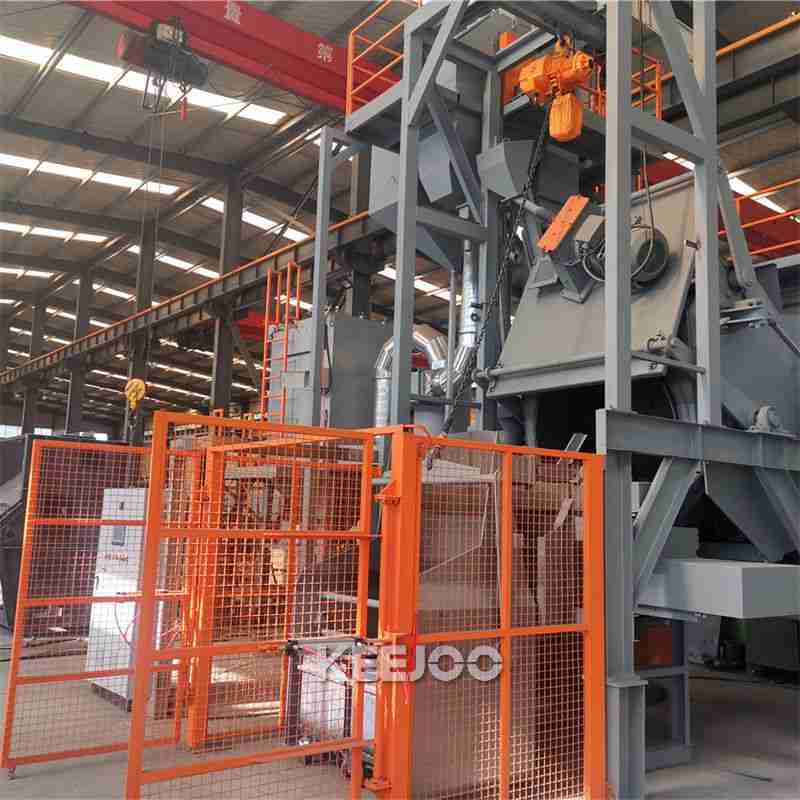

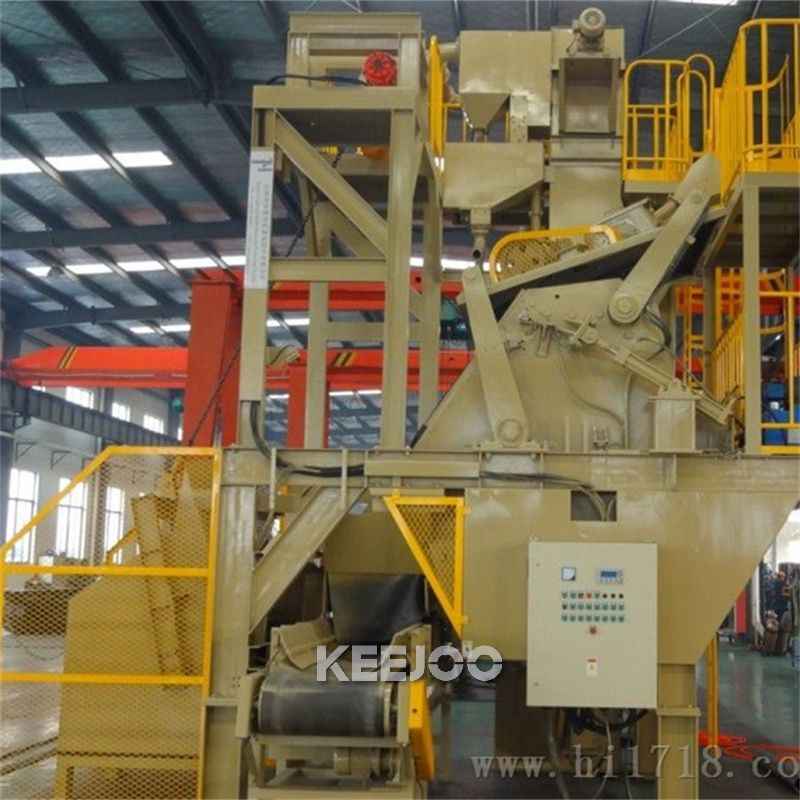

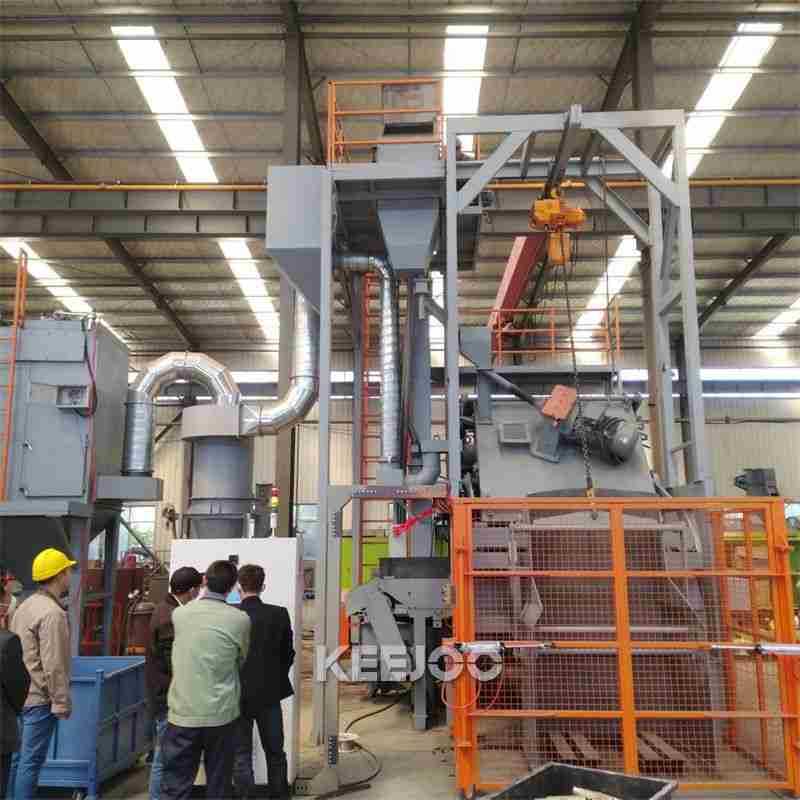

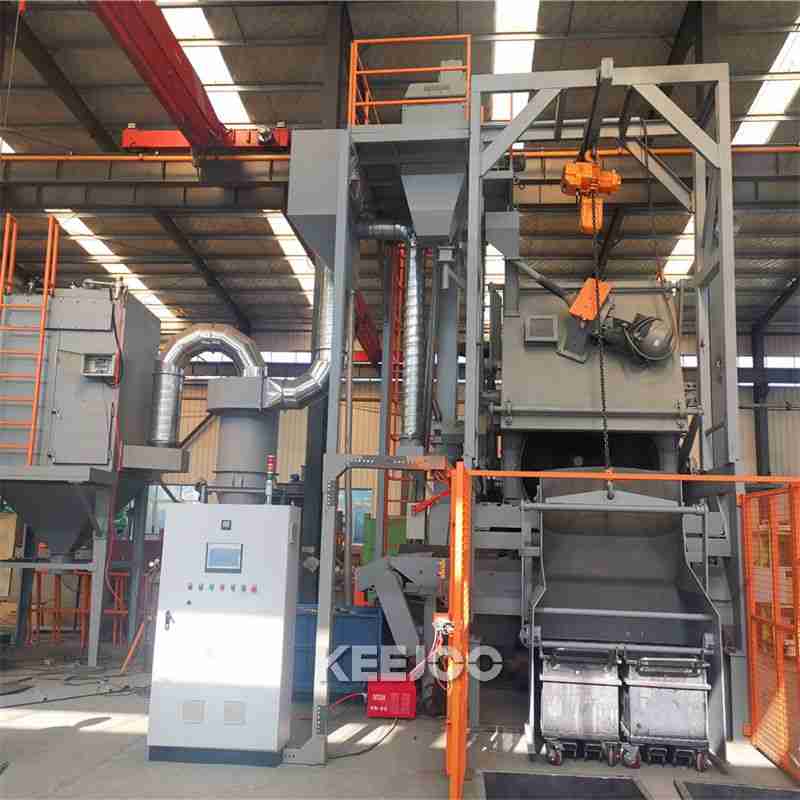

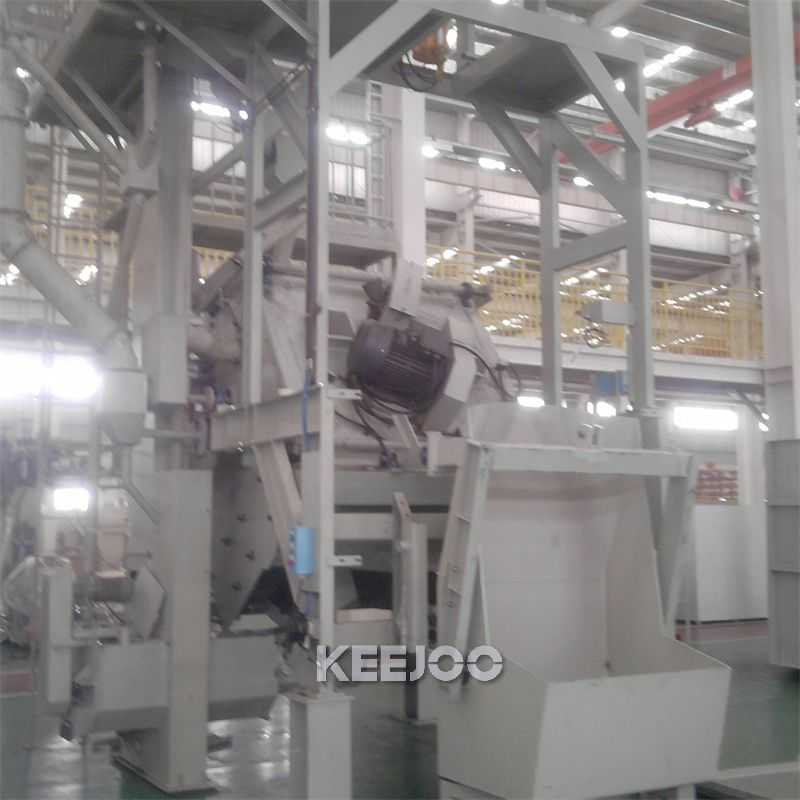

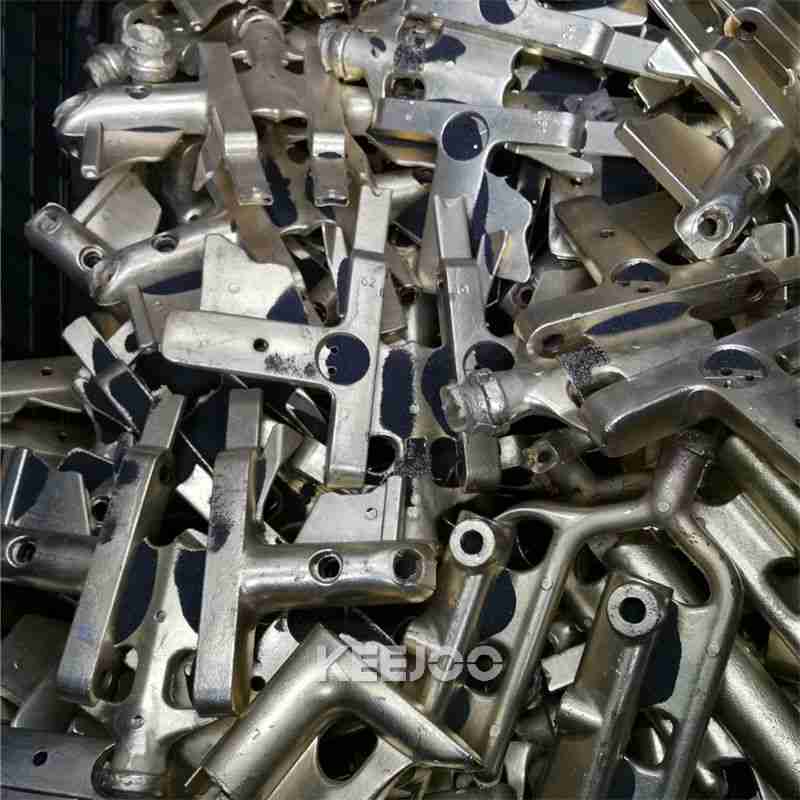

The foundry forging shot blasting machine manufactured by Qingdao KEEJOO Group from China is an efficient surface treatment process for medium and small-sized castings and forgings. The core is the combination of an inclined drum and a shot blasting machine, which enables uniform rolling of the workpiece and all-round projection of the shot, completing the processes of sand cleaning, rust removal, oxide scale removal and surface strengthening. It also has the advantages of automation and low damage.
Characteristic
360° thorough cleaning without blind spots: The unique inclined roller design enables the workpiece to be tossed in all directions during the rolling process, thoroughly removing surface oxide scale, sand mold residues and burrs.
Anti-collision protection system: Lined with high-wear-resistant rubber/manganese steel guard plates, combined with scientifically distributed reinforcing ribs, to minimize workpiece damage to the greatest extent.
Batch efficient processing: Single loading capacity reaches 200-1000kg (by model), suitable for continuous production requirements, with efficiency increased by more than 50%.
Intelligent dust collection integration: Equipped with a highly efficient cyclone dust removal system, the dust concentration in the working environment is less than 5mg/m³, meeting environmental protection requirements.
Advantages
1. Dynamic design of inclined rollers
The axis of the drum is inclined at an Angle of 15° to 25° to the horizontal. Under the combined action of gravity and centrifugal force, the workpiece underturns in a spiral manner, avoiding dead corners for accumulation.
The rotational speed is infinitely adjustable (3-12 RPM), meeting the cleaning intensity requirements of workpieces made of different materials.
2. Multi-angle projectile system
2 to 4 high-efficiency direct-coupled shot blasters are adopted and arranged at key positions along the axial direction of the drum, with a shot coverage rate of over 98%.
High-chromium alloy blades are selected, with a service life of ≥1500 hours, and the shot flow rate can be independently regulated.
3. Intelligent control system
PLC touch screen control, preset various process programs for castings, forgings, heat-treated parts, etc.
Real-time monitoring of shot blasting intensity, dust removal negative pressure, and vibrating screen operating conditions, with automatic alarm in case of abnormality.
4. Environmentally friendly and low-consumption design
Qingdao KEEJOO Group supplied high quality foundry forging shot blasting machine shot circulation system is equipped with three-stage separators, and the recovery rate of pure shot is over 99%.
The filtration accuracy of the pulse reverse-blowing dust collector reaches 0.3μm, and the emissions meet the standards.
Technical data
Model Capacity/Drum Diameter Length (Drum) CND-10 50-200 KG 700mm 800mm CND-I 100-600KG 1200mm 1300mm CND-II 200-1200KG 1500mm 1600mm Selection considerations
Workpiece size and weight: It is necessary to match the drum volume and the maximum single-piece load-bearing capacity when you choose foundry forging tilt drum shot blasting machine.
Processing capacity: Select the processing capacity per hour based on the production cycle (e.g., 600-1500kg/h).
Shot blasting strength: Select the steel shot diameter and shot blasting machine power based on the material hardness and cleaning requirements.
why choose KEEJOO shot blasting machine
Qingdao KEEJOO brand shot blasting machines offer reliable,high-performance surface treatment solutions,featuring ISO 9001 and CE certifications to ensure quality.With over 20 years of experience,
Qingdao KEEJOO Group provides customizable machinery, expert engineering support, and comprehensive after-sales service, including overseas technical assistance.
