Hardware Tools Shot Blasting Machine
- Product details

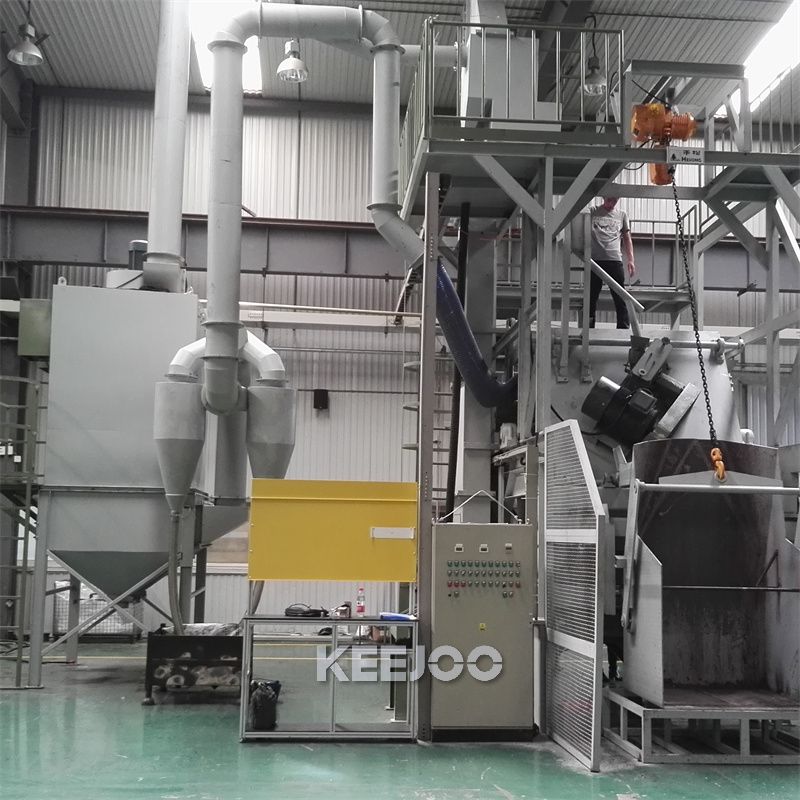

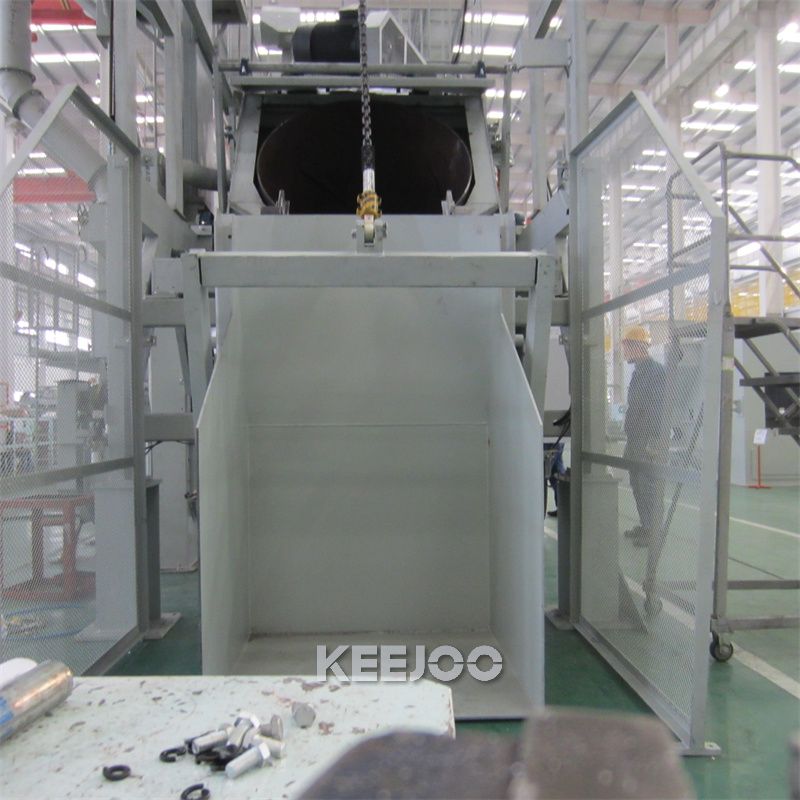

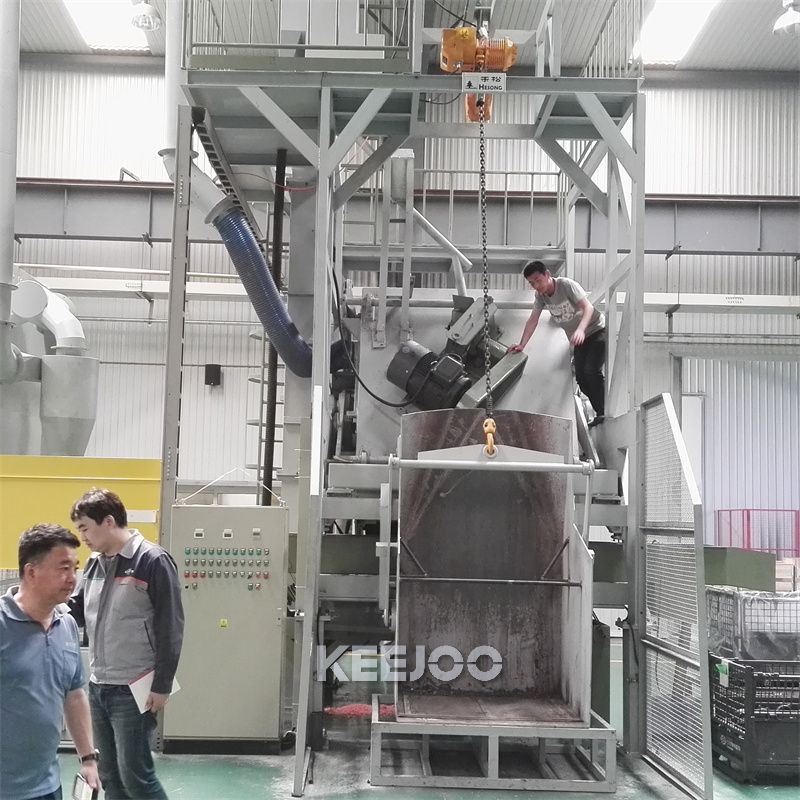

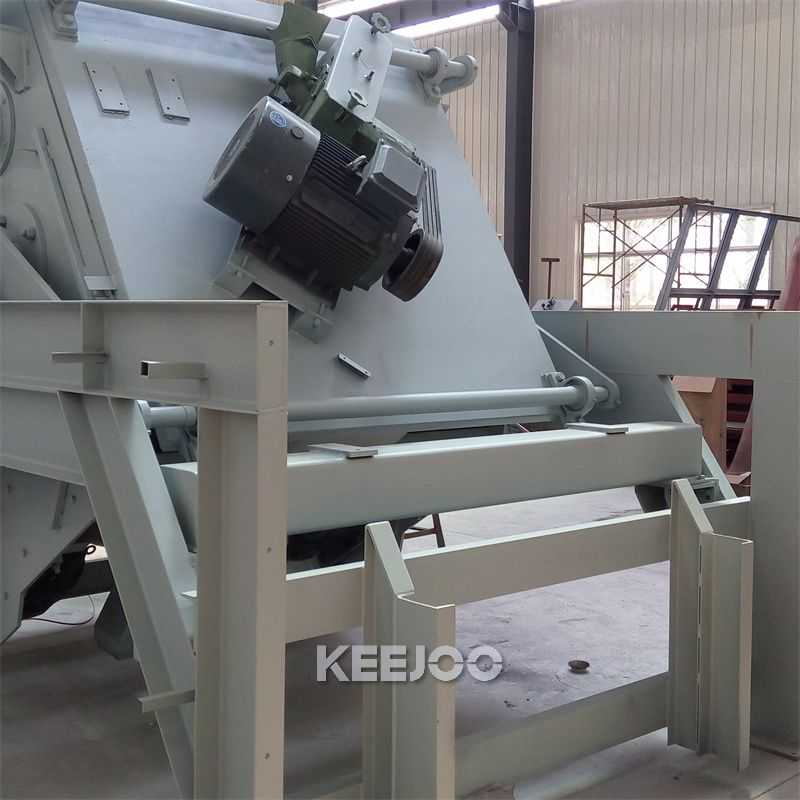

The high quality Hardware Tools Shot Blasting Machine with KEEJOO brand is a type of equipment that drives the drum to tilt through mechanical devices, achieving automated loading and unloading. During the rotation of the drum, the tools fully roll and are impacted by the high-speed shot flow from the shot blasting machine to complete various processes such as cleaning, deburring, and surface strengthening (shot blasting).
Function
Efficient cleaning: The shaking design of the tilt drum ensures full contact between the workpiece and the steel shot, evenly removing surface dirt. It is especially suitable for the fine processing of thin-walled and small hardware tools.
Strengthening effect: The plastic deformation generated during shot blasting can enhance the surface hardness and fatigue strength of the workpiece, thereby prolonging its service life.
Scope of application: Mainly used for surface pretreatment of hardware tools, such as bicycle parts, motorcycle accessories, bearings, etc. After treatment, it can provide a good base surface for painting or electroplatingTechnical data
Model Capacity/Drum Diameter Length (Drum) CND-10 50-200 KG 700mm 800mm CND-I 100-600KG 1200mm 1300mm CND-II 200-1200KG 1500mm 1600mm Why is this kind of equipment so suitable for hardware tools?

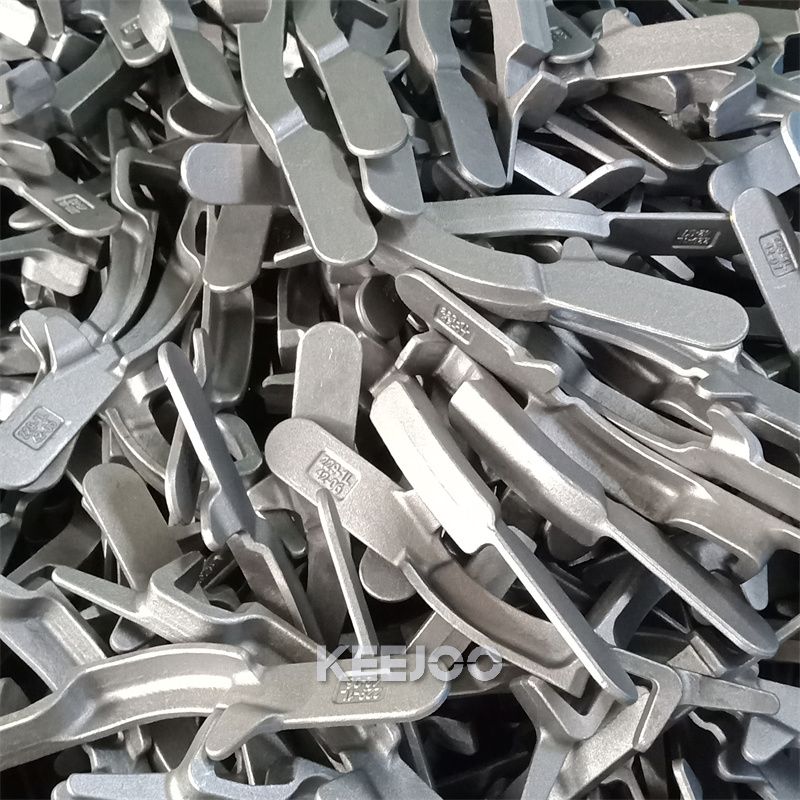

Hardware tools (such as wrenches and pliers) usually have the following characteristics that are highly compatible with the features of hardware tools tilt drum shot blasting machine:
Moderate size and large batch: The individual pieces are not large, but they usually need to be processed in large quantities. The drum machine has a large capacity and is very suitable.
Complex structure: Many tools have joints, notches, and holes (such as the opening of a wrench or the shaft of a pliers). The rotation and tumbling of the drum can evenly clean the interiors and surfaces of these complex structures.
To remove oxide scale and burrs: The surface of tools after forging or casting has oxide scale and stamping burrs. Shot blasting is the most efficient method for removal.
Surface strengthening is required: For tools, shot blasting not only cleans but also forms a surface compressive stress layer, significantly enhancing the fatigue strength and durability of the tools.
There may be oil stains: Many hardware tools have cutting fluid or anti-rust oil on their surfaces after machining. Shot blasting treatment can effectively remove these oil stains and impurities, providing a clean substrate for subsequent electroplating, spraying and other processes.Advantages over other shot blasting machines
VS hanger type shot blasting machine: More suitable for handling small batches of items that are not afraid of minor bumps. The degree of automation is higher, no individual hanging parts are needed, and the efficiency is greatly improved.
VS tumblast shot blasting machine: The working principle is similar, but the Hardware Tools Shot Blasting Machine usually has better sealing performance, smoother loading and unloading of materials, and is more suitable for processing metal parts with certain weight that are not easy to coil (such as hammers), and the wear resistance of the drum is usually better than that of the crawler.
VS through-type shot blasting machine: It is suitable for processing larger batches of small parts, and the cleaning effect is more uniform (because it is constantly rolling), while the through-type is more suitable for plate or single-direction cleaning.
