Bathroom Workpieces Shot Blasting Machine
- Product details

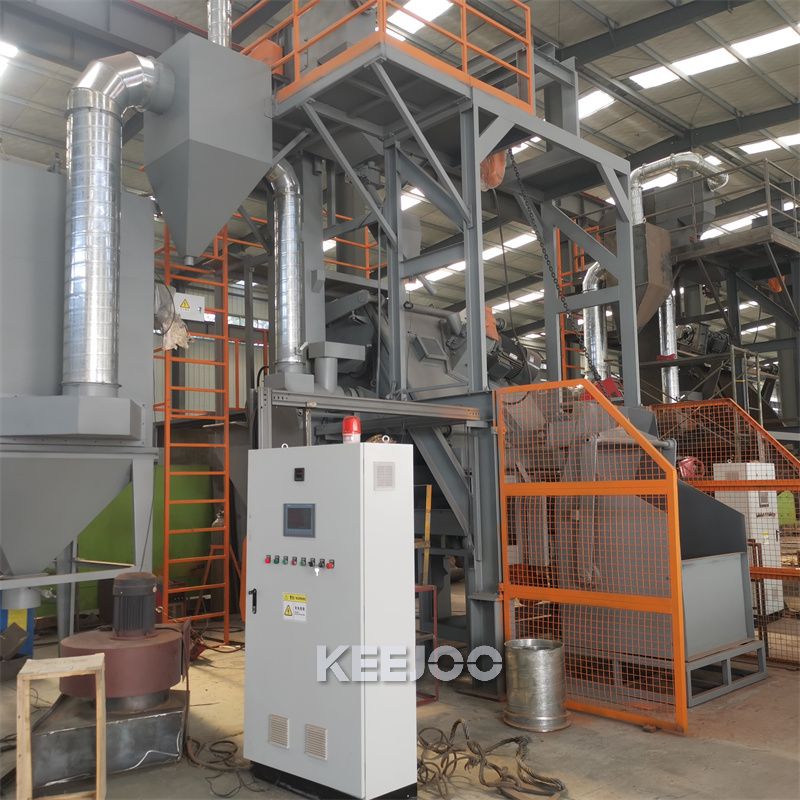

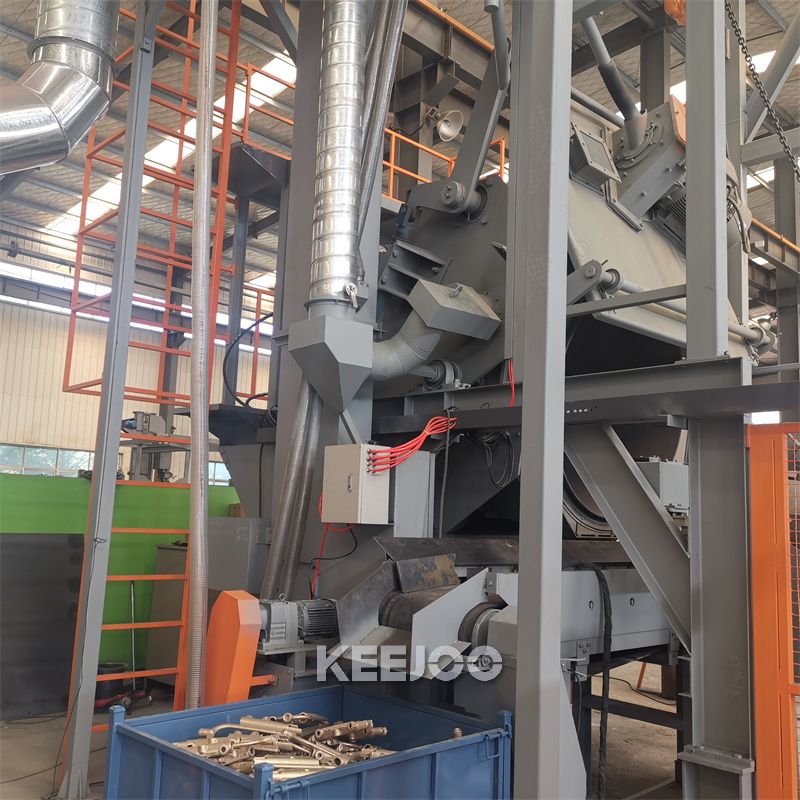

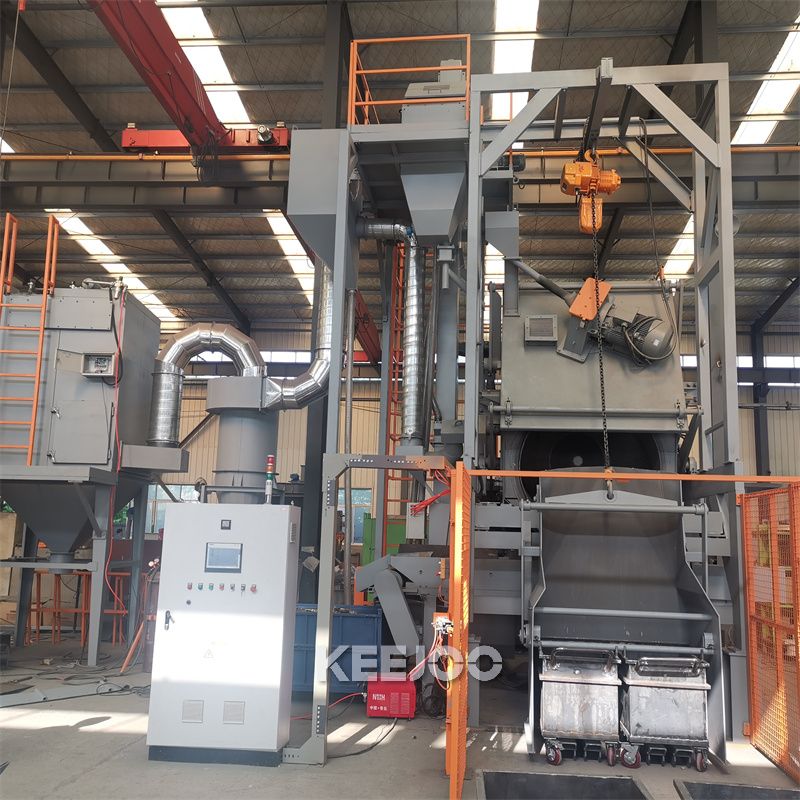

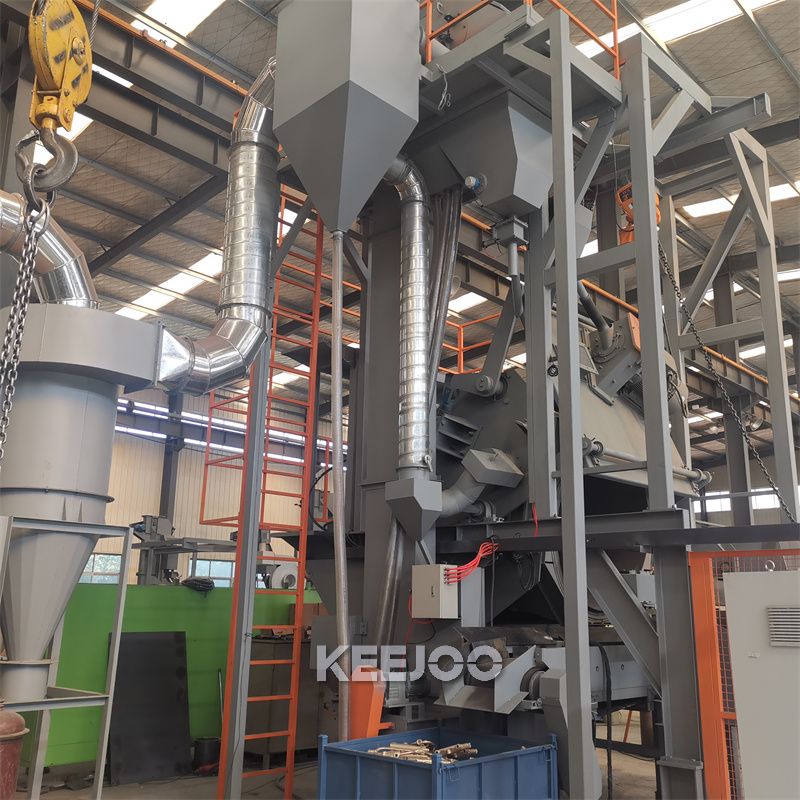

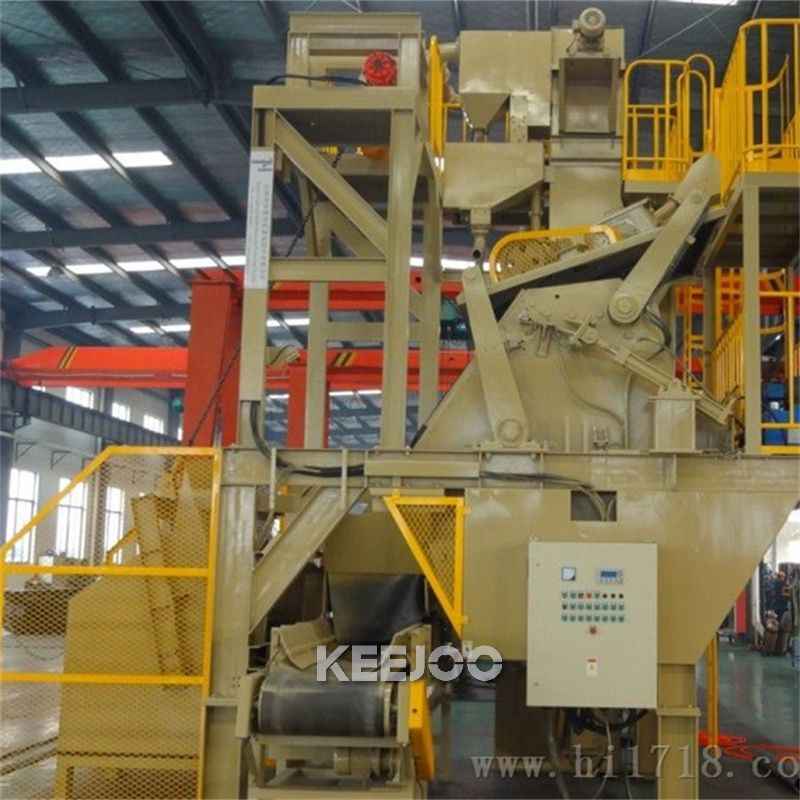

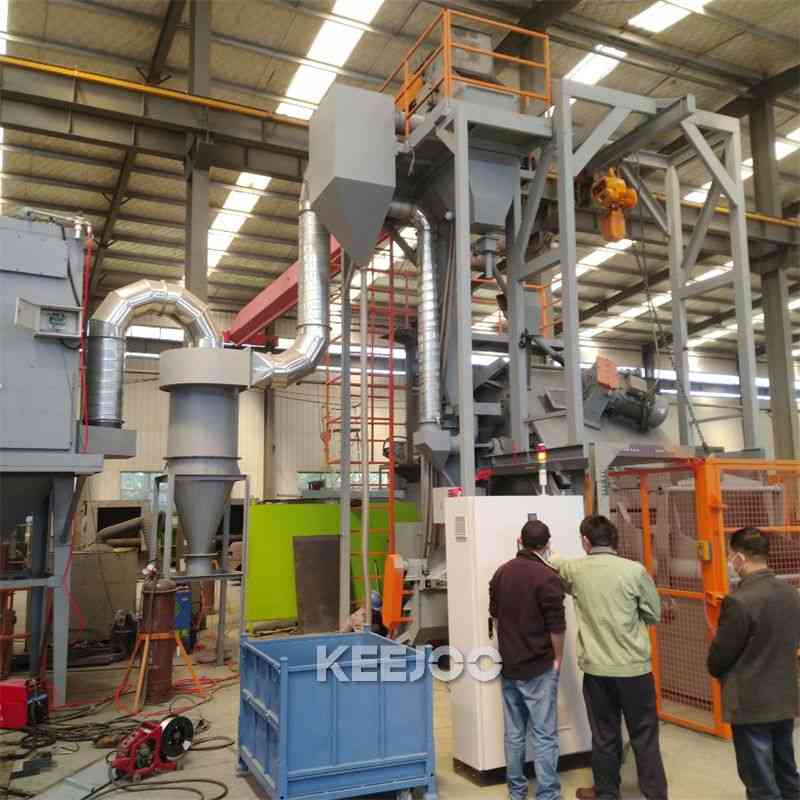

The durable Bathroom Workpieces Shot Blasting Machine with KEEJOO brand is an environmentally friendly surface treatment equipment that realizes automated batch loading and unloading through an inclined drum. During the rotation of the drum, the workpieces are fully rolled and subjected to the impact of high-speed shot flow to achieve the purpose of cleaning and roughening.
Technical data
Model Capacity/Drum Diameter Length (Drum) CND-10 50-200 KG 700mm 800mm CND-I 100-600KG 1200mm 1300mm CND-II 200-1200KG 1500mm 1600mm Work process (taking bathroom faucets as an example)
Loading: Load the machined copper faucet blanks into the bathroom workpiece tilt drum shot blasting machine.
Cleaning: The drum closes and rotates. The stainless steel shot is ejected at high speed, striking the inner and outer surfaces of the faucet to remove the oxide scale, trace oil stains and burrs.
Unloading: The processed faucet is poured out and separated from the shot through a vibrating screen.
Effect: The surface of the faucet presents a uniform and consistent matte silver-white metallic luster, with enhanced surface activity and the formation of a microscopic anchor pattern effect, which greatly strengthens the adhesion with the electroplating layer.Selection considerations
When choosing Bathroom Workpieces Shot Blasting Machine, The following factors need to be noted:
Workpiece size and single loading capacity: The capacity of the drum is determined based on the product size and batch (usually in kilograms).
Cleaning requirements: Based on the type of impurities to be removed and the desired surface roughness, select the appropriate shot blasting machine power, shot material (such as cast steel shot, stainless steel shot), and particle size.
Automation requirements: Whether it is necessary to connect with the feeding robots, conveyor lines, etc. at the front and back ends to achieve a fully automated production line.
Environmental protection requirements: Select the configuration grade of the dust collector in accordance with local environmental protection standards.
