Plumbing Fittings Shot Blasting Machine
- Product details

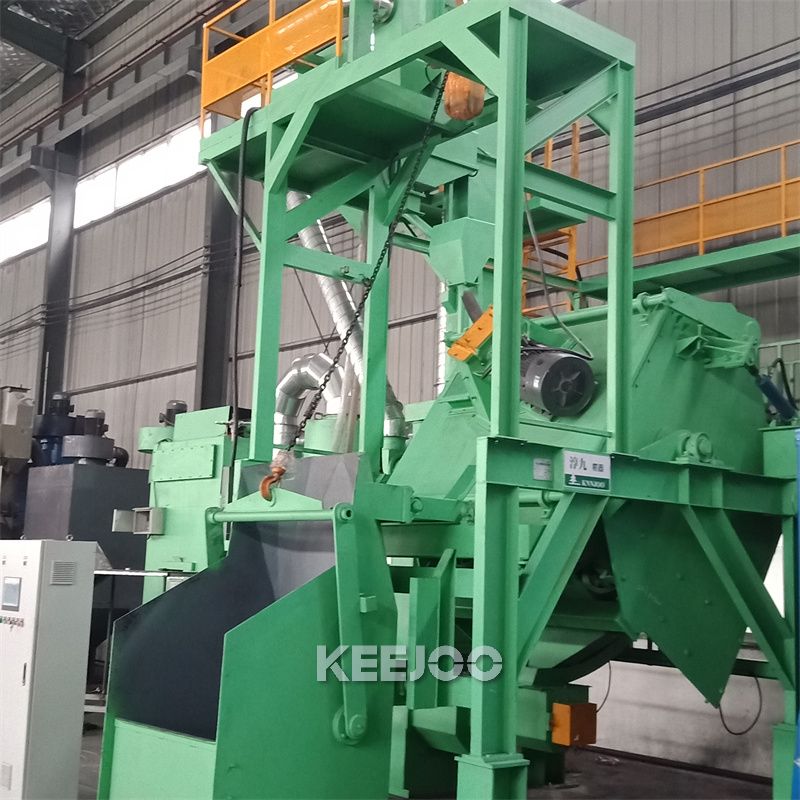

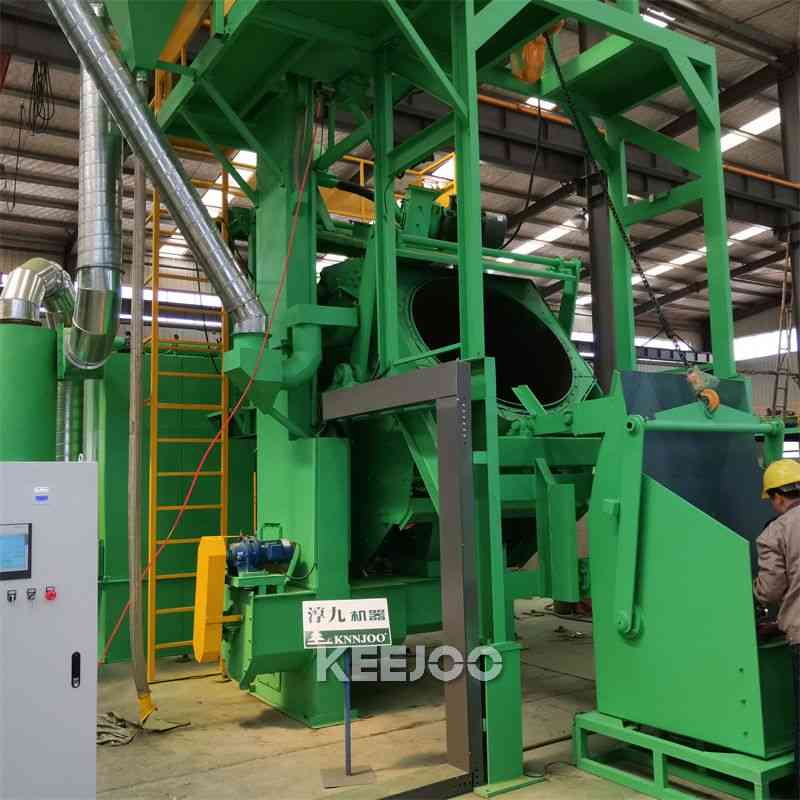

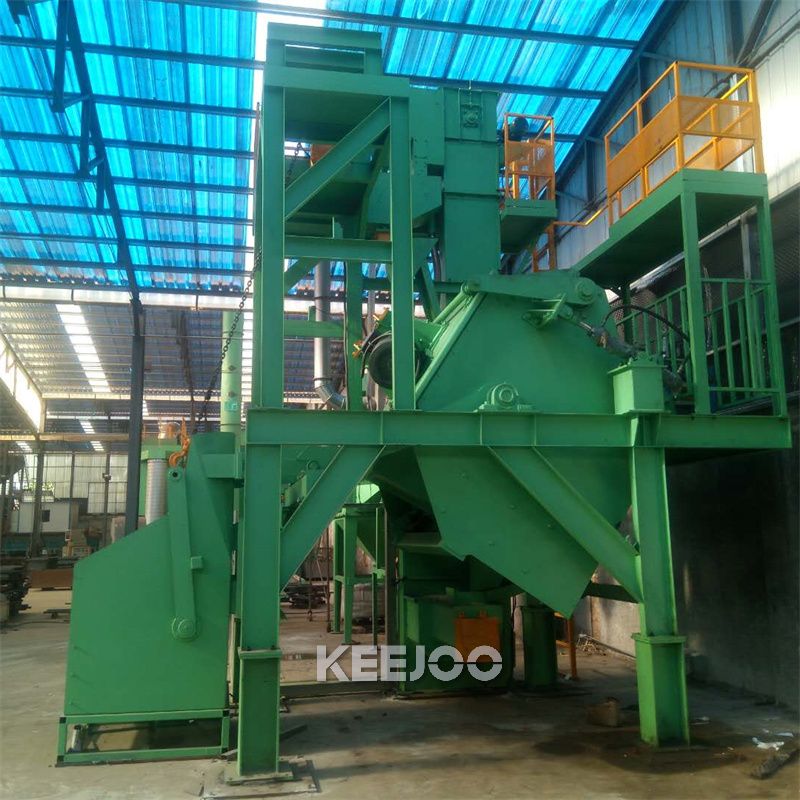

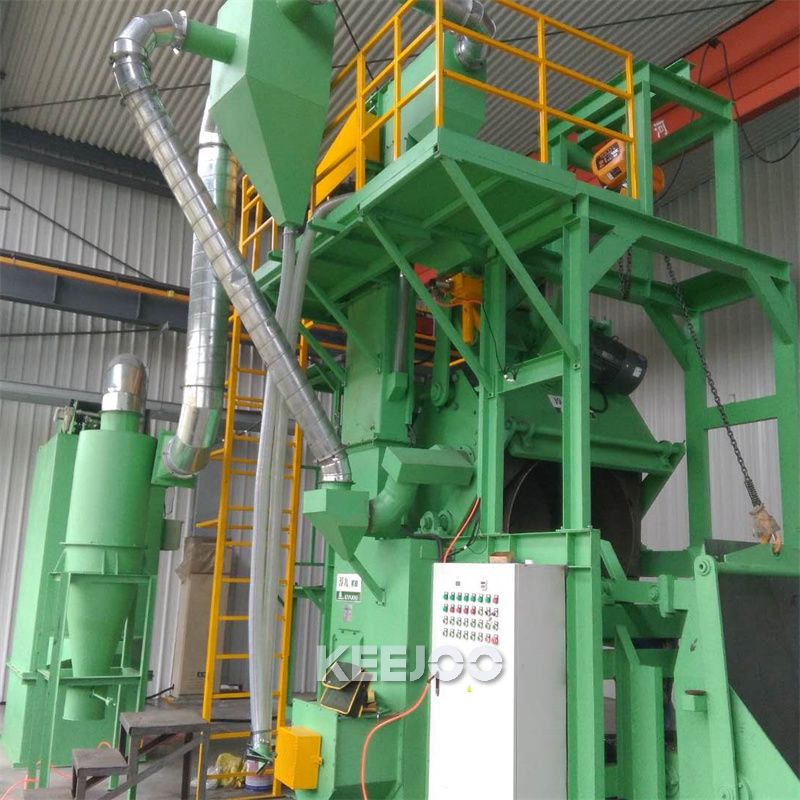

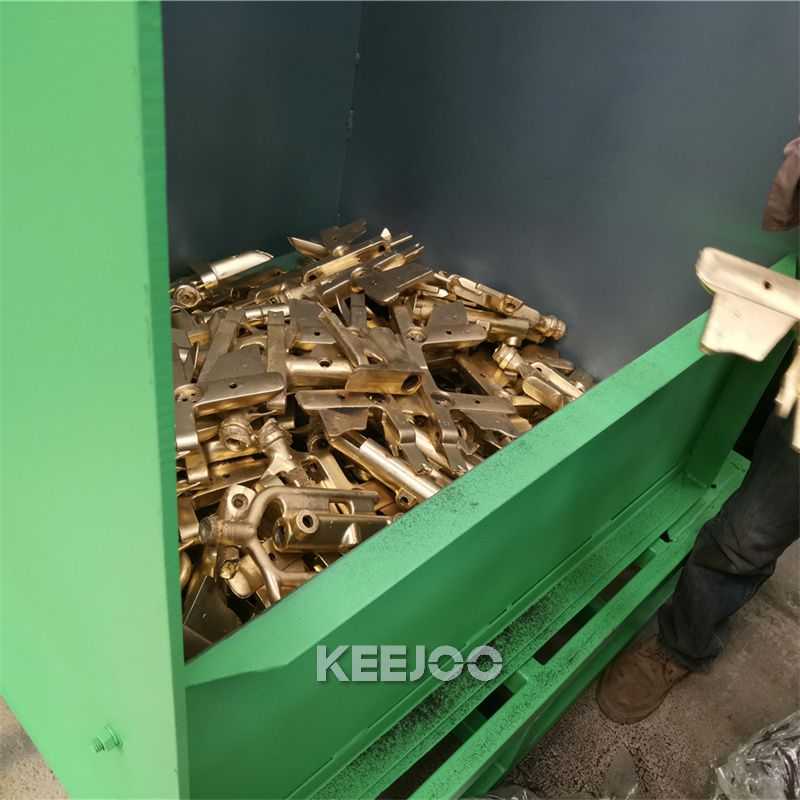

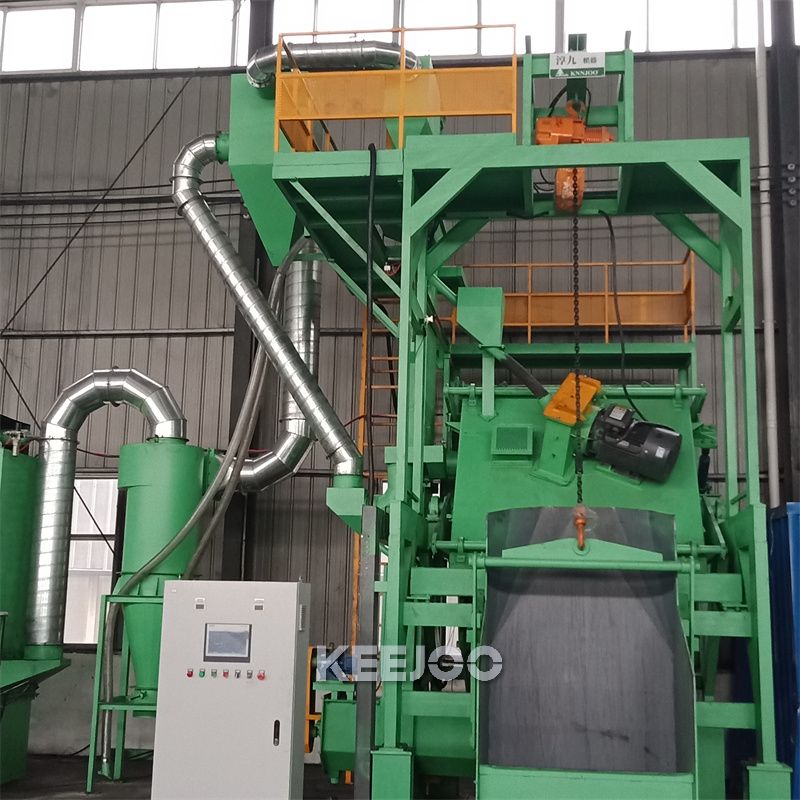

The high quality Plumbing Fittings Shot Blasting Machine with KEEJOO brand is a surface treatment equipment that removes impurities such as oxide scale, rust layer, adhering sand and burrs on the surface of the workpiece by loading the workpiece into an inclined drum. During the rotation of the drum, the workpiece keeps rolling and is simultaneously impacted by the high-speed shot thrown from the blast wheel, thereby achieving good cleanliness and roughness.
working principle
The Plumbing Fittings Shot Blasting Machine accelerates the shot to a high speed through the high-speed rotating impeller and throws it onto the continuously rolling surface of the workpiece in the inclined drum. Through the impact force of the shot, it peels off impurities such as oxide scale and burrs, and at the same time enhances the surface hardness and fatigue strength of the workpiece.
Technical data
Model Capacity/Drum Diameter Length (Drum) CND-10 50-200 KG 700mm 800mm CND-I 100-600KG 1200mm 1300mm CND-II 200-1200KG 1500mm 1600mm Features
Inclined roller design: The roller is installed at an inclination of 15°-30°. The workpiece rolls along with the roller to ensure uniform contact with the shot on all surfaces.
Shot blasting system: The high-speed impeller projectiles the shot in a directional manner, impacting different parts of the workpiece, ensuring no blind spots in the cleaning effect.
Separation and recovery: The pellets are separated by vibrating screens or air separation and then recycled, while impurities are discharged through waste bins.
Dust removal system: Equipped with bag filters or cyclone filters to reduce dust pollution.Application advantages
Efficient cleaning: The Plumbing Fittings Shot Blasting Machine inclined design enables the workpiece to roll automatically without manual intervention, making it suitable for batch processing of small and medium-sized plumbing parts.
Uniform treatment: The rolling movement ensures consistent surface cleaning, avoiding problems such as jamming and wear in traditional equipment.
Energy conservation and environmental protection: The pellets are recycled, meeting environmental protection standards, and the operating noise is lower than that of traditional equipment.
