Ship Plate Pretreatment Line
- Product details

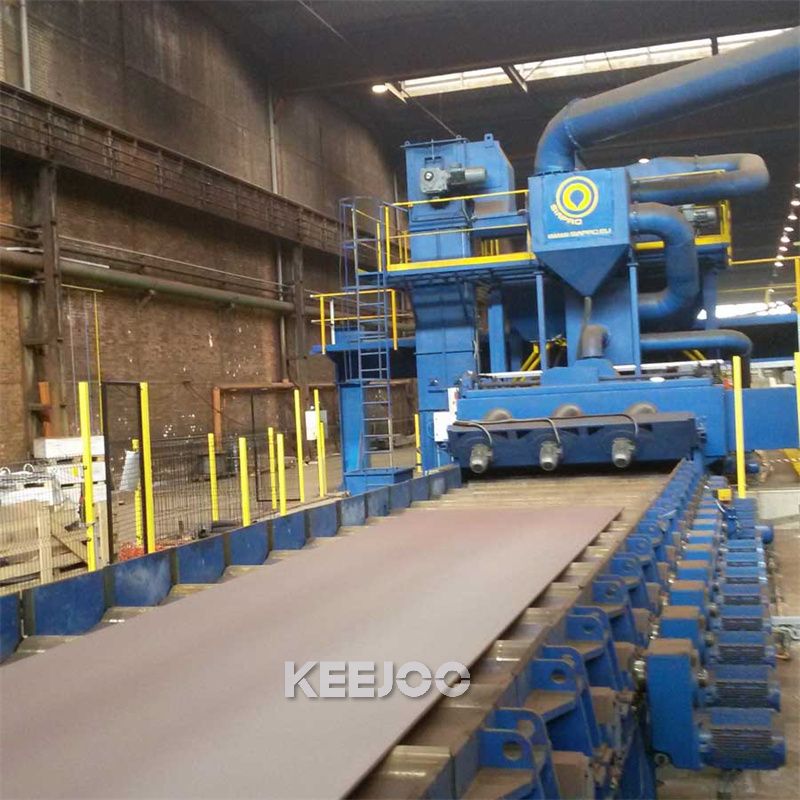

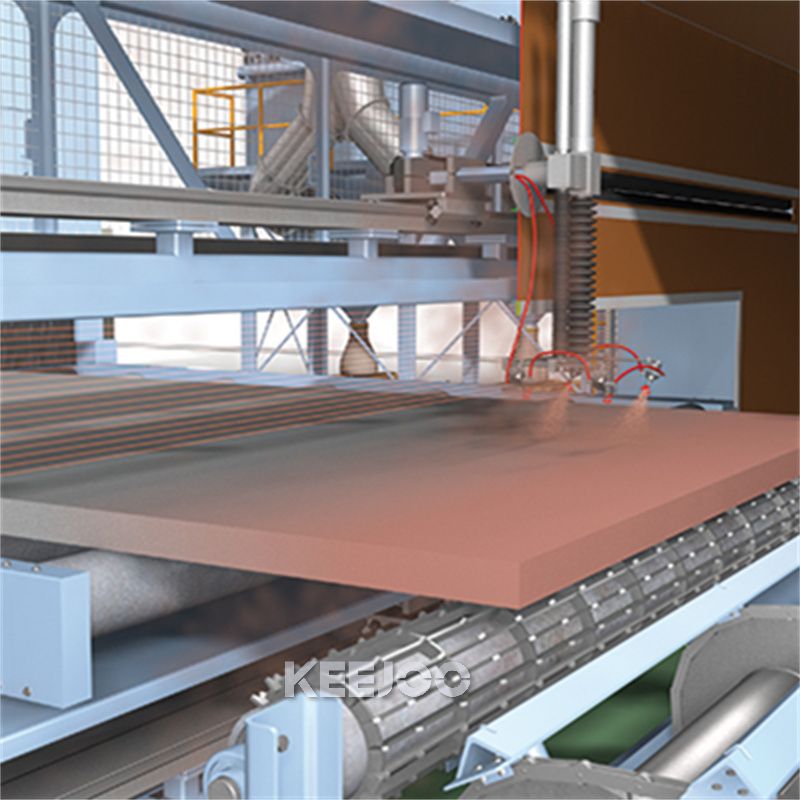

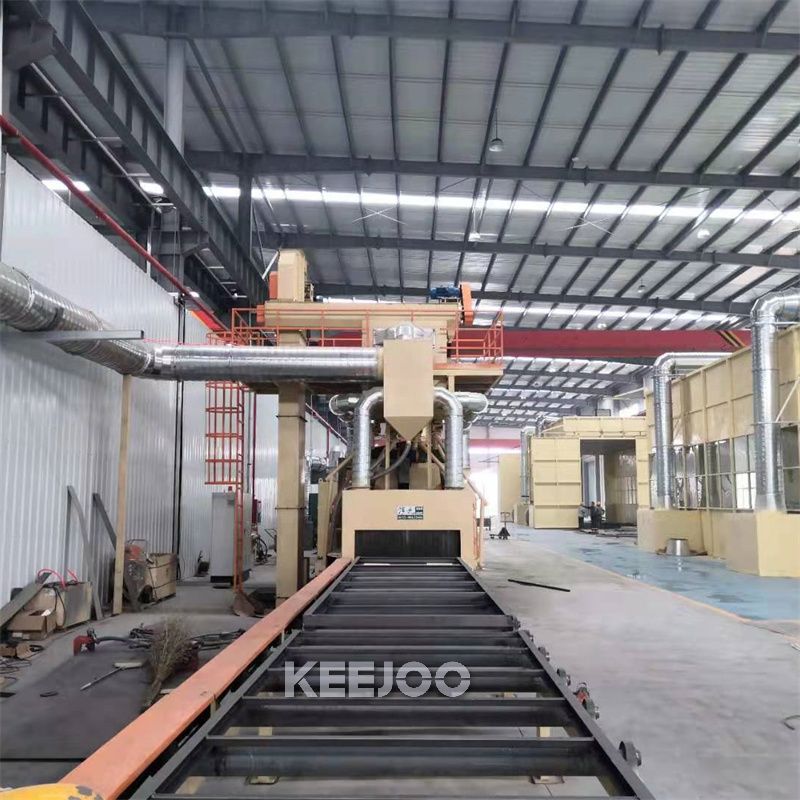

KEEJOO shot blasting machine for the ship plate pretreatment line is mainly used for surface pretreatment of ship plates. Its core function is to clean oxide scale, welding slag and dirt, improve surface roughness, and enhance corrosion resistance and adhesion. This equipment has a high efficiency in shot blasting treatment and can be carried out under closed conditions. It is equipped with a high-efficiency dust collection system to achieve zero pollution emissions. If equipped with an automatic spray painting device, a continuous and unmanned production line for rust removal and primer spraying can be formed, significantly improving the cleaning efficiency and anti-corrosion performance.
Characteristics and advantages
1. Efficient cleaning and strengthening
The shot blasting machine forms a dense impact flow of steel shot through a high-speed rotating impeller, quickly removing the oxide scale, rust layer and welding slag on the surface of the ship plate to improve the roughness and corrosion resistance
2. Automaticity and flexibility
This equipment can continuously convey ship slabs. The production line is suitable for batch processing, with high efficiency and strong flexibility
3. Environmental protection and energy conservation
Steel shot can be recycled, and dust is collected through a dust removal system to reduce waste and dust pollution. Comply with environmental protection regulations in the shipbuilding industry
4. The anti-corrosion ability has been effectively enhanced

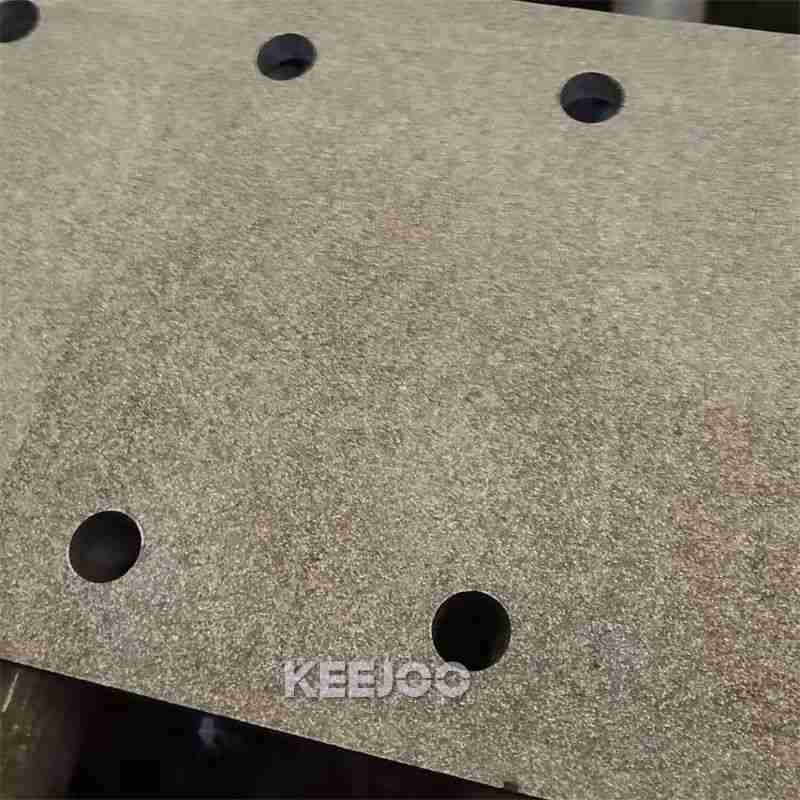

After treatment, the surface roughness of the ship plate is uniform, and the adhesion of the coating is enhanced, which can extend the service life of the ship plate
Technical parameter
Processing width 800-40 00m Processing thickess 3-60mm Shot blasting amount Max 8×350kg/min Dust removal efficiency 99% Power 168kW（KJQ585-2000） Structural features
Cleaning chamber: Ship plate pretreatment line adopts wear-resistant protective plates and a sealed design to prevent shot splashing.

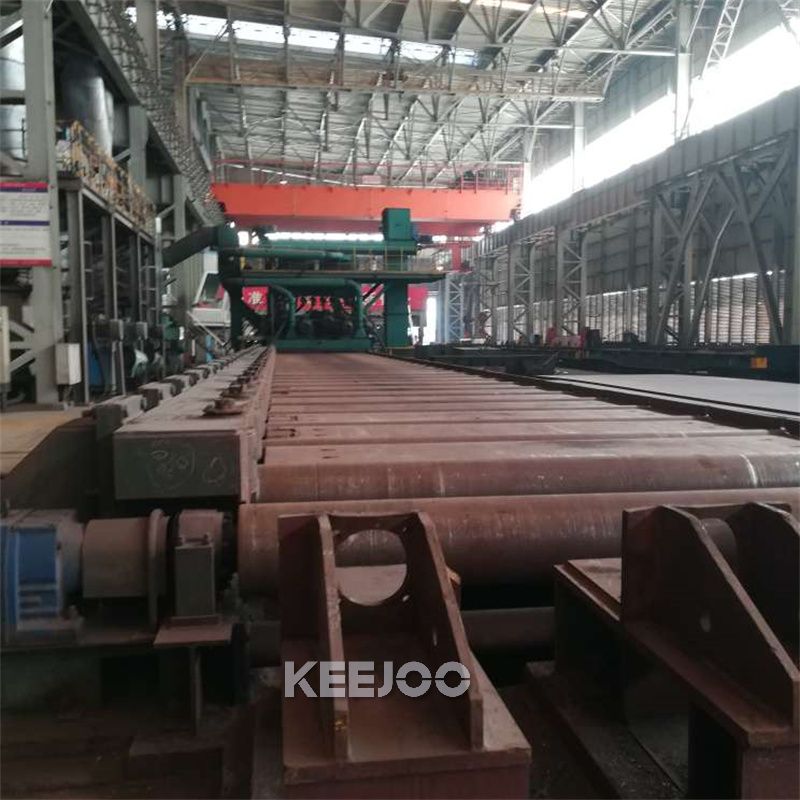

Conveying system: Roller conveyor continuous conveying, supporting uninterrupted operation and avoiding workpiece collision damage.
Shot circulation: Full curtain separator, shot residue separation efficiency up to 99%, high shot circulation utilization rateIn order to give you the suitable machine, pls provide below message for us :
1. What is your workpiece and the material and the shape ?
2. The Max. Length/Width/Height of the workpiece and the MAX./MIN.weight of your workpiece ?
3. The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
4. The power supply you need( Our China :380V, 3PH, 50HZ)
5. Better to send us the workpiece photo or drawing.
