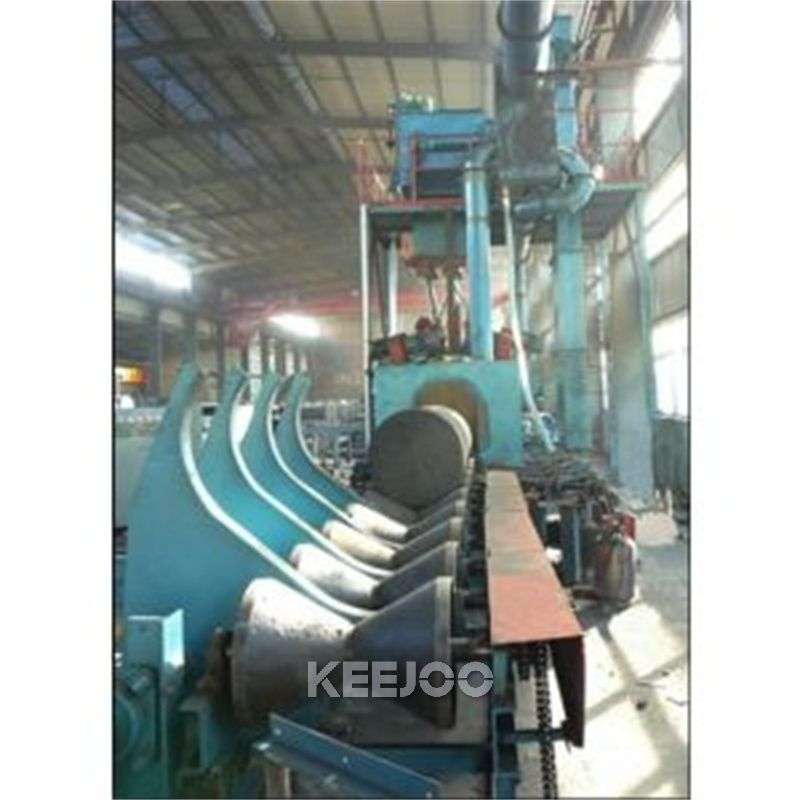

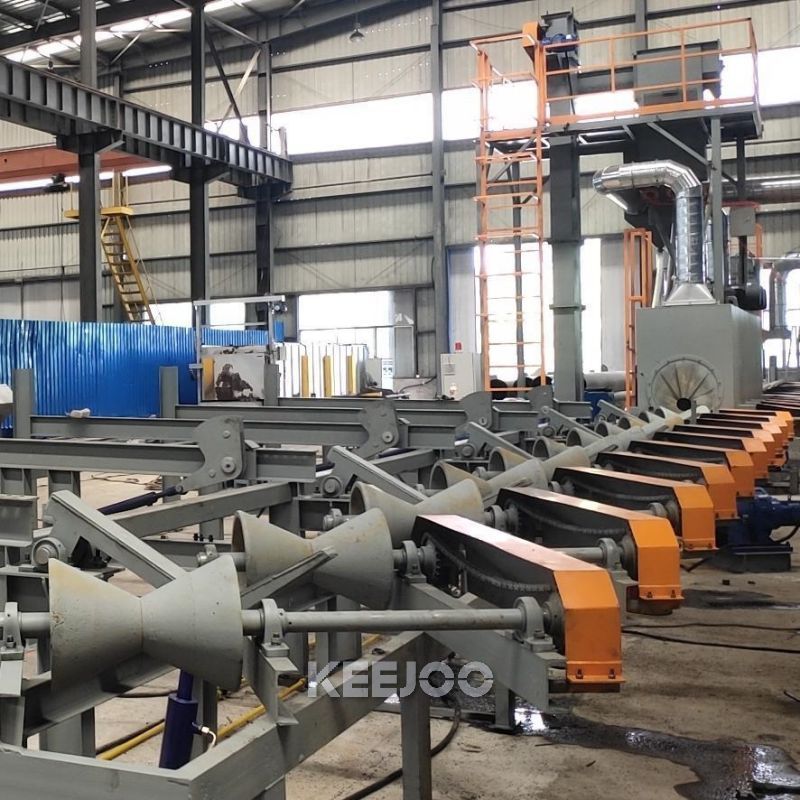

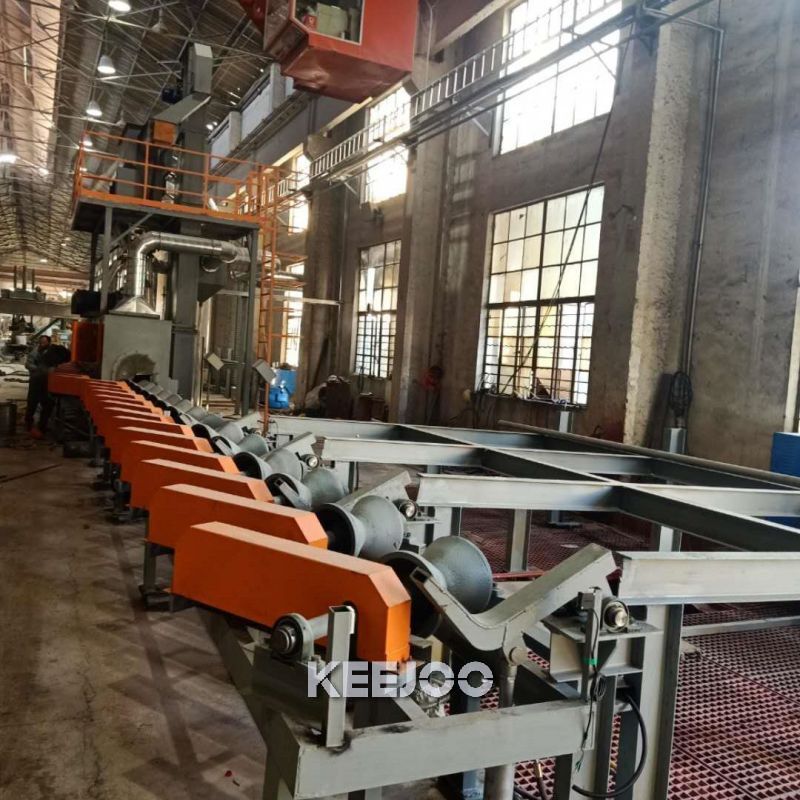

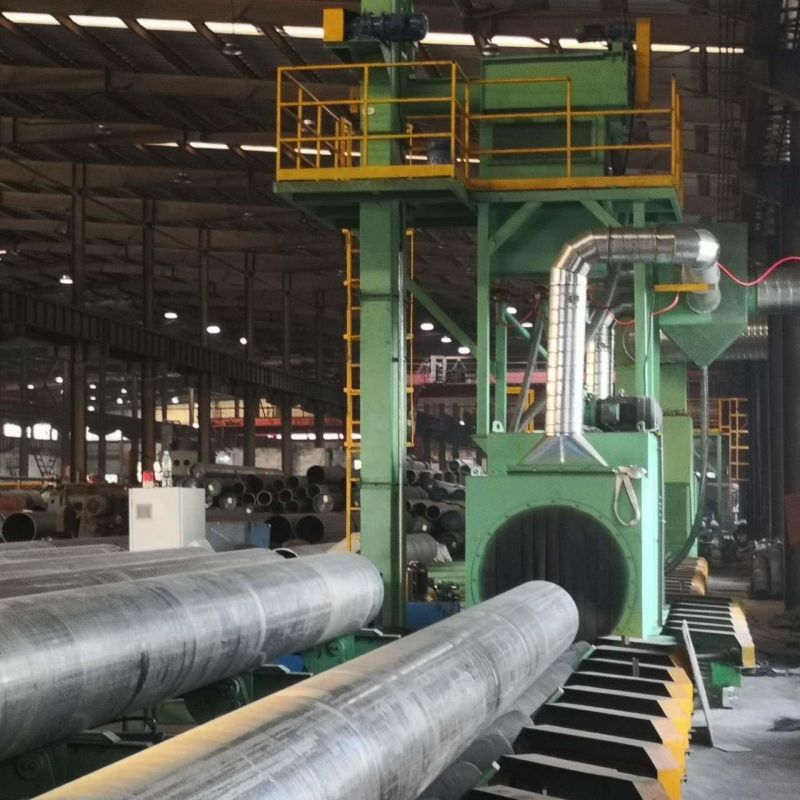

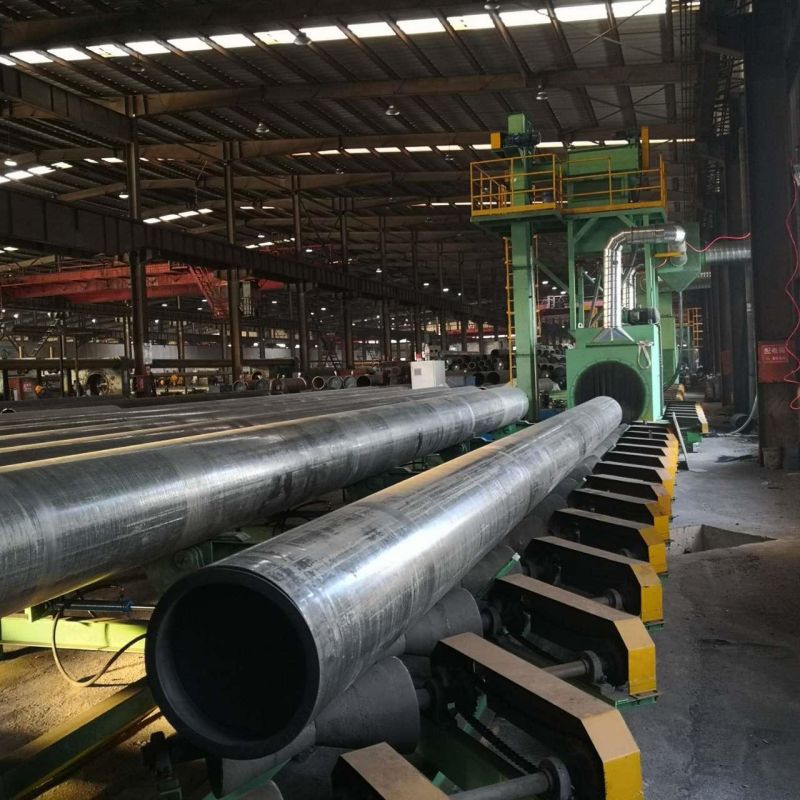

Steel Pipe Shot Blasting Machine
- Product details
Qingdao KEEJOO Group designs and manufactures fully automated Steel Pipe Shot Blasting Machine for surface profiling and removing rust and mill scale from welded steel pipe. Pipe must be cleaned and dust free prior to the coating process. we works with customers to determine the their requirements and will consider many factors, including: Steel abrasive types,Profile requirements, Surface cleaning requirement ,Line speed requirement.
Steel Pipe Pass Through Type Shot Blasting Machine Advantage:
Our Steel Pipe Shot Blasting Machine adopts high-chromium guard plate and full manganese steel guard plate double-layer guard plate protection, the service life is 20 years;
Adopt V-wheel system transmission, frequency conversion speed regulation;
Adopt secondary separation system;
Adopt high-performance motor and high-chromium precision casting shot blasting machine;
Steel shot flow semi-automatic control system;
Configure automatic sand cleaning system; adopt automatic loading and unloading system;Technical parameter
Parameter dia of Cleaning Size (mm) Cleaning Speed (m/min) Purposes QGW100 50-300 2-10 Outer Wall of Shot-blasting Machine QGW720 159-720 2-6 QGW1200 219-1016 1-6 QGW1500 325-1600 1-6 QGW2800 1016-2800 1-2 QGN100 50-300 1-4 Inner Wall of Shot-blasting Machine QGN700 325-720 1-2 QGN1000 720-1016 1-4 QGN1500 1016-1500 1-4 Product Function
The functions of our Steel Pipe Pass Through Type Shot Blasting Machine can be described in three aspects:
Steel pipe outer wall shot blasting machine: It removes the oxide scale and rust layer on the surface of the steel pipe through the high-speed impact of shot to enhance the surface roughness of the steel pipe.
Steel pipe inner wall shot blasting machine: It uses shot blasting technology to clean the inner wall and ensure the surface cleanliness before welding or spraying.
Automated operation: Equipped with a PLC control system, it realizes the full-process automation of feeding, shot blasting and dischargingSteel Pipe Pass Through Type Shot Blasting Machine Features:
Pitless design: Some models of Steel Pipe Pass Through Type Shot Blasting Machine do not require the excavation of a pit, making installation more convenient.
Continuous operation: Supports continuous production and has relatively high efficiency.
Applicable industries: Covering steel structures, petrochemicals, lifting machinery and other industries.
