Steel Structural Shot Blasting Machine
- Product details

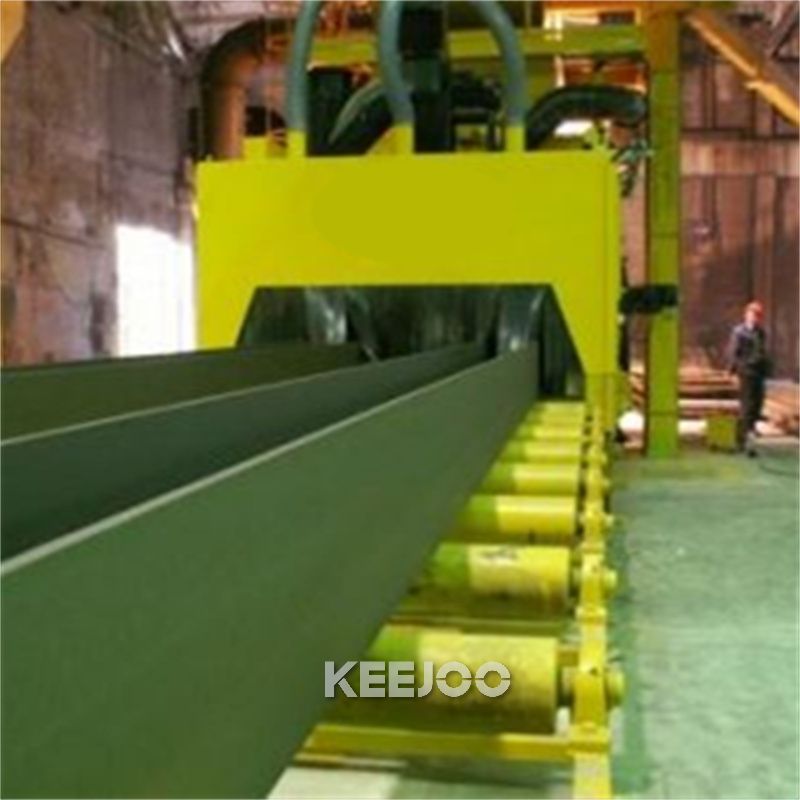

High quality Steel Structural Shot Blasting Machine with KEEJOO brand is a conveying through-type automatic shot blasting cleaning equipment, which is a special equipment for cleaning the surface of steel sections, pipe fittings and structural components, to obtain a certain roughness of clean surface and improve surface quality. By adopting some German technologies and self-developed technologies, the technical performance of the equipment has reached the leading level in the Asian region.
Technical parameter
Model KJ1500HD KJ 2000D KJ 2500HD KJ 3000HD KJ 4000HD Inlet width (mm) 1600 2100 2800 3300 4300 Inlet height (mm) 550 550 550 550 550 Processing speed(m/min) 1.5-4.5 1.8-5.0 1.0-3.0 0.8-2.5 0.8-2.0 No. Of shot blaster 4 6 6 6 8 Power of single shot blaster (kW) 15/18.5 15 11/15/18.5 15/18.5 11/15 Roller spacing (mm) 800 800 750 750 750 Optional roller conveyor spacing (mm) 400 400 500 500 500 This Steel Structural Shot Blasting Machine is a conveying through type automatic shot blasting cleaning device, which is a special equipment for cleaning the surface of steel sections, pipe fittings and structural components, to obtain a certain roughness of clean surface and improve surface quality. By adopting some German technologies and self-developed technologies, the technical performance of the equipment has reached the leading level in the Asian region
Composition
Steel Structural Shot Blasting Machine includes shot blasting chamber, shot blasting auxiliary chamber, abrasive control unit, shot blasting system, abrasive recovery, sorting and storage system, ventilation and dust removal system, roller conveyor, electrical control system, maintenance platform, safety system, etc. The mechanical and electrical systems should be equipped with reliable safety protection devices
Certificate
The Steel Structural Pass Through Type Shot Blasting Machine complies with the relevant standards, certifications and requirements of the EU CE, German TUV and French BV.
Characteristic
It adopts the most advanced direct-coupled shaft high-power shot blasting machine technology in Asia
It features a more advanced structure, a longer service life, and simpler and more convenient maintenance. Compared with conventional shot blasting machines, it increases efficiency by 20% and saves 50% of maintenance costs.
The ejection Angle is truly designed in 3D. The inclined incident Angle of the side shot blasting machine on the front and rear end faces reaches 350 degrees, ensuring comprehensive and thorough cleaning of complex structural components.
The wear-resistant parts of the shot blasting machine are made by investment casting Cr27% process, which has a service life more than three times that of ordinary sand-cast chromium materials
It adopts independently developed bearing protection technology, featuring excellent sealing performance and achieving maintenance-free operation.
