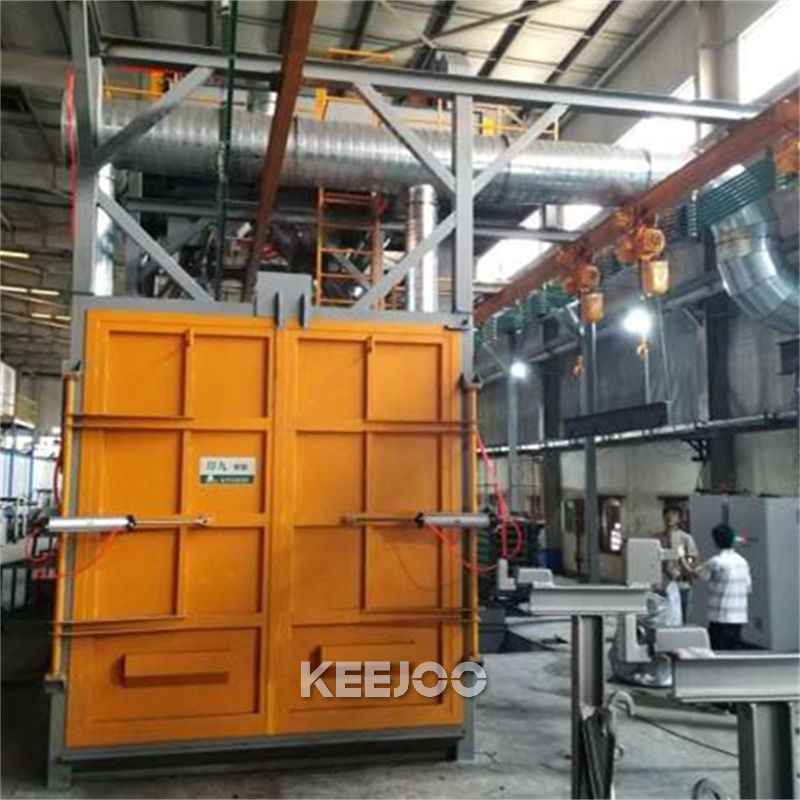

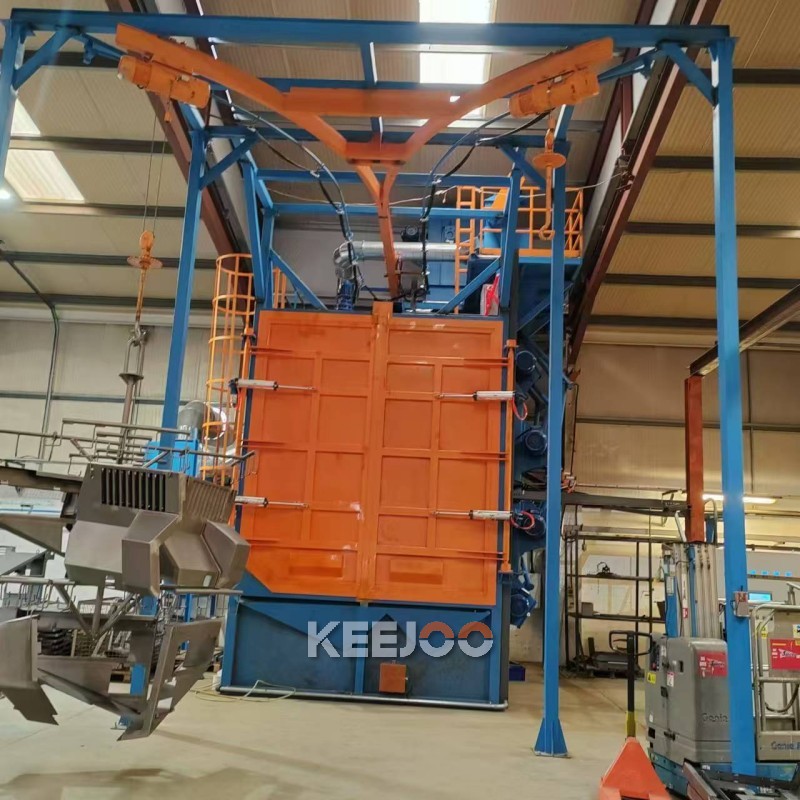

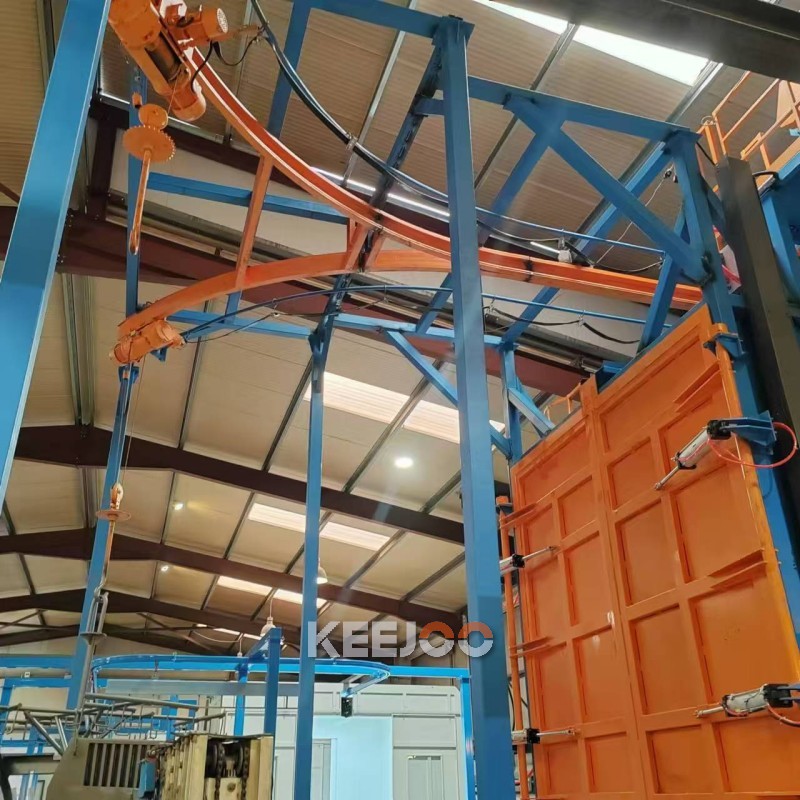

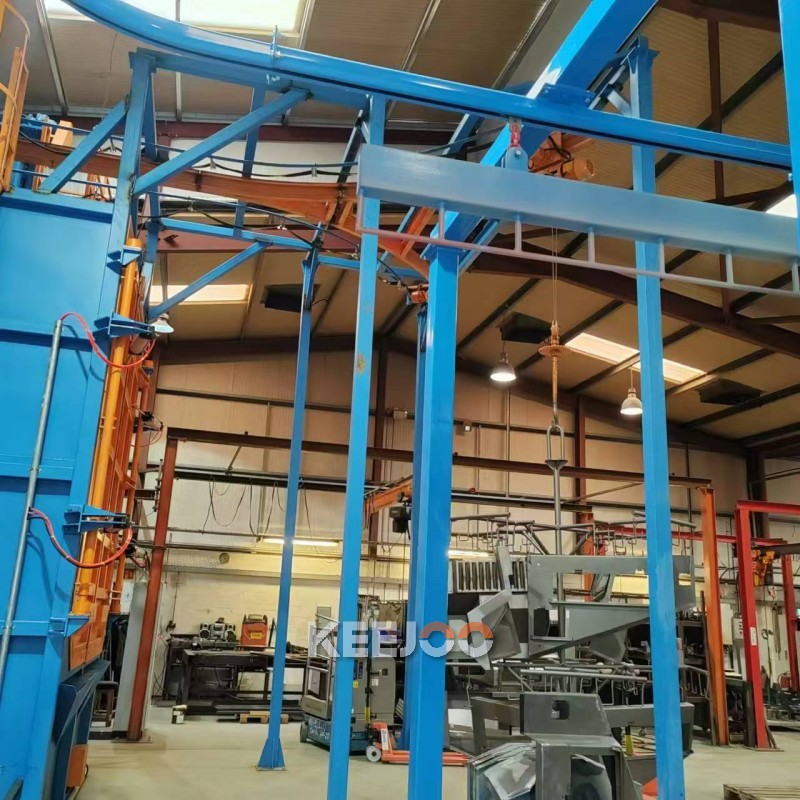

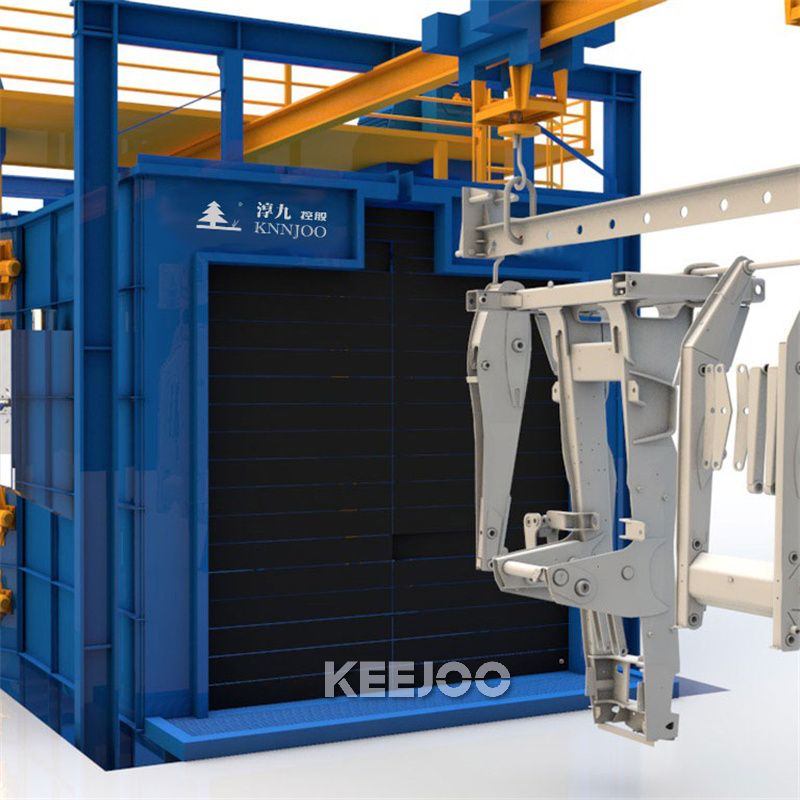

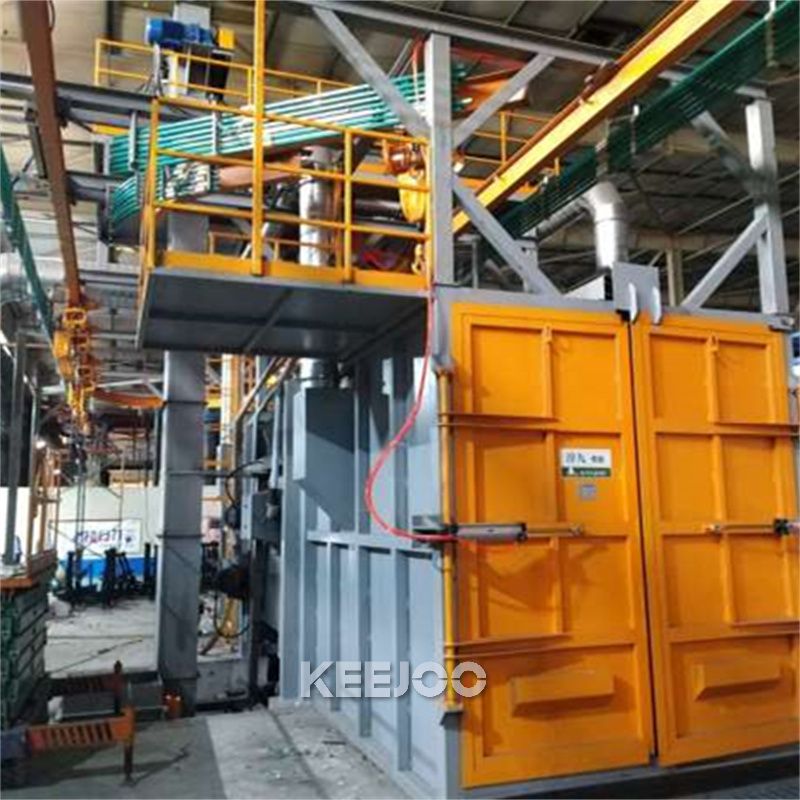

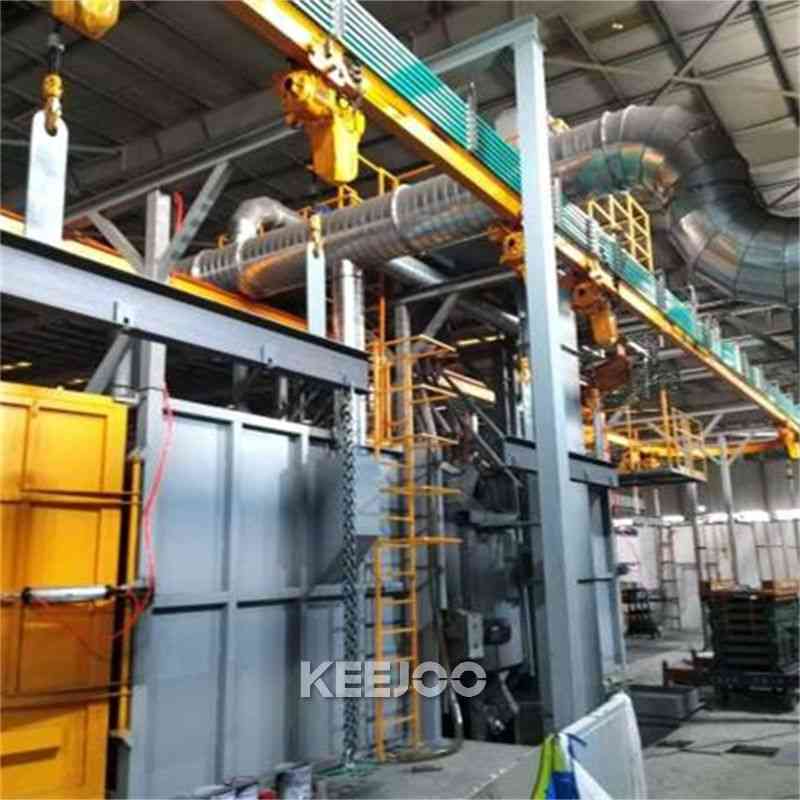

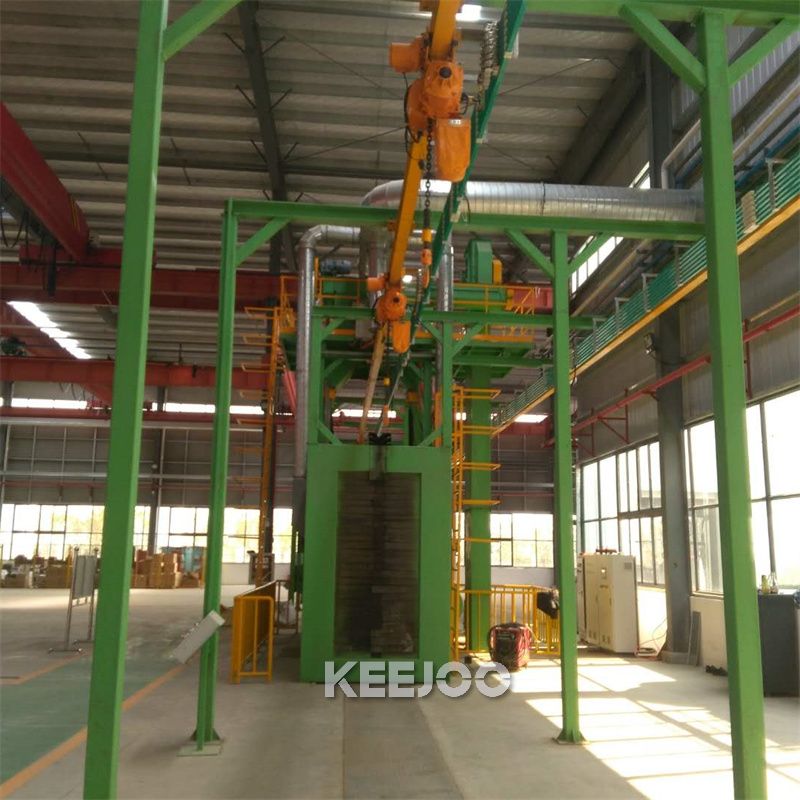

Surface Strengthening Shot Blasting Machine
- Product details
KEEJOO durable Surface Strengthening Shot Blasting Machine can use the extremely fast rotating shot to rapidly cut and grind the rust on the surface of a large number of parts. Under high-temperature conditions, these rusts will become very easy to remove. The hook-through type shot blasting machine can also carry out surface sandblasting treatment. After sandblasting treatment, the load-bearing capacity of some key parts can be increased, and the corrosionn resistance can also be improved
Technical data
Specifaction Size of cleaning piece Max, lifting height Total blasting capacity Total power HSK-7Y/7S φ800*1100
φ700*11000.5T 180Kg*2
7.5Kw*222-33Kw HSK-9/9Y φ1200*1500
φ900*16001.0T 240Kg*2
11-7.5Kw*236-45Kw HSK-10/10Y φ1200*1500
φ900*18501.0T 240Kg*2
11Kw-7.5*239-55Kw Surface Strengthening Shot Blasting Machine features
1. The hook shot blasting machine has stable performance and simple structure. High shot blasting efficiency and low consumption. Long service life and easy to use.
2. Good separation effect, high productivity, and improved blade life of shot blasting machine.
3. Automatic unloading, reduce labor intensity.
4. The hook rotates to reduce the collision damage to the workpiece and the noise of the machine.Maintenance and selection suggestions
Regular inspection: If the wear of the control cage window exceeds 5mm, adjust the Angle; if it exceeds 15mm, replace it to prevent a decrease in efficiency
Electrical maintenance: Keep the insulation resistance qualified and do not change the component model without authorization.
Key points for selection: Choose single or double hooks according to the size of the workpiece. For heavy parts, pair with an electric hoist lifting systemOur Services
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. As an honest seller, we always use superior raw material, advanced Surface Strengthening Shot Blasting Machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
