Thin Steel Plate Pretreatment Line
- Product details

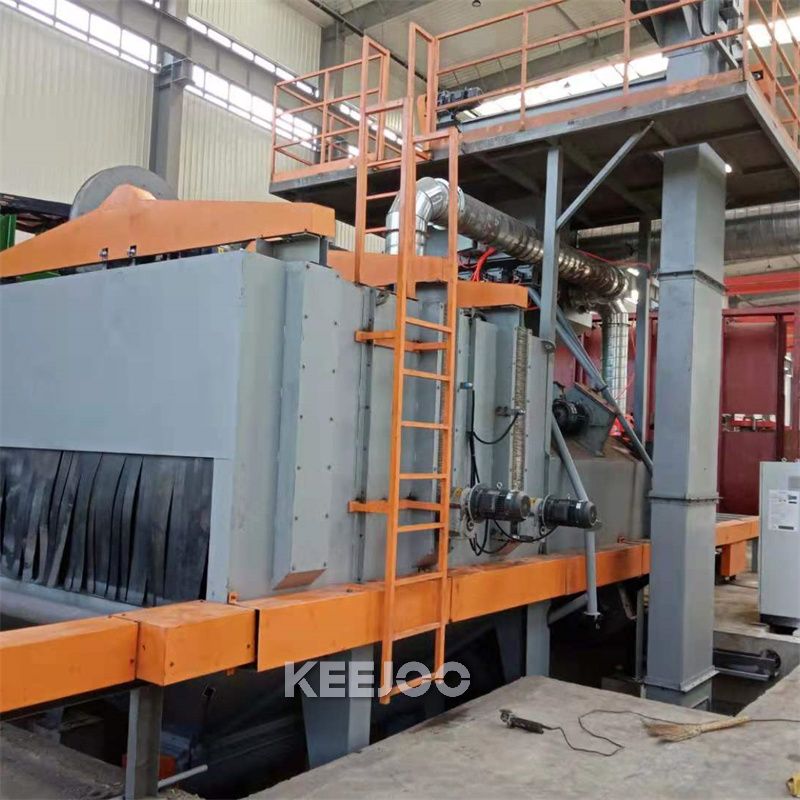

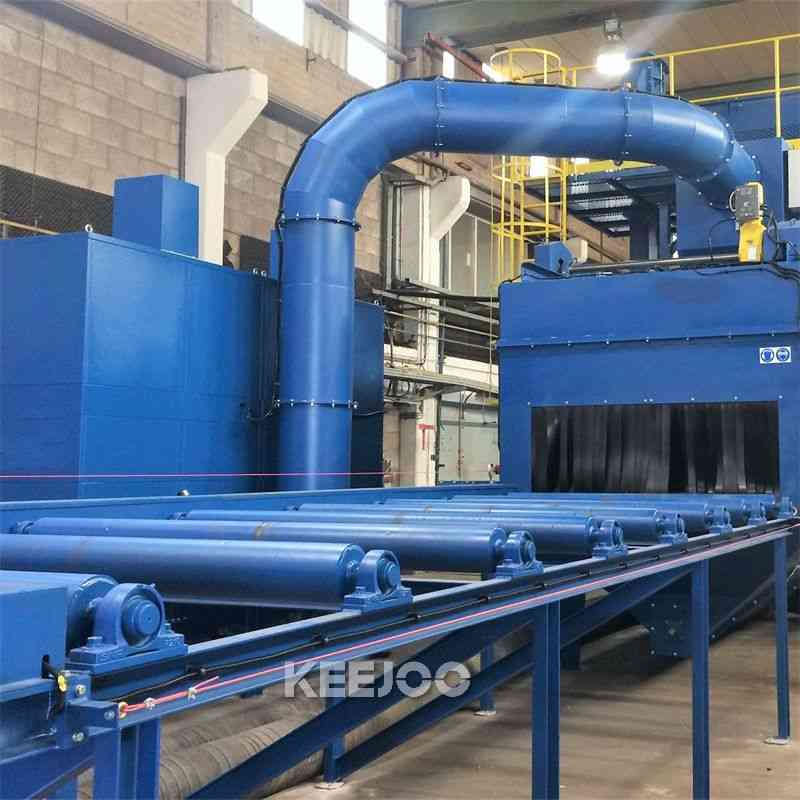

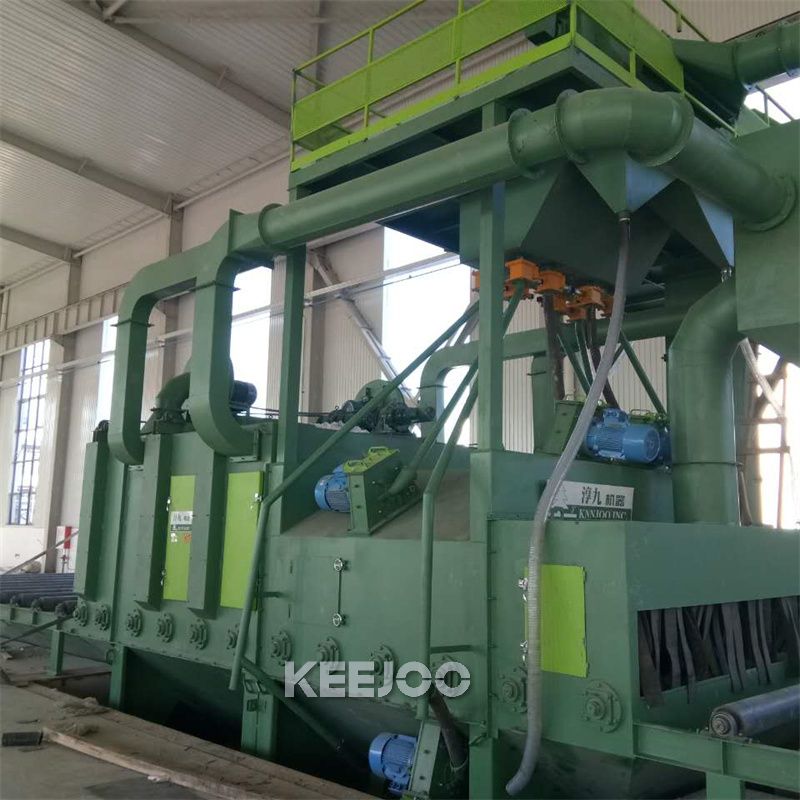

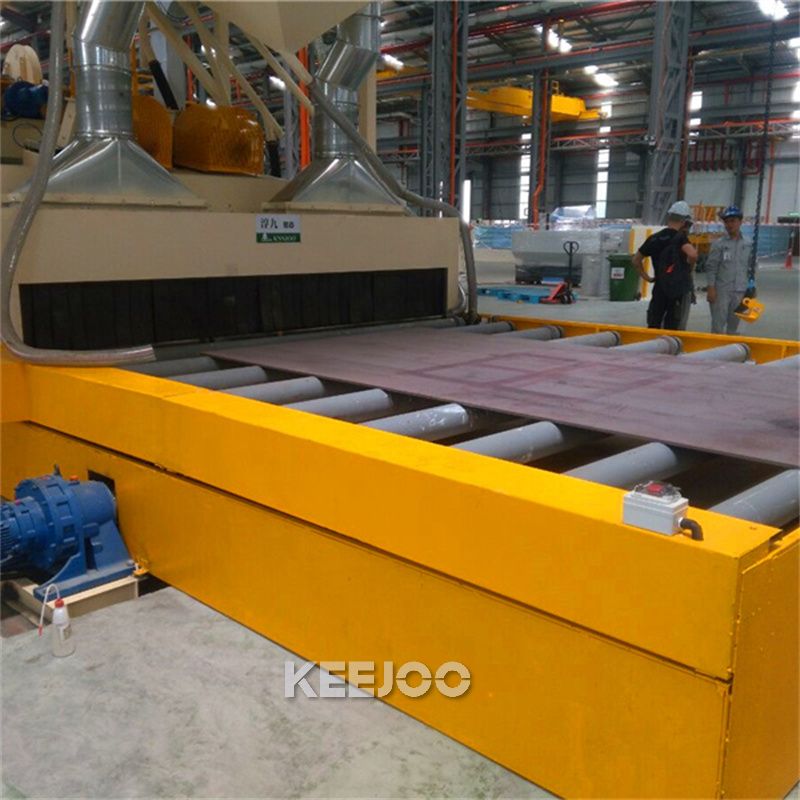

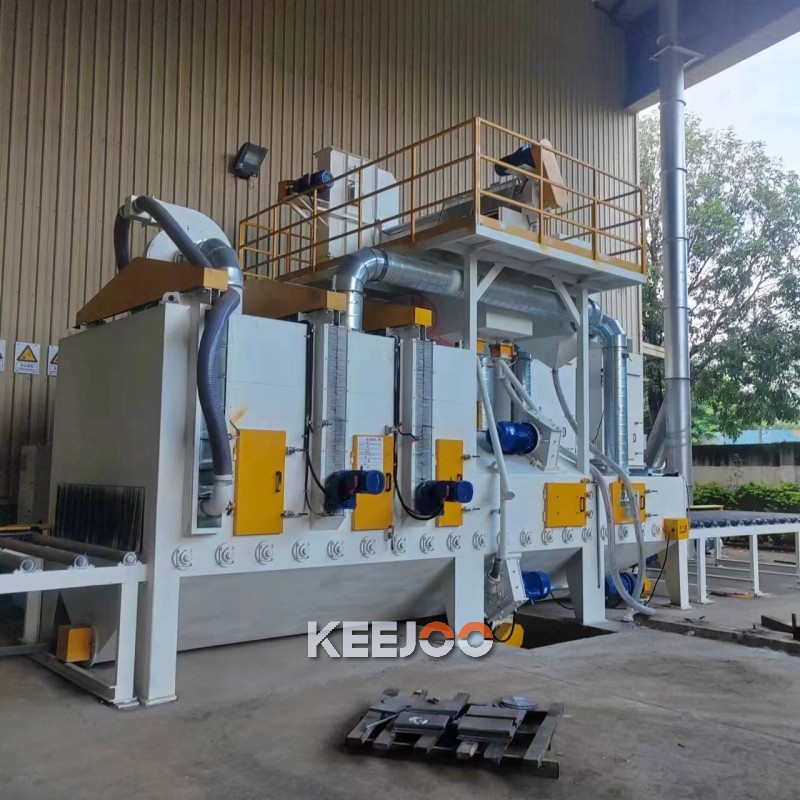

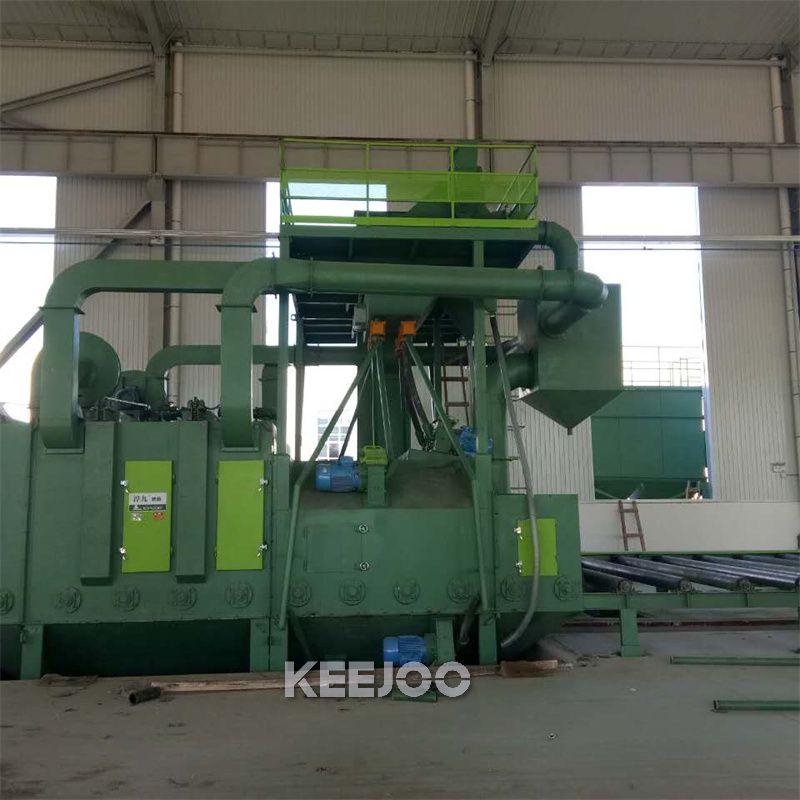

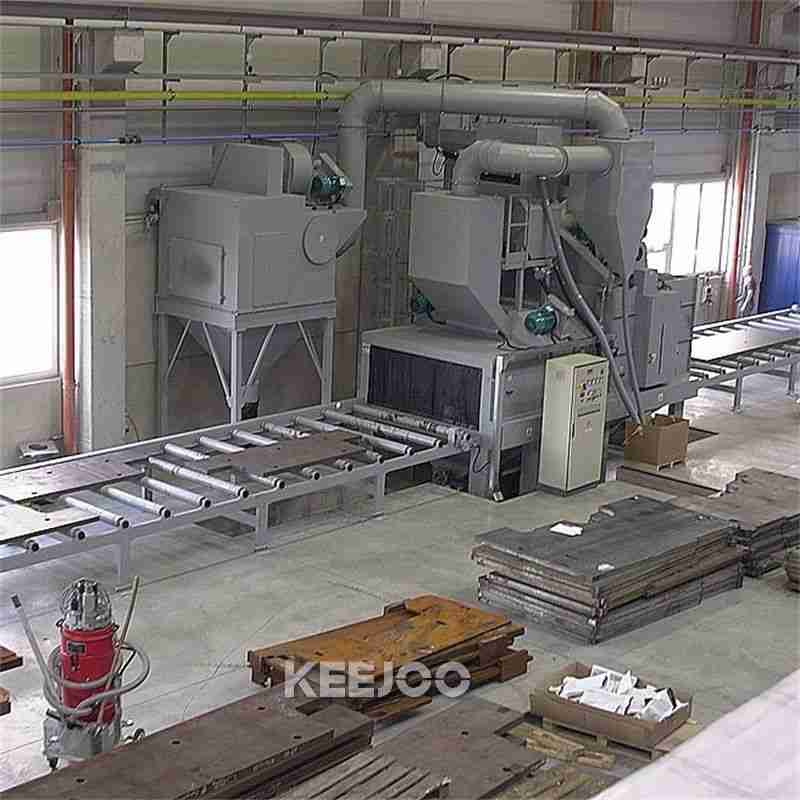

KEEJOO durable thin steel plate pretreatment line is a kind of equipment used for the pre-treatment of steel processing. It is mainly used to clean the rust layer and dirt on the surface of thin plates and carry out painting treatment to improve the anti-corrosion ability and service life of thin plates. The thin plate pretreatment line mainly consists of a conveying system, shot blasting and dust removal system, painting system, drying system, paint mist and waste gas treatment system, electrical program control system, etc. It can be equipped with an automatic loading and unloading system, preheating chamber, etc., to further optimize the pretreatment effect of thin plates.
Characteristic
1.It can be thrown from multiple angles
The KEEJOO brand high-efficiency shot blasting machine is adopted. Through the high-efficiency and dense shot beam, all-round cleaning is achieved, which can remove rust layers, welding slag and oxide scale.
2.Automated conveying system
Equipped with a cross-type conveying system, thin steel plate pretreatment line supports continuous loading and unloading of materials and avoids mutual collision between thin plates
3.Environmental protection treatment
The shot and dust mixture is separated by a screw conveyor, elevator and separator. The shot can be recycled, while the dust is purified and treated by a dust removal system
Technical parameters:
Type KJXY1600 KJXY2000 KJY2500 KJY3000 KJXY3500 KJXY4000 Steel plate Width 500-1600 1000-2000 1000-2500 1000-3500 1000-3500 10000-4000 Thickness 3-20 3-60 5-30 3-60 5-35 5-50 Length 2000-12000 1500-1200 2000-1200 2400-120000 2000-12000 2400-16000 Structure parts Max. width 1600 800 2500 1500 3500 4000 Max, height 500 300 400 800 400 500 Max. length 2000-12000 2400-12000 2000-12000 2400-12000 2000-12000 2400-15000 Roller conveyor Permission load 1 1 1.5 2 2 2 Speed 2-4 1-5 2-4 0.5-4 2-4 2-4 Quality and After-sale Assurance:
1. Supplier promise the name, model, specification and quantity comply with technical protocol, assuring the machine is new equipment with qualified material manufactured through perfect technology. There are no defects in design, material and technologies, which is suitable for propose of demander, and meets the standard of national industry. The quality is stable and reliable.
2. Equipment warranty and After-sale Assurance Engineers available to service machinery overseasFuture development
In the future, the development of shot blasting machines for thin plate pretreatment lines will be more efficient, intelligent and environmentally friendly along with the advancement of technology. On the one hand, by constantly optimizing the design of the shot blasting machine and enhancing the performance of the motor, the cleaning efficiency and quality of the equipment can be further improved. On the other hand, intelligent and automated control systems and sensor systems can make the shot blasting process operation more precise, reducing manual intervention and operational difficulty. Meanwhile, advanced dust removal and waste gas treatment devices are adopted to significantly suppress dust emissions and effectively promote green and low-carbon production.
